Description

Overview

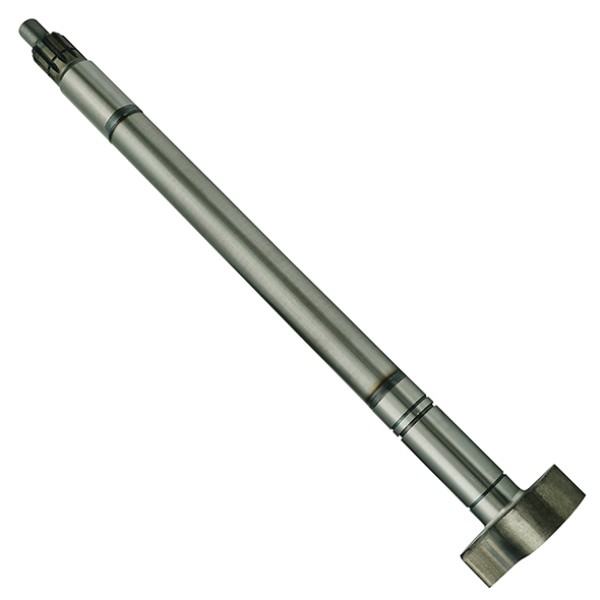

BPW New Gen left hand brake camshaft restores the S-cam actuation point in BPW New Generation drum brake assemblies. The camshaft carries slack adjuster rotation through to the brake shoes, so the left-hand side, shaft length, cam end and spline details all need to match before installation.

Features

• Left-hand S-camshaft for BPW New Gen trailer drum brake applications.
• 631mm over-thread A dimension for matching against the removed shaft.
• 42mm cam end with stepped 42mm / 22mm spline end.
• 10-spline configuration for compatible slack adjuster fitment.

Specifications and Materials

Part number: FB2059.

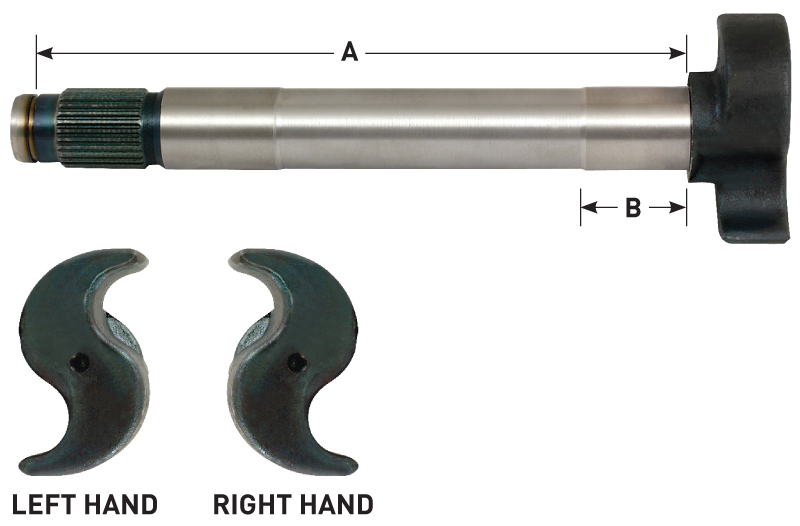

The BPW New Gen left hand brake camshaft measures 631mm over thread, with a B dimension of 20mm / 99mm / 108mm. It uses a 42mm cam end, a 42mm / 22mm spline end and 10 splines, so compare these points with the original shaft before ordering.

Choose the aftermarket or genuine option to suit the job requirements when adding this part to the order.

See the BPW drum brake technical information

Compatibility and Fitment

Match this camshaft to BPW New Gen left-hand brake assemblies, then check the side, over-thread length, spline count and end diameters against the removed component. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0509705251, 05.097.05.25.1, 17.6657A, 176657A, BP7039, IT3326, WT2039, FP2039, T02-2063, T022063

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the cam bushes, seals, circlips, washer, slack adjuster and return spring while the camshaft is out. If the shaft or bearing surfaces show wear, replace the affected service parts and confirm free rotation before the brake is adjusted.

Trailer Applications

Workshops fit the BPW New Gen left hand brake camshaft where the left-hand S-camshaft has worn at the cam head, spline or bearing surface. Therefore, fleets and mechanics can match the removed shaft against the dimensions above before completing brake service.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Videos

This BPW training video shows camshaft and bush replacement on a BPW drum brake axle.

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer brake components for workshop repairs, fleet maintenance and parts-counter orders. If the camshaft has worn, check the matching right-hand side and camshaft service parts at the same time so the brake assembly returns to service cleanly.
