Fuwa K Hitch 10 Stud Brake Drum 225mm PCD

Allan Davis on 01/06/2026

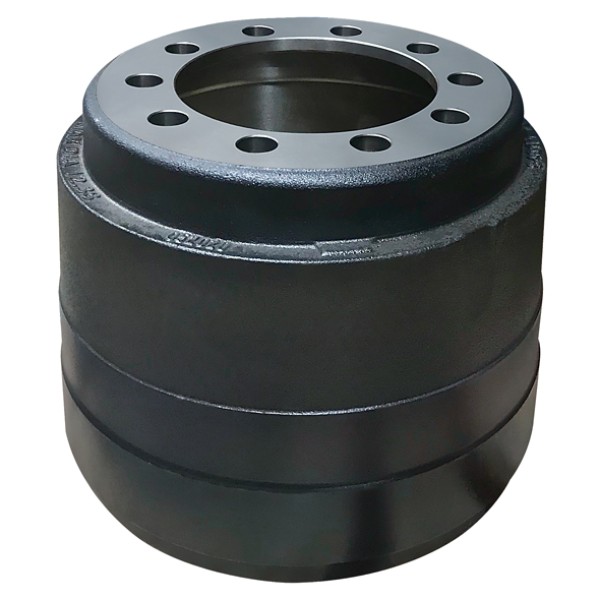

225mm PCD brake drum for Fuwa K Hitch 10 stud axle
Fuwa K Hitch 10 Stud Brake Drum 225mm PCD - Image 2

Fuwa K Hitch 10 Stud Brake Drum 225mm PCD

$303.00

225mm PCD brake drum for Fuwa K Hitch KK44 low loader axle service, with 10 stud layout, 311mm x 190mm brake size, 183mm pilot and 289mm drum height for matching the removed drum.

Part number H32-9401.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: H32-9401 Category: Tags: , , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

225mm PCD brake drum restores the drum braking surface on Fuwa K Hitch KK44 low loader axle assemblies. This 10 stud drum suits 311mm x 190mm brake setups where the existing drum, hub, pilot and mount hole dimensions match.

Features

  • 10 stud brake drum for Fuwa K Hitch KK44 low loader axle applications.
  • 225mm PCD with 24.5mm mounting holes.
  • 311mm x 190mm brake size for matching existing drum brake hardware.
  • 183mm drum pilot and 289mm drum height.

Specifications and Materials

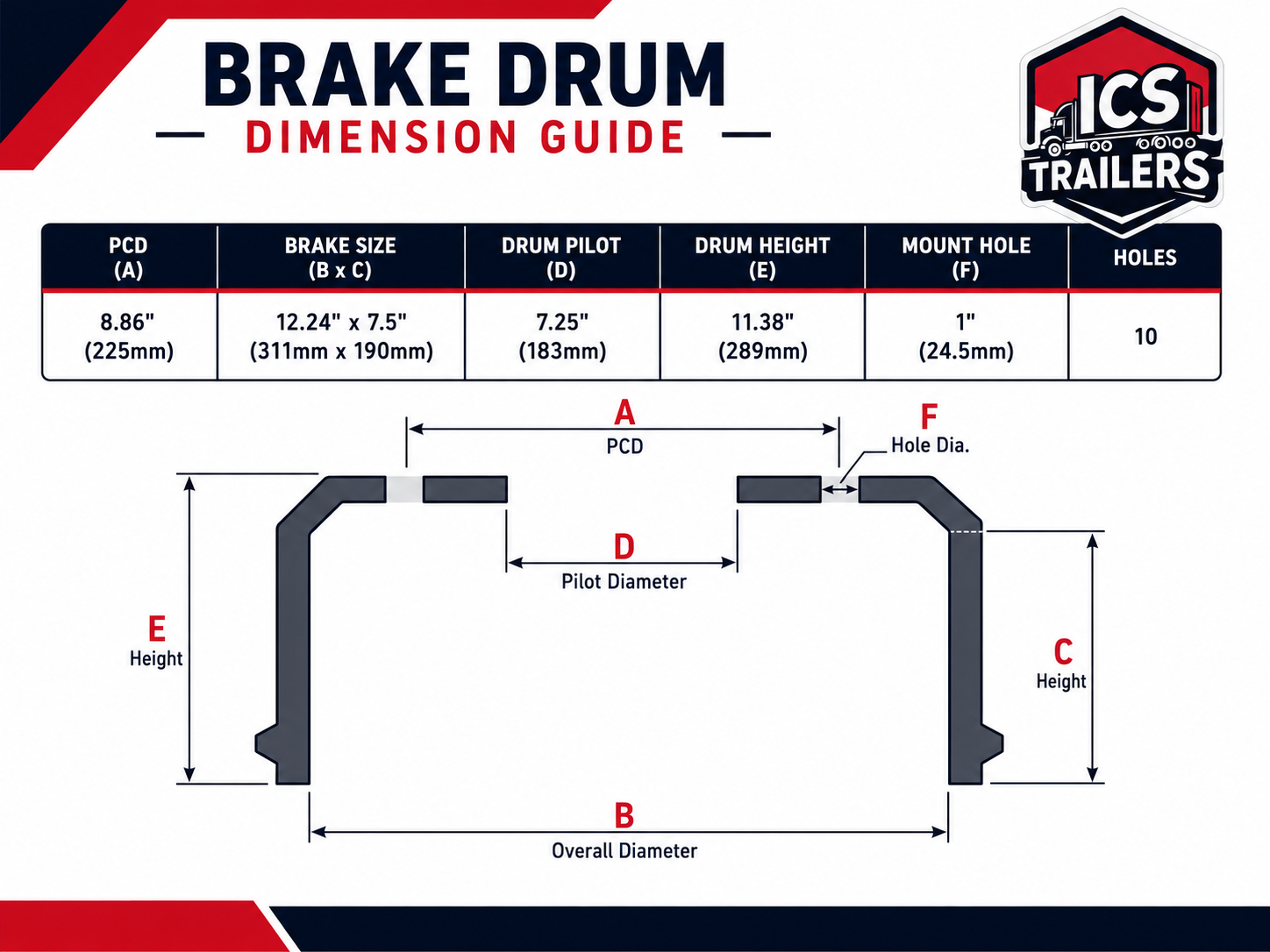

This 225mm PCD brake drum matches a 10 stud wheel-end layout with 311mm x 190mm brake size, 183mm pilot, 289mm drum height and 24.5mm mount holes. The Fuwa K Hitch KK44 parts view lists two drums per axle.

Part number: H32-9401.

Use the Fuwa K Hitch KK44 axle parts view

Compatibility and Fitment

Match the PCD, stud count, brake size, pilot diameter, drum height and mount hole diameter before ordering. Also compare the removed drum against the hub and axle setup, because similar 225mm PCD drums can use different brake widths or pilot sizes.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Hub drum assembly H30-9401 Short stud hub drum assembly
Hub drum assembly H30-9401Z Long stud hub drum assembly
Hub to suit H31-9401 Short stud hub assembly
Stud to suit KH800104 M22 x 100 wheel stud
Nut to suit KH800096 M22 wheel nut
Seal to suit 373-0243 Wheel-end seal



Compliance and Safety

Inspect the hub face, wheel studs, mounting holes and brake shoes before fitting the replacement drum. If the drum has cracked, gone out of round or worn past service limits, replace it before the trailer returns to work.

After fitting, check wheel-end assembly, fastener condition and brake adjustment. Also recheck the brake operation after service so the shoe contact and wheel-end retention are correct.

Trailer Applications

Workshops fit this 225mm PCD brake drum during Fuwa K Hitch KK44 low loader axle repairs, hub servicing and foundation brake maintenance. It suits 10 stud wheel ends where the drum braking surface has worn, scored, cracked or heat checked.

Why Choose ICS Trailers

ICS Trailers supplies foundation brake parts for trailer brake repairs, low loader servicing and fleet maintenance where drum size and wheel-end fitment need to line up.
