Description

Overview

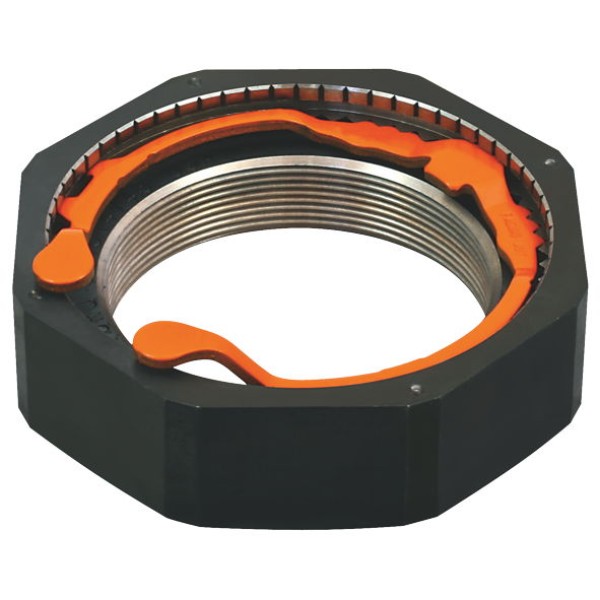

Stemco Pro-Torq axle nut secures the trailer wheel end and controls bearing adjustment on GP trailer axle applications. It replaces the common inner nut, lock washer and outer nut arrangement with a single heavy lock nut setup.

Features

• Suits GP trailer axle wheel ends with matching spindle and bearing setup.
• Single-nut Pro-Torq design helps control wheel bearing adjustment.
• 95mm A/F size matches the 3 3/4″ 8 point socket requirement.
• Uses AP4122 as the replacement keeper when the keeper is serviced.

Specifications and Materials

This Stemco Pro-Torq axle nut suits 17,000-22,500lb trailer axle wheel-end applications where the spindle, thread and bearing set match.

Part number: 447-4743.

A/F: 95mm. I.D: 65mm. Thickness: 26mm. Thread size: 2 5/8″-16. Tool socket: 3 3/4″ 8 point. Outer bearing cone and cup: HM212049 / HM212011.

Use the Garlock Pro-Torq axle fastener resource for Stemco Pro-Torq product and service information

Compatibility and Fitment

Match the spindle thread, axle rating, bearing cone and cup, socket size and keeper style before ordering. Also confirm the existing nut system, because this heavy lock nut replaces the common three-piece axle nut and washer arrangement.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AP4126, MER614743, 614743, 447.4743, 4474743

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the spindle, bearing set, keeper groove and keyway before fitting. Replace the keeper when the nut assembly comes off for service, then follow the wheel-end adjustment procedure for the hub and axle system.

Trailer Applications

Workshops fit the Stemco Pro-Torq axle nut during trailer wheel-end service on Meritor, Dana, Eaton, Standard Forge and Ingersoll GP trailer axle applications. It suits repairs where the buyer needs the heavy Pro-Torq lock nut rather than the common inner nut, washer and outer nut setup.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
