Trailer Axle GP TN 10/285 1850mm Track

Allan Davis on 02/06/2026

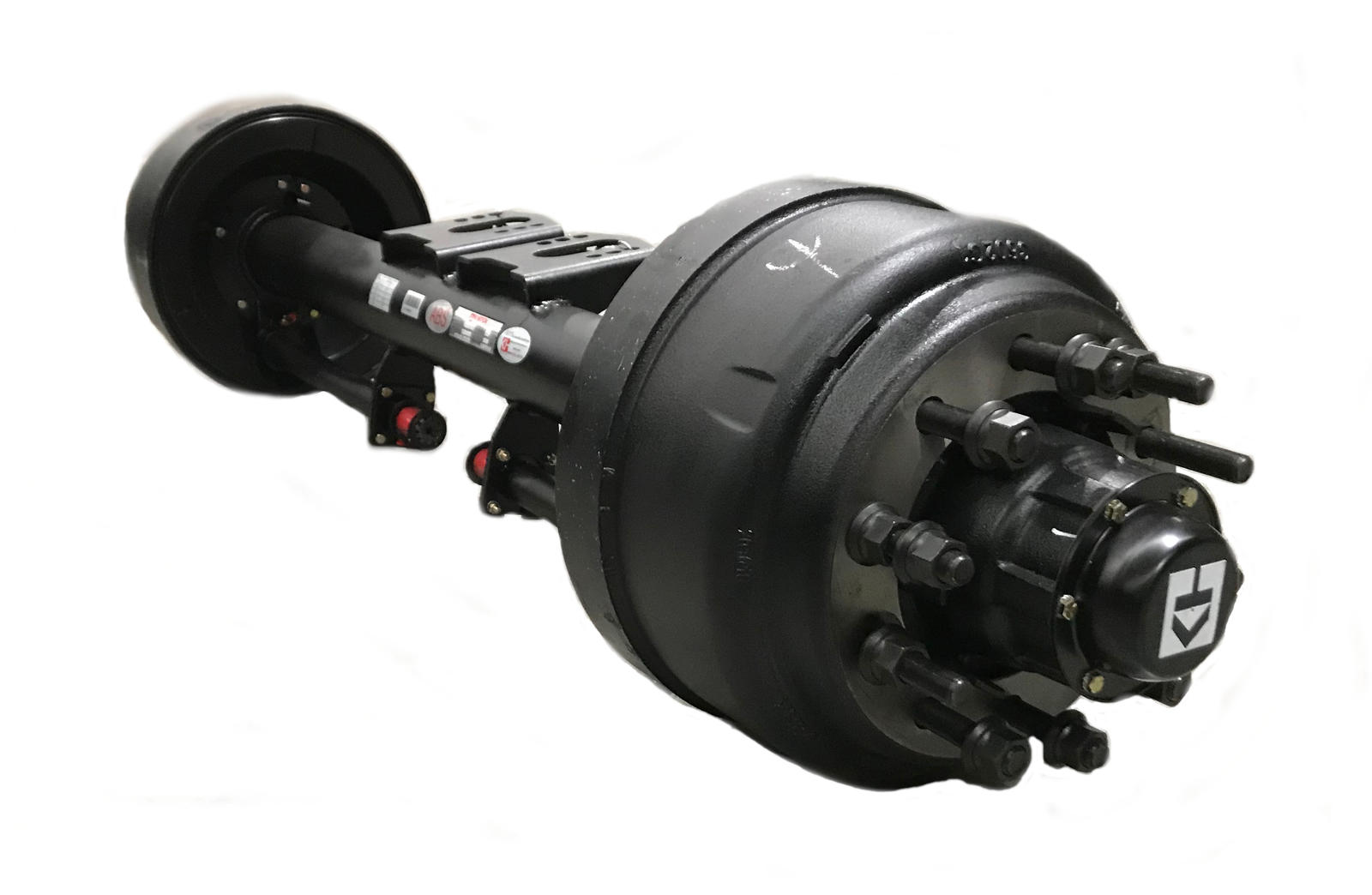

GP TN trailer axle 10/285 1850mm track

Trailer Axle GP TN 10/285 1850mm Track

$1,924.00

GP TN trailer axle for 1850mm track heavy trailer applications, with 10-stud 285.75mm PCD, 16.5″ x 7″ drum brakes, grease lubrication and 11.5t axle rating.

Part number KF22AG15L1850N30S.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: KF22AG15L1850N30S Category: Tags: , , , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

GP TN trailer axle supports 11.5 tonne drum brake trailer wheel-end service with a 10-stud 285.75mm PCD hub setup. It suits 1850mm track applications where the axle must match GP brake size, grease lubrication, bearing setup and long stud wheel-end configuration.

Features

  • 1850mm track trailer axle with 10-stud 285.75mm PCD wheel-end layout.
  • 11.5 tonne axle load rating for heavy trailer applications.
  • 16.5″ x 7″ drum brake specification with GP brake configuration.
  • Long stud setup with manual slack adjuster specification.

Specifications and Materials

This GP TN trailer axle uses a round axle beam, grease lubrication and hub-to-hub wheel-end configuration.

Part number: KF22AG15L1850N30S.

Track: 1850mm. PCD: 285.75mm. Hole count: 10. Mounting diameter: 127mm. Bearing reference: HM218210/48. Brake type: drum brake. Brake size: 16.5″ x 7″. Axle load: 11.5t. Rim size: 22.5″. Colour: black.

Use the Fuwa K-Hitch product guide when checking KF22 drum brake axle configuration details.

Compatibility and Fitment

Match the track width, PCD, rim hole count, bearing reference, brake size and axle load before ordering. Also check the hub style, stud length, slack adjuster setup and suspension mounting layout, because similar KF22 axle variants use different spindle, stud and track combinations.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Service kit D20-020101K Brake shoe kit
Shoe set to suit D20-020101 Brake shoe set
Camtube kit to suit C30-0201-627K 1850 track camtube kit
Used with 27823EF Manual slack adjuster
Used with H18-0101 Dust cover



Compliance and Safety

Inspect the axle beam, wheel ends, brake hardware, suspension mounts and ABS components before installation. Replace damaged brake or hub components during axle changeover, then confirm brake adjustment, wheel bearing setup and wheel fastener torque before returning the trailer to service.

Trailer Applications

Workshops fit the GP TN trailer axle on semi-trailers and heavy trailers using 22.5″ rims, 10-stud 285.75mm PCD hubs and 16.5″ x 7″ GP drum brakes. It suits replacement work where the existing axle must match 1850mm track, grease lubrication and 11.5 tonne axle capacity.

Why Choose ICS Trailers

ICS Trailers supplies trailer axles, brake components and wheel-end service parts for heavy trailer repairs where track, PCD and brake fitment need to line up. Browse more Axle Parts from ICS Trailers.
