Description

Overview

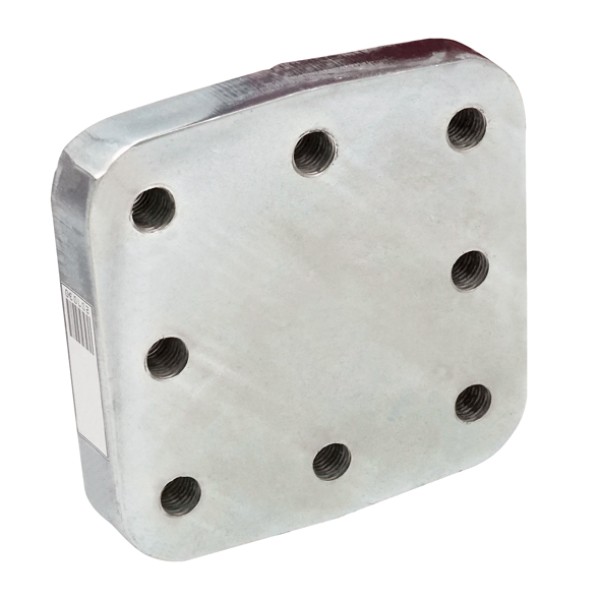

Drawbar weld in plate provides the welded mounting base for the matching 50mm flanged drawbar eye. It suits heavy trailer drawbar coupling setups where the eye mounts to a weldable plate rather than directly into the drawbar structure.

Features

• 200mm x 200mm weldable plate format for the matching flanged drawbar eye setup.
• 30mm plate thickness suits heavy coupling mounting service.
• M16 mounting hole specification matches the supported plate pattern.
• Pairs with the listed 50mm flanged drawbar eye for drawbar fixed and hinged trailer applications.

Specifications and Materials

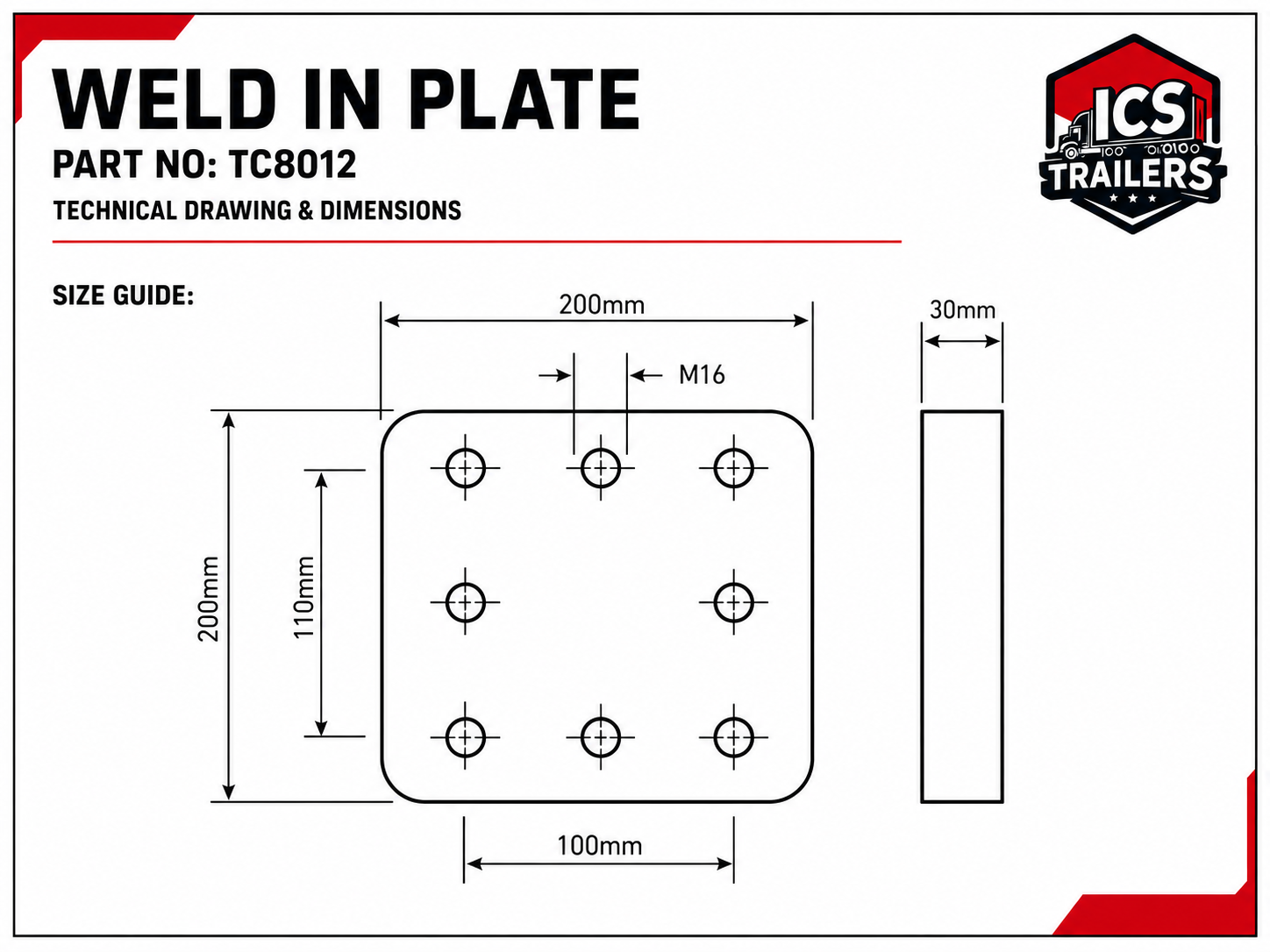

This drawbar weld in plate measures 200mm x 200mm with a 30mm plate thickness. The supported mounting pattern includes 100mm, 110mm and 110mm spacing references with M16 holes, so compare the old plate, eye and drawbar setup before ordering. Part number: TC8012.

See the manufacturer coupling catalogue for the matching weldable plate family.

Compatibility and Fitment

Match this plate to the drawbar eye, mounting pattern and trailer drawbar design before welding. The drawbar weld in plate suits the related 50mm flanged drawbar eye listed below.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. PS00200

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Prepare the drawbar area correctly before welding, then confirm the finished installation against the trailer coupling requirements. Because this plate forms part of the towing connection, use competent welding practice and inspect the surrounding drawbar structure before returning the trailer to service.

Trailer Applications

Workshops use this drawbar weld in plate on fixed and hinged trailer drawbar setups that run the matching 50mm flanged drawbar eye. It helps provide the weld-in mounting base for a bolted flanged eye assembly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies the weld plate alongside the matching drawbar eye, helping workshops keep the main coupling components together when repairing or building trailer drawbar assemblies.
