Bare Knuckle 16mm 32T Trailer Chain Attachment Kit
Allan Davis
on
15/06/2026
Bare Knuckle 16mm 32T Trailer Chain Attachment Kit
$335.00
Bartlett Bare Knuckle BK16-32D trailer-side safety chain attachment kit for compatible 16mm G80 chain, rated to 32,000kg ATM. Includes high tensile retaining pins and pinch clips. The 16mm measurement describes the steel thickness of each chain link, not the retaining pin dimensions. Chain sold separately.
Part number TC0533.
Quick Quote
|
Select from a home delivery or a delivery to your business address. |
Description
Overview

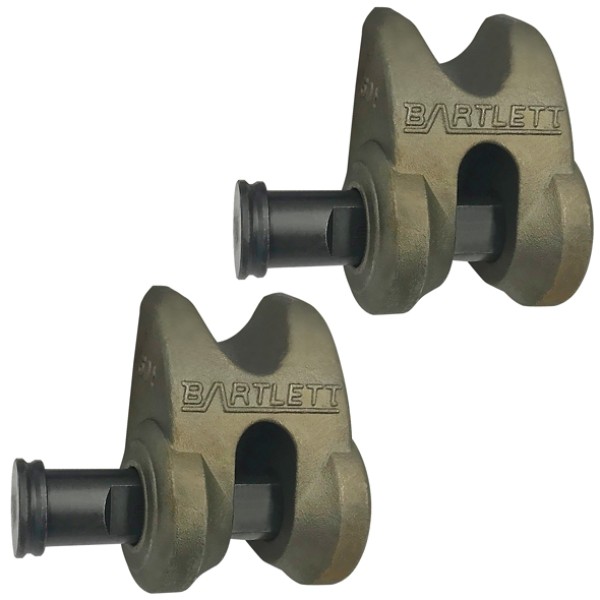

The Bartlett Bare Knuckle 16mm trailer chain attachment kit provides a fixed connection point for safety chains on heavy trailer drawbars. The BK16-32D assembly uses high tensile retaining pins and pinch clips to secure compatible 16mm G80 safety chain directly to the trailer-side attachments.
Rated for applications up to 32,000kg ATM, the kit provides permanent chain retention without requiring additional connecting links between the chain and attachment.
Features
- Trailer-side attachment for the Bartlett BK16 safety chain system.
- Maximum system rating of 32,000kg ATM.
- Includes weldable steel alloy attachments.
- High tensile retaining pins and pinch clips included.
- Direct chain connection without additional connecting links.
- Safety chain purchased separately.
Specifications and Materials
- Manufacturer: Bartlett
- Model: BK16-32D
- Compatible chain thickness: 16mm
- Chain grade: G80
- Maximum ATM: 32,000kg
- Mounting position: Trailer side (drawbar)
- Retaining hardware: High tensile pins and pinch clips
- Component Registration Number: 49481
Part number: TC0533.
Refer to the National Heavy Vehicle Inspection Manual for heavy trailer coupling and safety chain inspection requirements
Compatibility and Fitment
The 16mm chain measurement refers to the diameter of the solid steel forming each individual chain link. It does not describe the retaining pin length or diameter, the overall size of the link, or the opening inside the chain link.
Check the trailer drawbar construction, mounting location, chain grade and required ATM rating before installation. The high tensile pins and pinch clips must correctly retain the compatible chain end links.
Related Parts
| Relationship | Part Number | Description |
|---|---|---|
| Matching truck-side kit | TC0532 | Bartlett BK16-32T attachment kit |
| Chain to suit | TC9500 | 16mm G80 towing safety chain pair |
Compliance and Safety
Have the attachment installed by qualified heavy vehicle workshop personnel in accordance with Bartlett’s installation requirements. Inspect the drawbar attachment, retaining pins, pinch clips and chain movement before returning the trailer to service.
Trailer Applications
Designed for heavy rigid drawbar trailers requiring a permanent Bartlett BK16 chain connection. Used during new trailer construction, drawbar repairs and compatible safety chain system upgrades.
Why Choose ICS Trailers
ICS Trailers can supply the matching BK16 truck-side attachment and compatible 16mm safety chains for workshop repairs and trailer builds. Check the original attachment configuration and chain thickness when selecting replacement hardware.
