Description

Overview

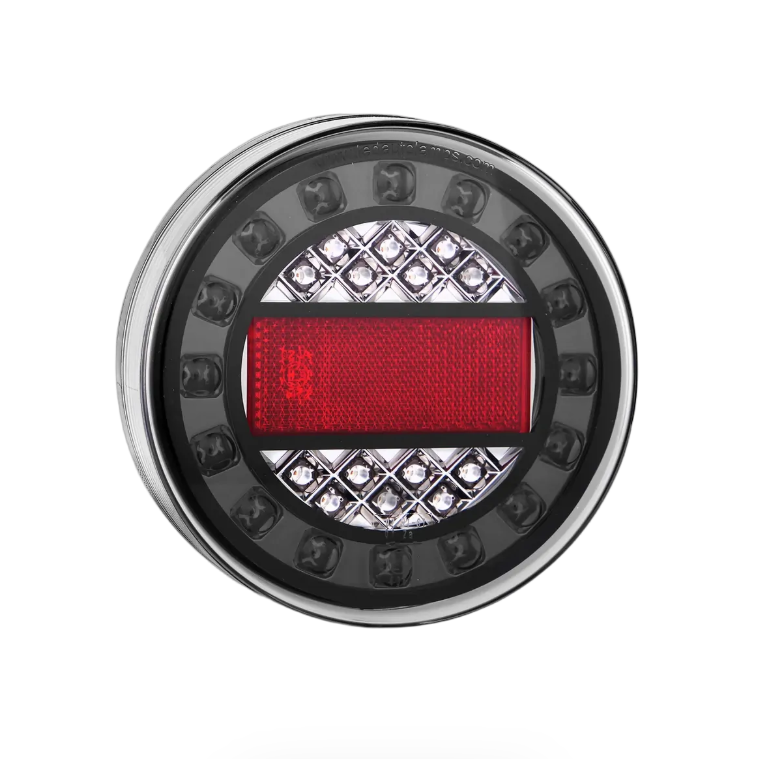

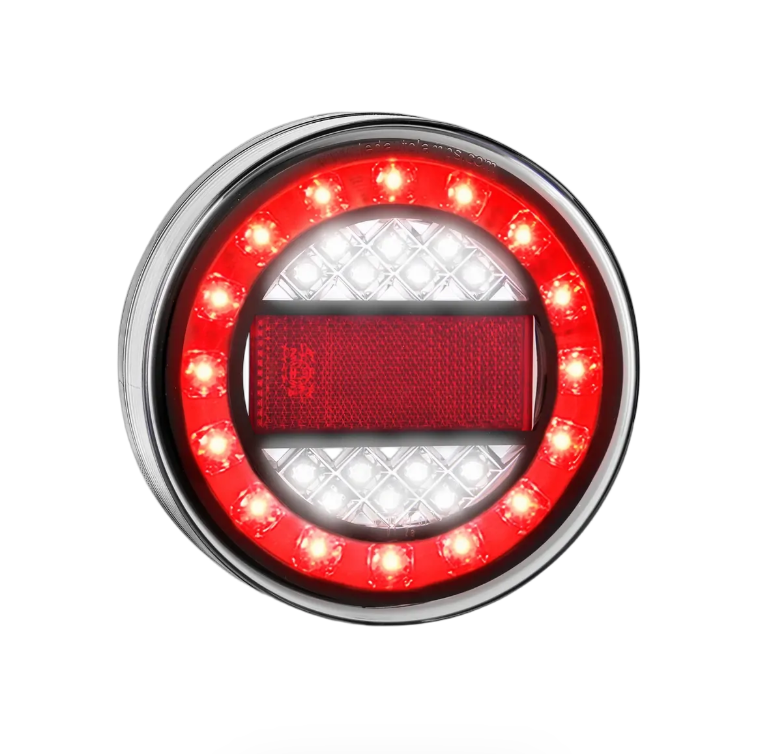

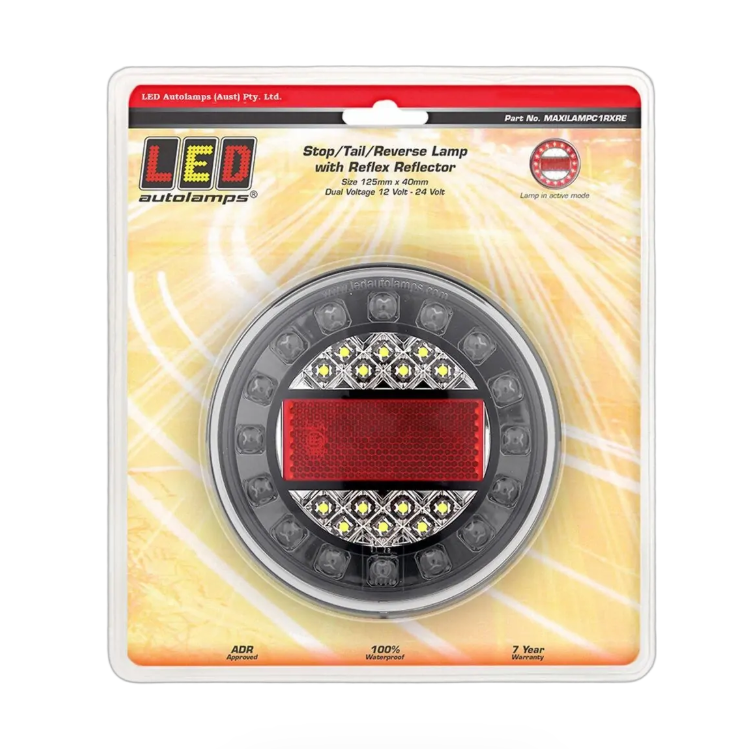

Stop tail reverse LED lamp combines rear stop, tail, reverse and reflector functions in one 125mm round Maxilamp unit. The clear-lens lamp suits 12-24V systems, so it fits mixed trailer and light commercial service work where the rear panel needs a compact round combination lamp.

Features

• 30 LEDs across the rear combination lamp functions.

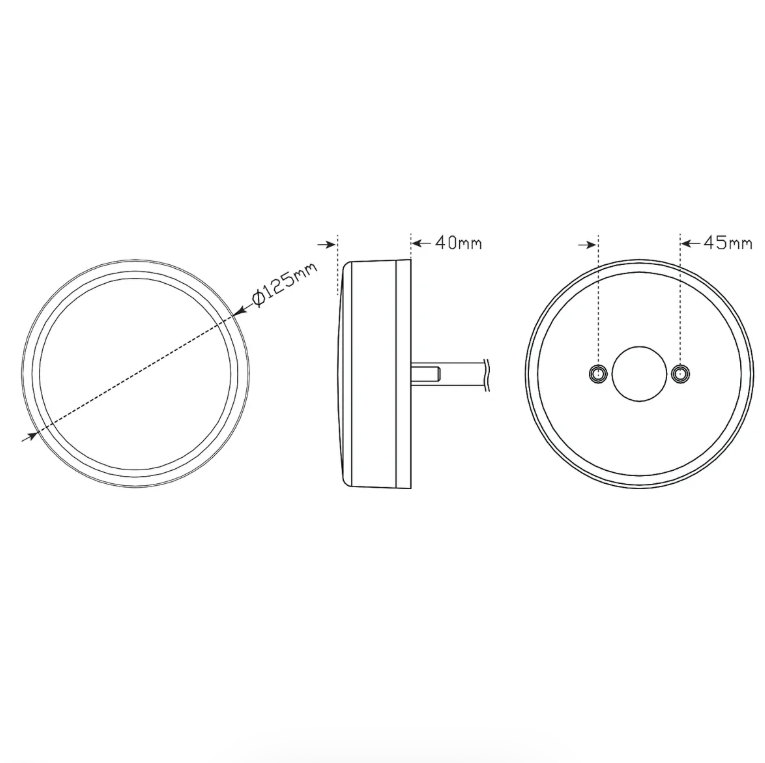

• 125mm round x 40mm body suits flat bolt-on mounting.
• PMMA acrylic lens and ABS base for sealed rear lamp construction.
• IP67 sealing and ADR/ECE approval suit road-going trailer lighting.

Specifications and Materials

This clear-lens lamp carries a 40cm cable and uses a bolt surface mount. It suits the Maxilamp Single rear lamp range and matches stop, tail, reverse and reflector service needs where the indicator function runs through a separate lamp.

Part number: MAXILAMPC1RXRE.

The manufacturer technical guide covers Maxilamp Single dimensions and fitting details

Compatibility and Fitment

Match this stop tail reverse LED lamp to a 125mm round Maxilamp mounting position before ordering. Also check the rear wiring layout, because this version covers stop, tail and reverse while the matching indicator function uses a separate companion lamp.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check lamp orientation and rear visibility after fitting. Then test the stop, tail and reverse circuits, because a working lamp still needs clean wiring and correct function placement before the trailer returns to service.

Trailer Applications

Trailer builders and repairers use a stop tail reverse LED lamp on rear bars, ute trays and small body builds where a round lamp suits the panel layout. Pair it with the matching Maxilamp indicator lamp when the setup needs separate indicator and reverse functions.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repairers, fleets and operators that need function, size and wiring style to line up before the lamp goes on the vehicle. Browse more LED Lights for trailer lighting replacements.
