Description

Overview

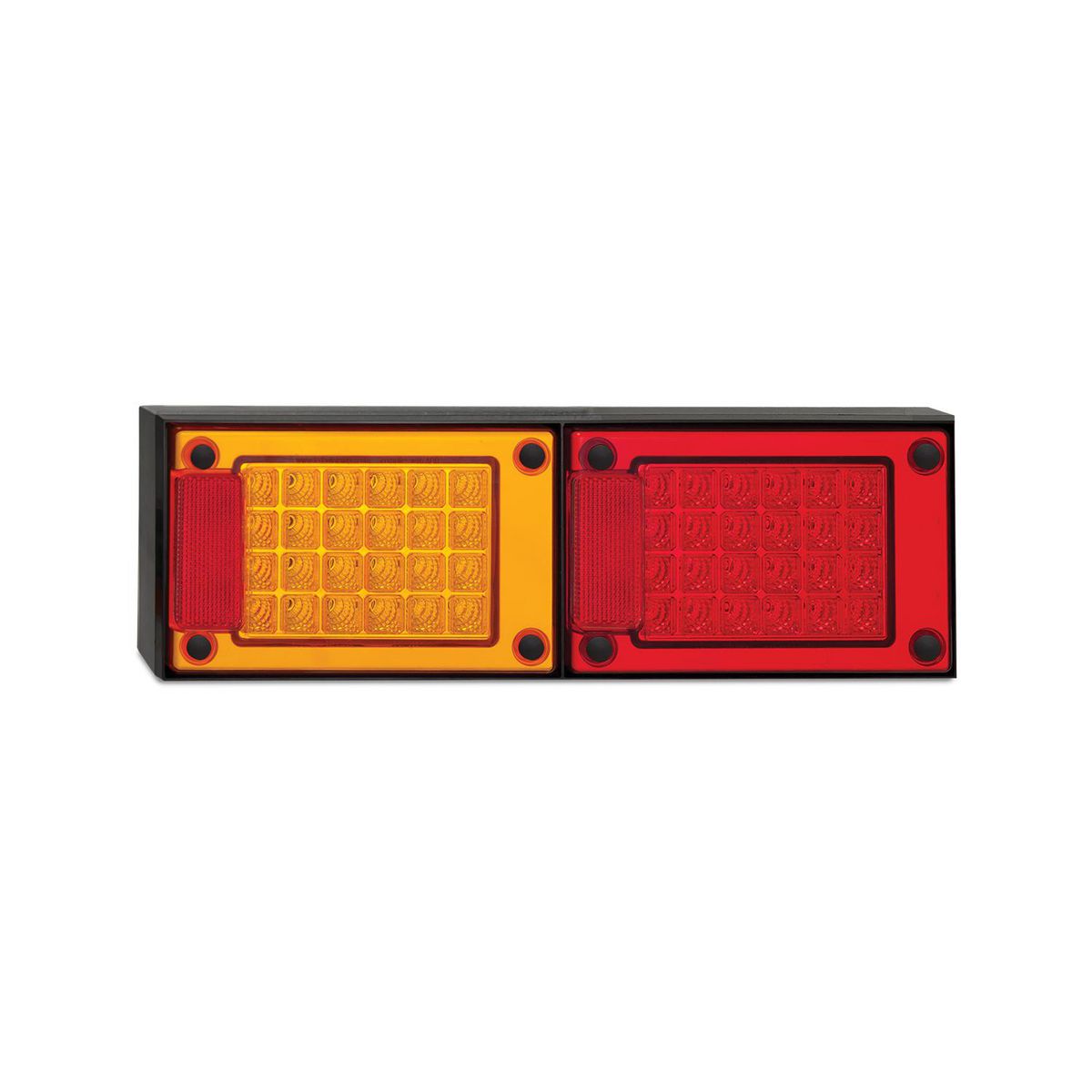

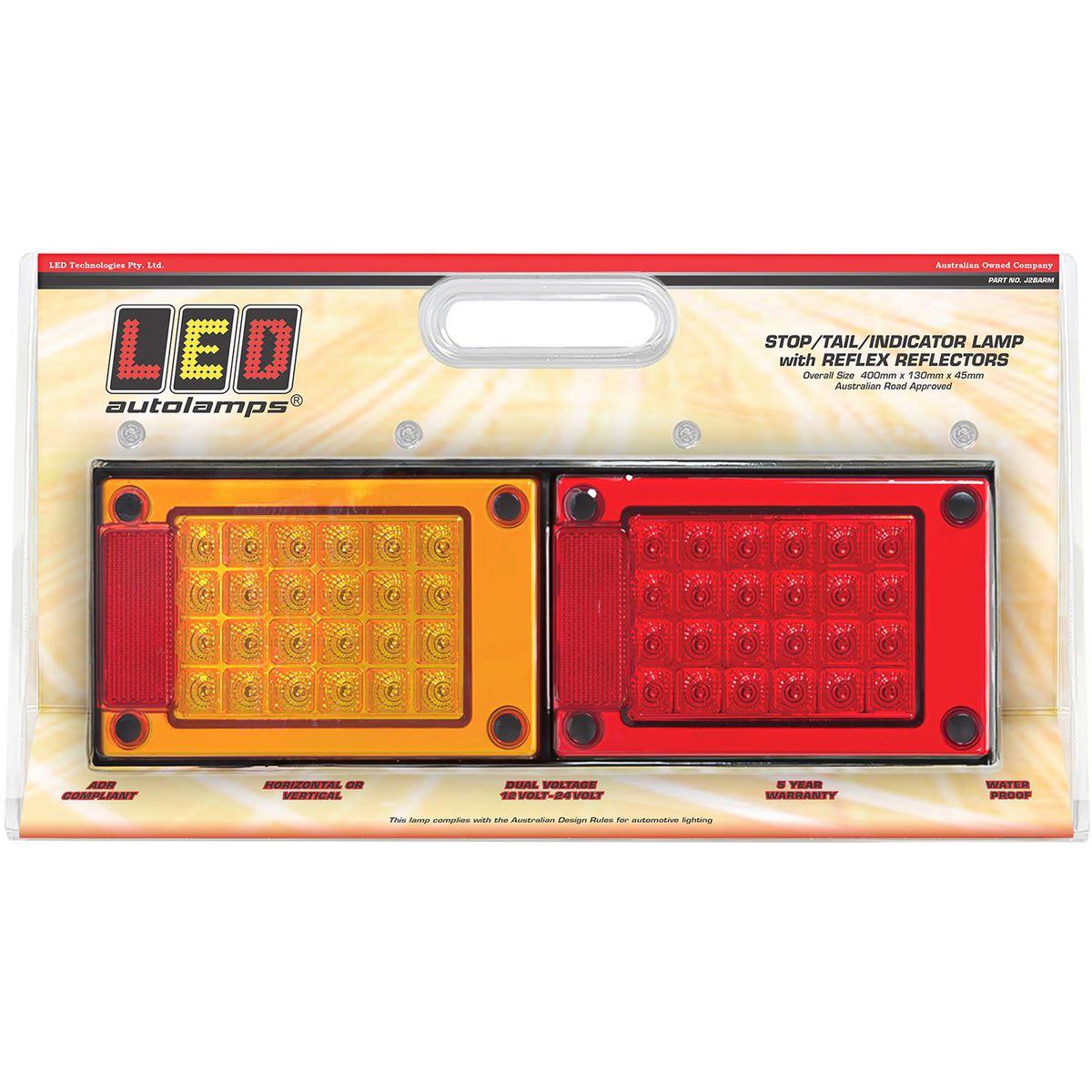

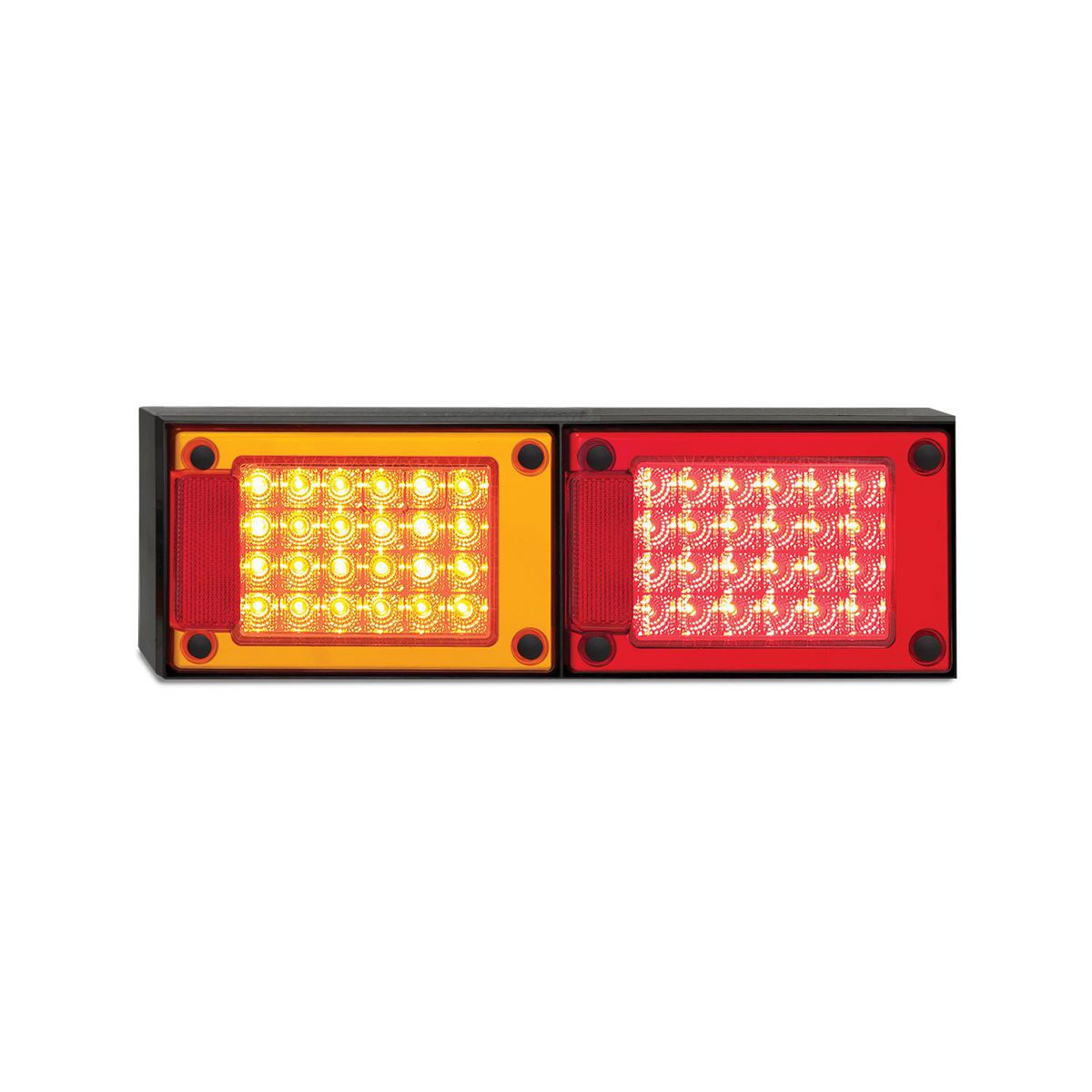

Jumbo stop tail indicator LED lamp handles rear stop, tail, indicator and reflector functions in one dual-lamp trailer assembly. The wide 400mm body suits larger rear panels where a small combination lamp would look undersized or leave old mounting marks exposed.

Features

• Dual jumbo lamp design with inbuilt red reflectors.
• 48 LEDs across stop, tail and indicator functions.
• 12-24V multivolt operation suits mixed trailer and vehicle fleets.
• IP67 sealing helps protect the lamp against dust and water exposure.

Specifications and Materials

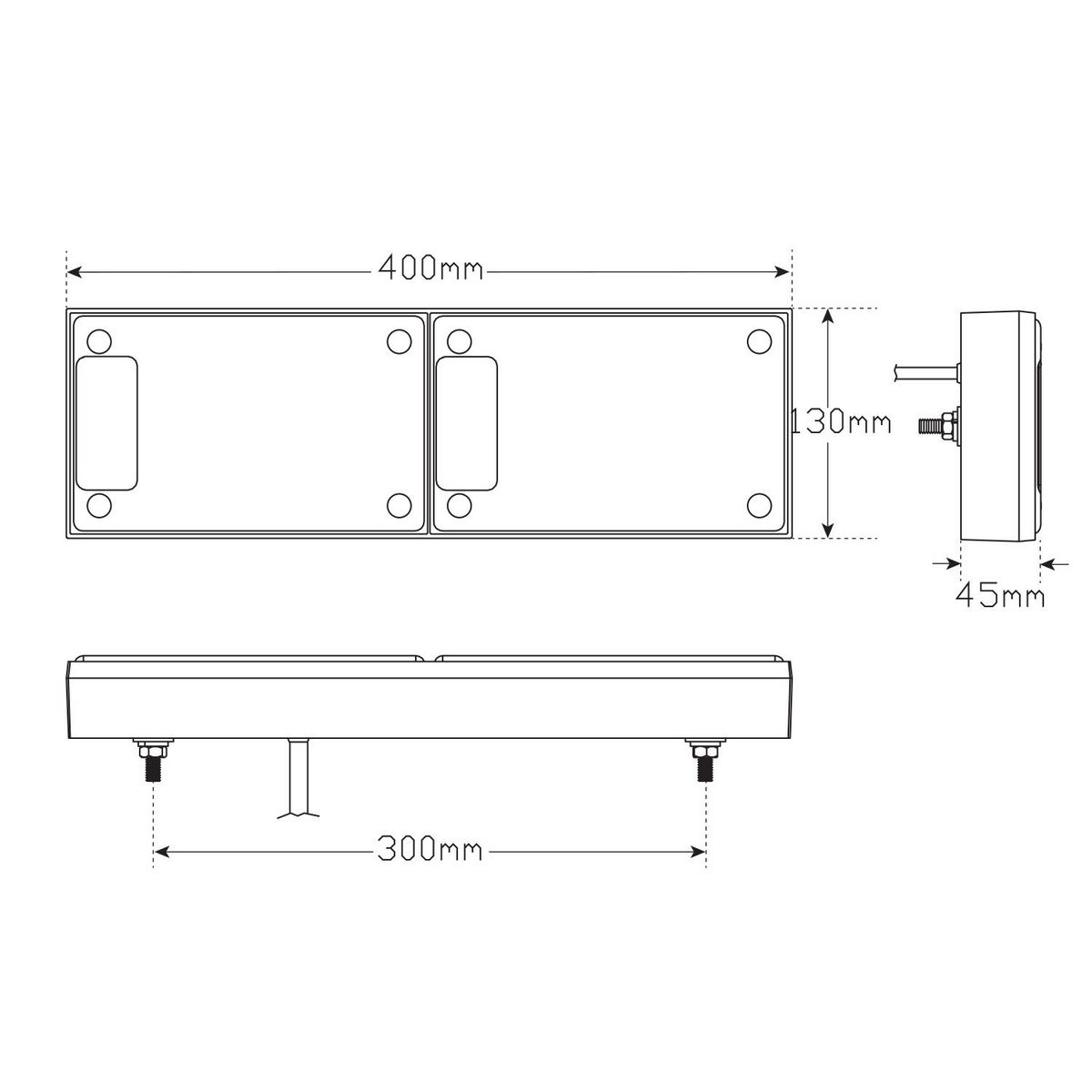

This jumbo stop tail indicator LED lamp measures 400mm x 130mm x 45mm and includes a 1.2m bare-wire cable. It draws 0.47A stop, 0.04A tail and 0.42A indicator at 13.8V, then 0.27A stop, 0.03A tail and 0.28A indicator at 28V.

Part number: J2BARM.

View the manufacturer technical guide for dimensions, draw and approval details

Compatibility and Fitment

Match the lamp length, mounting points, cable type and rear lighting functions before ordering. For fitting, mount the lamp horizontally onto a flat surface using the fixing points in the back of the lamp, then check stop, tail and indicator operation before road use.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the lamp orientation, rear visibility and wiring before the trailer returns to service. Also check that the mounting surface sits flat, because uneven pressure can twist the body and affect the seal over time.

Trailer Applications

Workshops fit this jumbo stop tail indicator LED lamp to medium vehicle and trailer rear lighting setups that need a broad dual-lamp assembly. It suits trailer repairs, body builds and replacement jobs where stop, tail, indicator and reflector functions need to sit together in one rear lamp.
