Description

Overview

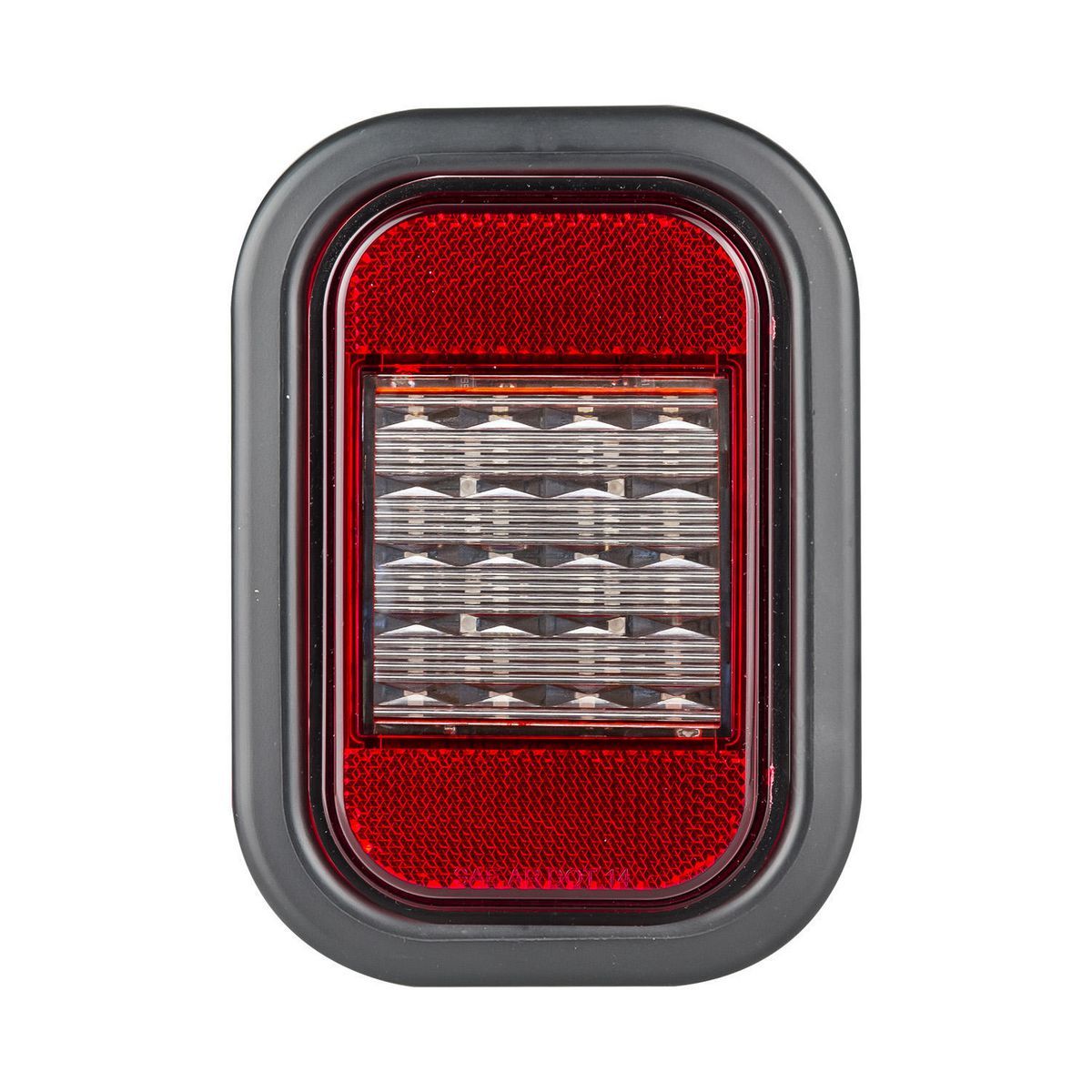

Reverse reflector LED lamp restores the white reverse function and rear reflector position in 134 Series recessed trailer lighting. The lamp suits 9-32V systems, so it covers common 12V and 24V trailer, ute body and light commercial wiring setups.

Features

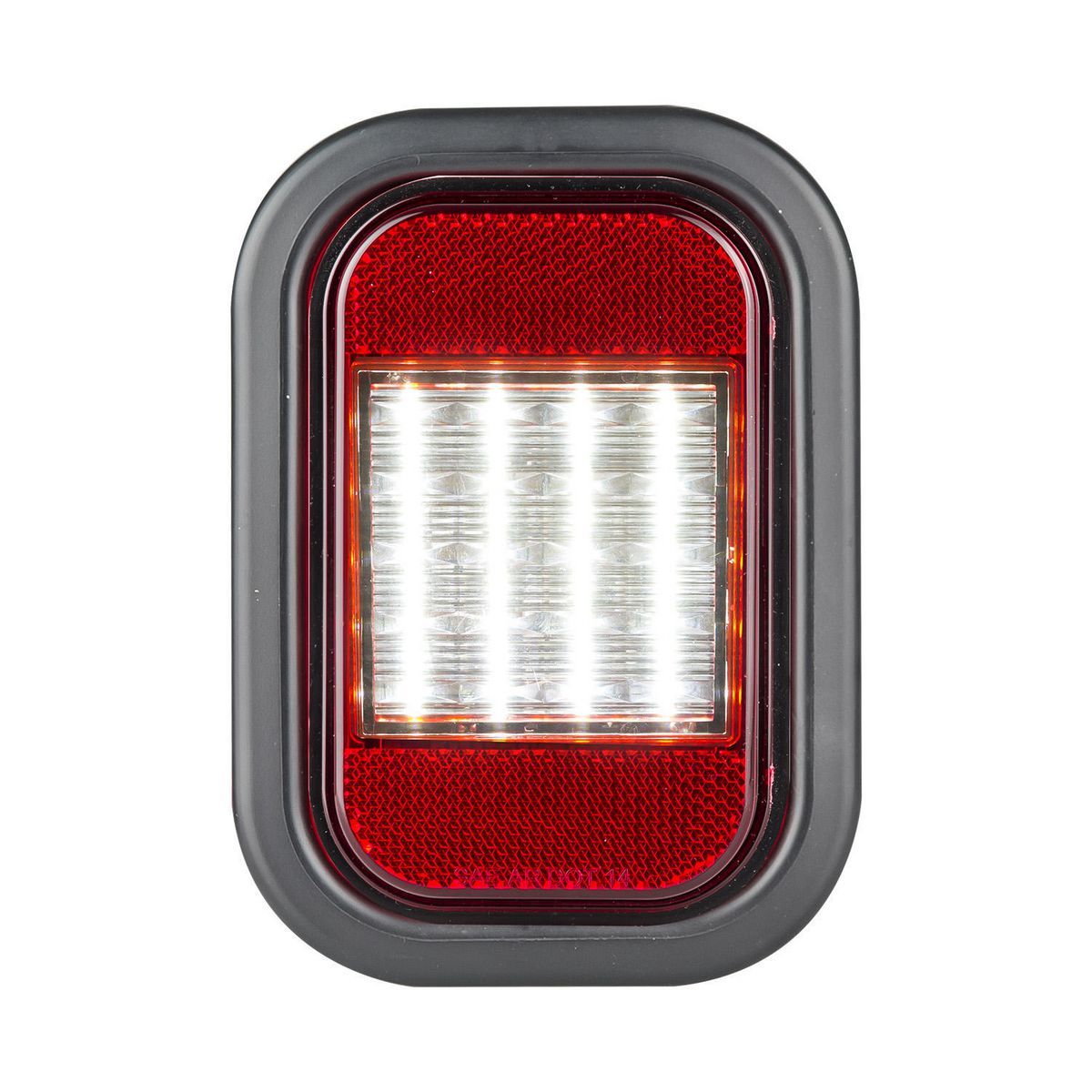

• 20 white LEDs for reverse lamp output.
• Low-profile recessed fitting suits grommet or flange mounting.
• IP67 sealing helps protect the lamp against dust and water exposure.

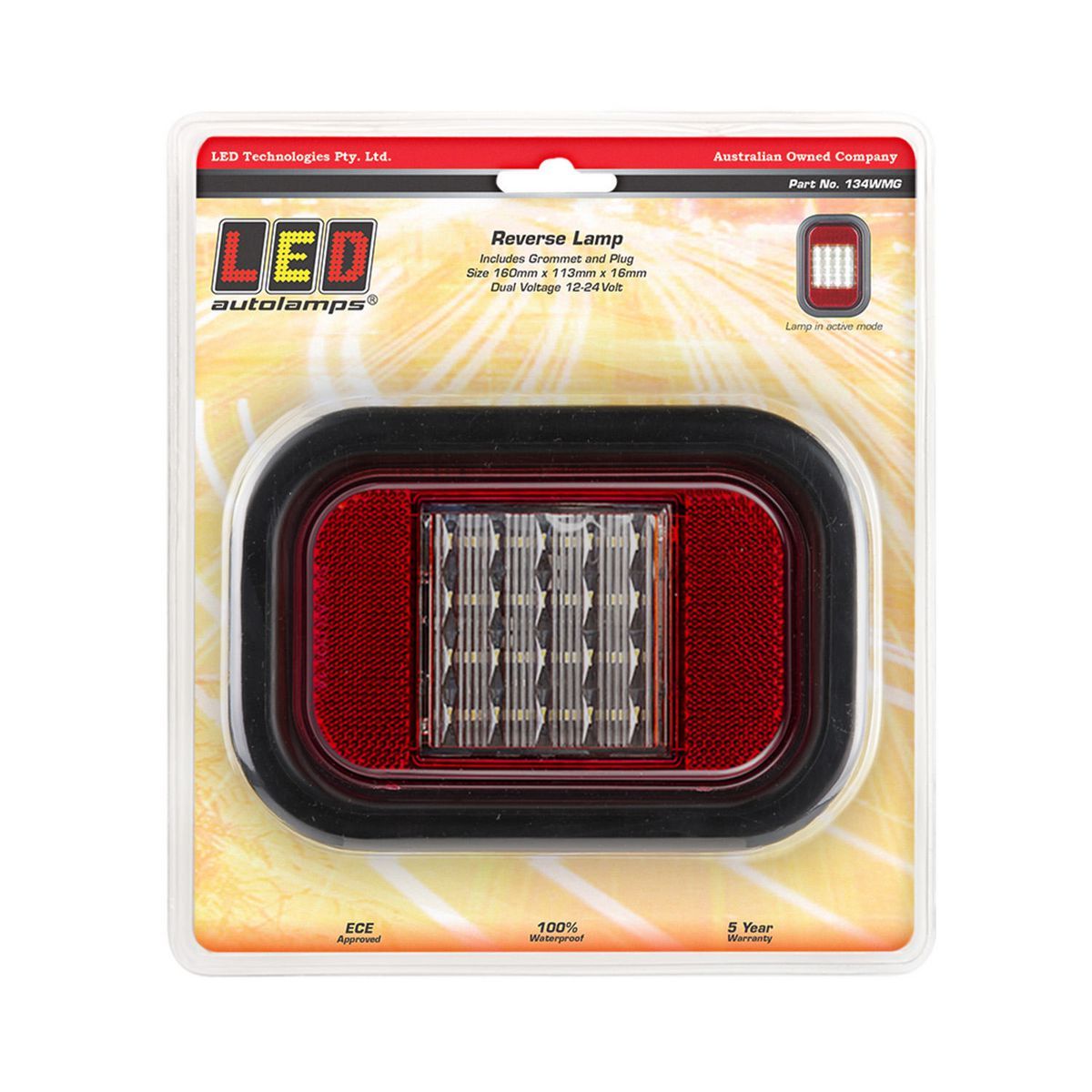

• Blister pack includes the reverse lamp, rubber grommet and plug.

Specifications and Materials

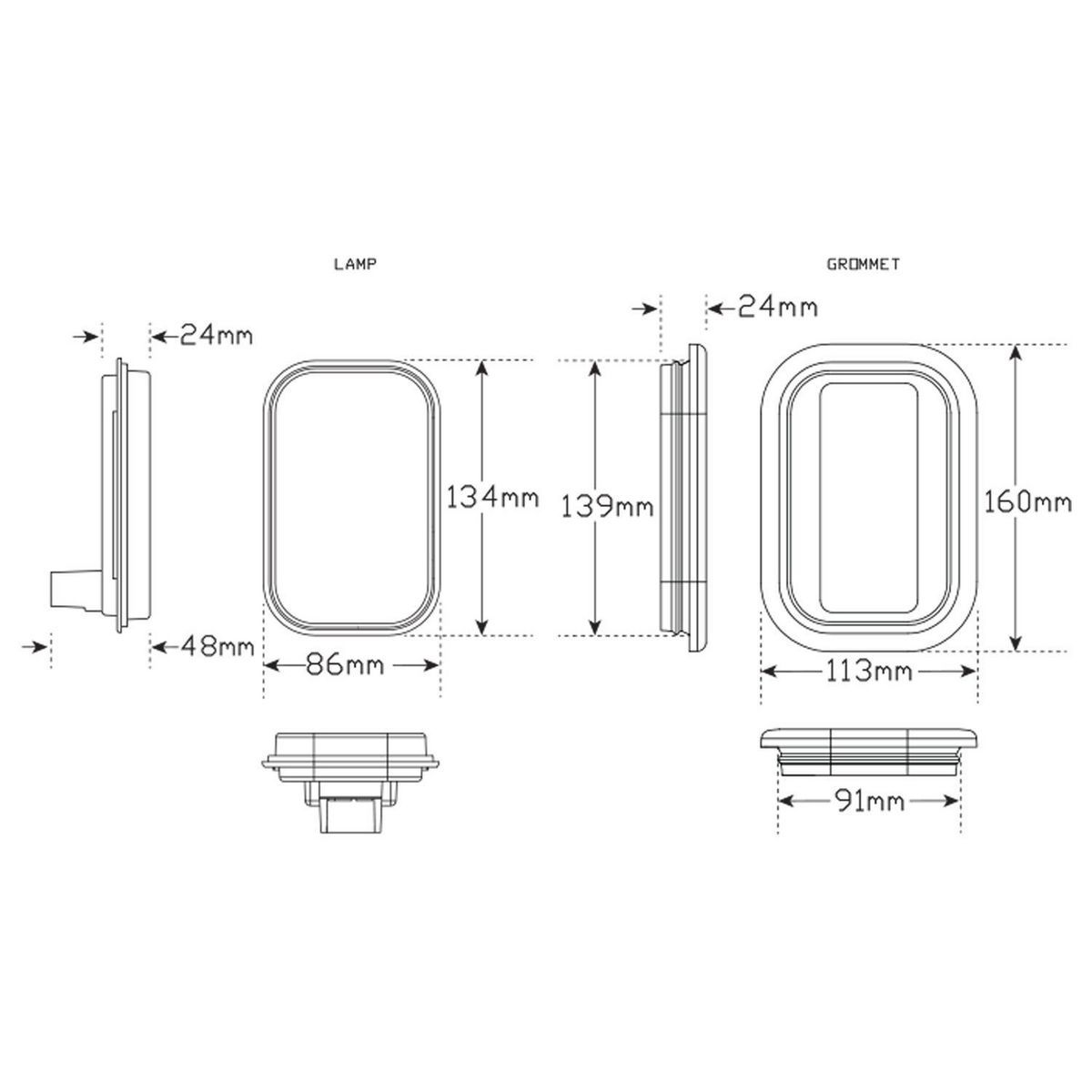

This reverse reflector LED lamp uses a hardened acrylic lens, 53102 plug and 134 Series recessed lamp body. The lamp measures 87mm x 135mm x 22mm, while the grommet measures 113mm x 160mm x 12mm. Current draw is 0.47A at 13.8V and 0.16A at 28V.

Part number: 134WMG.

The manufacturer technical guide covers dimensions, draw and fitting details

Compatibility and Fitment

Match the panel cut-out, lamp depth, voltage range and reverse function before ordering. For a new installation, use the 139mm x 91mm grommet cut-out with a 23mm radius, then push the lamp into the fitted grommet or flange.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm reverse lamp position, lens visibility and wiring before road use. Also check the grommet or flange sits evenly in the panel, because a loose recessed fit can let vibration work the lamp out of place.

Trailer Applications

Workshops fit this reverse reflector LED lamp to trailers, ute trays and vehicle bodies using 134 Series recessed rear lamps. It suits repair jobs where the reverse lamp, reflector, grommet and plug need to be replaced as one service pack.
