Description

Overview

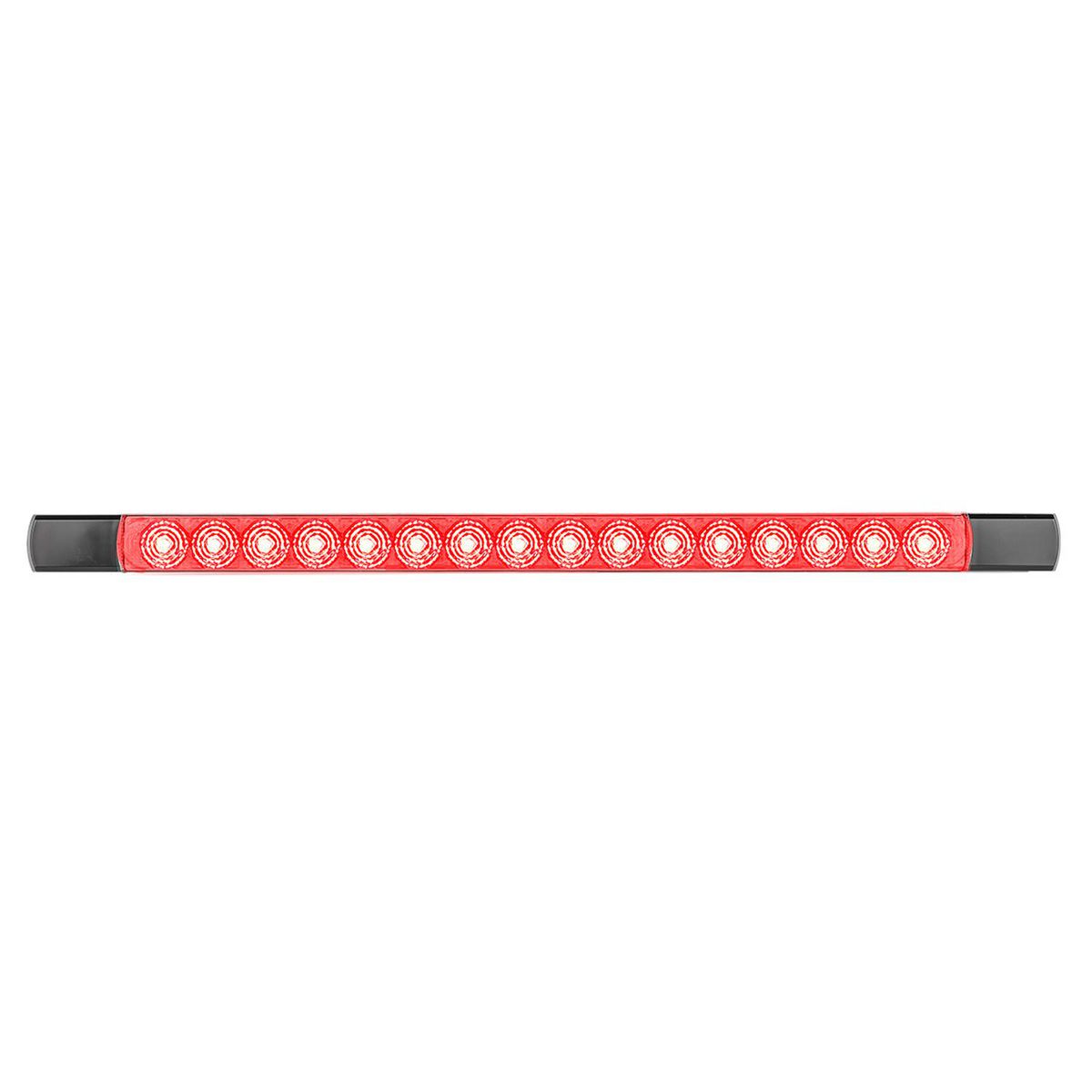

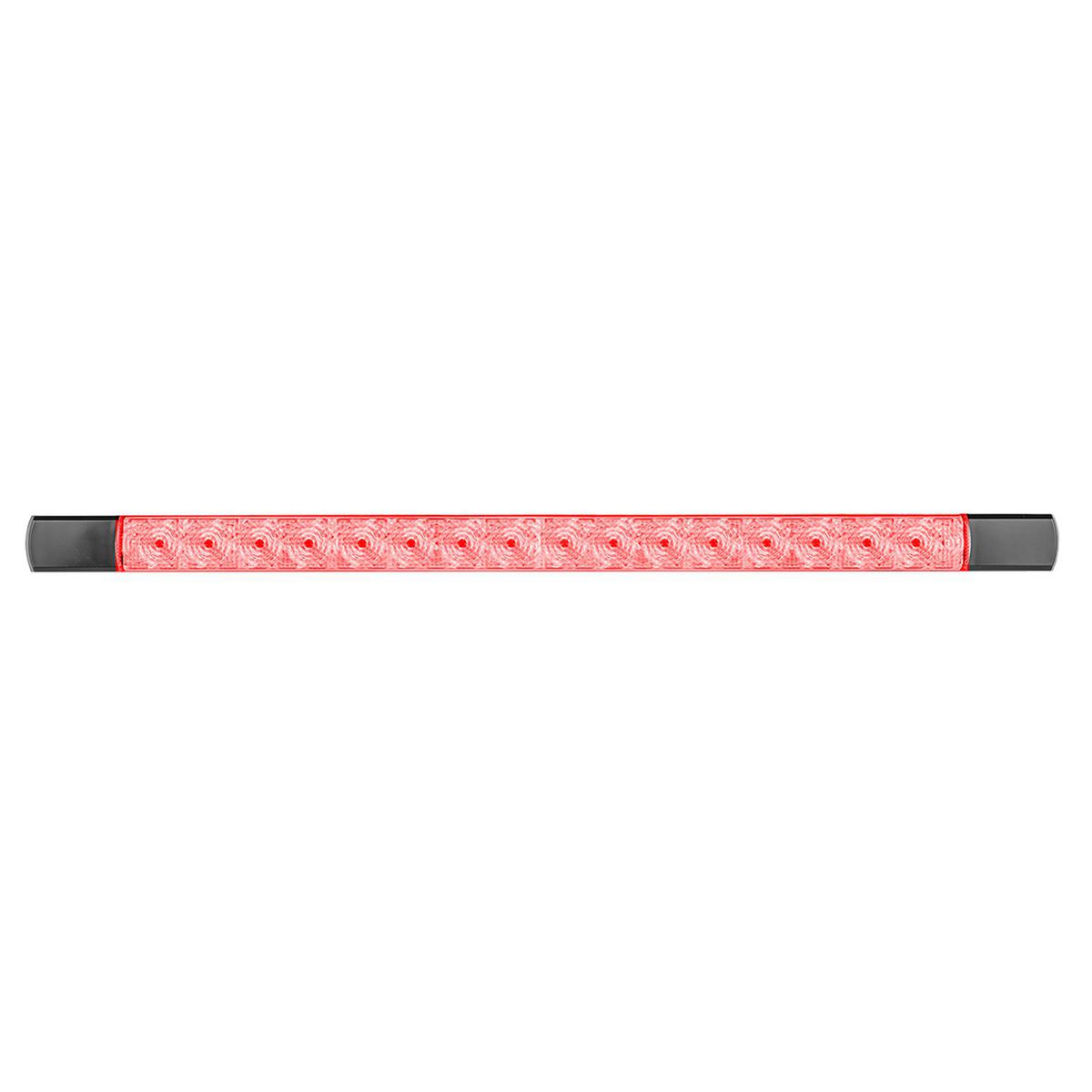

Slimline stop tail LED lamp restores the red stop and tail functions on 12V trailer rear lighting systems. The long low-profile body suits narrow rear bars, tray backs and caravan panels where a deeper lamp would sit too proud.

Features

• Red stop and tail lamp with coloured lens.
• 16 LEDs with 12V operation.
• Low-profile 530mm body with black end caps.
• IP67 sealing helps protect the lamp against dust and water exposure.

Specifications and Materials

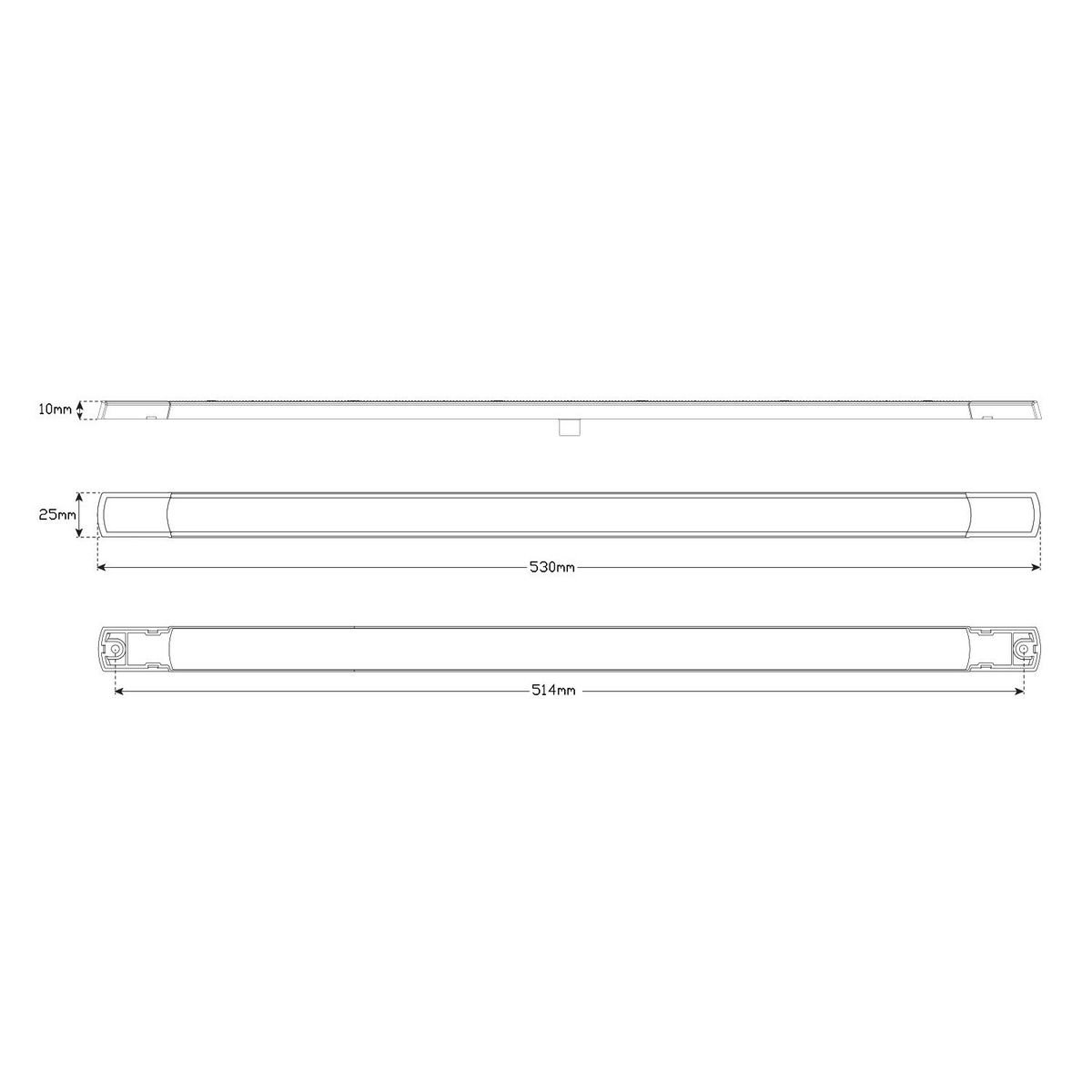

This slimline stop tail LED lamp measures 530mm x 25mm x 10mm and uses a 300mm cable. Current draw is 0.29A stop and 0.02A tail at 13.8V.

Part number: 530R12.

The manufacturer technical guide covers dimensions, draw and fitting details

Compatibility and Fitment

Match the 530 Series lamp length, red stop tail function, 12V system and cable position before ordering. For fitting, remove the end caps, fix the lamp to a flat surface with the screws supplied, then refit the end caps after tightening.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the lamp sits level, the red lens faces squarely rearward and both stop and tail functions work before road use. Also check the end caps after fitting, because they cover the fixings and help keep the slimline body seated cleanly.

Trailer Applications

Workshops fit this slimline stop tail LED lamp to trailer rear bars, ute trays, caravans and light commercial bodies. It suits builds and repairs where the rear lighting layout needs a long red stop tail lamp without a bulky housing.
