Description

Overview

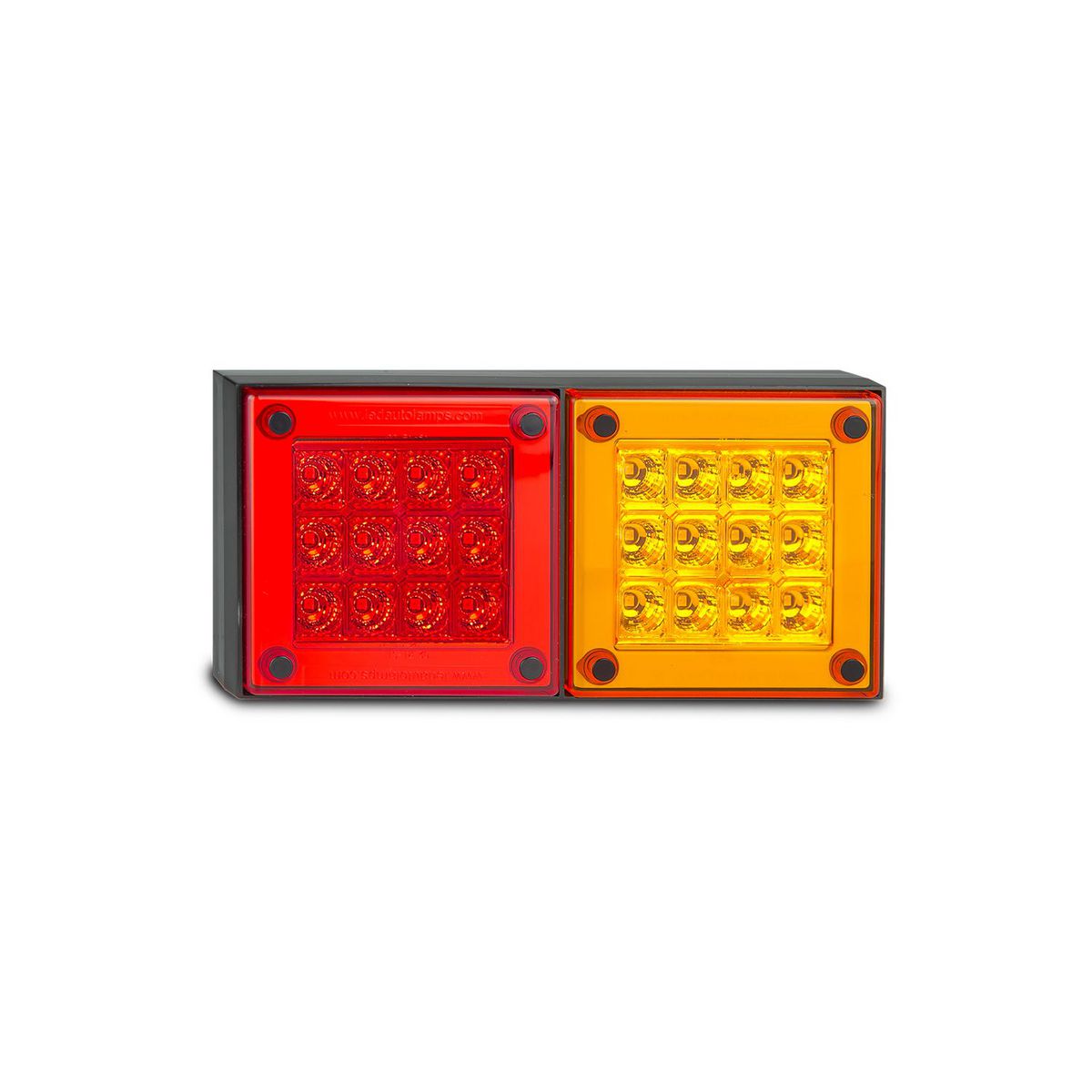

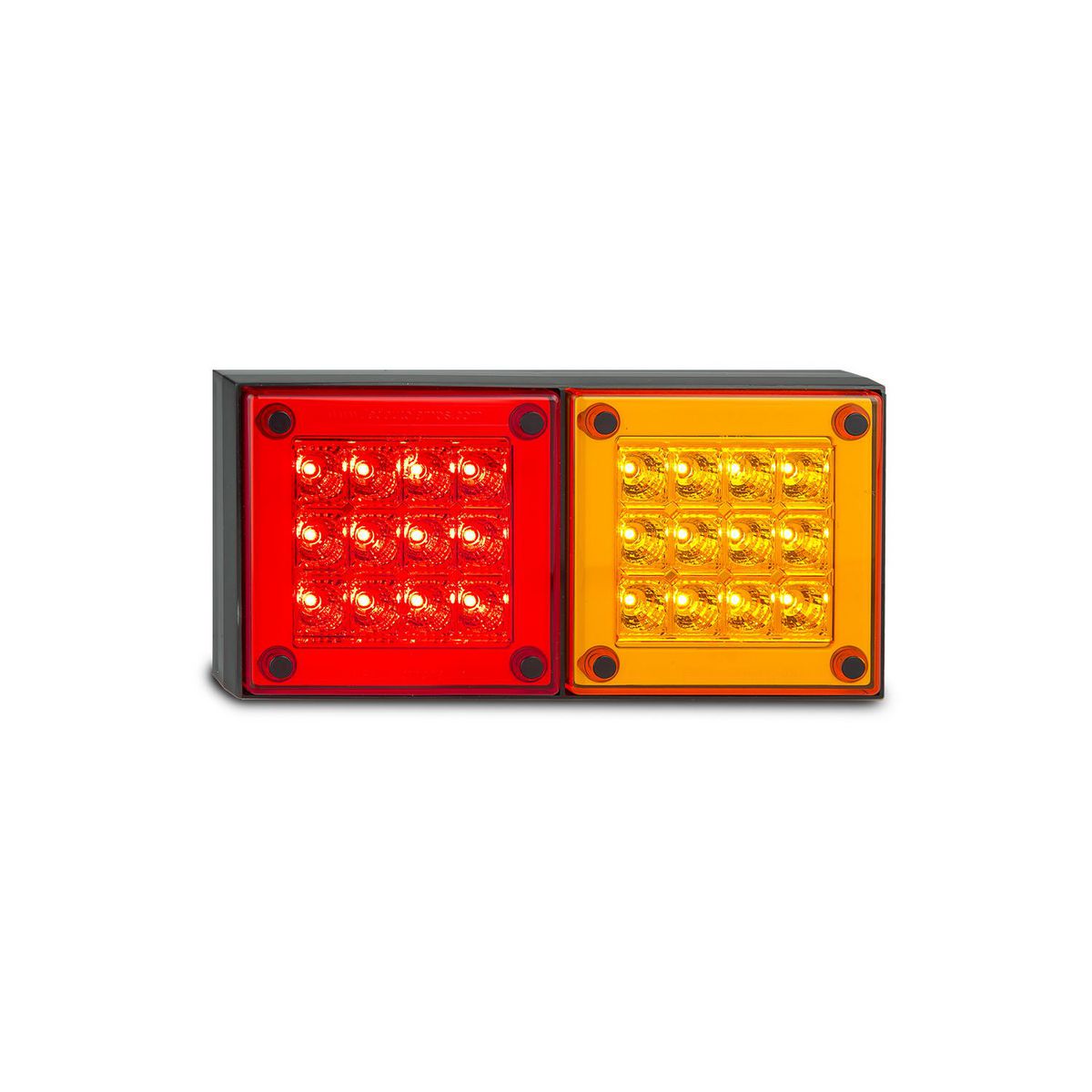

Stop tail indicator LED lamp restores the red stop tail and amber indicator functions in one 280 Double Series rear trailer lamp. The compact twin-lamp body suits small trailers, ute trays and light commercial rear panels where a full-width combination lamp is not needed.

Features

• Stop, tail and indicator functions in one rear lamp.
• 24 LEDs with 12-24V multivolt operation.
• Individual lens replacement design supports service repairs.
• IP67 sealing helps protect the lamp against dust and water exposure.

Specifications and Materials

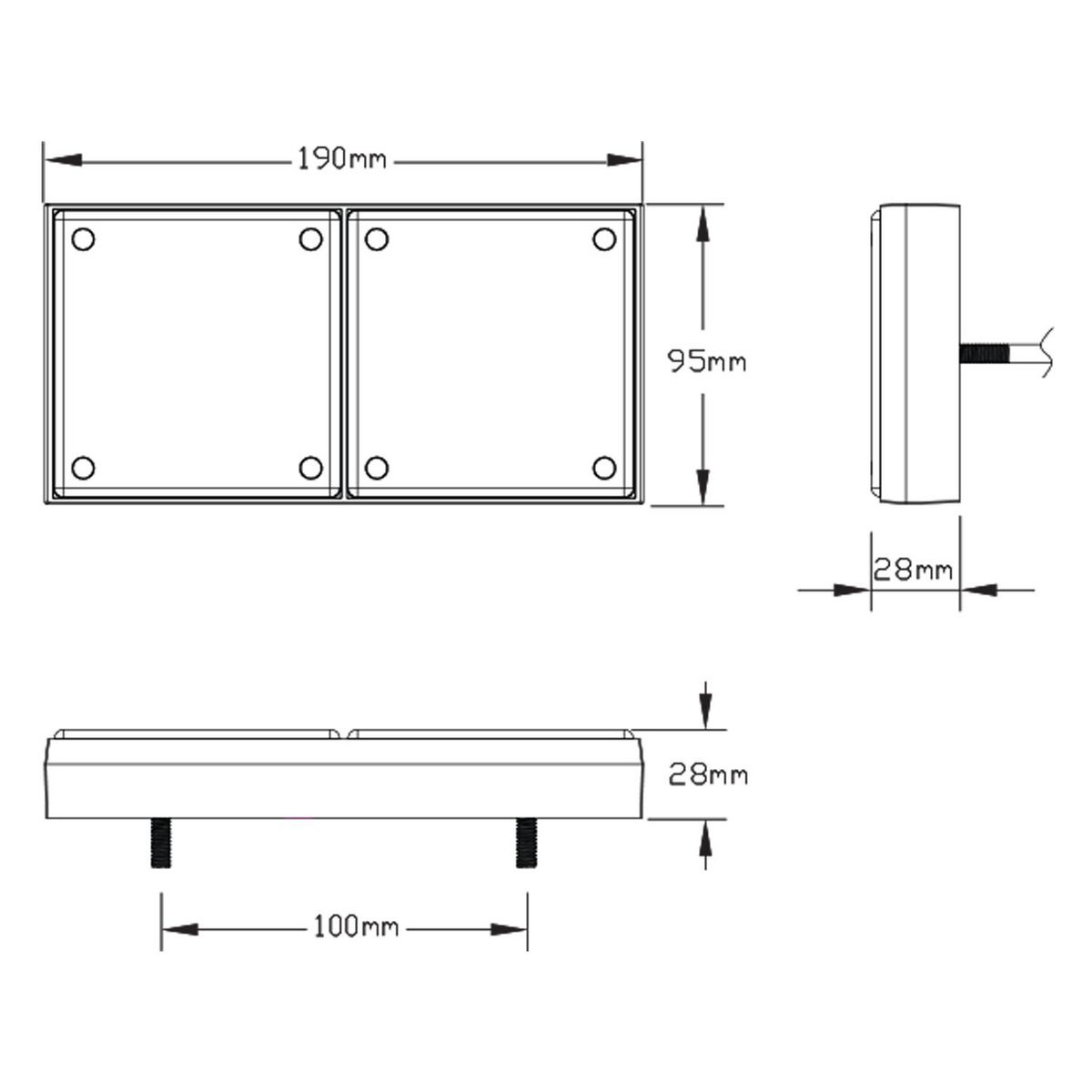

This stop tail indicator LED lamp measures 190mm x 95mm x 28mm and uses a 40cm cable. Current draw is 0.17A stop, 0.01A tail and 0.18A indicator at 13.8V, then 0.10A stop, 0.02A tail and 0.10A indicator at 28V.

Part number: 280ARM.

The manufacturer technical guide covers dimensions, draw and fitting details

Compatibility and Fitment

Match the 280 Double Series body size, stop tail indicator function, 12-24V system and cable exit before ordering. For fitting, surface mount the lamp horizontally on a flat panel with the stainless steel bolts supplied, then run the cable through a 12mm hole in the mounting surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm stop, tail and indicator operation before road use. Also check the lamp sits level and the cable clears the mounting hole cleanly, because pinched wiring can cause faults after the panel is tightened down.

Trailer Applications

Workshops fit this stop tail indicator LED lamp to small trailer rear panels, ute trays and light commercial bodies using 280 Series lighting. It suits repair jobs where the red stop tail and amber indicator functions need a compact twin-lamp replacement.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairers, fleets and operators who need the lamp size, function and wiring style to line up before fitting. Browse more LED Lights for trailer lighting replacements.
