Overview

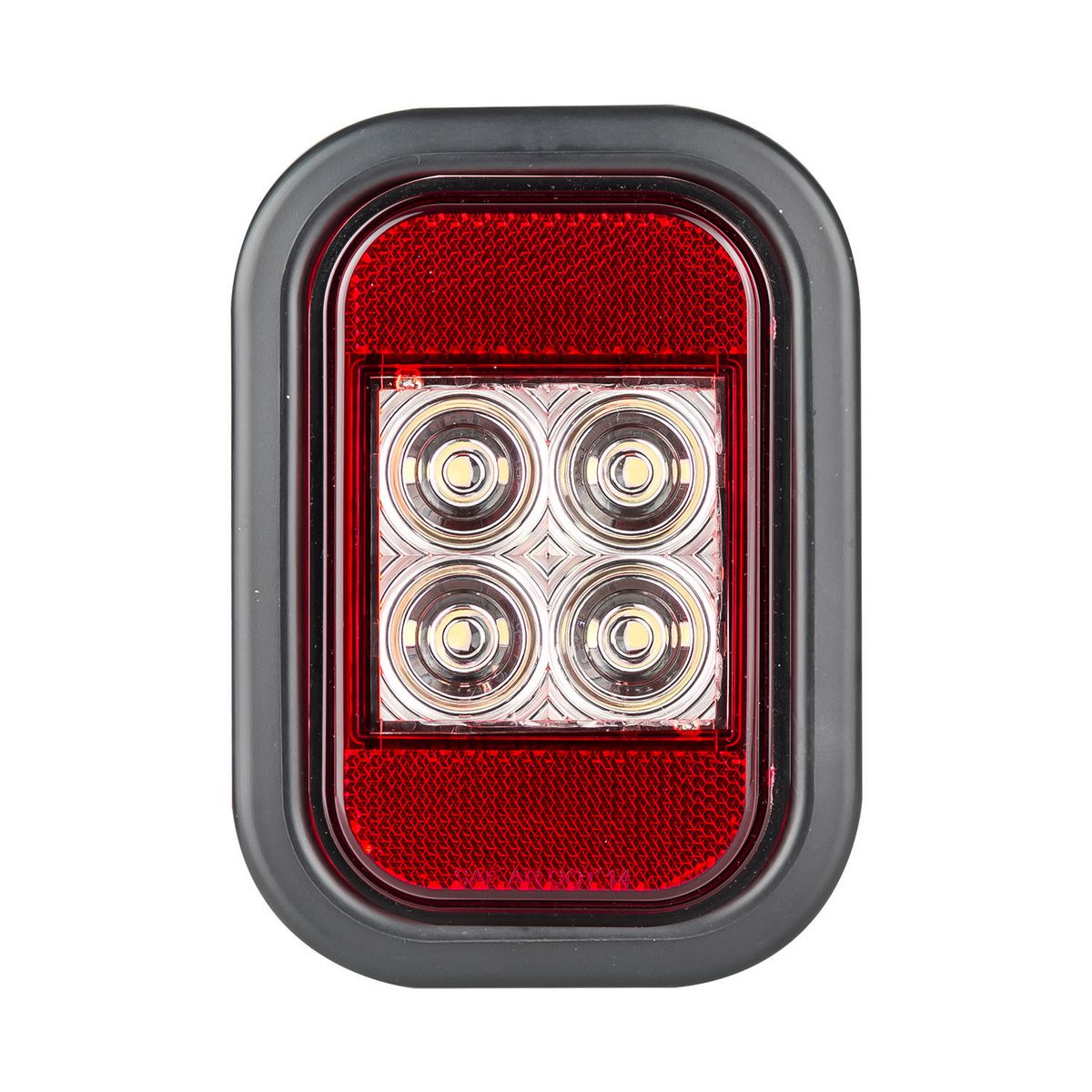

Reverse reflector LED lamp restores the white reverse function and rear reflector position in 133 Series recessed trailer lighting. The low-profile body sits into a grommet or flange, so it suits repairs where the lamp needs to finish flush with the rear panel.

Features

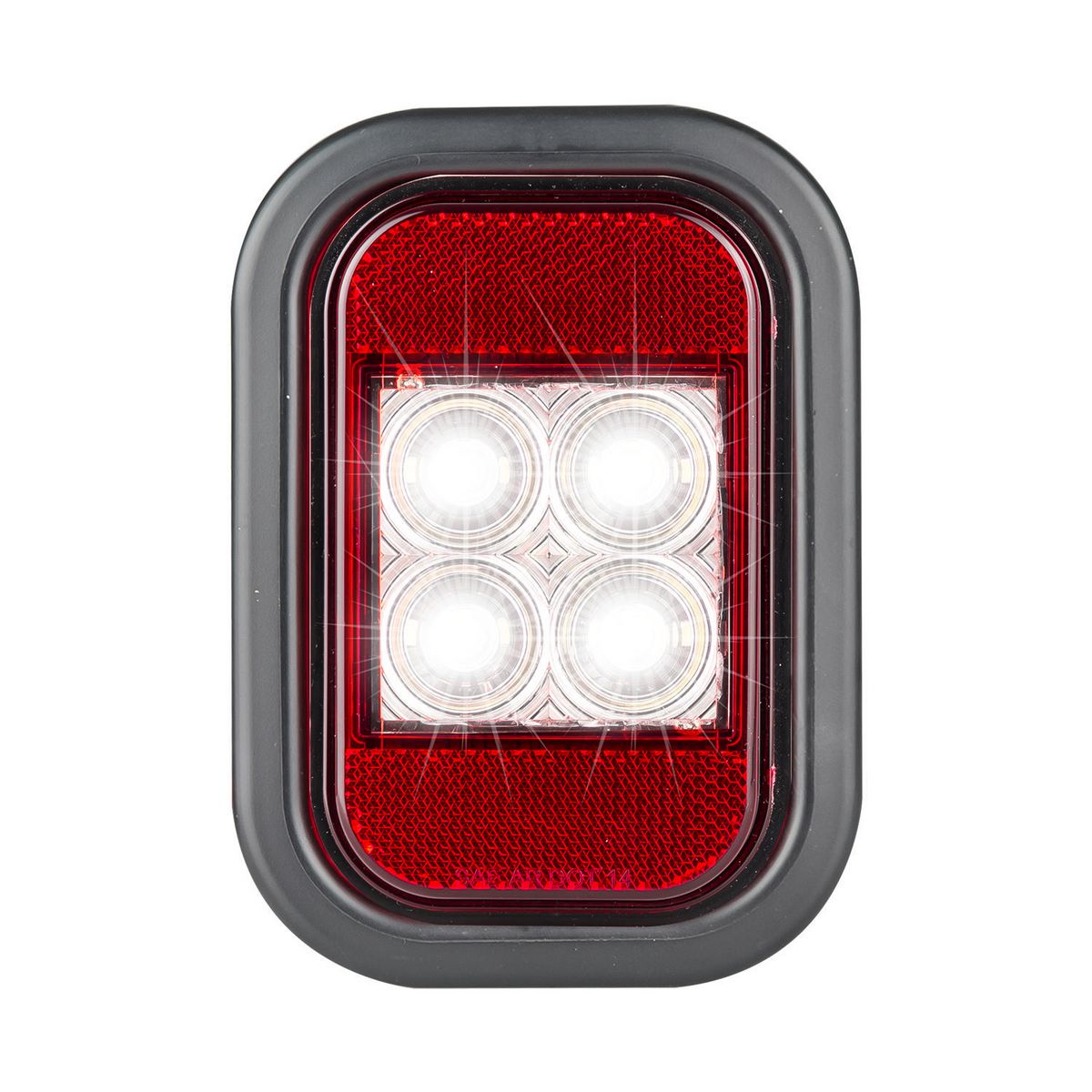

• White reverse lamp with integrated rear reflector function.
• 16 LEDs for reverse output on 12V and 24V systems.
• IP67 sealing helps protect the lamp against dust and water exposure.

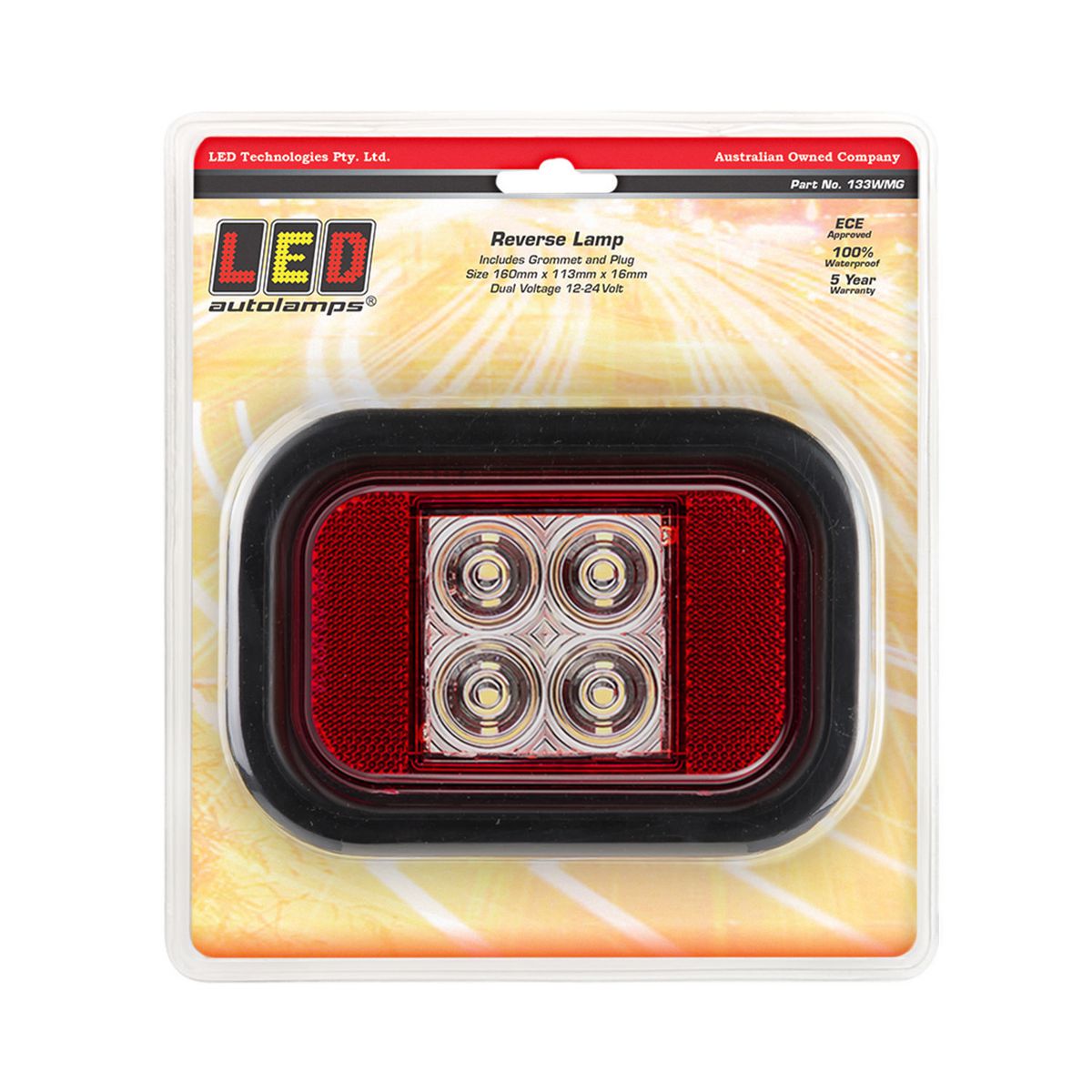

• Blister pack includes the lamp, rubber grommet and plug.

Specifications and Materials

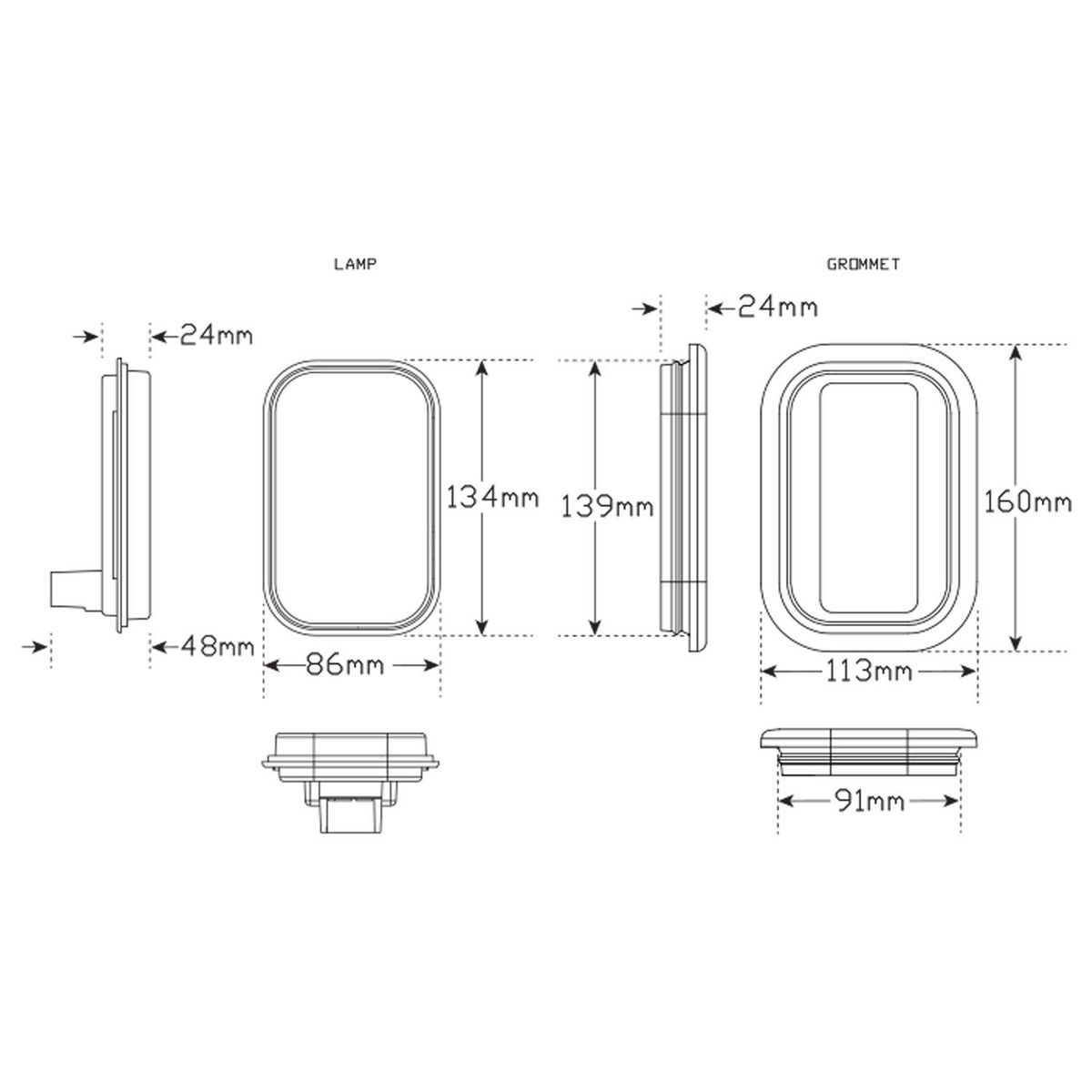

This reverse reflector LED lamp uses a hardened acrylic lens and 53102 cable plug. The lamp measures 87mm x 135mm x 22mm, while the supplied grommet measures 113mm x 160mm x 12mm. Reverse current draw is 0.33A at 13.8V and 0.10A at 28V.

Part number: 133WMG.

The manufacturer technical guide covers dimensions, draw and fitting details

Compatibility and Fitment

Match the 133 Series lamp size, white reverse function, voltage range and recessed mounting style before ordering. For new panel work, use the 139mm x 91mm cut-out with a 23mm radius, then seat the lamp into the matching grommet or flange.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the reverse lamp position, reflector visibility and wiring before road use. Also inspect the grommet or flange during fitting, because uneven panel pressure can stop the lamp from seating cleanly.

Trailer Applications

Workshops fit this reverse reflector LED lamp to trailers, ute trays and vehicle bodies using 133 Series recessed rear lamps. It suits service jobs where the reverse light and reflector section need to be replaced with the grommet and plug together.
