Description

Overview

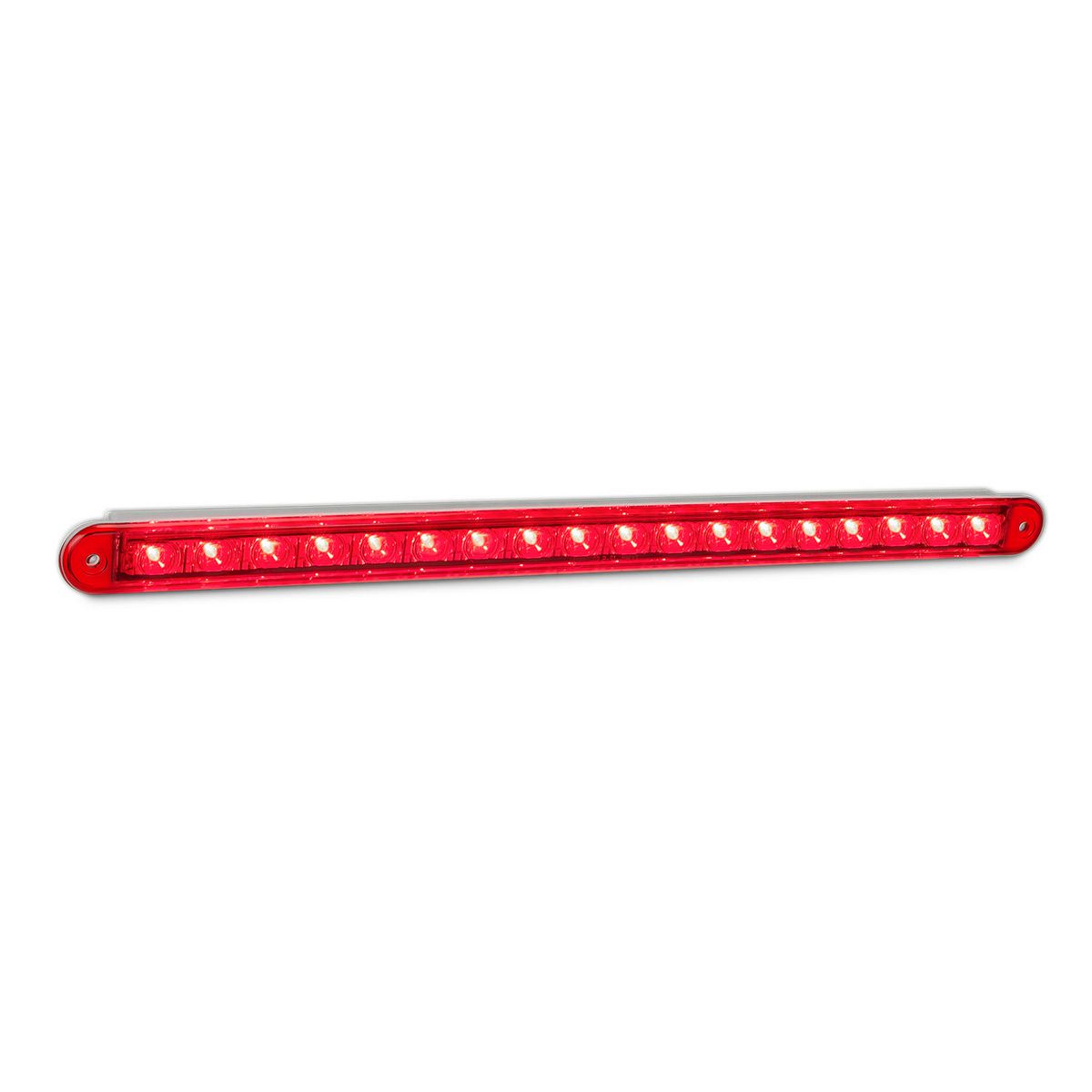

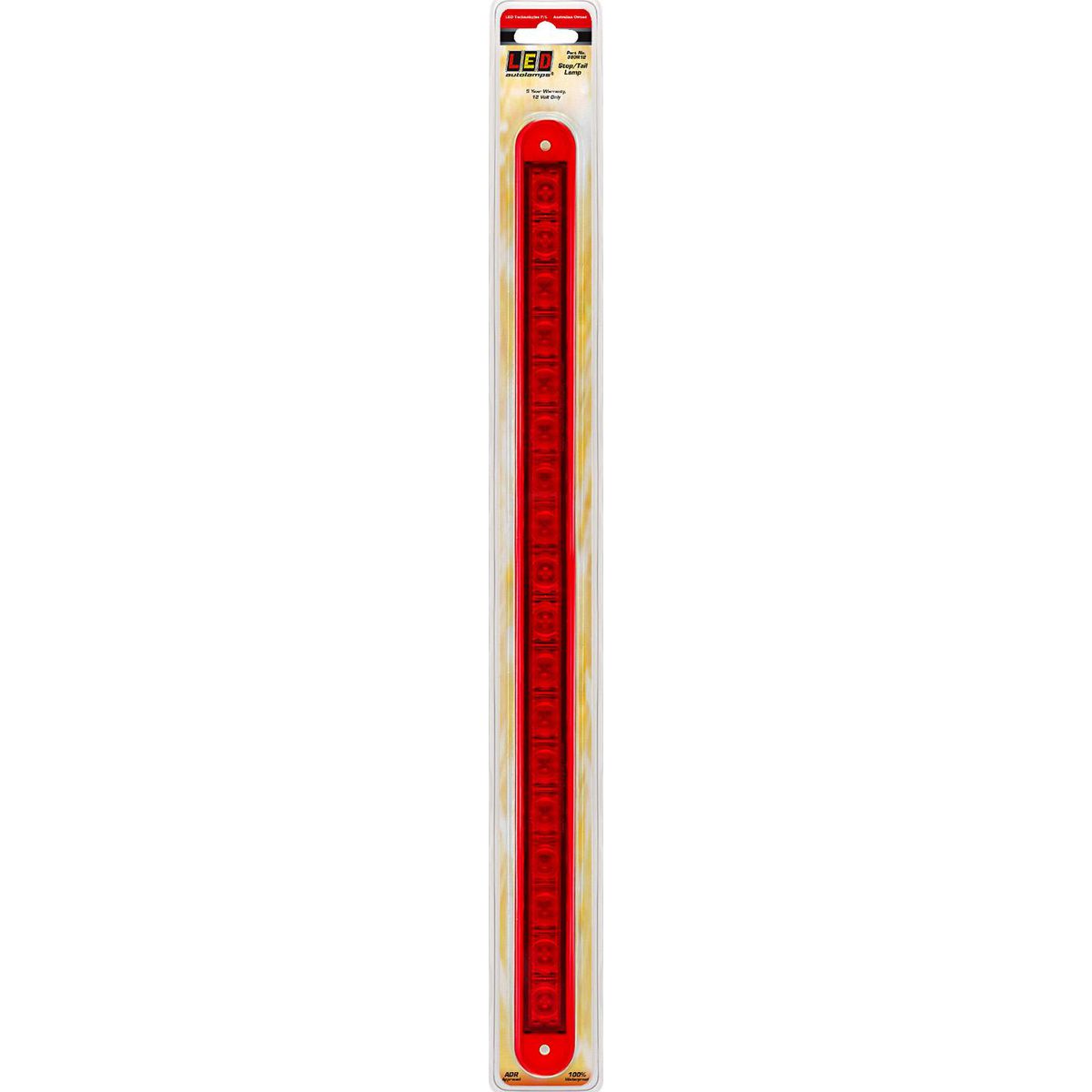

Recessed stop tail LED strip lamp restores the red stop and tail functions on 12V trailer rear lighting systems. The slim 382mm body sits into a panel cut-out, so it suits trailer rear bars, ute trays and caravan panels where a surface lamp would sit too proud.

Features

• 18 LED red strip lamp for stop and tail output.
• Recessed low-profile body suits flush rear panel mounting.
• 40cm cable supports short-run rear lighting repairs.
• IP67 sealing helps protect the lamp against dust and water exposure.

Specifications and Materials

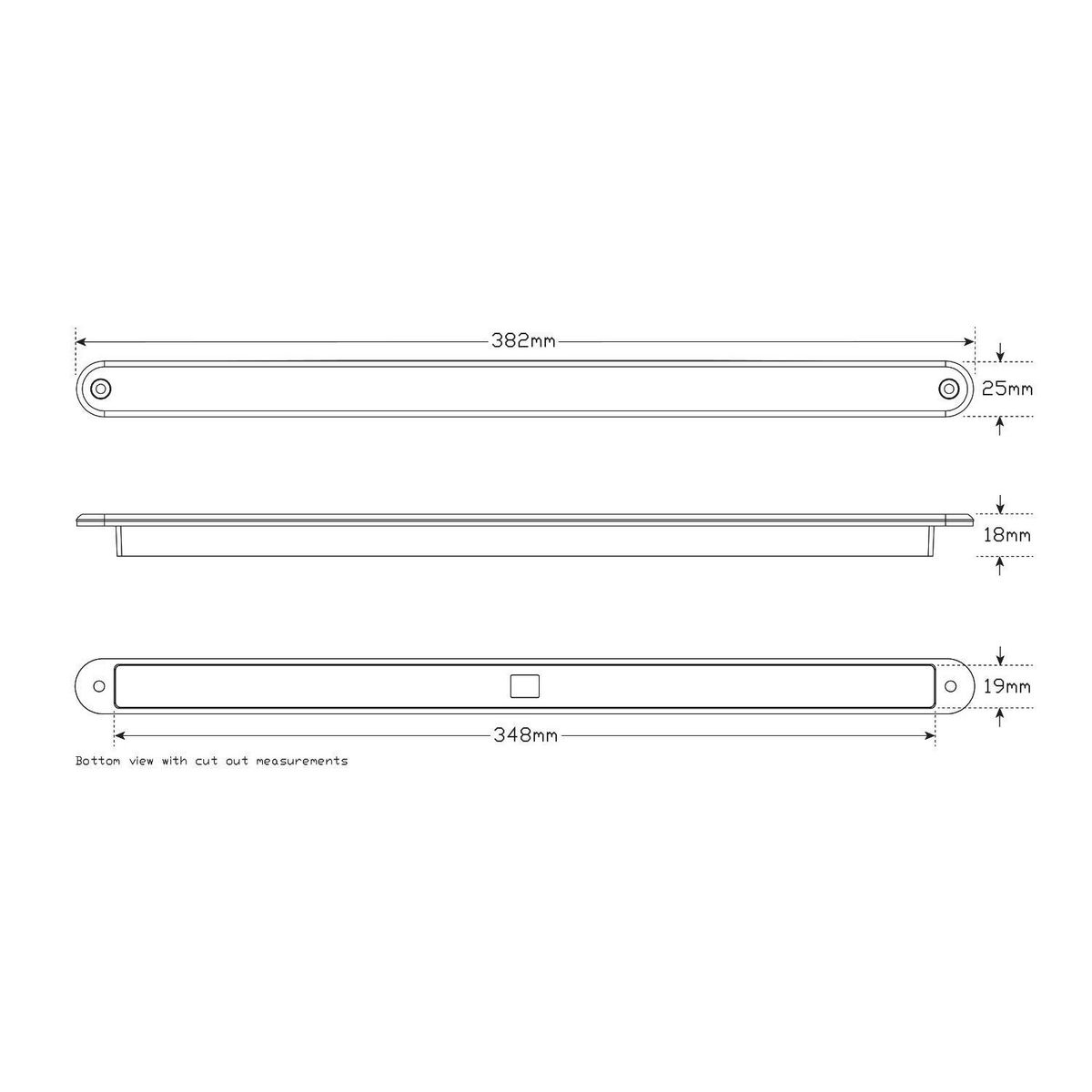

This recessed stop tail LED strip lamp measures 382mm x 25mm x 3mm and uses a high impact acrylic lens. Current draw is 0.16A stop and 0.04A tail at 13.8V.

Part number: 380R12.

The manufacturer technical guide covers dimensions, draw and fitting details

Compatibility and Fitment

Match the 380 Series recessed lamp length, red stop tail function, 12V system and panel cut-out before ordering. For fitting, push the lamp and grommet into a 340mm x 19mm cut-out, then run the cable through the rear of the mounting surface and fix the ends with screws.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the red lens faces rearward and both stop and tail functions work before road use. Also check the cut-out edge and screw tension, because uneven pressure can stop the strip lamp from sitting cleanly in the panel.

Trailer Applications

Workshops fit this recessed stop tail LED strip lamp to trailer rear bars, ute trays, caravans and light commercial bodies. It suits builds and repairs where the rear lighting layout needs a long red lamp with a very shallow panel finish.
