Description

Overview

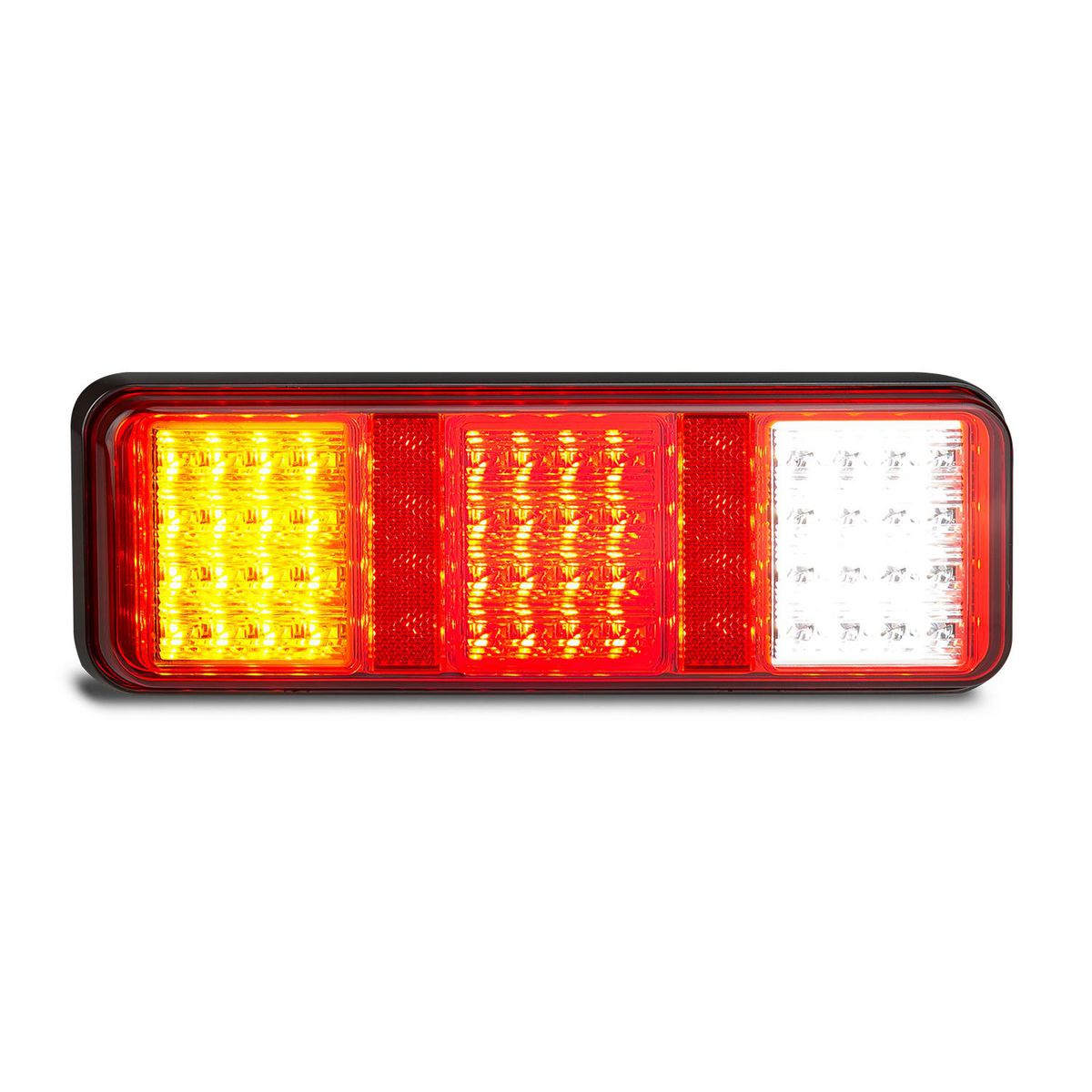

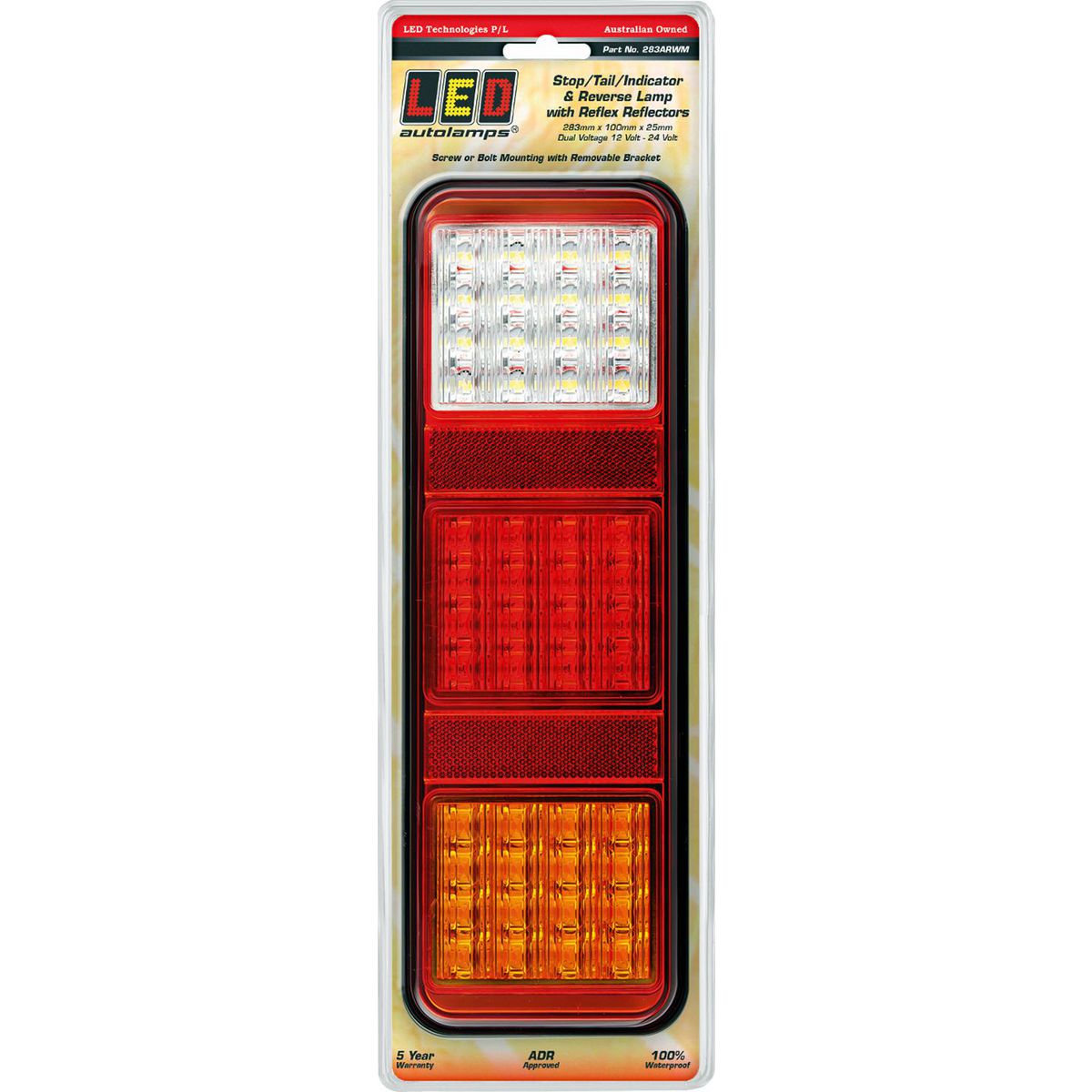

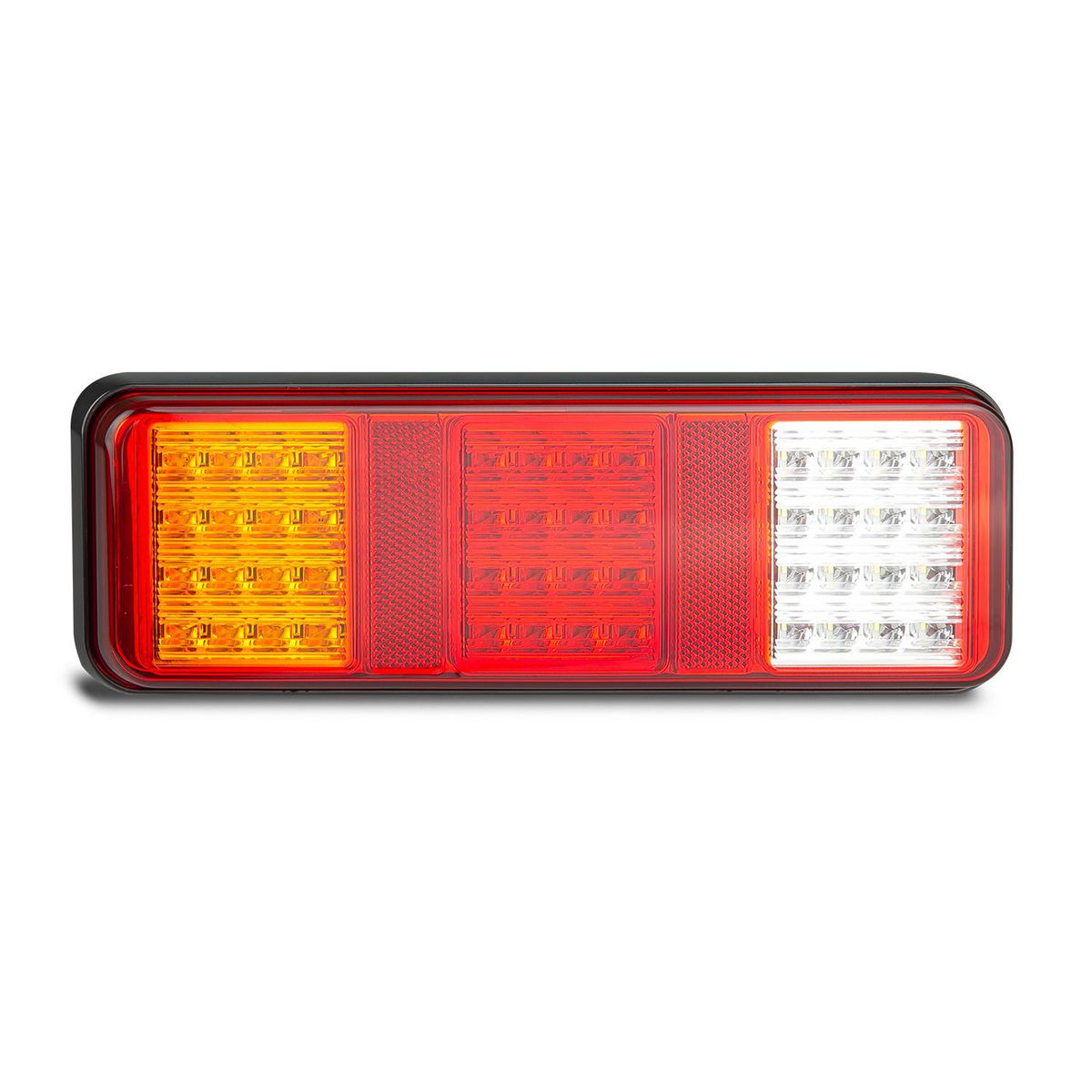

12/24V rear combination lamp supports rear stop, tail, indicator, reverse and reflector functions in one low-profile LED assembly. It suits trailer, truck body and tray installations where a compact rear lamp needs road-approved lighting functions without adding separate rear reflectors.

Features

• Stop, tail, indicator, reverse and reflector functions in one rear lamp
• Dual voltage operation for 12V and 24V electrical systems
• Screw or bolt mounting with removable bracket for horizontal installation
• IP67 rated body with hardened acrylic lens and ABS base

Specifications and Materials

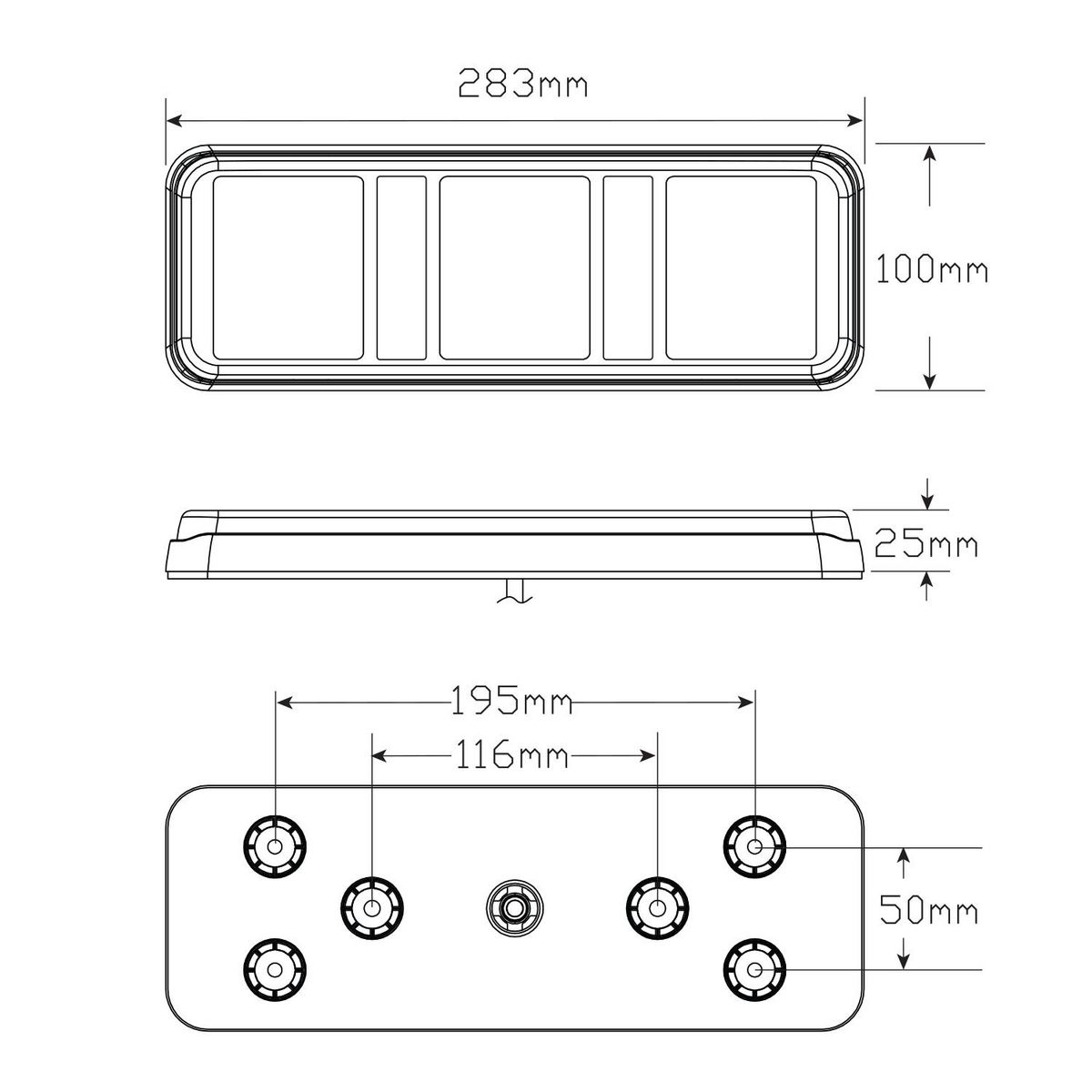

The lamp measures 283mm x 100mm x 25mm and uses a 30cm sheathed cable. It carries 48 LEDs and draws stop, tail, indicator and reverse circuits through separate wire colours for installation.

Part number: 283ARWM.

Use the manufacturer 283 Series technical page

Compatibility and Fitment

Match the lamp size, voltage range, mounting direction and wiring colours before ordering. The 12/24V rear combination lamp suits horizontal mounting and uses red for stop, brown for tail, yellow for indicator, black for reverse and white for earth.

Compliance and Safety

Check the mounting position against trailer lighting requirements before fitting. Also inspect the cable route and mounting bracket so the lamp sits square, seals properly and stays protected from impact or rubbing.

Trailer Applications

Workshops fit this style of rear combination lamp to trailers, trays and heavy vehicle bodies that need a compact multi-function rear light. Because it combines reverse lighting and inbuilt reflectors, it can tidy up the rear lighting layout when the trailer body has limited mounting space.
