Description

Overview

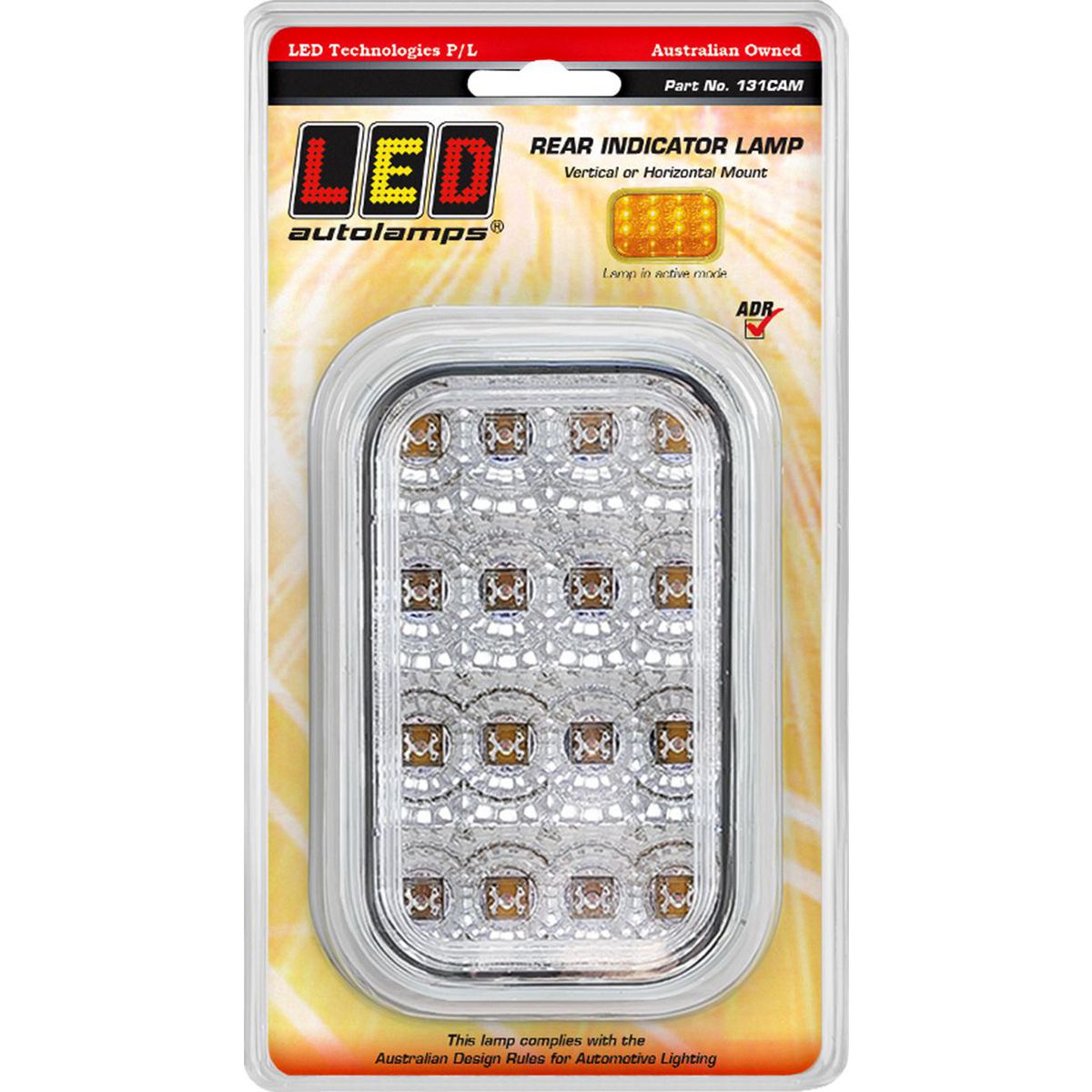

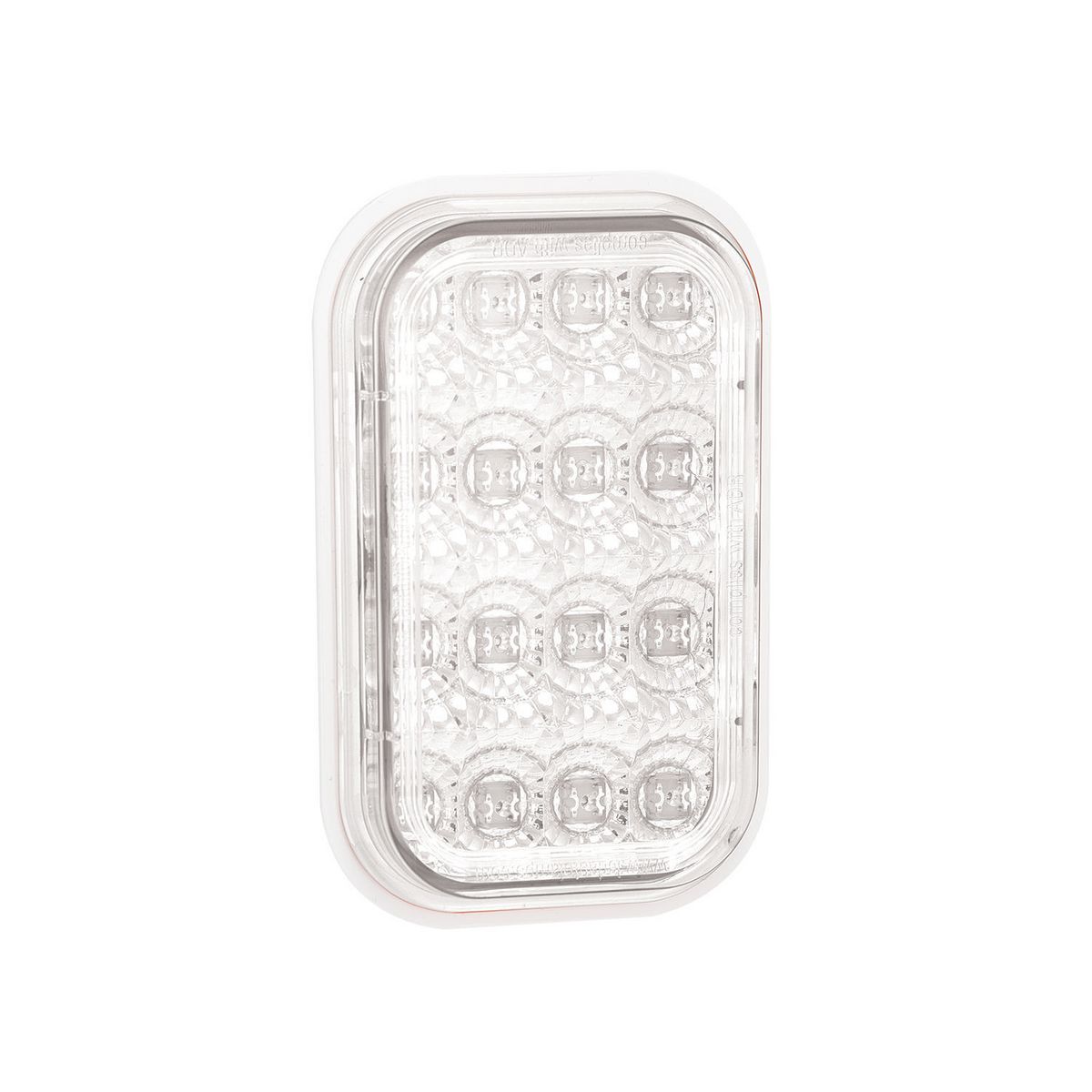

12/24V clear lens indicator lamp handles rear direction indication on trailers and heavy vehicle bodies with a compact recessed lamp body. It suits horizontal or vertical mounting, so workshops can match the lamp orientation to the existing cut-out, grommet or flange setup.

Features

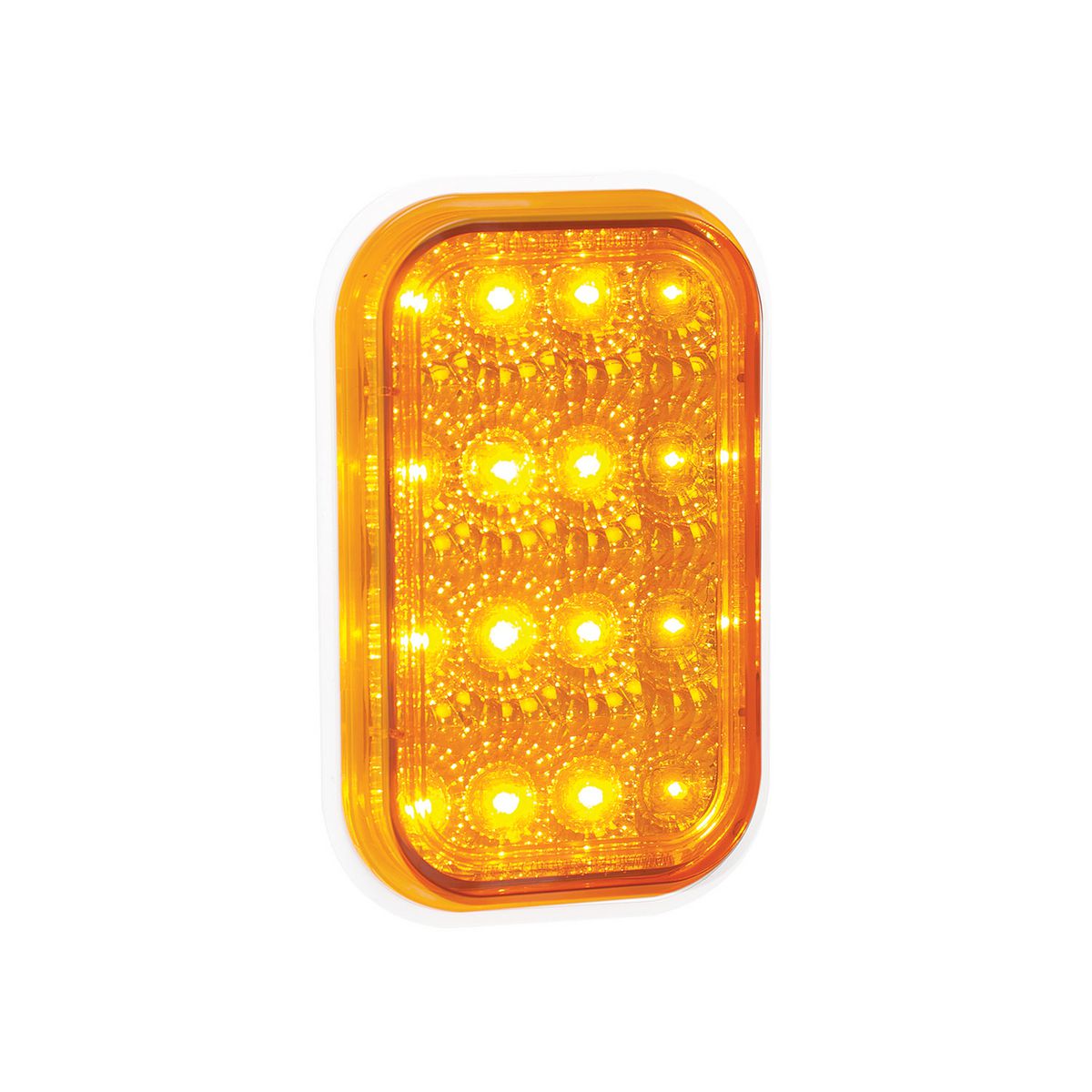

• Clear lens with amber LEDs for rear indicator function
• Internal chrome reflector for a clean lamp face and bright appearance
• Horizontal or vertical mounting for flexible rear body fitment
• IP67 rated body with 12V and 24V electrical compatibility

Specifications and Materials

The 12/24V clear lens indicator lamp measures 134mm x 87mm x 12mm and uses 16 LEDs. It runs through a 40cm cable with spade terminals, with indicator draw rated at 0.19A at 13.8V and 0.11A at 28V.

Part number: 131CAM.

Use the manufacturer 131 Series technical page

Compatibility and Fitment

Match the body size, lens style, rear indicator function and 12V to 24V voltage range before ordering. For new installations, the lamp fits with the matching grommet or flange and uses a 139mm x 91mm cut-out with 23mm radius corners.

Related Parts

Check the related mounting parts below against the trailer body before ordering.

Compliance and Safety

Confirm the mounting position and indicator visibility before fitting. Also check the cable route, terminal connection and lamp seal so the 12/24V clear lens indicator lamp stays protected from water, dust and vibration.

Trailer Applications

Trailers use this style of rear indicator lamp on body panels, guards and rear light panels where a compact rectangular lamp suits the available space. It also helps when matching an existing 131 Series cut-out during lamp replacement.

Why Choose ICS Trailers

ICS Trailers supplies LED trailer lighting for repairs, fleet maintenance and trailer build work where voltage, mounting style and lamp function need to match the job. Browse more LED Lights
