LED Reverse Lamp Twin Pack 131x30mm 12-24V
LED Reverse Lamp Twin Pack 131x30mm 12-24V
$80.00
LED reverse lamp twin pack for trailer and heavy vehicle rear lighting, with 12-24V dual-voltage input, 18 SMD LEDs per lamp, IP67 sealing and slim 131mm x 30mm x 8mm surface-mount housings.
Part number 12WM-2.
Description
Overview
LED reverse lamp twin pack gives trailers and vehicle bodies a slim white reverse-light setup with two low-profile surface-mount lamps. The 131mm x 30mm lamp body suits tight mounting areas where a taller reverse lamp would sit proud of the rear panel.
Features

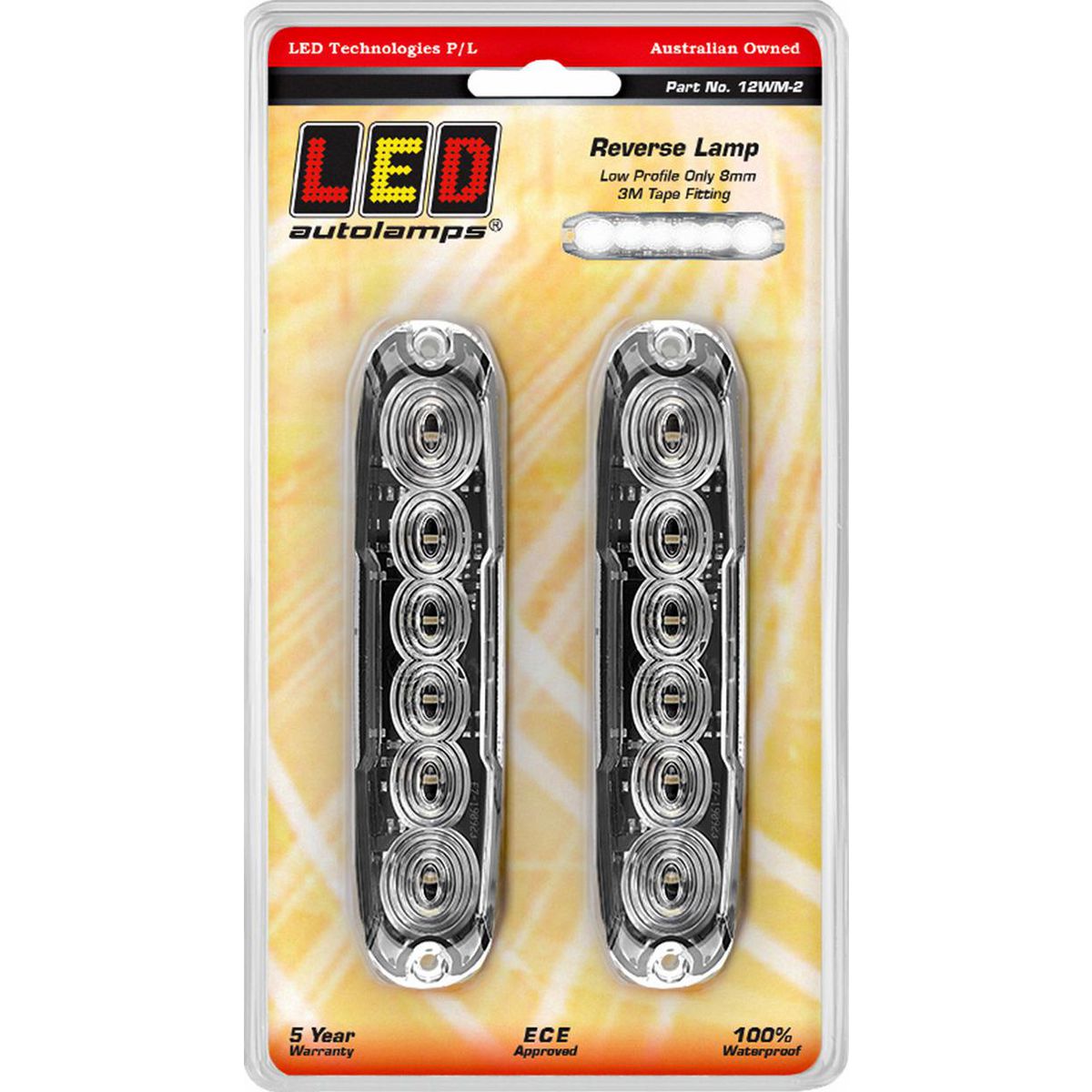

- Twin blister pack with two white reverse lamps
- 12-24V dual-voltage operation suits common trailer and truck electrical systems
- Low-profile 8mm body for slim surface-mount installation
- 3M tape or screw fitting with IP67 sealing
Specifications and Materials

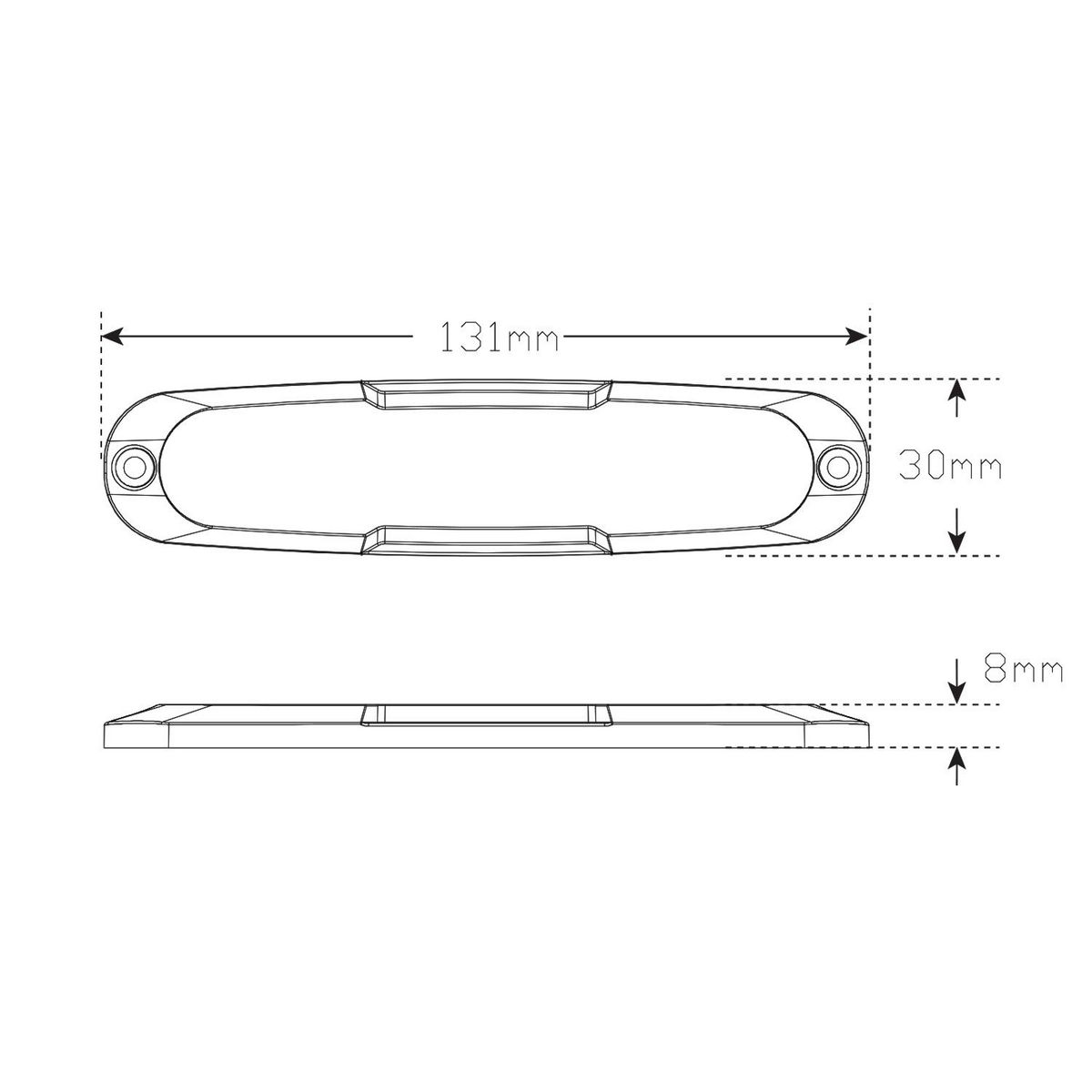

Each LED reverse lamp twin pack unit measures 131mm x 30mm x 8mm and uses 18 SMD LEDs for the reverse function. The lamp has a polycarbonate lens, aluminium base and 250mm cable.
Part number: 12WM-2.
Current draw for the reverse function is 0.21A at 13.8V and 0.21A at 28V. The reverse lamp carries ECE Reverse H-Only approval with CTA 060224.
Use the manufacturer 12 Series technical guide for lamp family and fitting details
Compatibility and Fitment
Check the available mounting space, reverse-light position, 12-24V wiring and horizontal mounting requirement before ordering. Surface mount the lamp using the supplied 3M tape and screws, then connect black to reverse and white to earth.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Matching series lamp | 12ACM-2 | Rear indicator lamp twin pack |
| Matching series lamp | 12RCM-2 | Stop/tail lamp twin pack |
Compliance and Safety
Confirm the reverse-light position and wiring function before returning the trailer to service. Also clean the mounting surface before using the adhesive pad, because dust, wax or uneven paint can weaken the tape bond.
Trailer Applications
Workshops fit this LED reverse lamp twin pack to trailers, truck bodies, caravans, utes and service bodies that need slim white reverse lamps. It suits repair and upgrade work where the rear body has limited clearance for deeper lamp housings.
