LED Rear Marker Lamp 86x31mm Stainless Bezel
LED Rear Marker Lamp 86x31mm Stainless Bezel
$15.00
LED rear marker lamp for trailer and heavy vehicle outline lighting, with 12-24V input, clear lens, stainless steel bezel, IP67 sealing and compact 86mm x 31mm x 10mm surface-mount body.
Part number 86RM.
Description
Overview

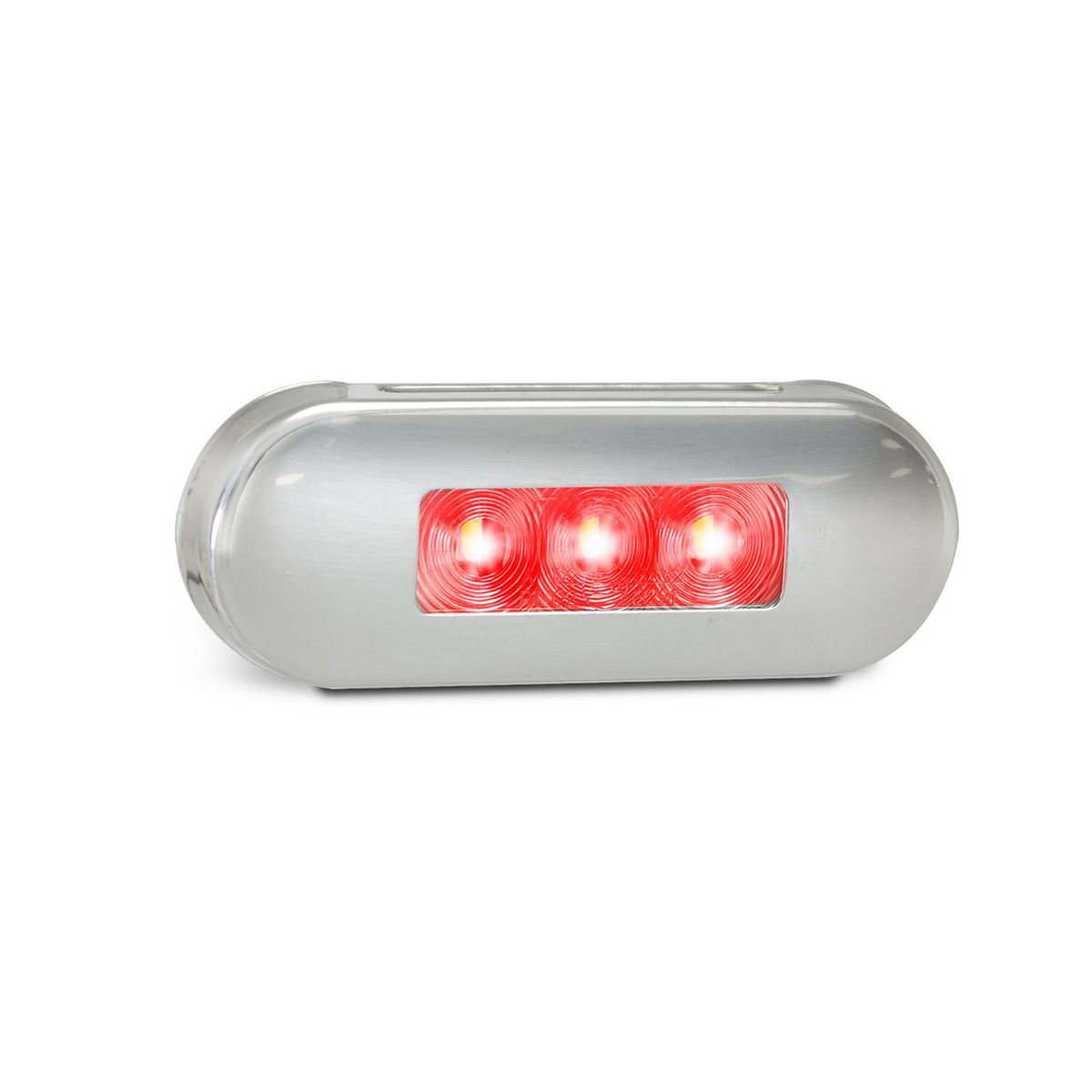

LED rear marker lamp gives trailers and heavy vehicle bodies a compact red rear end outline light with a clear lens and stainless steel bezel. The low-profile 86mm x 31mm body suits truck-style marker lamp replacements where a neat surface-mounted lamp fits the rear body edge.
Features
- Red rear end outline marker with clear lens and coloured LEDs
- 12-24V operation suits common trailer and truck electrical systems
- Stainless steel bezel with low-profile surface-mount body
- IP67 rated marker lamp with ADR and CTA rear end approval
Specifications and Materials

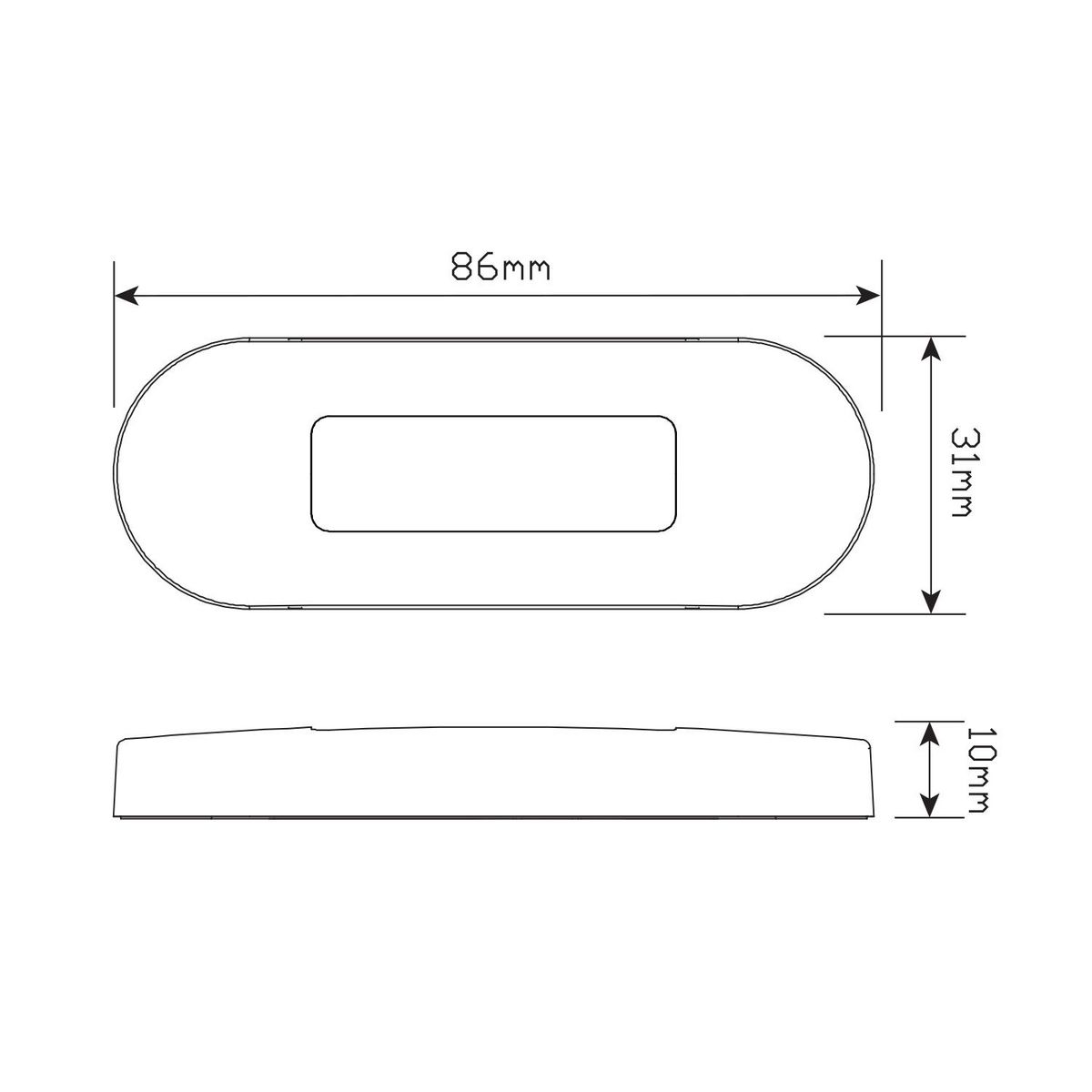

This LED rear marker lamp measures 86mm x 31mm x 10mm and uses 3 LEDs for the rear end outline marker function. It has a polycarbonate lens, stainless steel base and 15cm bare-wire cable.
Part number: 86RM.
Current draw for the rear marker function is 0.12A at 13.8V and 0.04A at 28V. The lamp carries rear end 49/00 approval with CTA 046821.
Use the manufacturer 86 Series technical guide when checking marker lamp fitment, approvals and series options
Compatibility and Fitment
Check the rear marker position, available mounting space, horizontal orientation and 12-24V wiring before ordering. Remove the stainless bezel, mount the lamp to a flat surface with screws, run the wires through the back, then clip the bezel back into place.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 86RMCSB | Rear marker with CSB plug |
| Replacement component | 86CB | Chrome replacement housing |
| Matching series lamp | 86RRM | Red lens rear marker |
| Matching series lamp | 86AM | Amber side marker |
| Matching series lamp | 86WM | Front end outline marker |
Compliance and Safety
Confirm the lamp position and marker function before returning the trailer to service. Also check the mounting surface and wire route, because loose bezels, pinched wiring or uneven mounting can lead to water entry or lamp damage.
Trailer Applications
Workshops fit this LED rear marker lamp to trailers, trucks, caravans, service bodies and commercial vehicle bodies that need a compact red rear end outline marker. It suits replacement work where the existing marker uses the 86 Series surface-mount footprint.
Why Choose ICS Trailers
ICS Trailers keeps trailer lighting, electrical parts and repair hardware together so workshops can match marker lamps with the rest of the job. View more products in LED Lights
