Overview

24V load resistor helps stop dashboard globe warnings and fast-flash issues when LED lamps replace standard 21W incandescent globes. It suits 24V trailer and truck lighting circuits that need a dummy load so the vehicle sees the expected current draw.

Features

• 24V only load resistor for LED lighting fault correction
• 50W, 24Ω resistor value for 21W globe simulation
• IP67 rated housing for shock, dust and water resistance

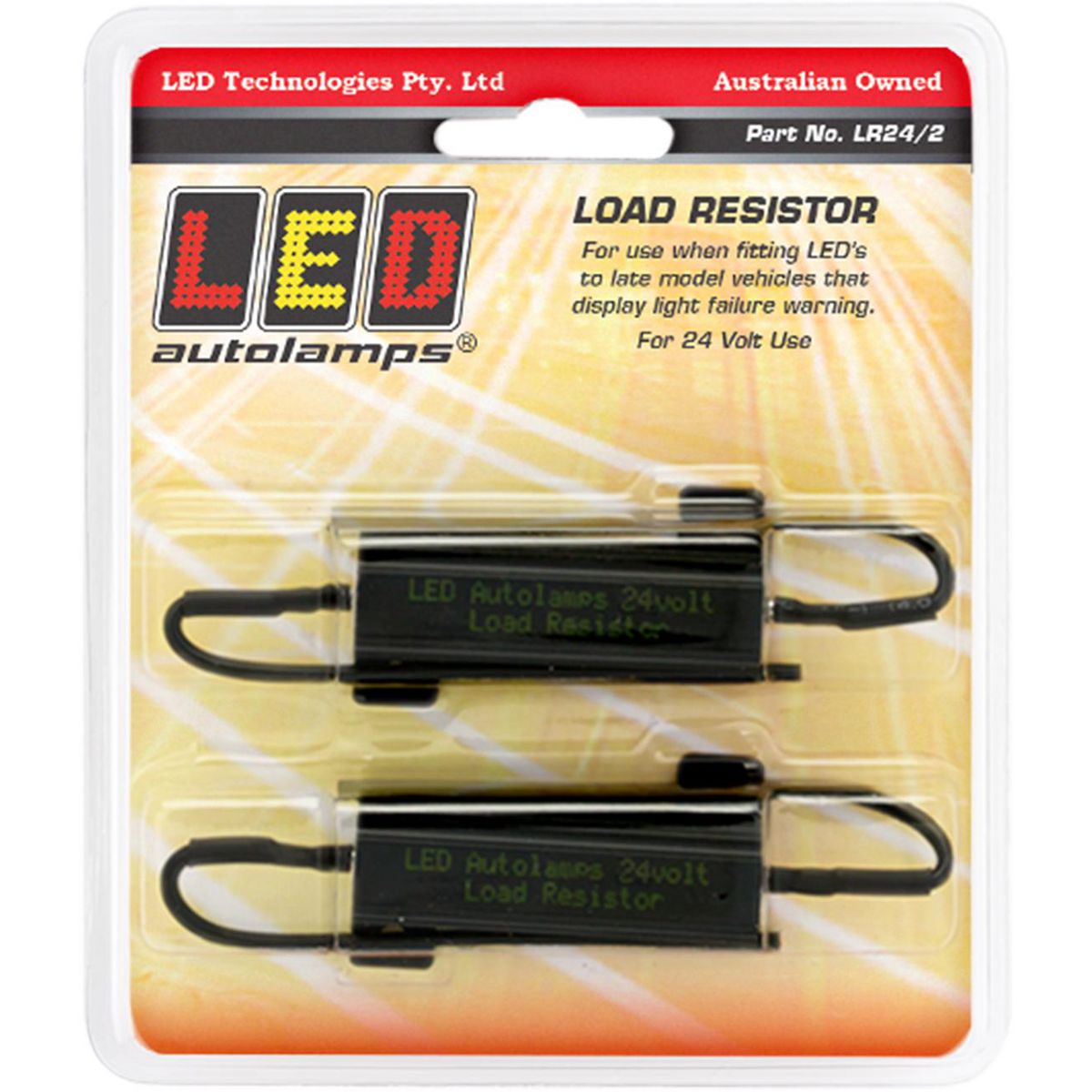

• Twin blister pack with 10cm cable each side

Specifications and Materials

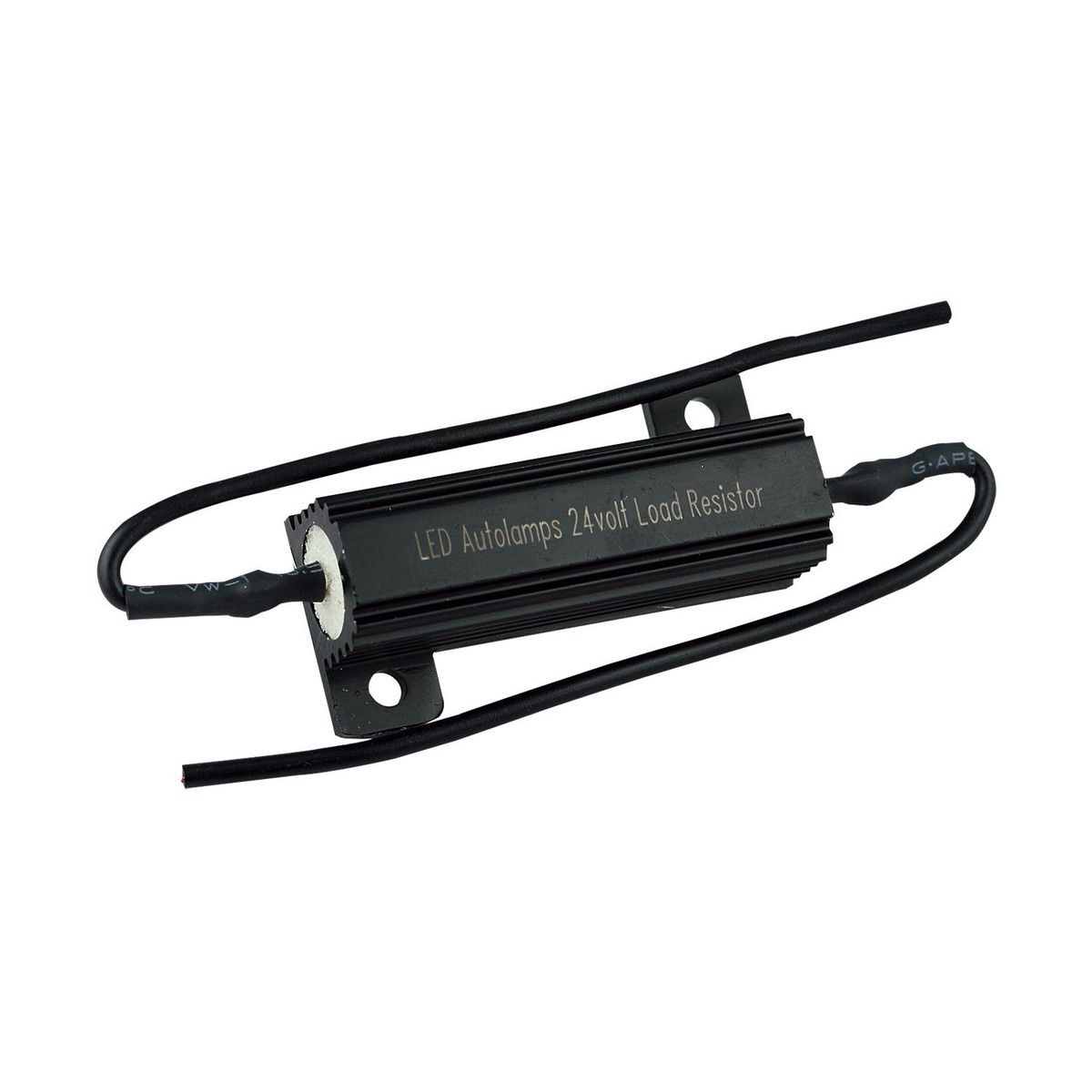

This 24V load resistor uses an aluminium housing and surface-mount body. It must mount to a metal surface because the resistor can become very hot during operation.

Part number: LR24/2.

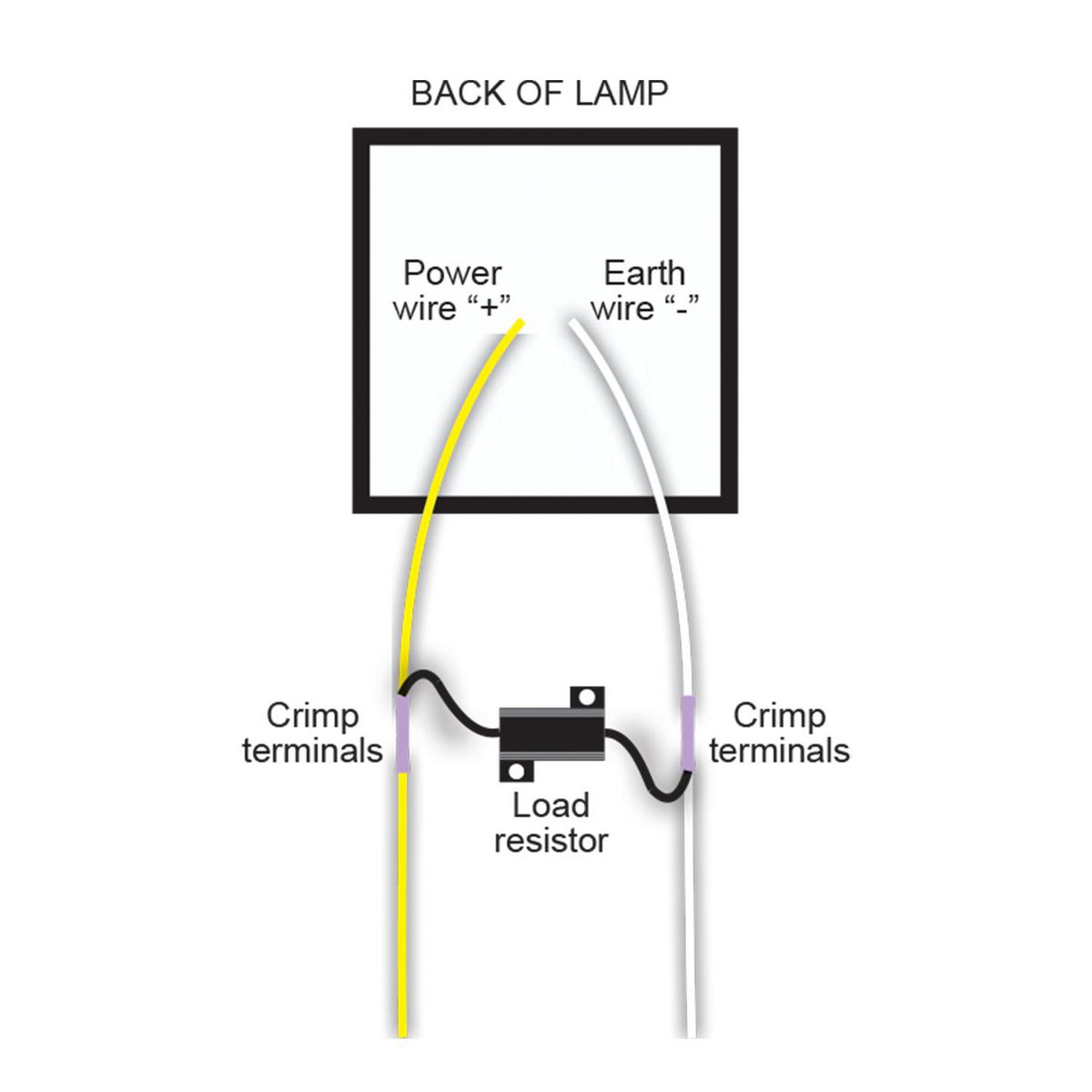

Wire the resistor between the input wires of the lamp, not to the chassis, so the lighting circuit keeps a sound earth path.

Use the manufacturer load resistor fitting guide when checking resistor value, heat warning and wiring position

Compatibility and Fitment

Check the vehicle voltage before ordering, because this resistor suits 24V systems only. Fit one resistor per affected function where needed, then secure it to metal away from plastic trims, wiring insulation and heat-sensitive body materials.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the resistor firmly to metal before powering the circuit. Also keep it clear of curtains, plastic lamp housings, taped looms and body sealants, because operating heat can damage nearby materials.

Trailer Applications

Workshops fit this 24V load resistor during LED indicator, stop, tail or marker lamp conversions where the vehicle still expects the draw of a conventional globe. It suits heavy vehicle and trailer lighting repairs where fault warnings or incorrect flash rates appear after LED lamp replacement.
