Description

Overview

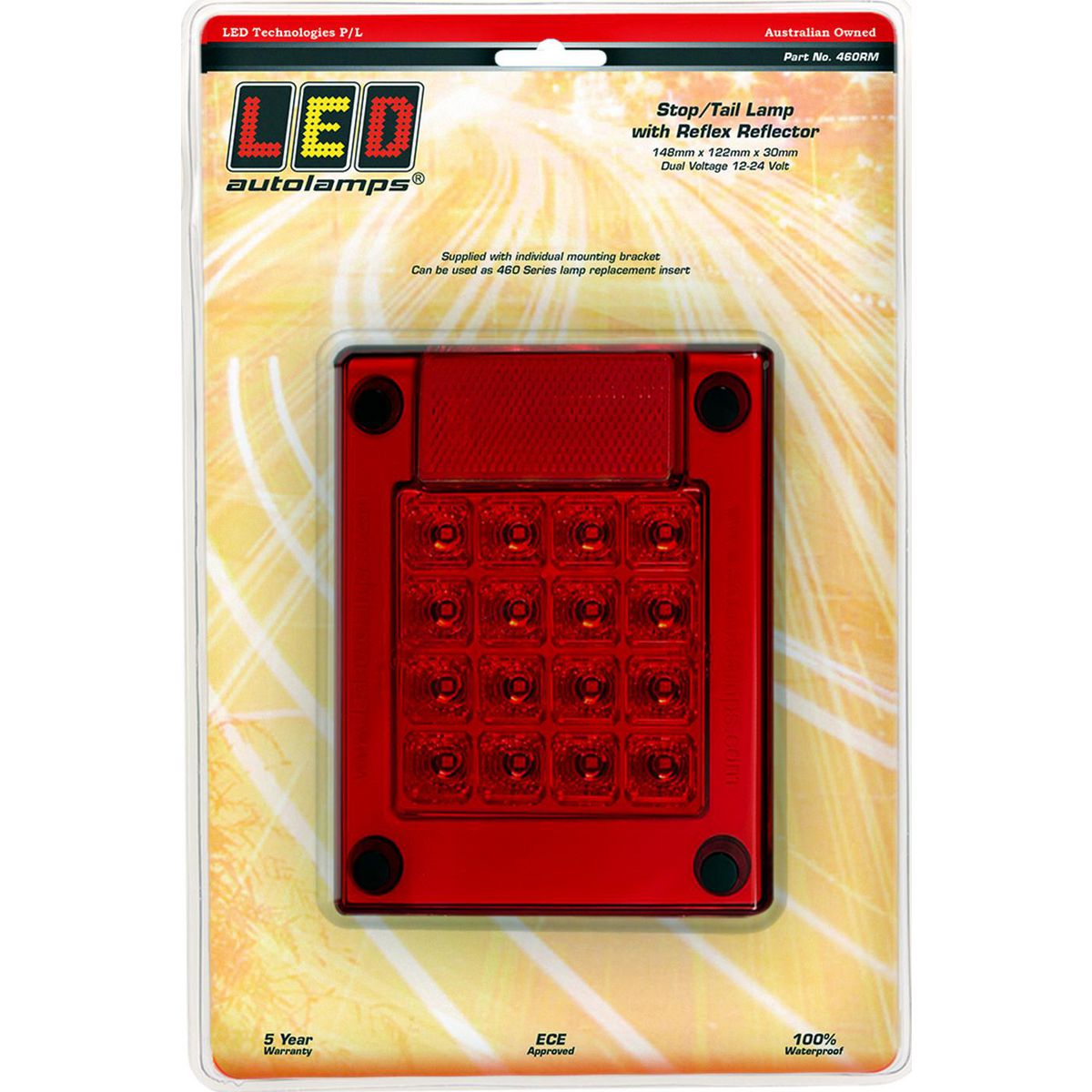

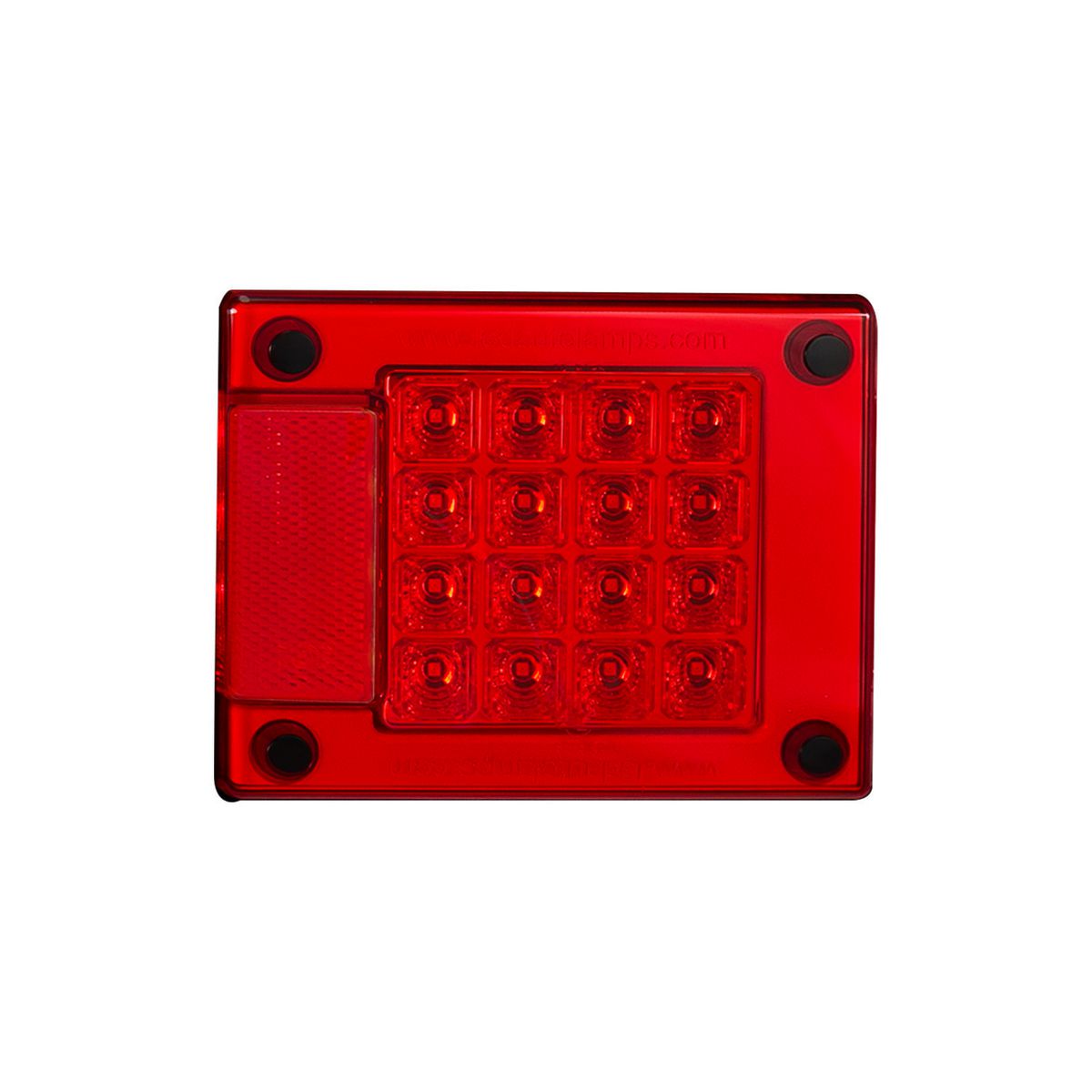

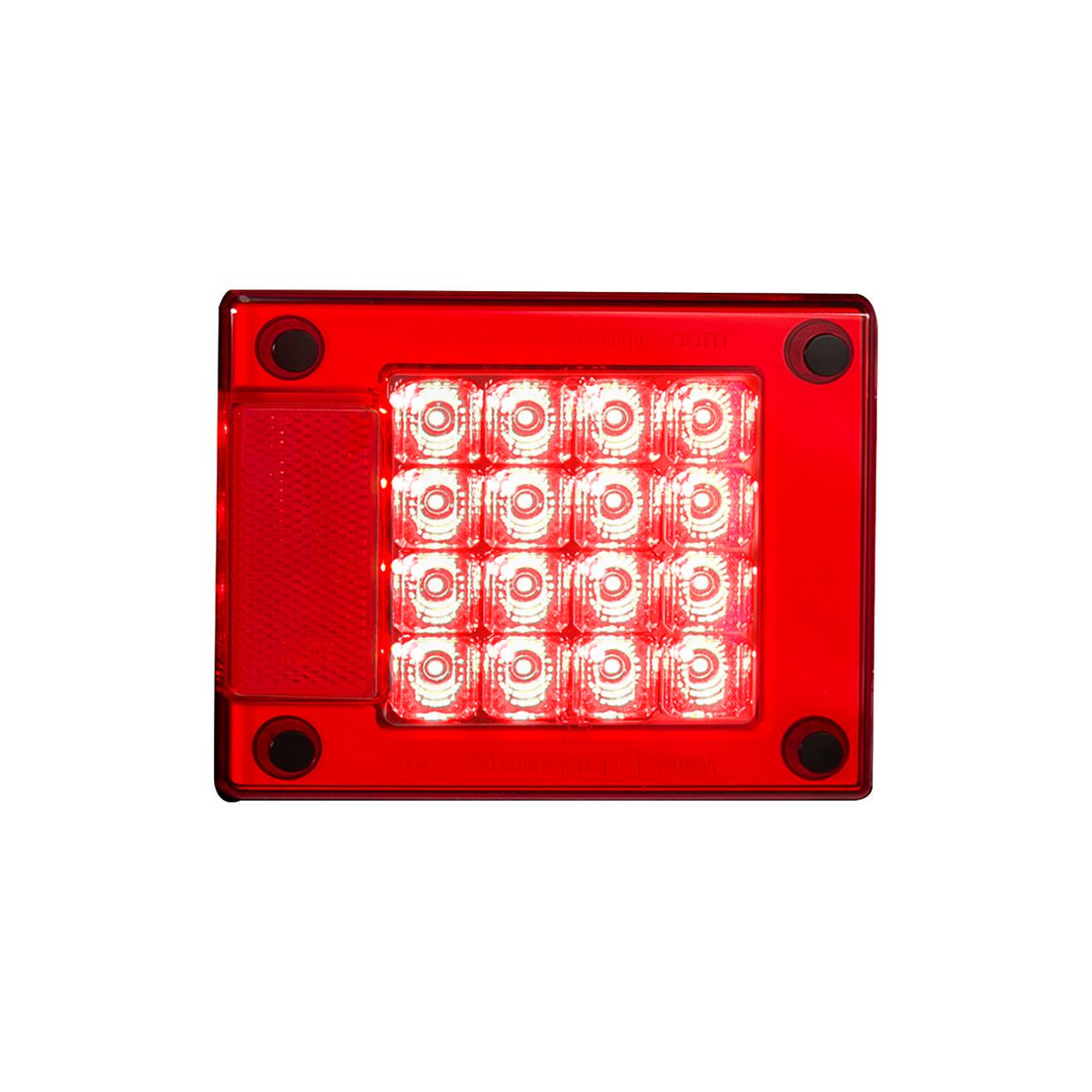

LED stop tail lamp gives trailers and heavy vehicle bodies a compact rear stop, tail and reflector function in one rectangular lamp. The 148mm x 122mm body suits 460 Series single-function lamp repairs where the existing panel cut-out and bracket layout match.

Features

• Stop, tail and reflex reflector functions in one red rear lamp
• 12-24V multivolt operation suits common trailer and truck electrical systems
• 16 LED layout with 10cm cable for surface-mount installation
• IP67 rated lamp with PMMA lens and ABS mounting bracket

Specifications and Materials

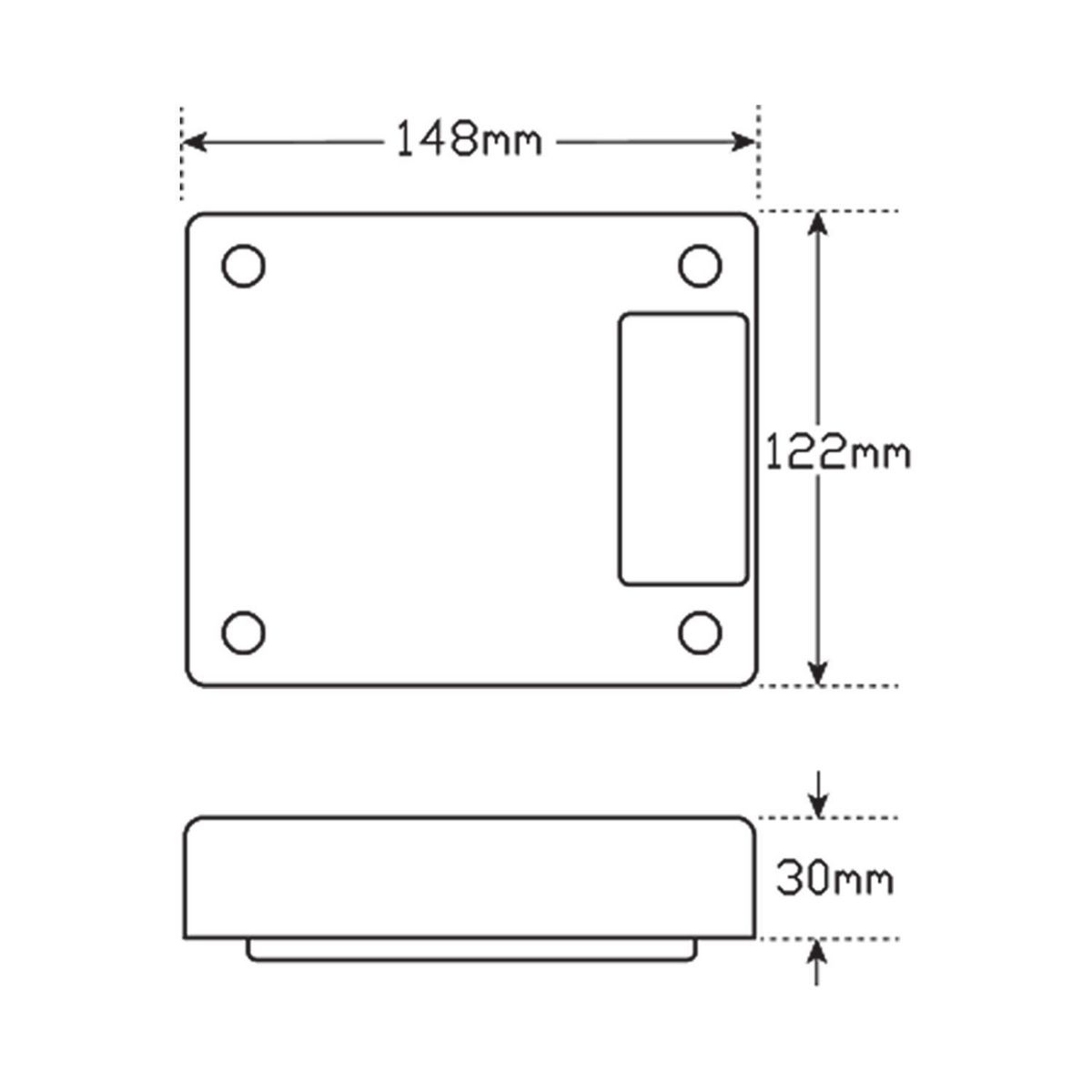

This LED stop tail lamp measures 148mm x 122mm x 30mm and includes the mounting bracket for horizontal surface mounting. The lamp uses a PMMA lens, ABS bracket and 16 LEDs.

Part number: 460RM.

Current draw at 13.8V is 0.30A stop and 0.02A tail. At 28V, current draw is 0.17A stop and 0.04A tail.

Use the manufacturer 460 Series technical guide when checking installation and lamp family details

Compatibility and Fitment

Check the body opening, bracket position, horizontal mounting orientation and 12-24V wiring before ordering. Surface mount the lamp onto a flat panel with the bracket, then run the cable through the hole in the mounting surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the rear lamp position and wiring function before returning the trailer to service. Also inspect the mounting surface, screw holes and cable route, because water entry or a pinched cable can shorten lamp life.

Trailer Applications

Workshops fit this LED stop tail lamp to trailers, truck bodies, service vehicles and other commercial bodies that run compatible 460 Series single-function rear lamps. It suits replacement work where the stop/tail lamp needs to match the existing rectangular lamp footprint.
