Description

Overview

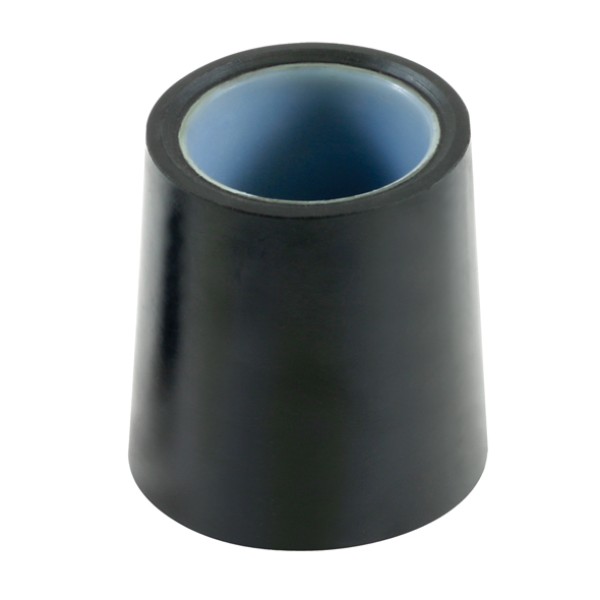

TMC taper radius rod bush supports controlled movement through the torque arm or radius rod eye and helps keep the joint located in suspension service. It suits repair work where a worn bush starts adding slack, noise or uneven movement through the suspension link.

Features

• 47mm to 55mm tapered OD for housing fitment checks
• 32mm ID for pin or sleeve match-up
• 59mm length for bush width matching
• Rubber construction for compliant joint support

Specifications and Materials

This TMC taper radius rod bush measures 47mm to 55mm on the outside diameter, 32mm on the inside diameter and 59mm in length, so buyers can match the bush against the housing, pin and joint width before ordering. The tapered rubber profile suits torque arm and radius rod service where the bush needs to locate cleanly in the eye and carry load without metal-to-metal contact. Part number: SP1307. Read the TMC 75 spring suspension service manual for torque arm bush reference

Compatibility and Fitment

Match the inside diameter, both outside diameters and the taper profile before ordering, then inspect the pin or sleeve and housing bore while the joint is apart. Also check for oval wear in the eye, because a fresh bush will not correct a worn housing. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 323128

Compliance and Safety

Clean the housing bore before fitting the new bush, then confirm the pin or sleeve passes through square without cutting, folding or distorting the rubber. Replace bushes that show splitting, crush damage, oil attack or loose fit in the housing, because movement at the joint can affect suspension control and tyre wear.

Trailer Applications

Workshops fit this TMC taper radius rod bush during trailer suspension rebuilds, torque arm service and radius rod eye repairs on TMC mechanical suspension setups. It also suits jobs where the original bush has hardened, shifted or worn out under repeated load and articulation.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
