Description

Overview

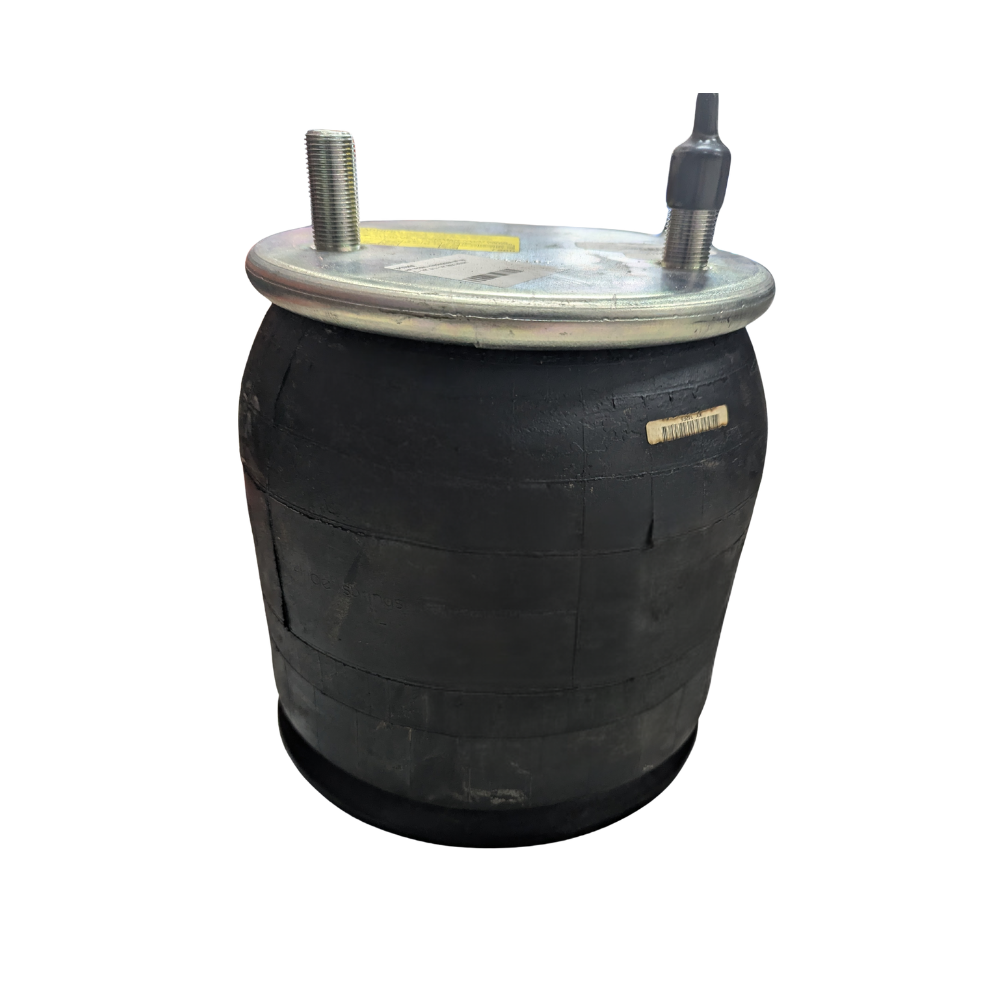

Air Spring Assembly Hendrickson INTRAAX 6.5in to 7.5in supports stable ride height and axle load sharing on Hendrickson trailer suspensions. Replacing a leaking or fatigued air spring helps reduce harshness, improve levelling consistency, and limit uneven tyre wear. It also helps reduce shock transfer through the chassis when the suspension is operating within its intended range.

Features

• Designed to suit Hendrickson INTRAAX 6.5in and 7.5in ride height configurations
• Supports consistent ride height when the system is correctly set and maintained
• Suited to heavy trailer operating environments across wide temperature ranges
• Helps reduce vibration transfer when shocks and bushes are serviceable

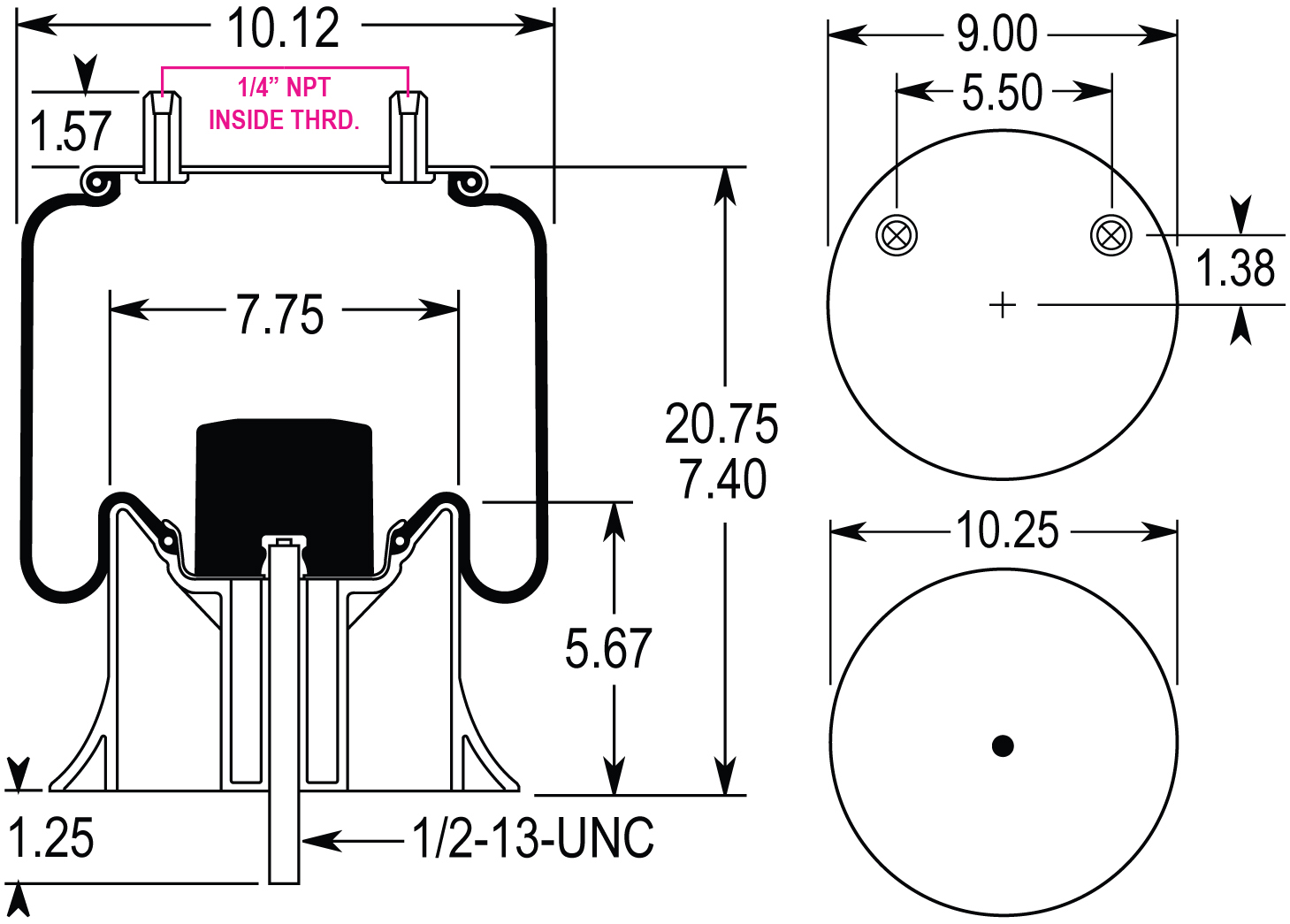

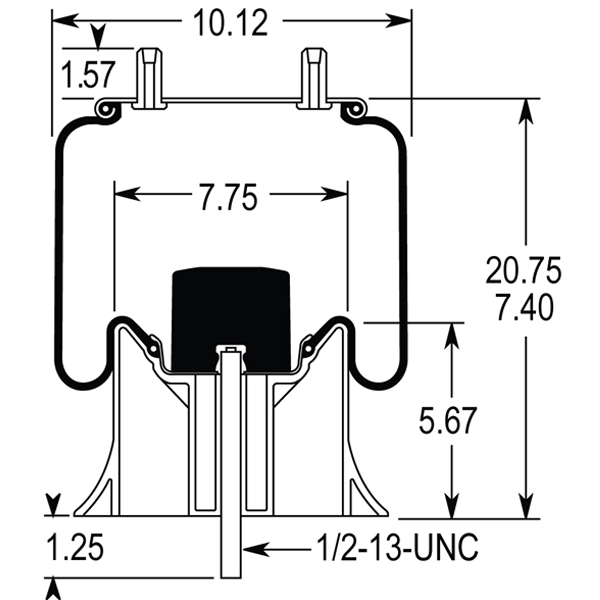

Specifications and Materials

Air springs typically use a reinforced elastomer bellows with robust mounting hardware. Confirm compatibility against the existing assembly before ordering.

• Suitability: Hendrickson INTRAAX trailer suspension
• Ride height coverage: 6.5in to 7.5in
• Max operating pressure: 7 bar (100psi)
• Operating temperature range: -40°C to +70°C
• Product type: Air spring assembly

Part number: SP0066GA.

Additionally, refer to the Hendrickson parts list L1051 to confirm application coverage and ride height options.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. W01-358-9644, W013589644, 1T15MBTW-6, 1T15MBTW6, S-23721, S23721, 9 10BP-16 P 569, 910BP16P569, AS9644, 1R12-1182, 1R121182, 6428, AS-8569, AS8569, AS96440, 1DK23J-9644, 1DK23J9644, HENDRICKSON S23721, C-23721, HENDRICKSONS23721C23721, 1T15MBV6 W01-4555-9644 off bag, 1T15MBV6W0145559644offbag

Compliance and Safety

Depressurise the air system and support the trailer safely before removal. Inspect air lines for chafe, confirm mounting faces are clean, and torque fasteners to the suspension maker’s requirements. Check that the air spring clears brackets and airlines through full suspension travel, and replace worn shocks or bushes so the new air spring is not forced to absorb uncontrolled movement.

Trailer Applications

This assembly is commonly used on heavy trailers fitted with Hendrickson INTRAAX suspension where stable ride height is critical, including:

• Linehaul and general freight trailers
• Drop deck and tautliner applications
• Tipper and bulk haulage trailers
• Fleet maintenance replacements for INTRAAX-equipped suspensions

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Finally, confirm your existing air spring’s mounting style, air port position, and the suspension ID plate details before ordering to avoid mismatched hardware.

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer suspension parts with practical fitment support, so you can match the correct INTRAAX air spring assembly with fewer mistakes. You can also bundle related suspension service items to reduce downtime.
