Description

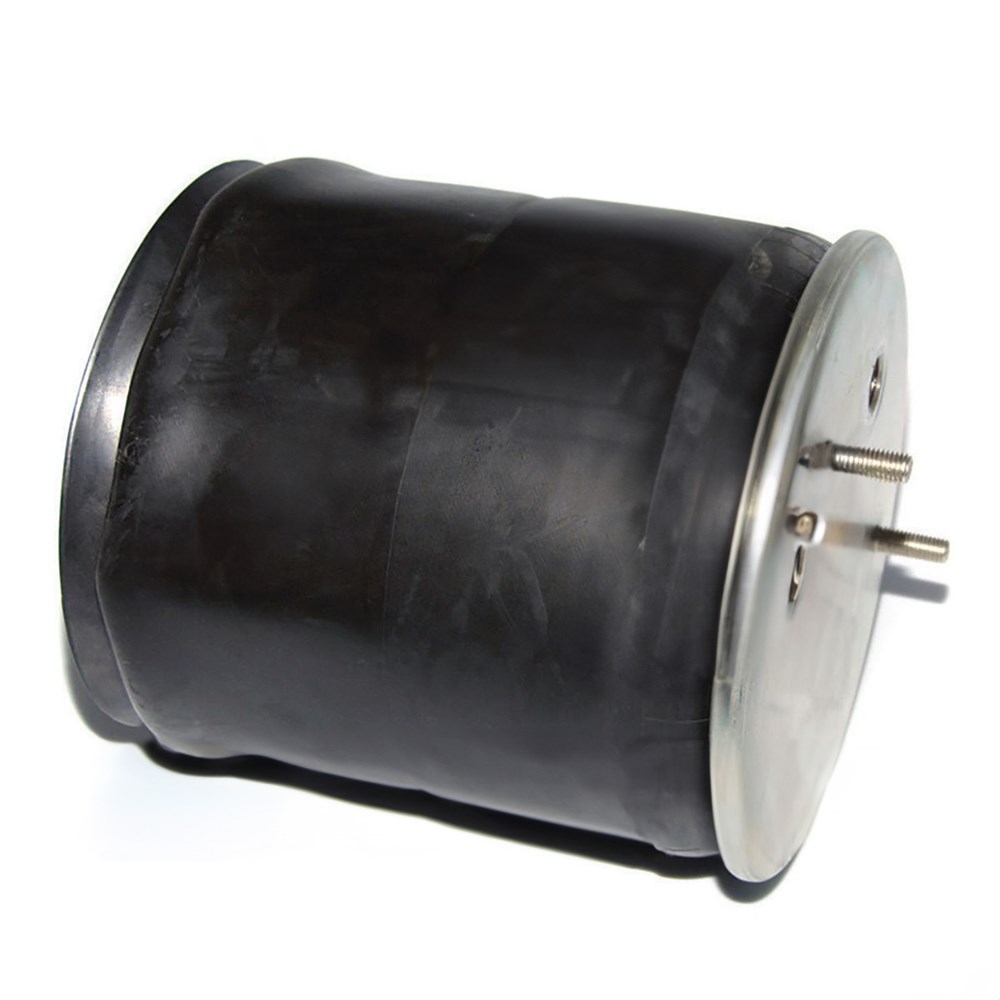

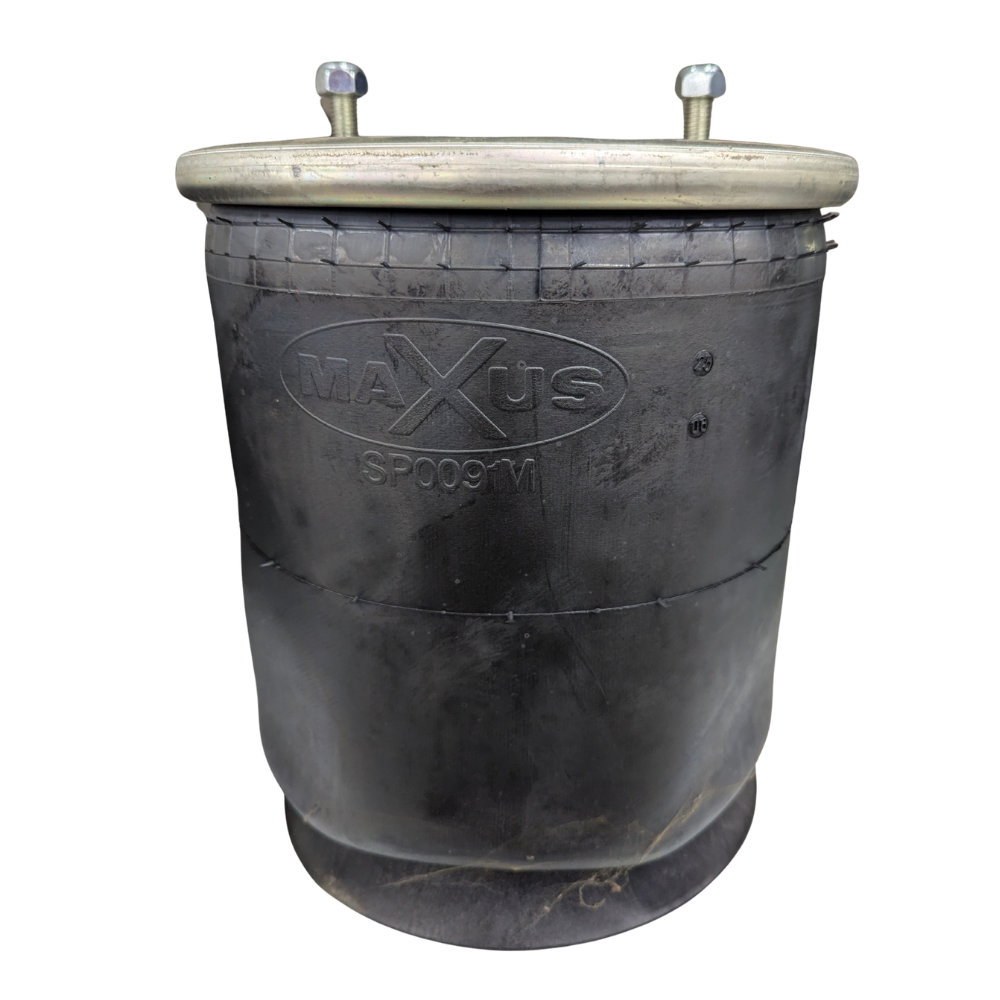

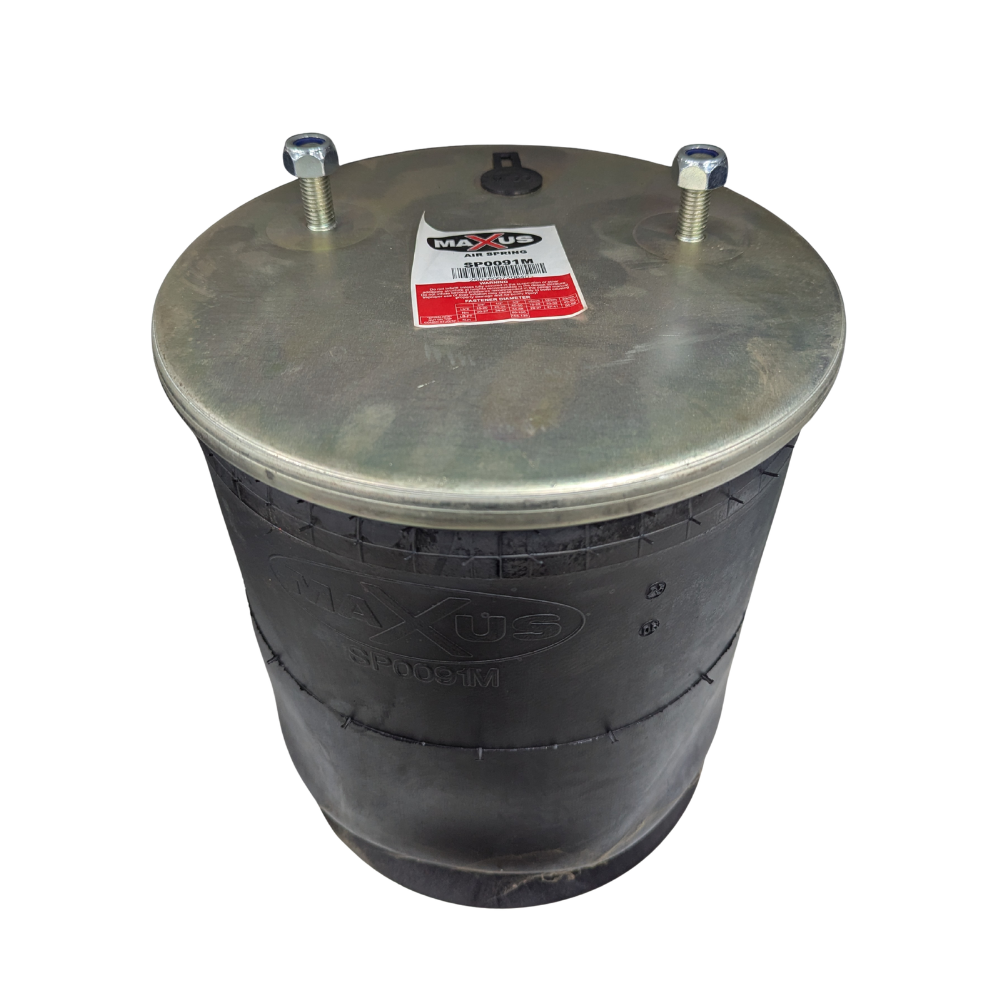

Maxus Trailer Air Bag Assembly Complete Type

Overview

Maxus trailer air bag assembly complete type helps restore ride height and cushioning in trailer air suspension. It suits common suspension layouts where a complete air spring and piston assembly is required. Replacing a leaking air spring can reduce uneven tyre wear and help stabilise handling under load.

Features

This assembly uses a complete air spring format that simplifies replacement compared with swapping bellows only. It supports consistent ride height when the rest of the suspension components remain serviceable, and it suits applications across both SAF and ROR-based suspension setups.

• Complete air spring assembly for service replacement
• Supports stable ride height and load support
• Suitable for common trailer air suspension layouts
• Designed for routine suspension maintenance cycles

Specifications and Materials

This air spring is supplied as a complete type assembly with a plastic piston. Published selection dimensions list an overall height of 340mm and a maximum outer diameter of 290mm, so it suits fitments that require these envelope dimensions for clearance and travel.

• Type: complete air spring assembly

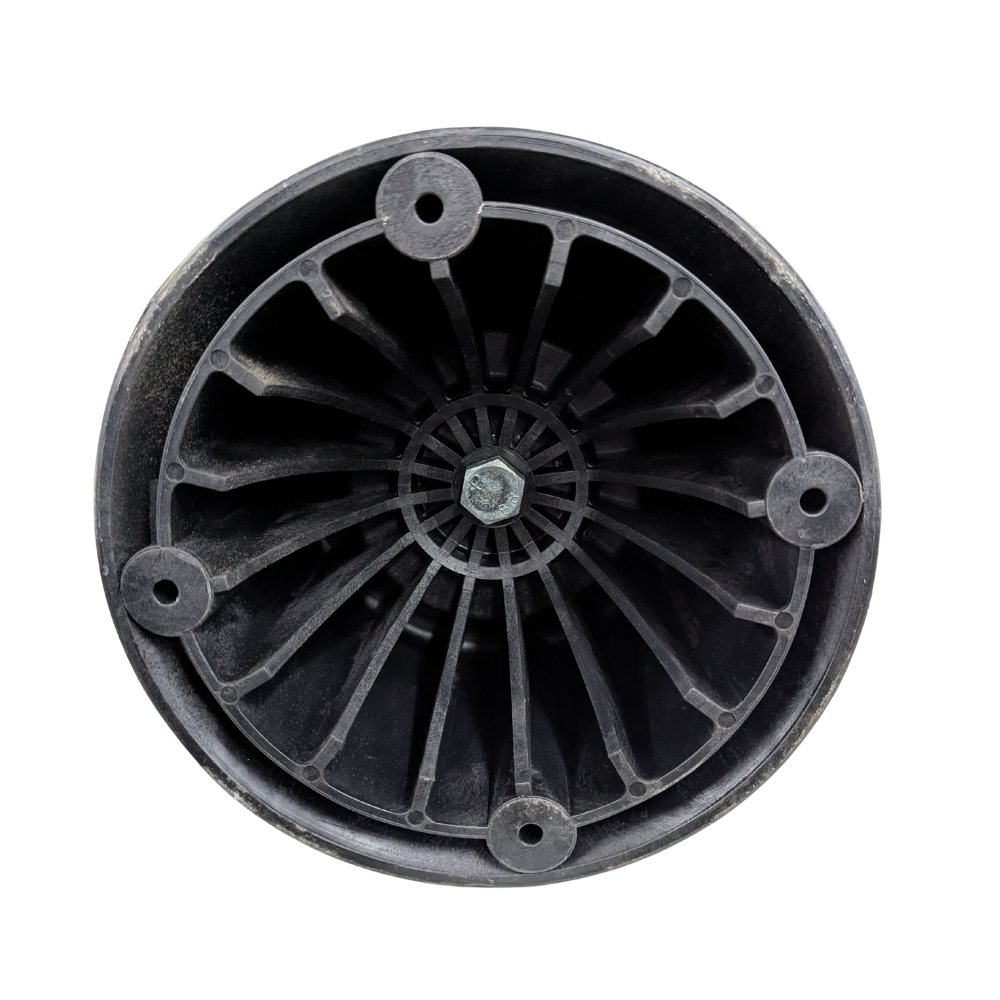

• Piston: plastic
• Height: 340mm
• Outer diameter (max): 290mm

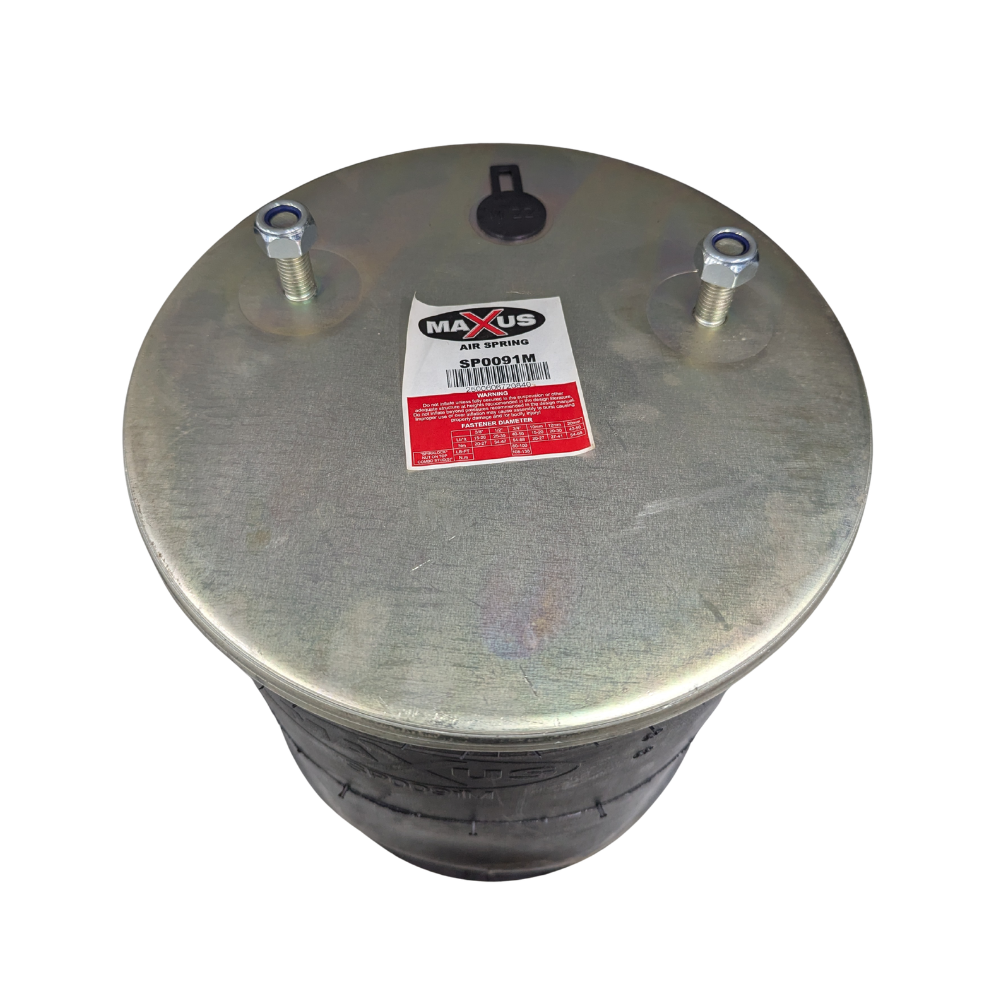

Part number: SP0091M.
See the SAF-HOLLAND suspension spares manual for general guidance on SAF air suspension components and service parts.

Compatibility and Fitment

Always confirm the original air spring style and mounting before ordering because suspension variants can differ by chassis and axle option. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. Suits 6367, Suits6367, 6348, 34004K, 1T17BS-6, 1T17BS6, W01-M58-6366, W01M586366, 6367, 1R11-705, 1R11705, MLF7031, 3 209 0007 02, 3209000702, 3228002900, RML75133CP, 4022 N P03, 4022NP03, 1R11-714, 1R11714, P10.4022.C03, P104022C03, 1 DK 22 E-9, 1DK22E9, 54022AP03, ABM 520-30 A 00, ABM52030A00, V1DK22E-9, V1DK22E9, 34022-01 P, 3402201P, RML75133, 4022 N P02, 4022NP02, 1R11-709, 1R11709, 1 DK 22 E-9 NP, 1DK22E9NP, 54022AP02, ABM 520-30 A, ABM52030A, V1DK22E-9 NP, V1DK22E9NP

Compliance and Safety

Depressurise the air system and support the trailer safely before removal. Inspect air lines, height control valves, and mounting hardware during replacement because air leaks elsewhere can mimic a failed air spring. Torque fasteners to the axle or suspension maker’s specification and re-check after initial settling, because loose hardware can shorten bellows life and introduce handling issues.

Trailer Applications

This Maxus trailer air bag assembly complete type commonly suits air-suspended semitrailers where SAF or ROR-based running gear is fitted. It suits service work where a full assembly swap is preferred to minimise downtime, and it is also a practical option for fleet maintenance and preventative replacement programs.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help you confirm the right suspension part for your trailer setup before dispatch, which reduces mis-orders and speeds up maintenance turnaround. You can also bundle related fittings and airline hardware to complete the job in one hit. Browse Suspension parts at ICS Trailers for more air suspension options.
