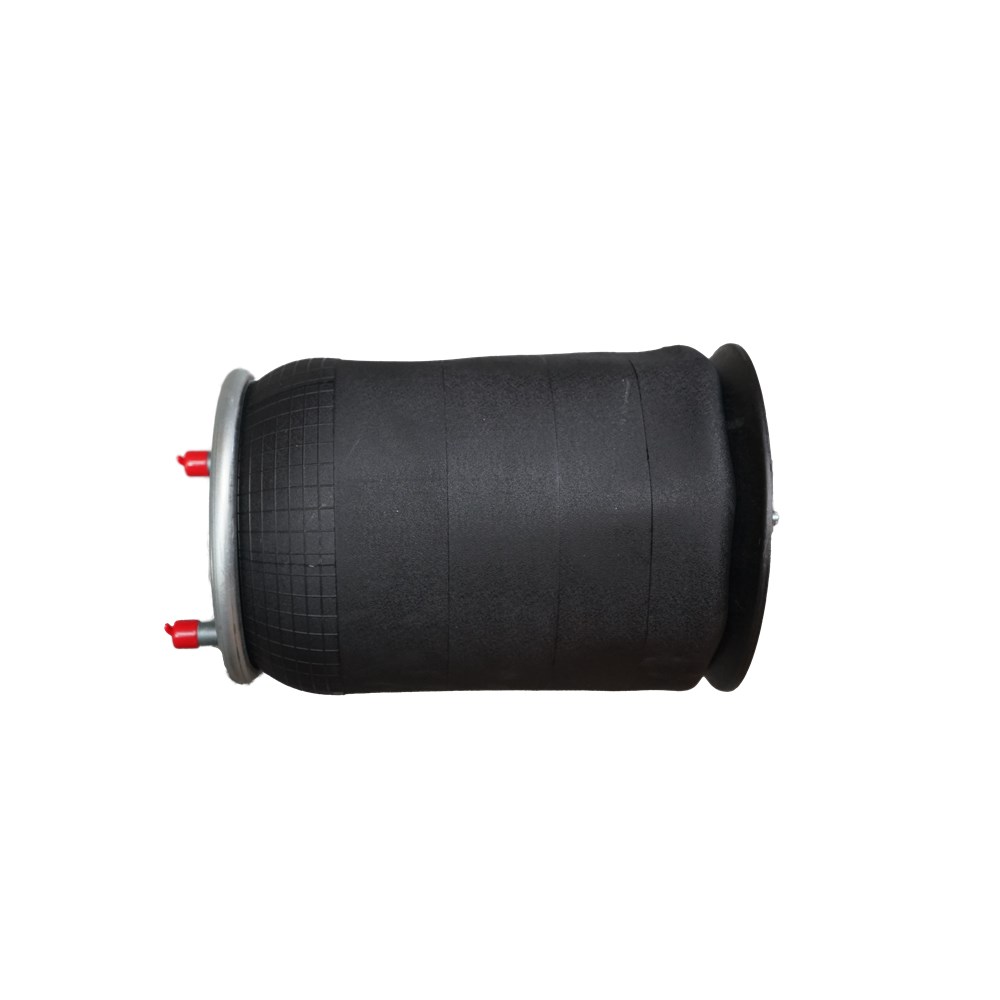

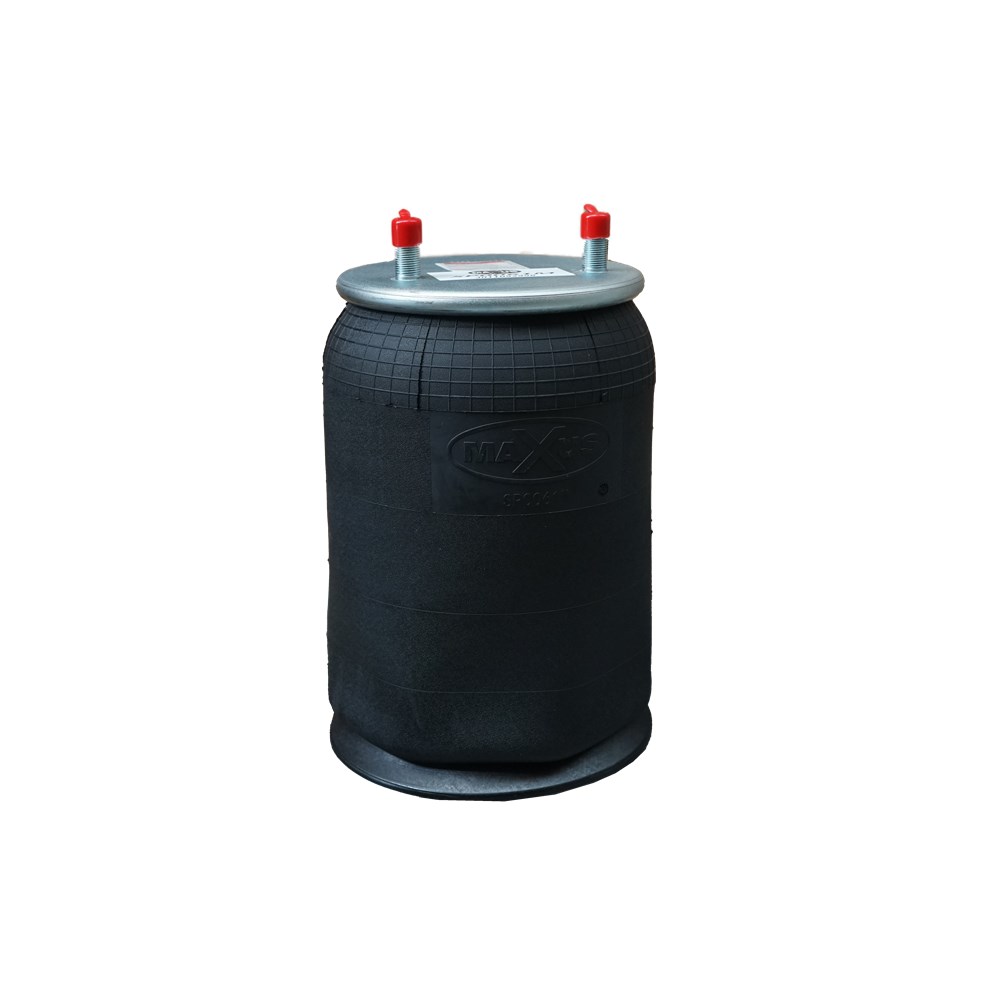

Trailer Air Spring for Hendrickson INTRAAX

Overview

MAXUS Air Spring Suit Hendrickson INTRAAX restores ride height and ride support in trailer air suspension when a leaking or fatigued air bag starts to sag. A sound air spring helps keep the axle group stable under load, which can reduce harsh vibration through the chassis. Because this part replaces the complete air spring unit, it is suited to scheduled suspension servicing instead of chasing intermittent leaks.

Features

This air spring supports consistent ride height so the suspension can work as intended. Replacing a worn air bag early can also help reduce uneven tyre wear linked to incorrect ride height.

• Direct replacement style air spring for Hendrickson INTRAAX applications
• Helps reduce vibration transmitted through the trailer chassis
• Supports stable load sharing across the axle group
• Designed for routine service replacement and maintenance

Specifications and Materials

Use the specifications below to confirm the correct variant before fitting.

• Diameter: 313mm
• Compressed height: 188mm
• Extended height: 622mm
• Mounting and ports: 2 x 3/4-16 UNF studs, 2 x 1/4-NPTF air ports

Part number: SP0061M.
For typical mounting and clearance guidance, see the Hendrickson air spring installation detail before fitting.

Compatibility and Fitment

Confirm your suspension series and mounting hardware before ordering, because Hendrickson configurations can vary between builds. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 4811 N03, 4811N03, 1T19L-11, W01 358 9122, 1T19L11, W013589122, 1R13-038, 1R13038, 90557 020, 90557 076, 90557 077, 90557020, 90557076, 90557077, S 3830, S3830

Compliance and Safety

Depressurise the air system and support the trailer safely before removal. Inspect air lines, fittings, and mounting plates during installation so you do not trap debris or pinch an air line. After fitting, perform a leak check with soapy water, then re-check fasteners after an initial road test. If you are unsure about torque settings or clearance requirements, follow Hendrickson service guidance for your suspension model.

Trailer Applications

MAXUS Air Spring Suit Hendrickson INTRAAX commonly suits trailer air suspension service in:

• Hendrickson INTRAAX trailer suspensions
• Tandem and tri-axle axle groups
• General freight and linehaul trailers
• Suspension refresh and leak rectification work

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Then, if you are matching by measurements, compare diameter, mounting threads, air port type, and suspension series as well.
