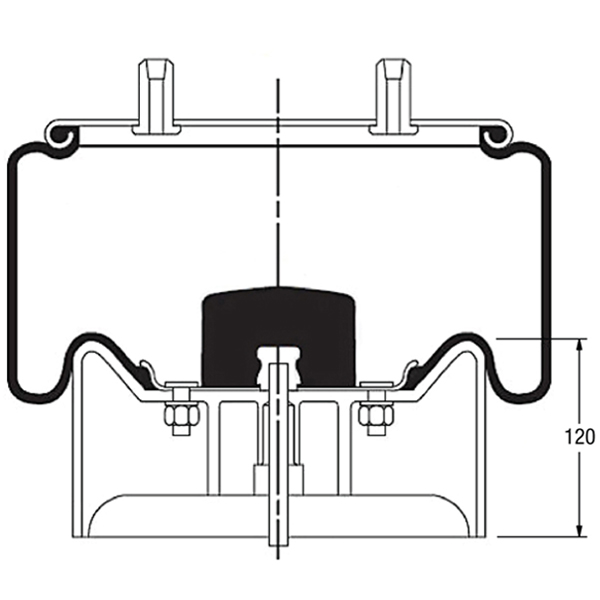

Air Spring Assembly Hendrickson Intraax AA250 is a complete replacement air spring assembly for trailer air suspension systems that run Hendrickson Intraax AA250 applications. It supports correct ride height and load sharing so the suspension tracks evenly across the axle group. As a result, you reduce harshness and help protect tyres and running gear from unnecessary shock.

Features for Air Spring Assembly Hendrickson Intraax AA250

• Complete type air spring assembly with a metal piston
• Handles operating pressure up to 7 bar (100psi)
• Works across a wide temperature range from -40°C to +70°C
• Fits Intraax AA250 air suspension layouts when matched correctly

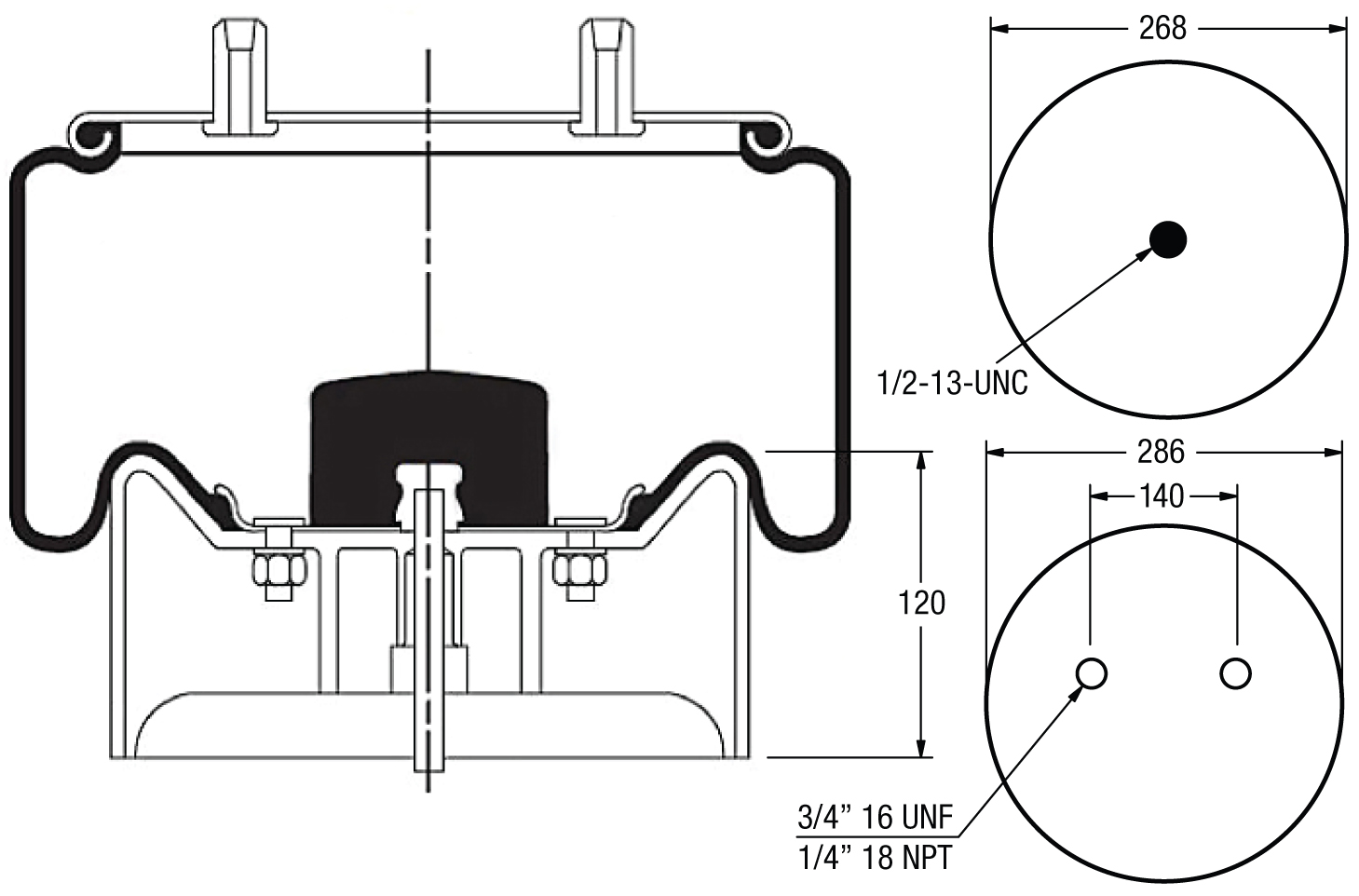

Specifications and Materials

Part number: SP0035A.

• Component: air spring assembly, complete type
• Piston: metal
• Maximum operating pressure: 7 bar (100psi)
• Operating temperature range: -40°C to +70°C

Additionally, use the Hendrickson INTRAAX AAT suspension parts list to confirm the correct air spring assembly for AA250 applications.

Compatibility and Fitment for Hendrickson Intraax AA250

Confirm the suspension model and bracket style before you purchase because air spring variants can look similar.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. AS8091, 1R14-171, W013588091, C-20901, S-20901, P10.8091.CP, 1T19LC6, SP0066M, AS PR11LL16 8091, 11 10.5A-16 P 523, 64421, 1T19LC-6, W01-358-8091, 566283065, 6398, AS-8523, AS80910, 1DK28E-8091, A2258P1576, 1R14-242.

Compliance and Safety

Isolate the trailer, support it securely, and exhaust the air system so the suspension sits at zero pressure. Inspect air lines, fittings, and mounting hardware for rubbing or corrosion while the bag is off. Torque fasteners to the suspension manufacturer’s procedure and check for air leaks after re-pressurising.

Trailer Applications for Air Spring Assembly Hendrickson Intraax AA250

This air spring assembly commonly suits:

• Hendrickson Intraax AA250 air suspension on semis and B-doubles
• Linehaul, tipper, van, and flat-top trailer configurations
• Axle groups where balanced load sharing matters
• Work that cycles through heat, cold, and mixed road conditions

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:


However, always confirm the suspension model, mounting style, and clearance before you order.
