Freightliner trailer air spring assembly replacement helps restore correct ride height and stable load support in air suspension setups. Replacing a tired or leaking unit can reduce chassis roll and uneven tyre wear while keeping the trailer tracking predictably.

Features

• Complete air spring assembly for faster change-outs
• Alloy piston construction for durable support in heavy-duty service
• Rated for up to 7 bar (100psi) operating pressure
• Designed for broad temperature use from -40°C to +70°C

Specifications and Materials for Freightliner Trailer Air Spring Assembly

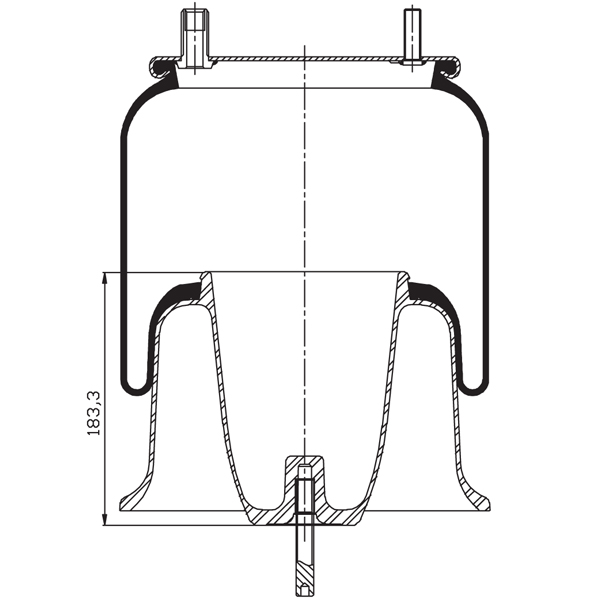

This assembly combines the bellows and piston into one ready-to-fit unit for Freightliner trailer suspension applications.

• Part number: SP0062A
• Operating pressure: Max. 7 bar (100psi)
• Operating temperature range: -40°C to +70°C

Refer to the Firestone air spring maintenance guide for general inspection and upkeep practices.

Compatibility and Fitment for Freightliner Trailer Air Spring Assembly

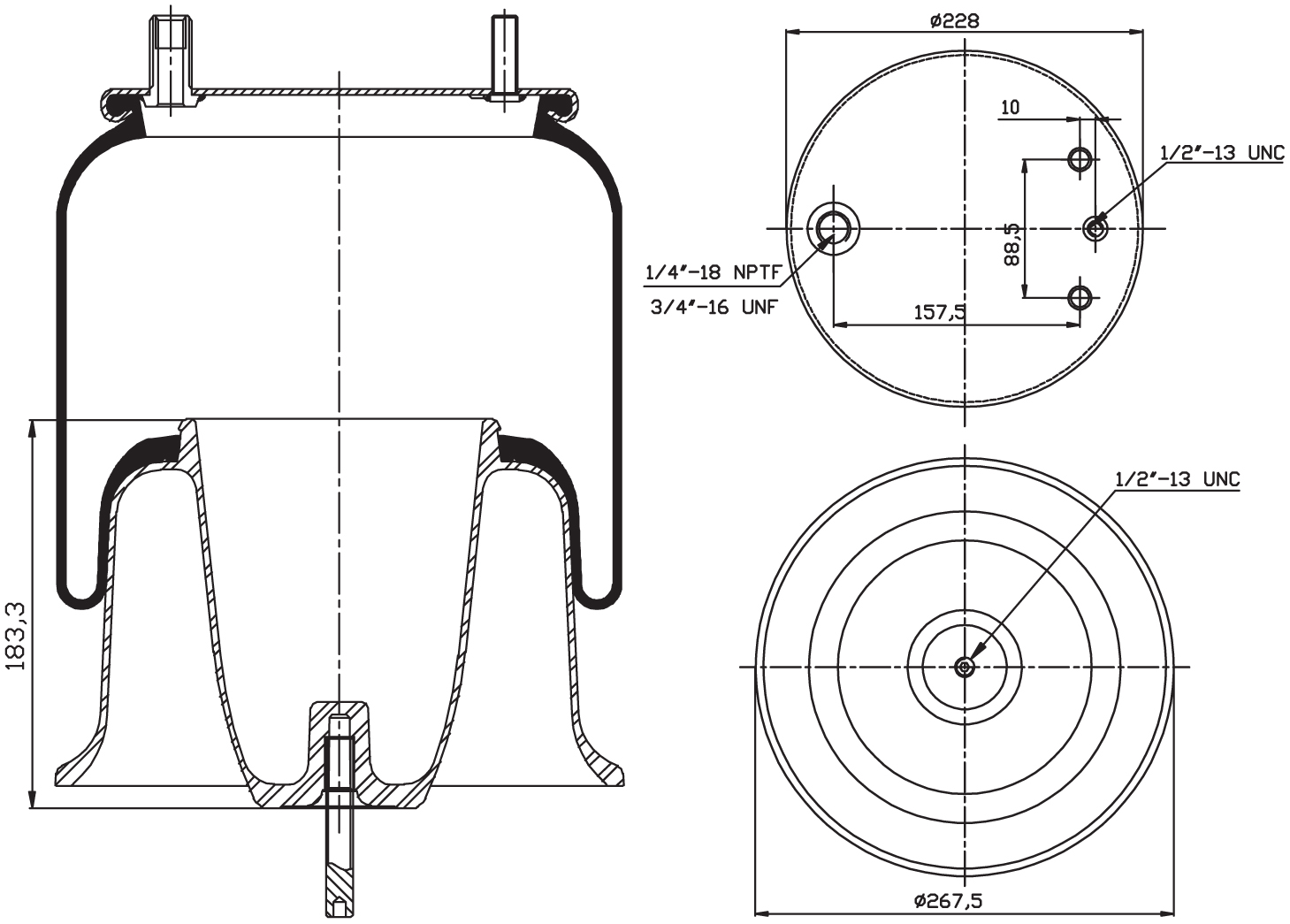

This Freightliner trailer air spring assembly suits Freightliner trailer suspension configurations that use a reversible sleeve style assembly with an alloy piston. Always compare the mounting pattern, air inlet, and piston style against your removed unit before ordering.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. P10.9780.ALU, P109780ALU, 9 10 S-16 A 382, 910S16A382, 1T15ZR-6, 1T15ZR6, W01 358 9781, W013589781, 681-320-0017, 6813200017, 1R12-603, C01-358-0583, A16-14004-000, A16-17574-001, A16-17574-002

Compliance and Safety

Support the trailer safely, isolate the air supply, and depressurise the suspension system before removal. Confirm all fasteners seat correctly and torque them to the vehicle manufacturer’s specification. After installation, leak-test the air line and fittings and re-check clearances through full suspension travel.

Trailer Applications

This Freightliner trailer air spring assembly suits on-road trailer air suspension systems where a complete bellows and piston unit is required. It is commonly used in linehaul and general freight trailers that run air ride for load equalisation and payload protection. It can also suit fleets that want consistent ride height to protect tyres, hubs, and chassis components over rough surfaces.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Therefore, confirm piston material and mounting details because similar bellows can be supplied with different pistons for different applications.
