Description

Overview

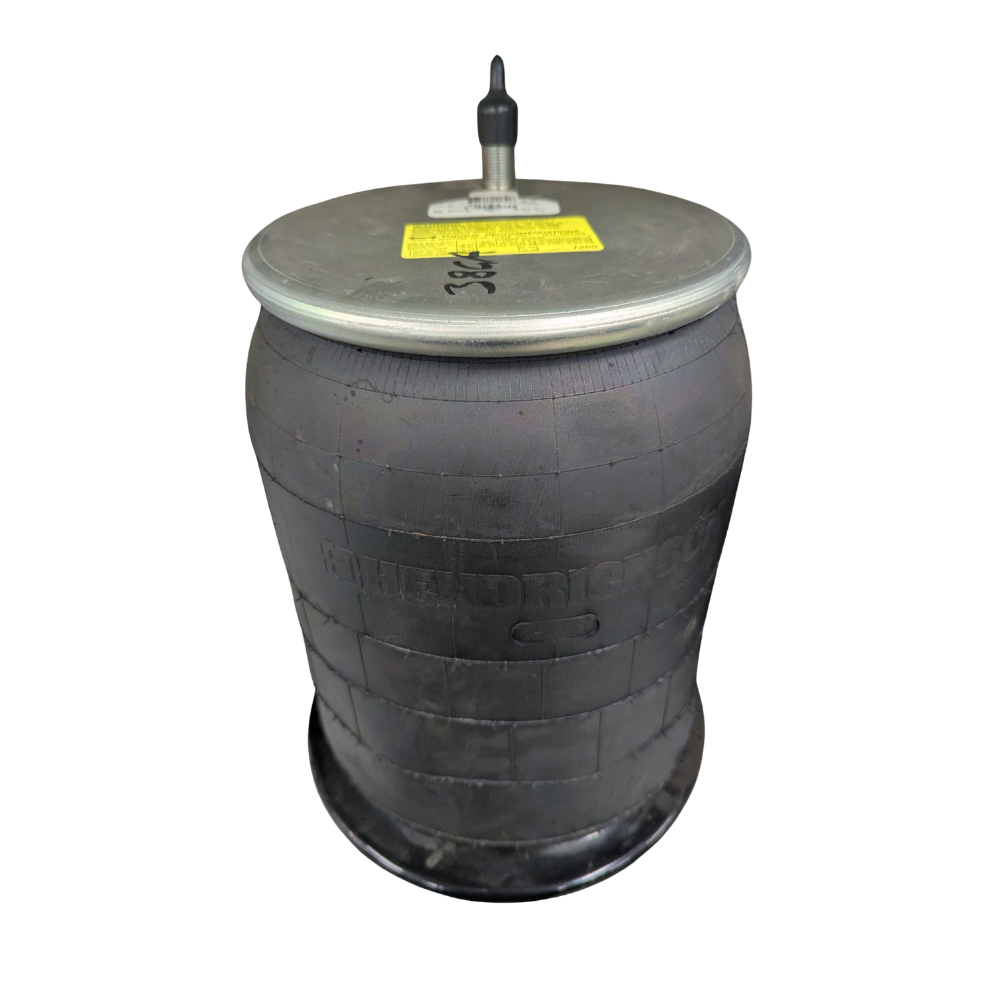

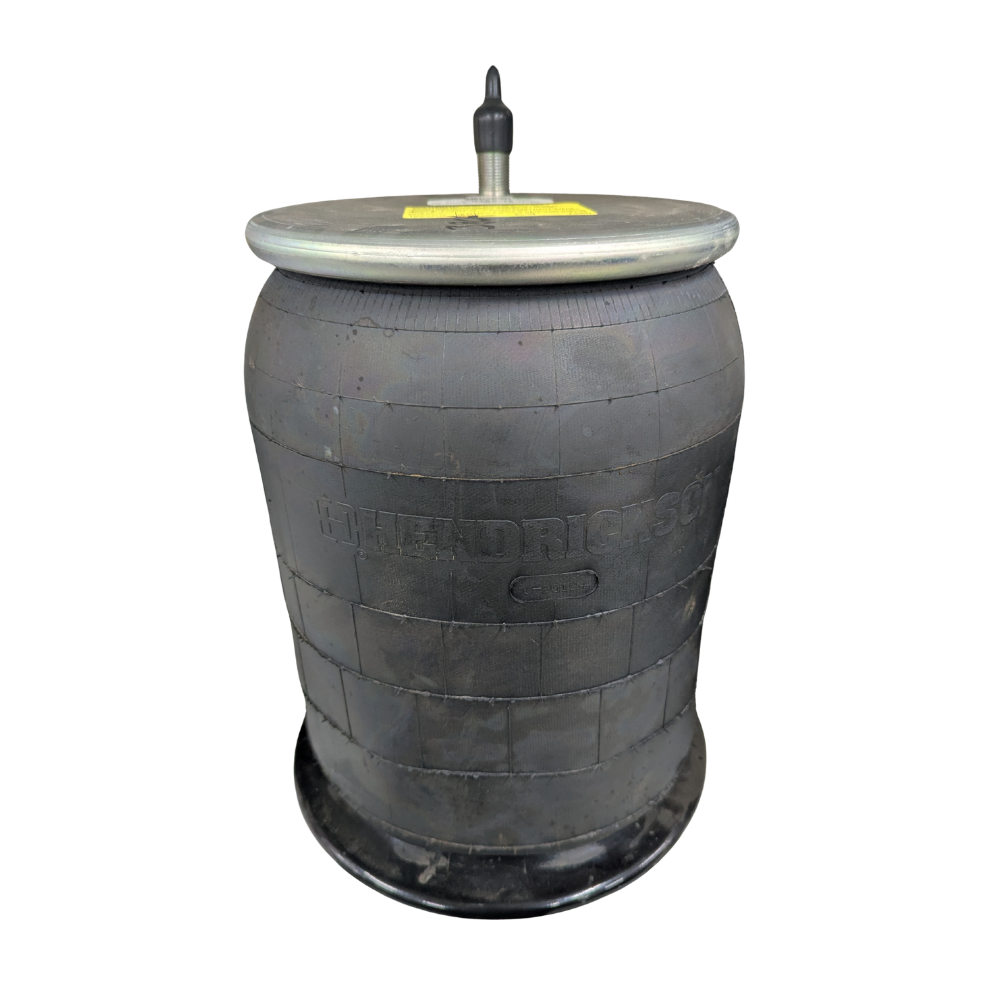

This Hendrickson 250T air spring assembly supports stable ride height and controlled suspension movement on heavy vehicles. It suits Hendrickson 250T applications where consistent air support matters under changing loads.

Features

This assembly provides a clear operating range for pressure and temperature, so you can match it to service conditions.

• Rated for operating pressure up to 7 bar (100psi)
• Operating temperature range from -40°C to +70°C
• Listed as an air spring assembly to suit Hendrickson 250T
• Supports consistent ride height when correctly installed

Specifications and Materials

Part number: SP0038GA.
Refer to the Continental air springs catalog overview for manufacturer background information
This listing is supplied as an air spring assembly and the fitment is defined by the Hendrickson 250T application. Confirm the suspension model and mounting hardware on your vehicle before you order.

Compatibility and Fitment

Confirm the mount style and suspension variant before installation so the assembly matches your current setup.
This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. S20124, HT-250 T, HT250T, C20413, HT-250 U, HT250U, C-20124, C20124, 85101155, 9 10-19 P 435, 91019P435, PR9M19 9265, PR9M199265, 1T15MM-9, 1T15MM9, W01 358 9265, W013589265, W01-358-9265, AS9265, 1R12-375, 1R12375, 566243066, 6387, AS-8435, AS8435, AS92650, 1DK23L-9265, 1DK23L9265, SC2759, M3524, S-20124, S-20413, S20413, C-20413

Compliance and Safety

Isolate and depressurise the air system before you remove or install any air spring assembly. Always follow the suspension maker’s procedures and torque guidance, then recheck for air leaks after refitting. Avoid exceeding the stated pressure rating during testing and ensure the air lines clear moving components.

Trailer Applications

A Hendrickson 250T air spring assembly is used in heavy trailer and truck suspension setups where ride height control reduces shock transfer into the chassis. It helps protect freight, suspension components, and tyres when loads and road conditions vary. Fleets often replace air springs as a pair on the same axle to keep ride height and response consistent.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Otherwise, if you are unsure which number you have, compare your current air spring markings and suspension model before ordering.
