Description

Overview

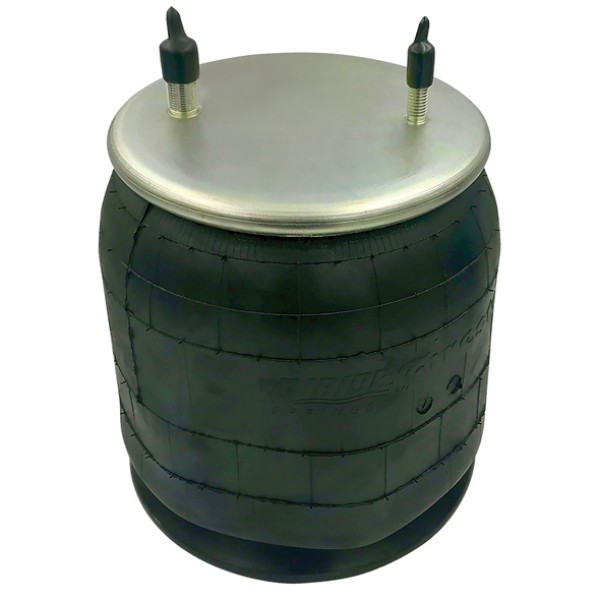

Air Spring Assembly For York Reyco Trailer suspension supports stable ride height and better load control on heavy trailers. Match the mounting style and cross references to confirm suitability, especially when a like for like replacement is required.

Features

This air spring assembly targets practical trailer service needs.

• Max operating pressure: 7 bar (100psi)
• Operating temperature range: -40°C to +70°C
• Reversible sleeve style air spring construction
• Built for York, Reyco and similar trailer suspensions

Specifications and Materials

Air Spring Assembly For York Reyco Trailer fitments depend on matching the cross references and mounting style.

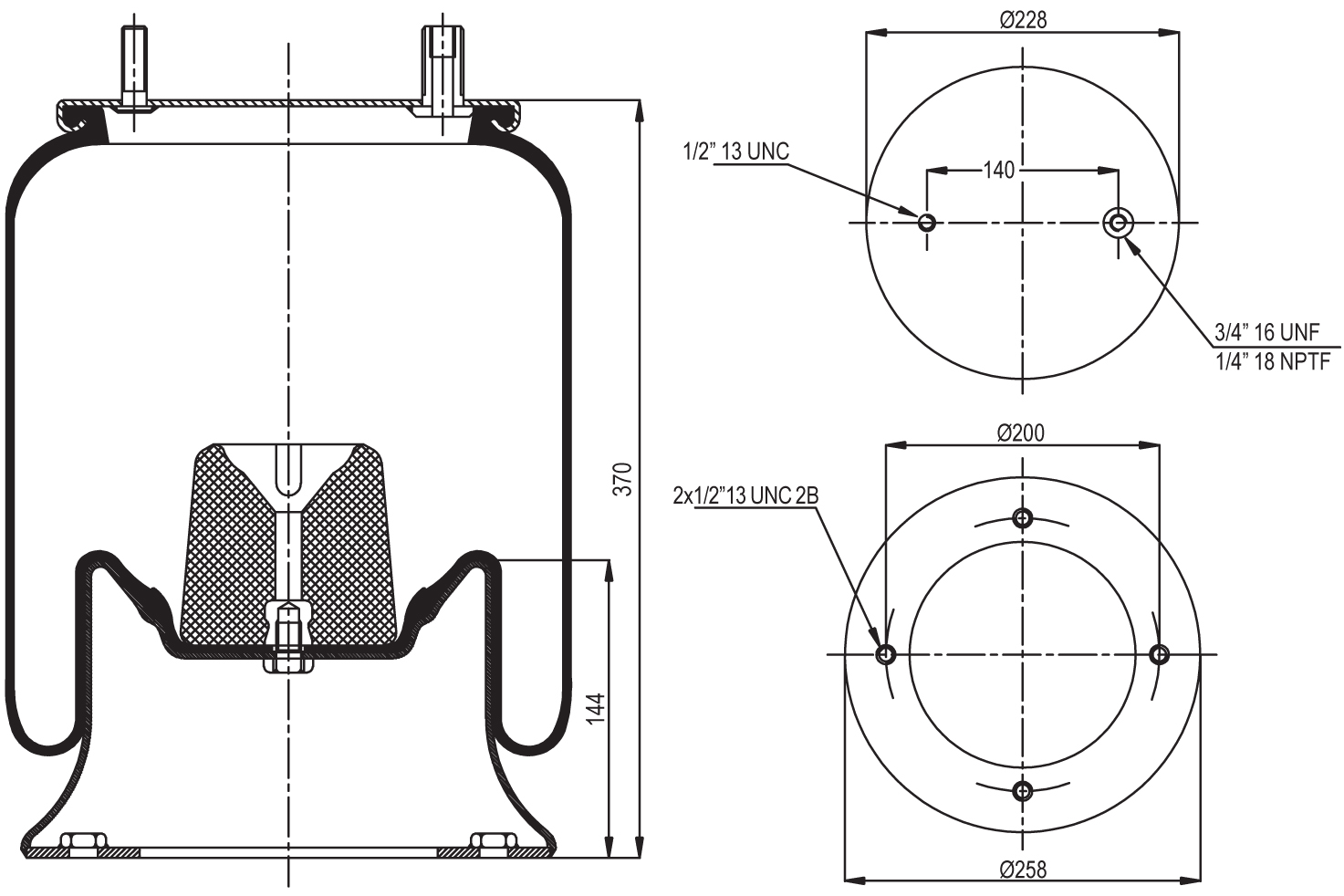

• Mounting: 1/2″-13 UNC studs and 1/4″-18 NPT air port (where applicable)
• Rated operating range: up to 7 bar (100psi), -40°C to +70°C
• Use only approved air line and fitting materials for pneumatic systems
• Inspect mounting hardware and air lines during replacement

Part number: SP0014A.
For general air spring design and installation guidance, use the manufacturer air spring design guide

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. P10.4156.C04, P104156C04, 4156 N P04, 4156NP04, 1R12-092, 1R12092, 566-24-3-097, 566243097, KR 506-22SU, KR50622SU, D12B33, 1T15M6, TR9082, 1V15M-6, 1V15M6, 566-24-3-038, 566243038, 212 08939, 21208939, 905 57027, 90557027, 905 57075, 90557075, 1359, 1528, W01 358 9082, W013589082, W01-358-9082, 1T15M-6 9082, 1T15M69082, 1T15L8X 9082, 1T15L8X9082, AS-506-9082, AS5069082, 15610, 22017, TT23.09.114, TT2309114, RML 79082 CP, RML79082CP

Compliance and Safety

Depressurise the air system and support the trailer safely before you remove an air spring. Set ride height to the suspension maker’s procedure as well, otherwise handling and tyre wear can suffer.

Trailer Applications

Air Spring Assembly For York Reyco Trailer suspension can suit on road semi trailers, B doubles, dollies, and other heavy trailer combinations when the mount and cross references match. It suits maintenance work where you need a like for like replacement to restore suspension function.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Finally, confirm the cross references and mounting style before ordering.

Why Choose ICS Trailers

ICS Trailers can help you confirm the right suspension part before you order, and you can bundle related fittings and hardware for the same job.
