Description

Overview

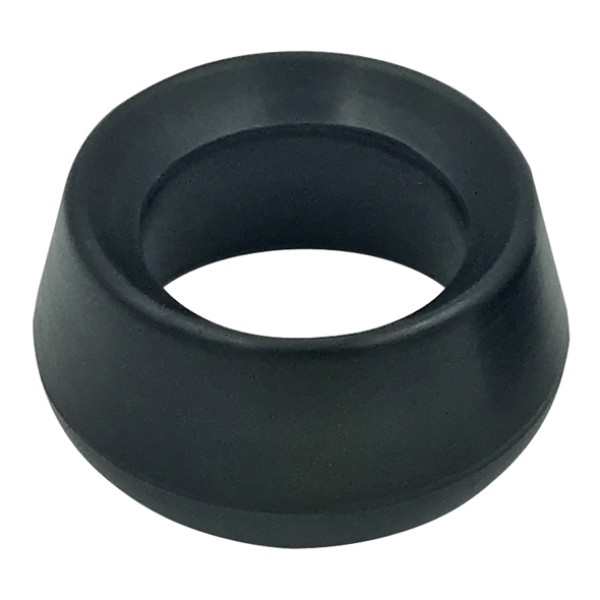

Inner radius rod bush cushions movement at the inner end of the radius or torque rod and helps keep the suspension joint controlled under load. Because the bush works at a high-movement connection, it also helps limit knock, wear and unwanted play through the rod eye and mounting point. This inner radius rod bush fits TAA35, TAA36, TAA37 and TAA40 layouts where bush dimensions and inner profile need to match before installation.

Features

• 60mm outside diameter for housing match-up
• 35mm / 45mm inner profile for pin or sleeve checking
• 30mm length for inner radius or torque rod fit-up
• Rubber construction to cushion movement through the joint

Specifications and Materials

This inner radius rod bush measures 60mm OD, 35mm / 45mm ID and 30mm in length. The compact rubber form suits the inner radius or torque rod position on TAA35, TAA36, TAA37 and TAA40 suspension layouts. Part number: SP1304. For general elastomer material background, see the engineering guide to elastomers

Compatibility and Fitment

Check outside diameter, inner profile, length and housing style against the old bush before ordering. Also compare the inner bore dimensions against the pin, sleeve or crush tube used in the joint, because both 35mm and 45mm dimensions matter here. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. BP1304, 203-01314, 20301314, FL83.2154, FL832154, IT1304, WT1304, T03-1304, T031304

Compliance and Safety

Inspect the rod eye, housing and any inner sleeve before fitting the new bush. Replace any bush that shows cracking, hardening, tearing or separation, because worn rubber can let the rod move out of line under braking and suspension travel. After installation, confirm the bush seats evenly and that the joint moves as intended without binding or side-loading.

Trailer Applications

Workshops fit this inner radius rod bush during torque rod and radius rod service on TAA35, TAA36, TAA37 and TAA40 suspension setups. It suits repair work where the original inner bush has worn, split or gone hard and the joint needs its correct supported fit back. Fleets also replace this style of bush when chasing loose suspension feel, visible play or uneven movement at the rod connection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

When the torque rod or radius rod hardware is already apart, changing a worn inner bush at the same time avoids pulling the joint down again later. ICS Trailers stocks suspension service parts that commonly wear together, so you can order bushes and related hardware in one job. Browse Suspension parts at ICS Trailers Suspension
