Description

Overview

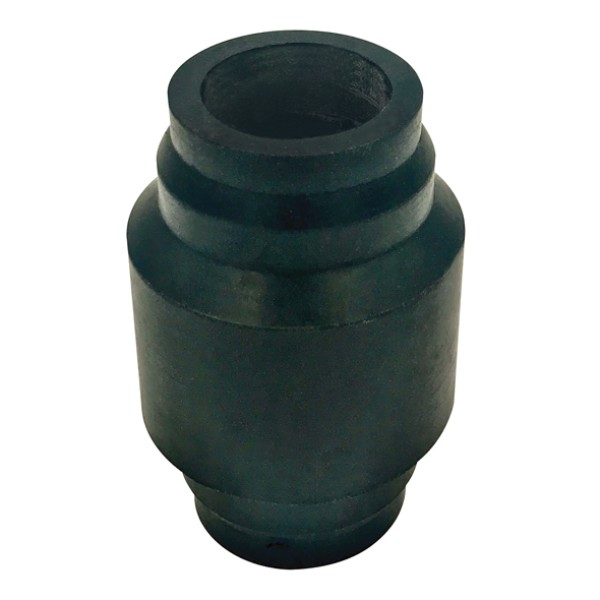

Straight radius rod bush 25mm ID cushions movement through the rod eye and supports joint location in trailer suspension service. It suits Fruehauf S2, McGrath and Freighter TAA39 applications where a worn bush starts adding slack, noise or uneven movement through the radius rod connection.

Features

• 25mm ID for pin and sleeve match-up
• 35mm / 49mm stepped OD for housing fitment checks
• 76mm length for correct bush width across the rod eye
• Rubber construction for compliant suspension joint support

Specifications and Materials

This straight radius rod bush 25mm ID measures 35mm / 49mm on the outside diameter, 25mm on the inside diameter and 76mm in length, so buyers can match the housing, pin and bush width before ordering. The straight rubber design suits radius rod service where the joint needs controlled movement without metal-to-metal contact. Part number: SP1302.

The elastomer material guide outlines general rubber material behaviour used in engineering service

Compatibility and Fitment

Match the inside diameter, both outside diameters and the overall length before ordering, then compare the rod eye and pin for wear while the joint is apart. Also check whether the housing has worn oval, because a fresh bush will not correct a damaged rod eye. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 50000071HV0101, BP1302, FL83.2152, FL832152, WT1302, 161-07020, 16107020, UCA3754, IT1302, T03-1302, T031302, FQ1302, 09.1302.0, 0913020

Compliance and Safety

Clean the rod eye bore before pressing the bush in, and then confirm the pin passes through square without cutting or folding the rubber. Replace bushes that show splitting, crush damage, oil attack or loose fit in the housing, because joint movement can affect axle control and tyre wear.

Trailer Applications

Workshops fit this straight radius rod bush 25mm ID during suspension rebuilds, radius rod service and routine bush replacement on Fruehauf S2, McGrath and Freighter TAA39 setups. It also suits repairs where the old bush has softened, shifted or worn through after repeated load cycles.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
