Description

Overview

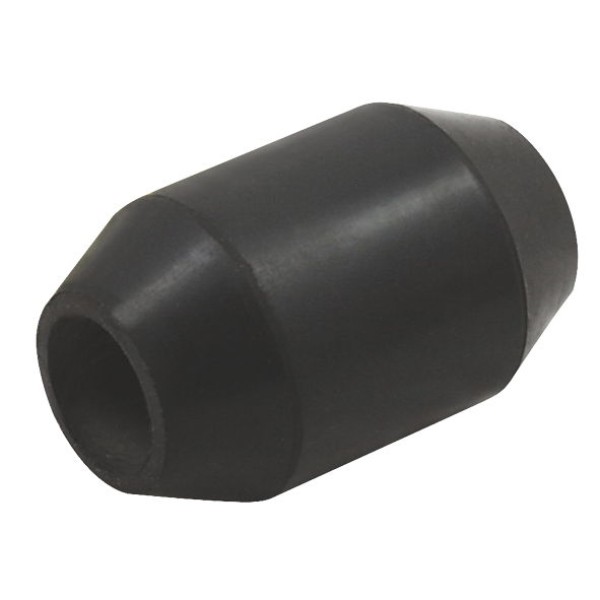

Heavy duty torque rod rubber bush supports joint movement in straight torque rod eyes and helps keep the suspension link located under load. It suits replacement work when a worn bush starts adding slack, noise or uneven movement through the rod connection.

Features

• 45mm OD for housing match-up
• 22.2mm ID for 7/8″ pin or sleeve fitment checks
• 77mm length for bush width matching
• Straight rubber profile for heavy duty torque rod service

Specifications and Materials

This heavy duty torque rod rubber bush measures 45mm OD, 22.2mm ID and 77mm in length, so buyers can match the housing, pin and bush width before ordering. The straight rubber design suits general purpose torque rod service where the joint needs controlled movement without metal-to-metal contact. Part number: SP1308HD. See the elastomer material guide for general rubber service background

Compatibility and Fitment

Match the outside diameter, inside diameter and overall length before ordering, then inspect the pin or sleeve and the rod eye while the joint is apart. Also check the housing for oval wear, because a fresh bush will not correct a damaged eye. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. IT1328, WT1312

Compliance and Safety

Clean the housing bore before fitting the new bush, and then confirm the pin passes through square without cutting or twisting the rubber. Replace bushes that show splitting, crush damage, oil attack or loose fit in the housing, because movement at the joint can affect suspension control and tyre wear.

Trailer Applications

Workshops fit this heavy duty torque rod rubber bush during trailer suspension rebuilds, torque rod service and routine bush replacement on mechanical suspension setups. It also suits jobs where the original bush has hardened, shifted or worn out under repeated load.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers also carries the related pins, hardware and surrounding suspension service parts that commonly get checked in the same repair. Browse Suspension parts at ICS Trailers for matching bush and torque rod service items
