Description

Overview

The SAF INTRA suspension bush kit services the axle pivot point on matching SAF INTRAAX and INTRADISC PLUS trailer suspensions. The main size checks are the 31.5mm bush bore, 155mm outside diameter and 114mm length, with the fastening and alignment hardware supplied as one set.

Features

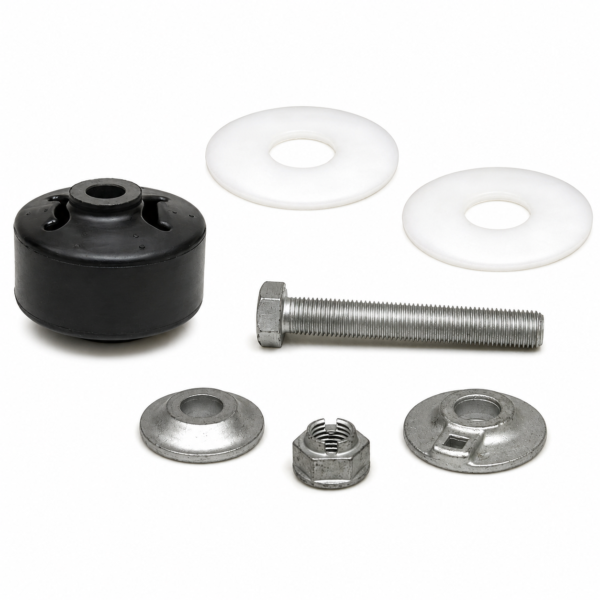

• Includes one pivot bush, one suspension bolt, one nut, one eccentric washer, one concentric washer and two thrust washers.
• Pivot bush measures 31.5mm inside diameter, 155mm outside diameter and 114mm length.
• Suits matching INTRADISC PLUS PU and PO plus INTRAAX XU and XO trailer suspension applications.

Specifications and Materials

The repair set combines the pivot bush with the bolt, nut and washer hardware used around the suspension pivot joint.

Part number: 075.583.

See the SAF INTRA suspension overview

Compatibility and Fitment

Compare the old bush bore, outside diameter, length, suspension family and reference number before ordering. Similar SAF pivot kits can use different bush dimensions or washer arrangements.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 4177302800S, 04177302800S, 55181, STR-120602, STR120602

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the pivot bracket, bush seat, bolt bore and mating faces for wear before fitting. Keep the eccentric and concentric washers correctly positioned, then complete the suspension alignment and fastener tightening procedure for the axle configuration.

Trailer Applications

The SAF INTRA suspension bush kit suits supported INTRADISC PLUS and INTRAAX trailer axle suspensions using the 31.5x155x114mm pivot bush and matching hardware arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

With a bush, bolt, nut and several washer styles in one set, the main ordering risk is confusing a bare bush with the complete pivot kit or selecting a similar SAF set with different dimensions. ICS Trailers can compare old numbers, photos and the 31.5x155x114mm bush size before you order.

• Keep the full pivot hardware set together during suspension servicing.
• Send the existing bush measurements and washer layout when the application is uncertain.
