Description

Overview

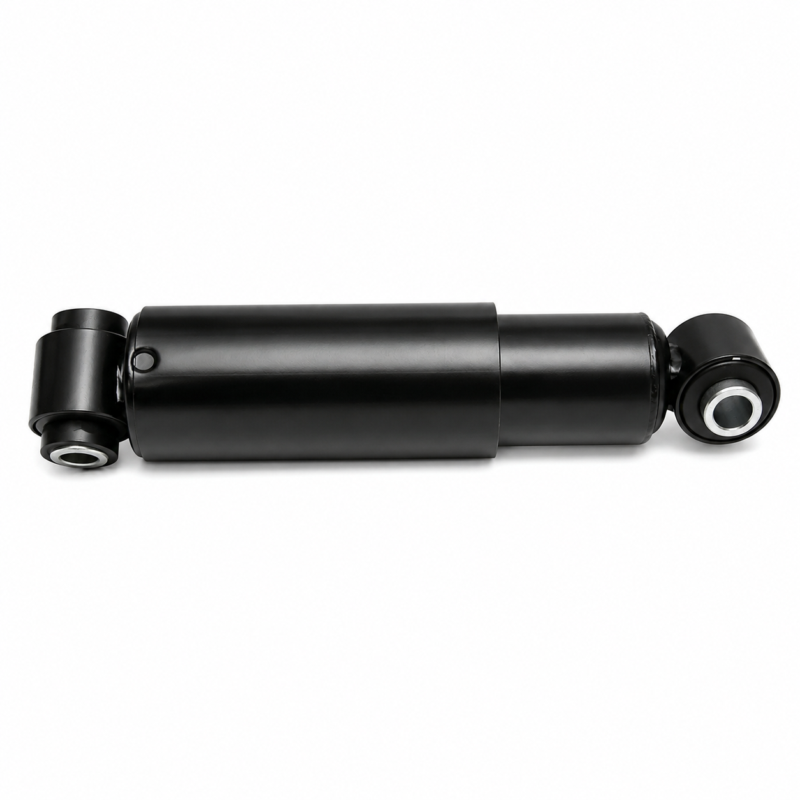

The SAF INTRADISC Plus shock absorber controls rear trailer suspension movement by damping axle and chassis oscillation through an eye-to-eye mounting. This version uses a 315mm minimum length, 491mm maximum length and 20mm mounting eyes, which are the main dimensions to compare before ordering.

Features

• Eye-to-eye mounting at the upper and lower ends.
• 20mm mounting eyes with approximately 78mm and 68mm bush widths.
• 176mm working stroke between the minimum and maximum lengths.
• One rear shock absorber supplied per box.

Specifications and Materials

The damper measures approximately 315mm closed and 491mm extended. Matching equivalents use 20mm eye bores, with upper and lower eye widths of approximately 78mm and 68mm.

Part number: 075.081-01.

See the SAF INTRADISC plus INTEGRAL suspension overview

Compatibility and Fitment

Match the mounting-eye diameter, eye width and open and closed lengths against the removed damper. However, a nearby SAF shock can share the same general appearance while using different travel or mounting geometry. The SAF INTRADISC Plus shock absorber suits the INTRADISC PLUS IO trailer suspension application.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2376007101, 2376007100, 2376007102, 2376007152, 2376507100, 6500479, F5175, 312669, 017919, 20336, 4386012120, 91-2714, 912714

Compliance and Safety

Inspect both mounting brackets, pins, bushes and fasteners before installation. Also check the replacement damper for free movement through its travel and confirm there is no interference with nearby suspension components.

Trailer Applications

This rear damper serves SAF INTRADISC PLUS IO trailer suspension systems where the matching 20mm eye mounts and 315-491mm travel dimensions are used.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The 20mm eye size and 315-491mm length range are the fastest ways to separate this damper from similar SAF trailer shocks. ICS Trailers can compare old part markings, measurements and cross-reference numbers when the original label is worn or missing.

• Check both eye-bush widths and the surrounding mounting hardware during the same suspension repair.
• Send clear photos plus the closed length, open length and eye dimensions if the application is uncertain.
