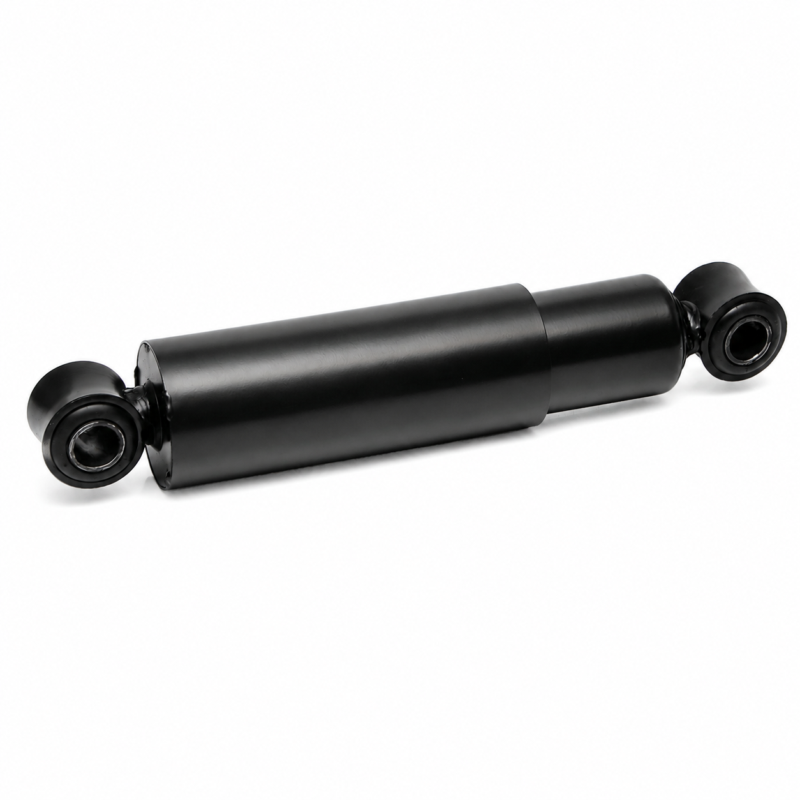

The SAF MODUL chassis shock absorber controls rear trailer suspension movement through an eye-to-eye mounting. Therefore, use its 24mm bush bores, 55mm bush widths and 349mm compressed to 539mm extended length as the quickest checks against the removed unit.

Features

• Eye-to-eye mounting with 24mm bush bores at both ends.
• Upper and lower bush widths measure 55mm.
• Working length runs from 349mm compressed to 539mm extended.
• One shock absorber is supplied per box.

Specifications and Materials

The shock absorber measures 349mm closed and 539mm open, with 24mm bush bores and 55mm bush widths at both mounting eyes.

Part number: 070.482-01.

See the SAF MODUL suspension overview

Compatibility and Fitment

Before ordering, match the eye-to-eye mounting, bush dimensions and open and closed lengths. However, a similar-looking damper with different travel or bush size will not match correctly. Applications include supported SAF INTRAAX and INTRADISC PLUS configurations, BPW SL, O and AL suspensions, plus Kässbohrer and Schmitz Cargobull trailers.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0237228800, 0237029200, 0237228802, 0237229200, 2376403100, 2376003100, 016271, 013290, 1079383, 8900020166, K6502932, 6502932, P500, 2.376.0031.00, 2.376.5031.00, 2376503100, F5012, 312 977, 312977, SP7018P, 02.3722.88.00, 112925, 4386012070

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Before fitting, inspect both mounting pins, brackets, bushes and fasteners. Then confirm the damper moves through its travel without binding or contacting surrounding suspension components.

Trailer Applications

The SAF MODUL chassis shock absorber suits rear trailer air-suspension service where the matching 24mm eyes and 349-539mm length range are used. In addition, the same interchange family covers selected BPW and body-builder trailer suspensions.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The 24mm eye bore and 349-539mm length range are the strongest identification checks when old dampers have lost their labels. ICS Trailers can compare markings, measurements and cross-reference numbers across the supported suspension families.

• Check the air spring, mounting brackets and shock hardware during the same suspension repair.
• If identification is uncertain, send open and closed length, eye-bush width and clear mounting photos for comparison.
