Description

Overview

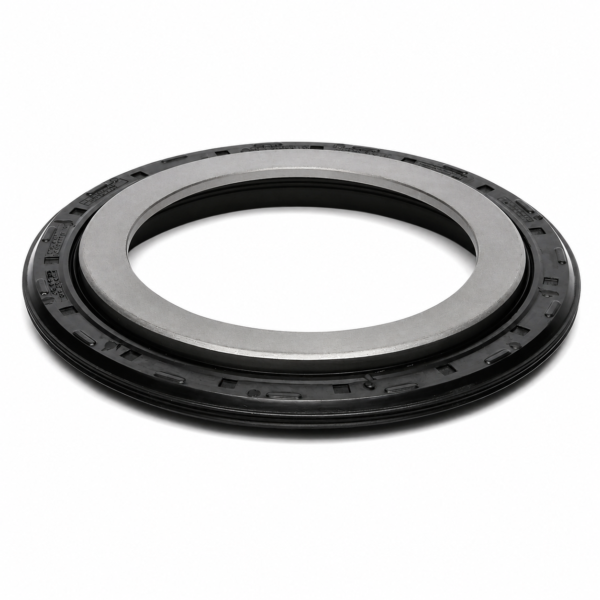

The BPW ECO Plus wheel hub seal keeps wheel-end lubricant contained while helping prevent dirt and contamination reaching the bearing assembly. This aftermarket seal uses a 158mm outside diameter, 117.5mm seal diameter and approximately 17.5mm sealing depth, making those dimensions the main checks when matching a removed BPW hub seal.

Features

• Integrated metal-ring design increases separation between the sealing area and bearing heat.
• Special rubber sealing design maintains tension around the wheel-end sealing surfaces.
• Fits wheel hub applications across matching BPW ECO Plus 8-9 tonne and 10-12 tonne assemblies.
• Aftermarket alternative for established BPW wheel-end seal references.

Specifications and Materials

Nominal dimensions are 158mm outside diameter, 117.5mm seal inside diameter and 17.5mm depth. The carrier opening is approximately 99 to 99.5mm depending on the matching wheel-end arrangement.

Part number: 070.230/SD.

See the BPW ECO Plus wheel-end technical overview

Compatibility and Fitment

Compare the old seal OD, sealing diameter, depth and BPW wheel-hub system before fitting. A similar 158mm hub seal can still differ in its sealing profile or carrier arrangement.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. R16145, AP4235G, 0256647400, 02.5664.74.00, VKS6376, 0256646800

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Clean the hub sealing surface before installation and inspect the bearing, hub bore and seal contact area for wear or damage. A damaged contact surface can compromise the new seal even when its dimensions are correct.

Trailer Applications

This seal serves BPW trailer wheel ends during hub, bearing and axle servicing, including ECO Plus hub assemblies used across multiple axle-load configurations.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The 117.5mm sealing diameter and 158mm outer diameter make the BPW ECO Plus wheel hub seal easier to separate from nearby wheel-end seals, but old markings remain valuable when the hub has previously been rebuilt. ICS Trailers can compare photos, dimensions and cross-reference numbers before you order.

• Use the wider wheel-end repair to check the hub, bearings and sealing contact surfaces at the same time.
• Send the old seal markings and measured OD, ID and depth when the application is uncertain.
