Description

Overview

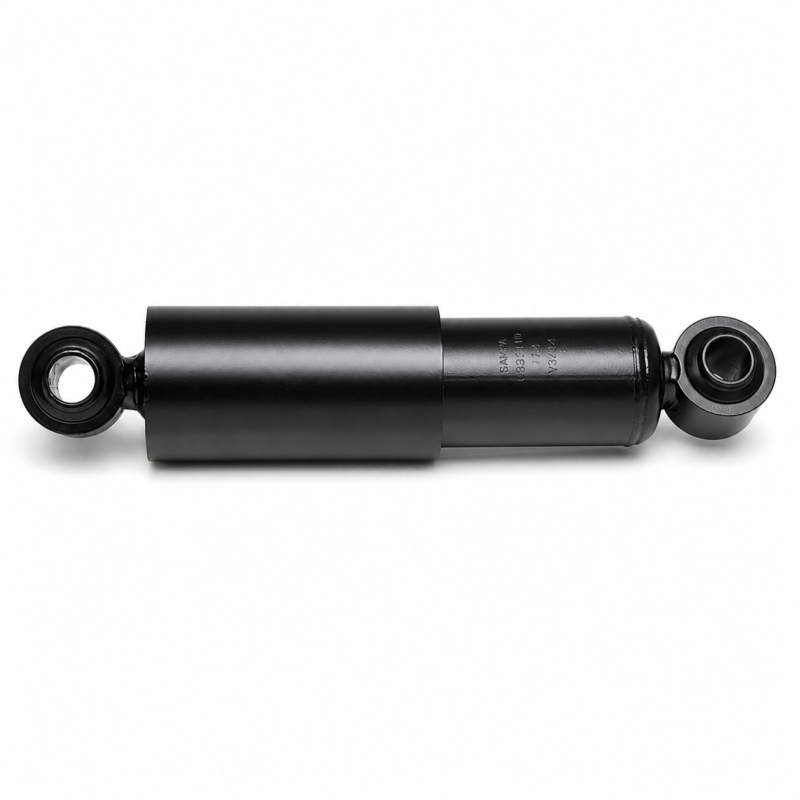

The Krueger RFS shock absorber controls axle and chassis movement on matching heavy trailer suspension applications. This eye-to-eye damper uses 24mm mounting holes, a 300mm minimum centre length and a 430mm maximum centre length, making those dimensions the main checks against the removed unit.

Features

• Eye-to-eye mounting with 24mm holes at both ends.
• Centre length ranges from 300mm compressed to 430mm extended.
• Body diameter ranges from 70mm to 80mm.
• One shock absorber is supplied per pack.

Specifications and Materials

The mounting-eye width is 58mm at both ends. Match the 24mm holes, 58mm eye width and 300-430mm centre-length range before installation.

Part number: 085.110-01.

See the Powerdown P684 supersession information

Compatibility and Fitment

Compare both eye mounts and the centre-to-centre length with the old damper before ordering. A shock with the same 24mm eye diameter can still be unsuitable if its compressed length, extended length or eye width differs.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. P684, SP7063P, SP7063G, 21222271, 50106, F5015, 4386010670, 21224531B, 21224745, 21224531, 21224331, 912368, 9302060, 902210, 508571, SP7090, 21224331B, 1527411, 212.22.271, 212.24.331B, 212.24.531, 212.24.745, 295235, 90-2316, 902316, 91-2368SP1, 912368SP1, 90-2368SP2, 902368SP2, P342, P5032A, 1336824, AM758571, 1065667, 902368, 902404

Related Parts

Check the related service part below against the suspension setup before ordering.

Compliance and Safety

Inspect the mounting pins, bushes, brackets and shock strap for wear before fitting. Replace damaged mounting hardware and confirm the damper can travel freely without binding or contacting surrounding suspension components.

Trailer Applications

The Krueger RFS shock absorber suits matching RFS/Krueger trailer suspension and selected ROR/Meritor applications using the same 24mm eye mounting and 300-430mm centre-length range.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The combination of 24mm eyes, 58mm eye width and 300-430mm centre length gives several useful checks when an old RFS/Krueger shock has lost its label. ICS Trailers can compare those dimensions, old markings and suspension photos when identifying a replacement.

• Check the shock strap and mounting hardware while the damper is removed.
• Send eye dimensions and compressed or extended measurements if the application is uncertain.
