Description

Overview

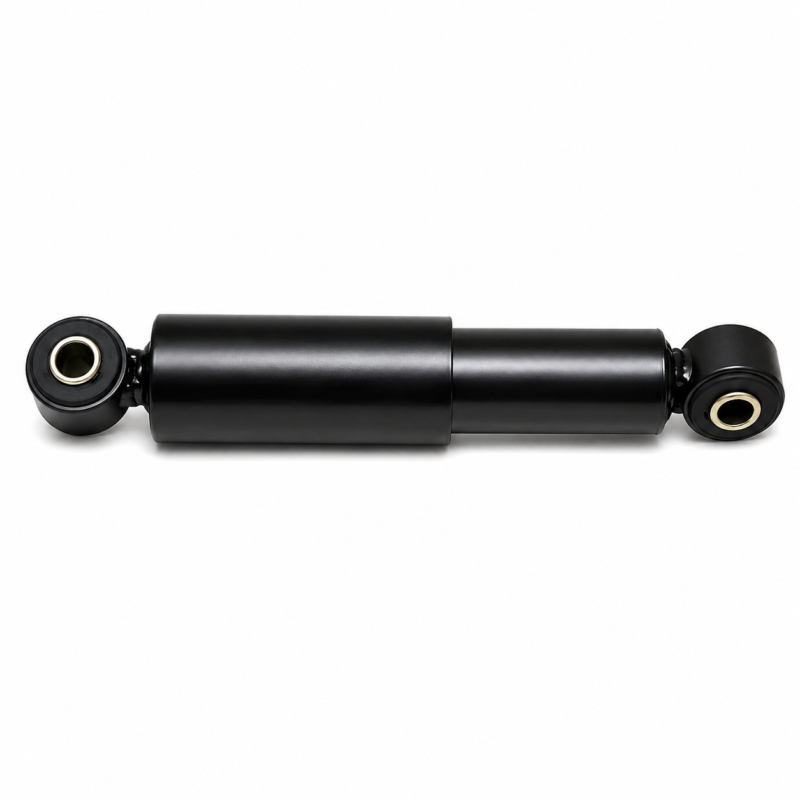

The ROR FL9000NB shock absorber controls axle and chassis movement on matching ROR/Meritor trailer suspension applications. This eye-to-eye version uses 24mm mounting holes, 58mm eye widths and a 276mm minimum to 377mm maximum centre length, which are the main measurements to compare with the removed damper.

Features

• Eye-to-eye mounting with 24mm holes at both ends.
• 58mm mounting-eye width at both ends.
• Centre length ranges from 276mm compressed to 377mm extended.
• Body diameter ranges from 70mm to 80mm.

Specifications and Materials

The damper uses an eye-to-eye mounting arrangement with the same 24mm bore and 58mm eye width at each end.

Part number: 085.111-01.

See the Cummins-Meritor trailer suspension overview

Compatibility and Fitment

Measure from the centre of one mounting eye to the centre of the other and compare both the compressed and extended lengths. The main ordering risk is choosing another ROR shock with 24mm eyes but a longer travel range or different mounting width.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 1134526, 21226989, 21224778, F5164, 20214, 10.27202, 1027202, 20282, 90-2527, 902527, 91-2527, 912527, JHR5021, 04.170.7950.175, 041707950175, 890612

Compliance and Safety

Inspect the upper and lower shock mounts, bushes, pins and fasteners for wear before fitting. Confirm the damper moves through its full suspension travel without binding and that the mounting hardware holds both 58mm eyes securely.

Trailer Applications

The ROR FL9000NB shock absorber suits matching FL9000NB trailer suspension applications and replacement contexts using the same 24mm eye, 58mm width and 276-377mm centre-length geometry.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

This shorter ROR shock is easy to confuse with other 24mm-eye trailer dampers because the mounting style can look almost identical. ICS Trailers can compare old markings, eye widths and centre-to-centre measurements when the original reference is worn or missing.

• Check both mounting points while the old damper is removed, especially if the bushes or pins show movement.
• Send the old reference number plus compressed or extended measurements if the application is uncertain.
