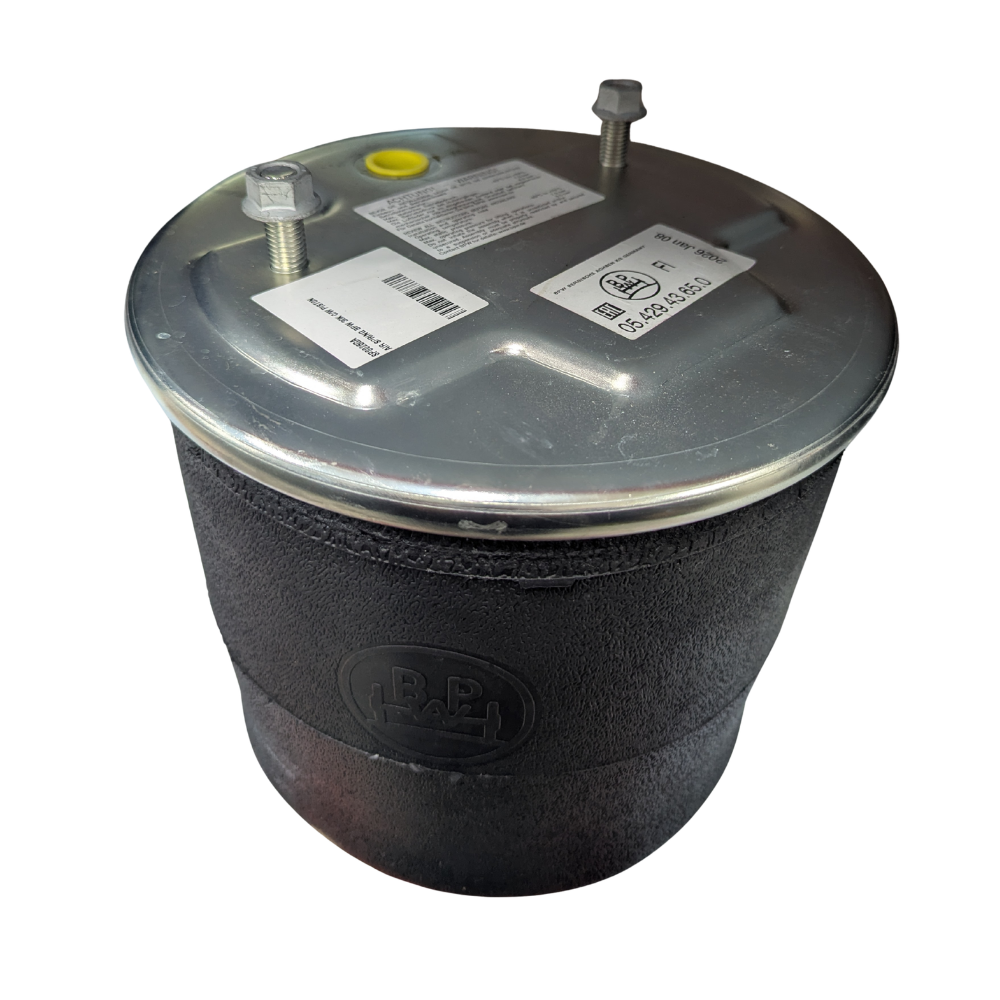

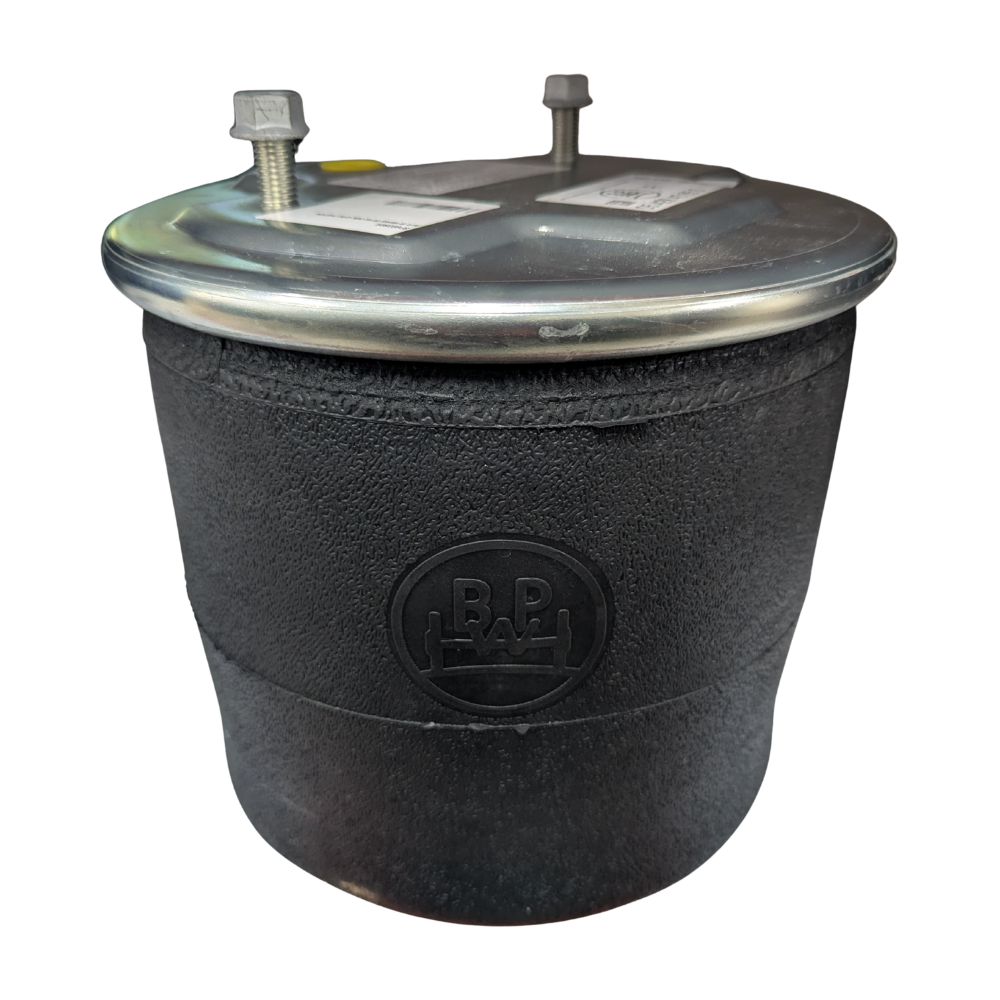

Air Spring Assembly BPW Type 30K With Piston helps restore consistent ride height and load support on BPW 30K trailer air suspension. Replacing a leaking or cracked air spring can help reduce chassis roll and uneven tyre wear. This complete assembly with piston also simplifies service when you want a like-for-like replacement.

Features

This assembly targets common BPW Type 30K service replacements.

• Complete air spring assembly supplied with piston
• Max operating pressure: 7 bar (100psi)
• Operating temperature range: -40°C to +70°C
• Designed for trailer air suspension duty cycles

Specifications and Materials

Part number: SP0026GA.

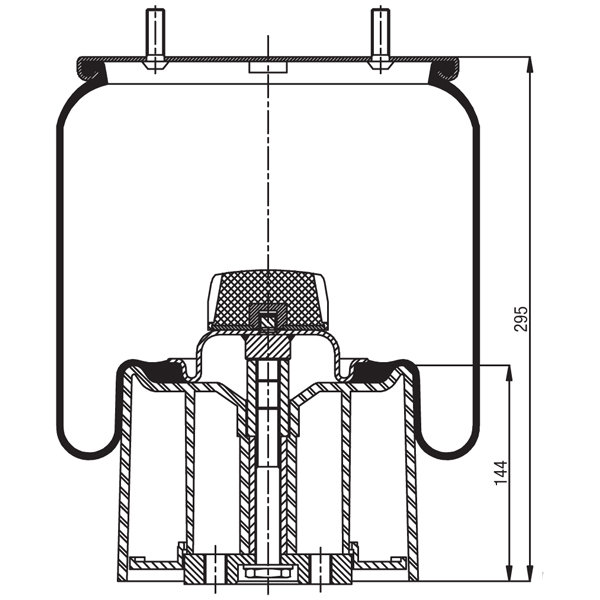

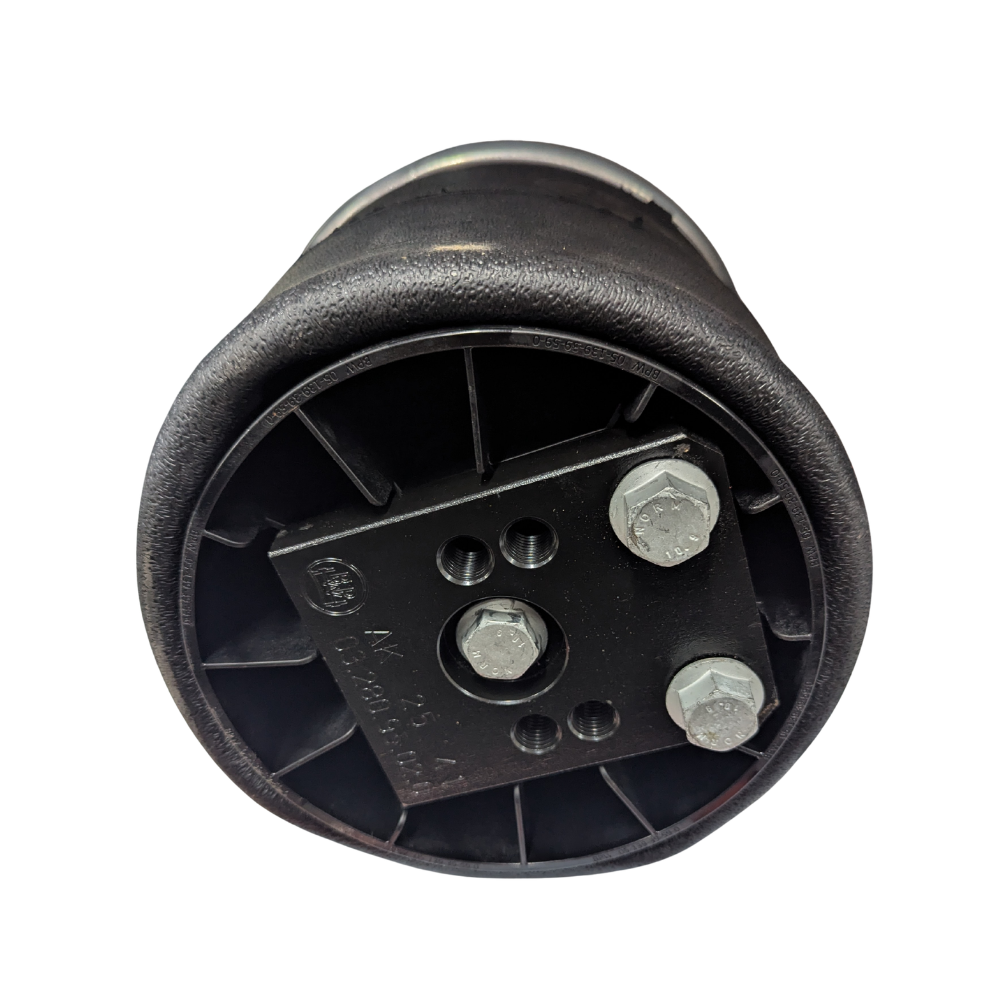

This rolling-lobe air spring uses a flexible bellows and an integrated piston to manage suspension travel. The assembly also suits standard trailer air systems that operate up to 7 bar (100psi).
See the WABCO air springs technical specification PDF at WABCO air springs technical specification PDF for general design, interchange and inspection guidance

Compatibility and Fitment

Air Spring Assembly BPW Type 30K With Piston suits BPW Type 30K setups that specify a complete air spring with piston. Confirm your mounting style and air inlet position against the existing unit before installation.
This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 940 MB P30, 940MBP30, 1T17D-4.3, 1T17D43, W01 M58 8585, W01M588585, D11B36, 1R11-752, 1R11752, 05 429 43 21 0, 0542943210, MSP3005, Fabio 34940, Fabio34940, 951 811 752 0, 9518117520, 940 MB, 940MB, W01 M58 8613, W01M588613, W01-M58-8585, W01-M58-8613, 05.429.43.21.0, 1 DK 21K, 1DK21K, KR -732-01, KR73201, 130202.

Compliance and Safety

Depressurise the air system before you remove the old air spring. Support the axle securely so the suspension cannot drop suddenly. Route air lines clear of moving parts and heat, then check for leaks after re-pressurising. Finally, tighten fasteners to the correct torque to avoid damaged studs or sealing faces.

Trailer Applications

Air Spring Assembly BPW Type 30K With Piston typically suits on-road freight trailers using BPW 30K air suspension. It helps maintain stable ride height under changing loads, which supports predictable handling. Timely replacement can also reduce breakdown risk from sudden air loss.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
