Description

Overview

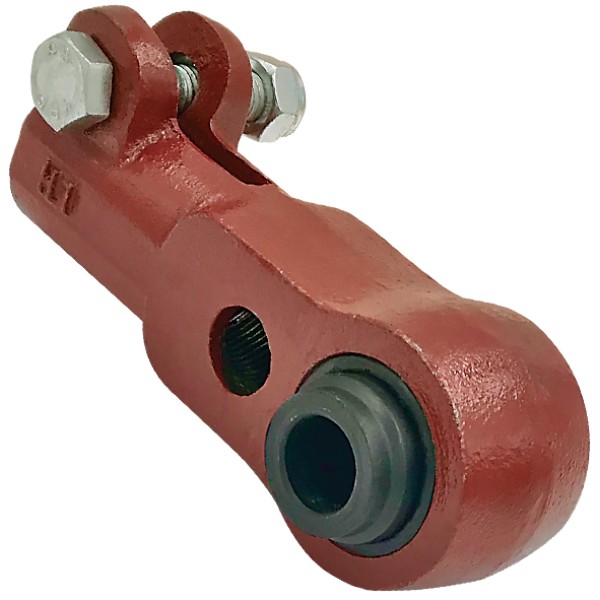

7/8 Left Hand Radius Rod End restores a worn suspension rod connection, so the axle stays located under braking, cornering and load transfer. This rod end suits radius rod and torque rod service work where the left-hand threaded end has worn, the bush fit has loosened, or the original hardware needs replacing as part of the repair.

Features

• Left-hand threaded rod end for radius or torque rod repairs
• 38mm (1.5″) thread size with a straight bore
• Supplied with bush, nut and bolt
• Built for the common 7/8 variant used in heavy trailer suspension work

Specifications and Materials

This rod end carries a 38mm (1.5″) thread and uses a straight bore layout, which helps when matching an existing suspension rod before assembly. The kit includes the rod end, bush, nut and bolt, so it covers the main service parts needed for a direct replacement at one end of the rod. Part number: SP1353K. Use the Hendrickson radius rod torque specification guide as a workshop reference

Compatibility and Fitment

Match the thread hand, thread size, bore style and existing rod layout before ordering, then confirm the replacement end suits the suspension position and hardware used on the trailer. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 15193-01, 1519301, 300.066, 300066, 86.2300, 862300, A2240, A2733

Compliance and Safety

Inspect the rod, brackets and fasteners for wear, cracking or ovalled holes before fitting the new end. When installing the new part, tighten all hardware to the suspension maker’s specification and recheck alignment if rod adjustment affects axle tracking.

Trailer Applications

Workshops use this rod end in mechanical trailer suspension repairs where a damaged or worn left-hand rod end has introduced play into the radius or torque rod assembly. It suits service jobs that need the common 7/8 variant with a straight-bore end and included fitting hardware.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
