Description

Overview

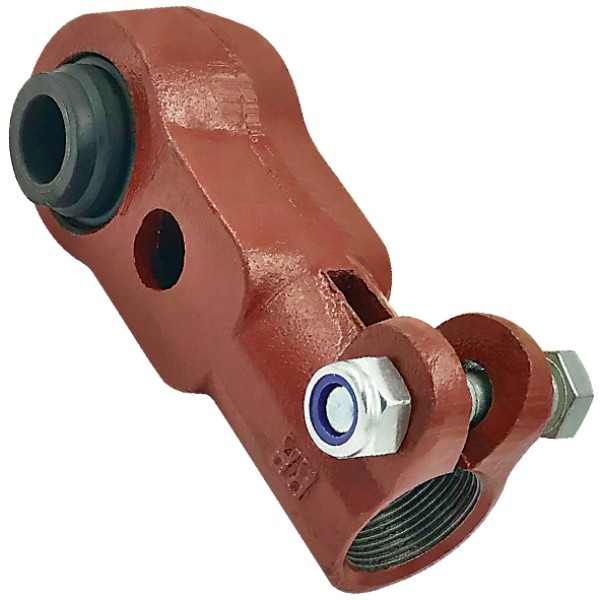

Right hand radius rod end 7/8in restores a worn radius rod or torque rod connection in trailer mechanical suspension assemblies. The right-hand threaded end lets mechanics adjust rod length and axle position during setup, while the straight-bore eye carries the bush and through-bolt at the chassis or axle bracket. When threads wear, the eye distorts or the bush runs loose, this kit gives you a complete rod-end replacement with the main hardware already included.

Features

• Right-hand threaded rod end with 38mm (1.5″) thread size
• Straight-bore kit supplied with bush, nut and bolt
• Suits common 7/8in radius rod and torque rod repairs
• Match thread hand, bore style and bracket width before ordering

Specifications and Materials

This rod end carries a 38mm (1.5″) right-hand thread and a straight-bore eye for common mechanical suspension service work. The kit includes the bush, nut and bolt, so it suits jobs where the worn end and hardware are being replaced together. Check the exposed thread length, bush style and bolt size before fitting, because those details keep the rod adjustment and mounting arrangement correct. Part number: SP1354K.

See the SAF-HOLLAND suspension service manual

Compatibility and Fitment

Match thread hand, thread diameter, bore style, bolt size and bracket width before ordering. This end suits common adjustable radius rod and torque rod repairs where a 38mm right-hand threaded end and straight 7/8in bush arrangement are already in service. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 15193-02, 1519302, 300.067, 300067, 86.2301, 862301, A2250, A2734, FL86.2301, FL862301

Compliance and Safety

Support the suspension before removing the old end, and measure the rod position first so alignment stays close on reassembly. Inspect the fixed rod, clamp faces and through-bolt for wear because a new end will not correct damaged companion parts. After installation, tighten hardware to the suspension maker’s specification and recheck axle alignment before returning the trailer to service.

Trailer Applications

Workshops use right hand radius rod end 7/8in kits on mechanical suspensions that need rod-end replacement without reusing worn hardware. It suits jobs where a straight-bore bush, matching bolt and right-hand threaded end are required in the one pack. This right hand radius rod end 7/8in also suits planned suspension rebuilds, axle alignment corrections and wear-point repairs on common trailer mechanical suspension layouts.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
