Description

Overview

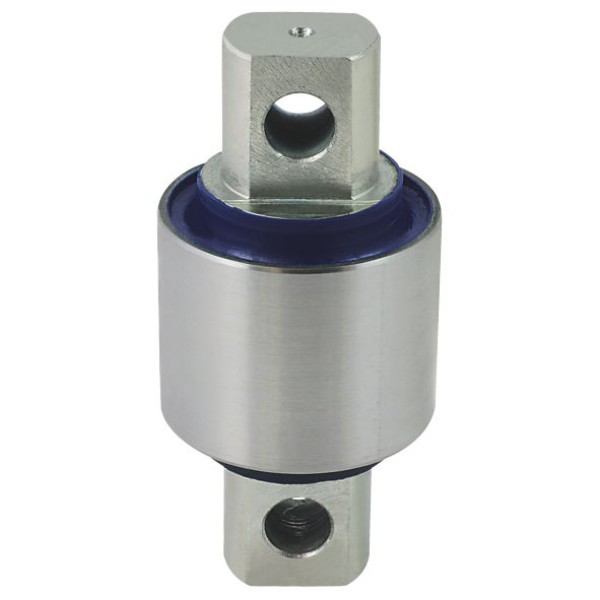

Polyurethane torque rod bush Airglide 100/200 stabilises the straddle-mount joint and helps control axle location through suspension travel. It suits Hendrickson and Kenworth Airglide 100 and 200 applications where the bush outside diameter, bolt hole size and centre spacing match the rod end correctly. When the old bush starts to flog out, crack or move in the housing, this replacement helps restore a tighter joint in the torque rod or stabiliser rod position.

Features

• Polyurethane straddle-mount bush with HD 80 hardness
• 69.85mm outside diameter with twin 16.668mm bolt holes
• 111.12mm hole centre spacing for matching rod ends
• Suits selected Hendrickson and Kenworth Airglide 100/200 suspension repairs

Specifications and Materials

This bush carries a 69.85mm outside diameter, twin 16.668mm bolt holes and 111.12mm centres across the mounting holes. The polyurethane body with HD 80 hardness suits straddle-mount torque rod and stabiliser rod service where a firmer bush style is required. Check the rod eye, pin hardware and bracket width before ordering so the replacement sits square in the mount. Part number: SP1331P.

Hendrickson torque rod selection guide

Compatibility and Fitment

Match the outside diameter, bolt hole size, centre spacing and rod-end style before ordering. This bush suits straddle-mount torque rod and stabiliser rod positions on the supported suspension families when those dimensions line up. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 13520, 1693061C1, 227720, 44695, E2226, E4664, R302226, R307639, TS38000, TS38095, TRB6820UB, TRB6820, 44097, 321-132U, 321132U, D422S, D423, DT1675, DT1471, 90.7023, 907023, E-4664, E-2226, E-7639, E7639, C879, C879UB, IPC936420, GAFF13520, GAFF83520, N8800599, N8888164, N8884777, 44695-000L, 44695000L, 66649-002, 66649002, 02-27720, 0227720, 836940, 83520

Compliance and Safety

Support the suspension correctly and relieve load from the rod before removing worn bushes or hardware. Inspect the rod eye, pin surfaces and mounting faces for wear, because a new bush will not correct a damaged housing or loose fastener fit. After installation, confirm the bush seats squarely and the hardware clamps cleanly through the pin.

Trailer Applications

Workshops fit this bush during air suspension rebuilds, torque rod repairs and stabiliser rod service where the original straddle-mount bush has worn out. Polyurethane torque rod bush Airglide 100/200 also suits jobs where suspension movement has started to affect joint control or hardware fit. It is a practical match for fleet service work on supported Hendrickson and Kenworth Airglide setups when the existing dimensions are checked first.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers stocks suspension service parts that fit straight into day-to-day bush, pin and rod repair work. That matters when you are replacing worn straddle bushes and want the matching dimensions laid out clearly before the job starts.
