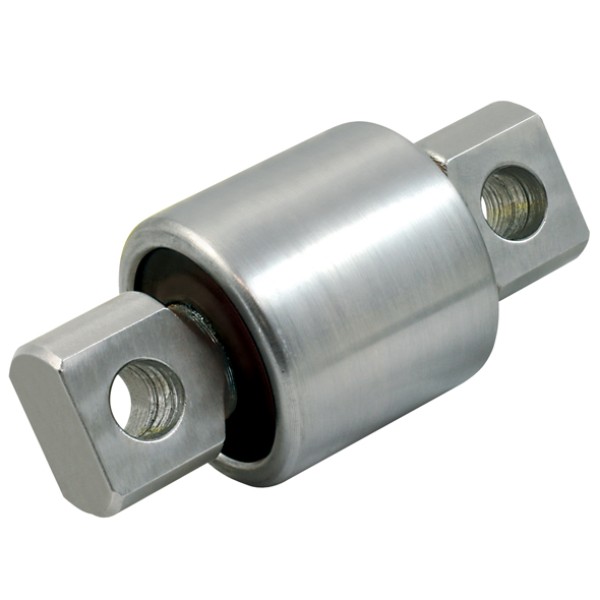

Airglide torque rod bush restores the straddle end of a suspension torque rod and helps control axle movement under braking, cornering and load transfer. This replacement bush suits Airglide applications that use a straddle-style bar pin layout, so it gives workshops a direct option when the original bush has worn, loosened or torn.

Features

• Rubber torque rod bush for straddle-type suspension positions
• 69.8mm outside diameter for matching the housing bore
• 17.4mm hole size with 111mm hole centres
• 140mm overall length for matching the original bush assembly

Specifications and Materials

This torque rod bush is a rubber replacement for Airglide suspension service work where a straddle-mount bush is required. Key selection dimensions are 69.8mm OD, 17.4mm hole size, 111mm hole centres and 140mm overall length. Part number: SP1334. See the Hendrickson torque rod bushing selection guide for bushing style and dimensional reference.

Compatibility and Fitment

Check the old Airglide torque rod bush against outer diameter, hole size, hole centres, overall length and bush style before ordering, then confirm the rod end uses the same straddle layout so the new bush seats correctly in the housing and lines up with the mounting hardware. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 836940, 839310, BP1320, K836940, K839310, SP1507, 11729, 227720, E-10303, E10303, R3010303, 90008265, 321-369, 321369, TS59-22400, TS5922400

Compliance and Safety

Press the old bush out square, clean the housing, and inspect the rod end for cracks, distortion or bar-pin damage before fitting the new bush. After installation, tighten all hardware to the vehicle or suspension maker’s specification and recheck alignment if the torque rod position affects axle tracking.

Trailer Applications

Workshops fit this bush when an Airglide torque rod shows excess movement, torn rubber or a loose bar-pin fit at the rod end. It suits heavy vehicle suspension service where the rod body remains usable and only the bush needs replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
