Overview

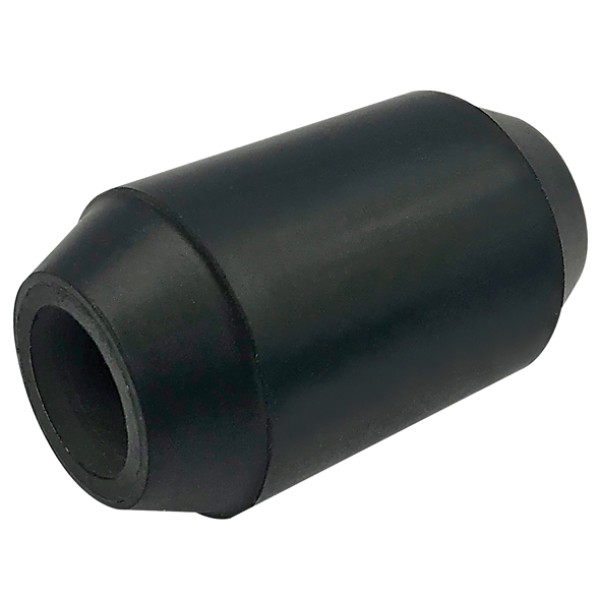

Pivot Bush Rubber 60mm x 30mm x 102mm supports the suspension pivot connection and helps control movement through the mounting point while reducing direct metal-to-metal contact. It gives workshops a clear size match for replacement work, so the bush can be checked against the housing, pin and installed width before the suspension comes apart. Because pivot wear can affect alignment and ride stability, this bush suits service jobs where the old rubber has hardened, split or worn loose in the suspension eye.

Features

• 60mm outer diameter, 30mm inner diameter and 102mm overall length
• Rubber bush for trailer suspension pivot points
• Suits selected ROR Meritor, Holland, Sefair Euro, Krueger and York applications when the size matches
• Match bore size, pin size and installed width before ordering

Specifications and Materials

This bush uses a rubber body and measures 60mm OD, 30mm ID and 102mm long. The 30mm bore suits matching pivot hardware, while the 60mm outer diameter and 102mm length help confirm the correct suspension eye and hanger fit. Compare the existing bush after cleaning the housing, because dirt, sleeve wear and damaged rubber can hide the true size. Part number: SP1324.

See the SAF-HOLLAND suspension service library

Compatibility and Fitment

Match the housing bore, pin size and bush length to your suspension before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0203160600, 21222609, WC234264, 02.0316.06.00, 04214, 10.16270, 070.060

Compliance and Safety

Support the trailer and release suspension air before removing pivot hardware. Tighten pivot fasteners within the correct ride height range for the suspension system, not with the assembly hanging at full drop. When the suspension maker calls for paired service, replace bushes across the axle as a set, then confirm alignment and final torque after refit.

Trailer Applications

Workshops fit this style of bush during suspension rebuilds and wear-point service on trailer air suspension systems. Pivot Bush Rubber 60mm x 30mm x 102mm suits applications across ROR Meritor, Holland, Sefair Euro, Krueger and York setups when the existing bush dimensions and mount details line up. It also suits repair work where worn pivot bushes have started to affect suspension location, hardware fit or consistent axle tracking.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers focuses on trailer suspension parts, including the bushes, pins and hardware commonly replaced during pivot and hanger repairs. Pivot Bush Rubber 60mm x 30mm x 102mm fits neatly into that repair workflow when you need a direct size match for suspension service.
