Overview

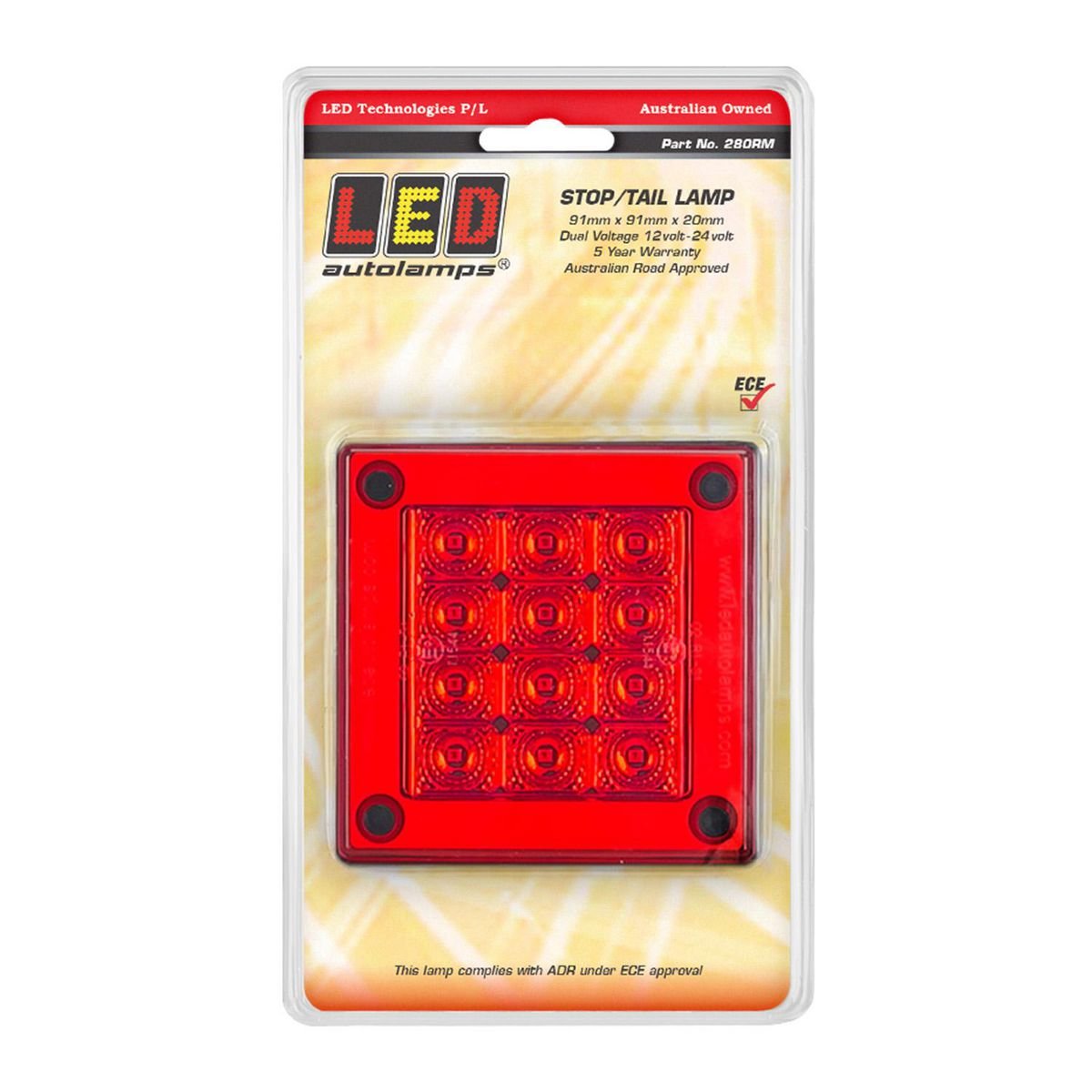

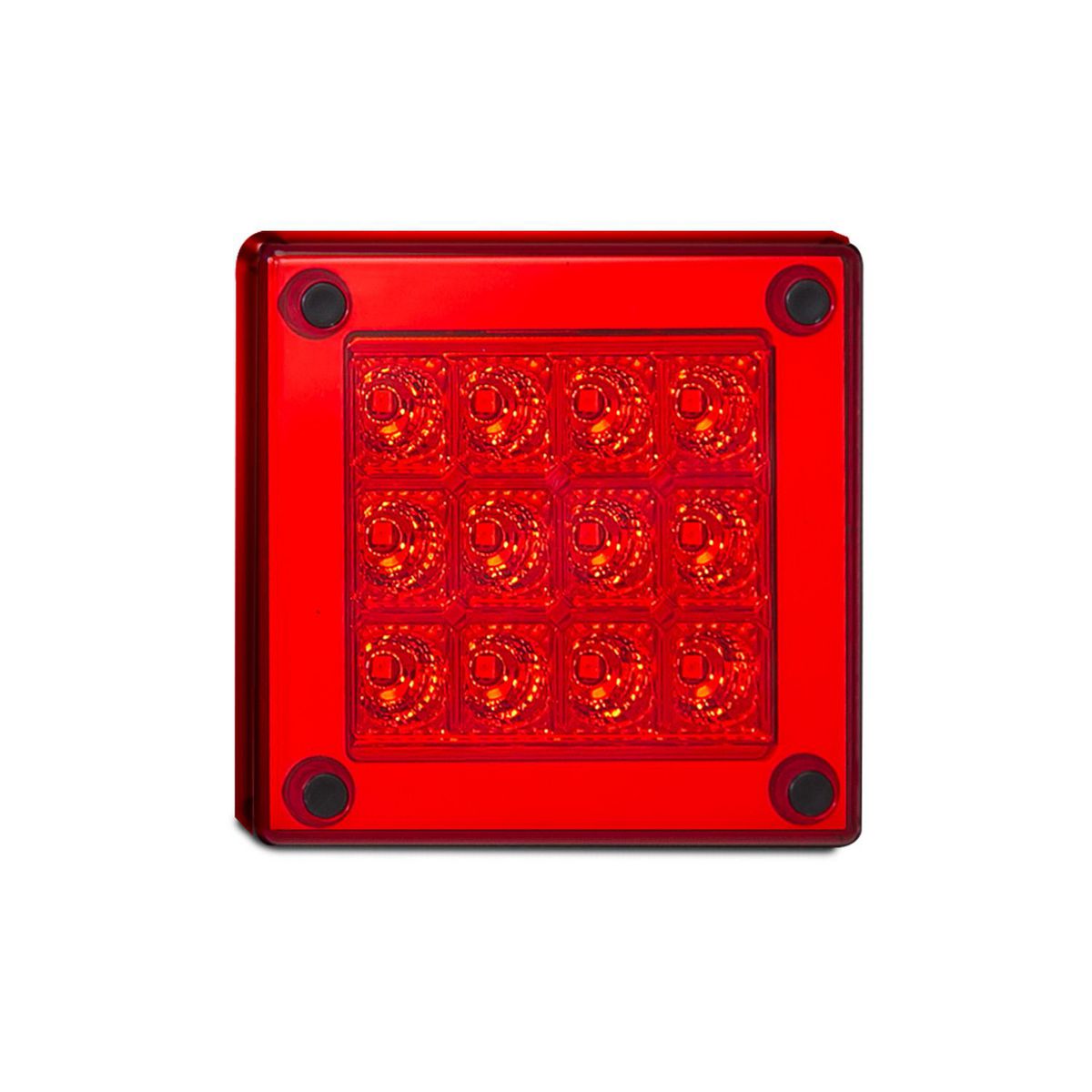

Stop tail LED insert replaces the red stop and tail module in matching 280 and 420 Series rear lamp setups. The 12-24V multivolt input suits trailer and truck electrical systems, while the 91mm square body keeps the fitment compact. Because it comes with a rubber gasket and screws, it can also mount as an individual stop and tail lamp where the trailer layout allows it.

Features

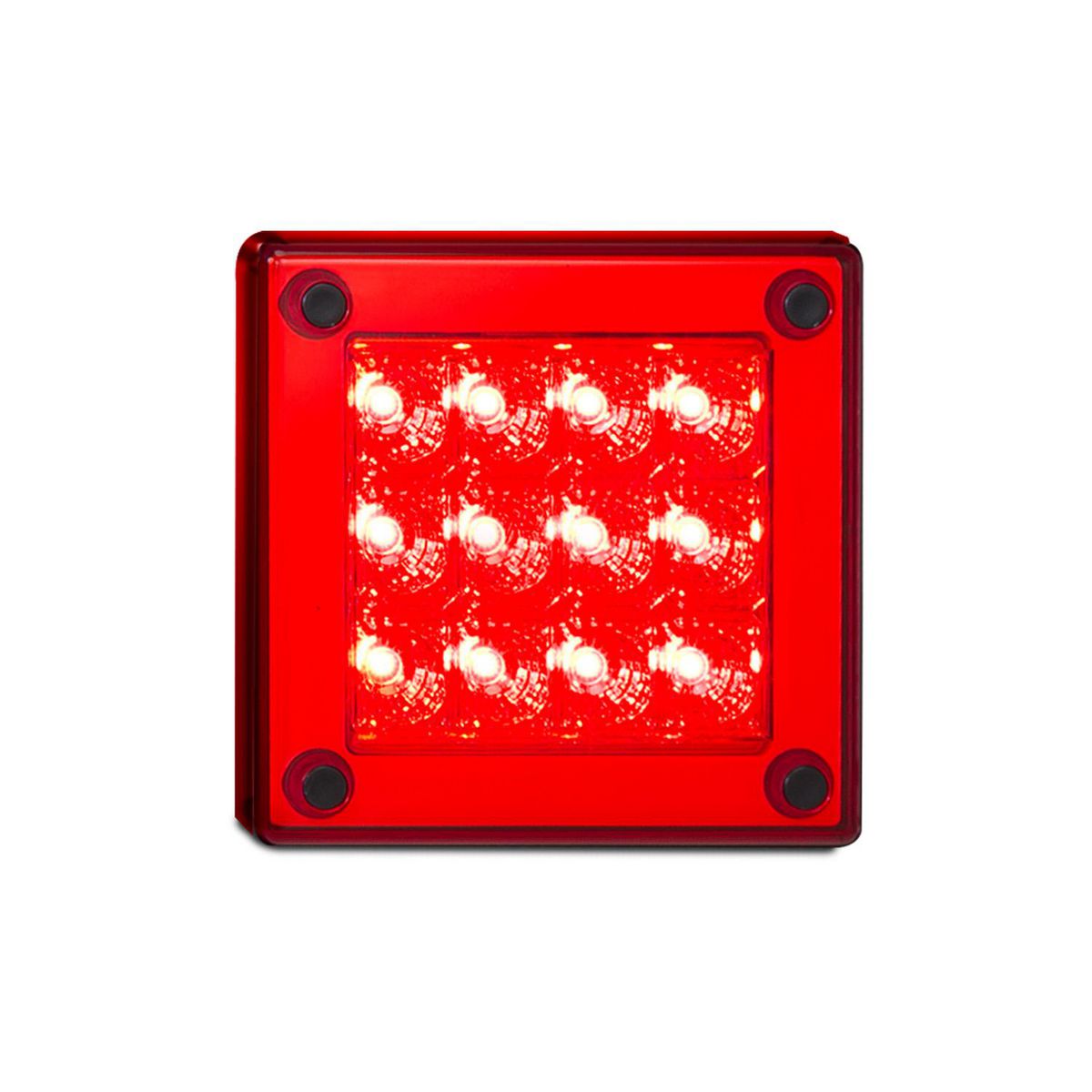

• 12 LEDs cover stop and tail lamp functions.
• Replacement insert for 280 and 420 Series lamp assemblies.
• IP67 rating helps protect against dust and water exposure.
• ECE and CTA approval data supports road lighting applications.

Specifications and Materials

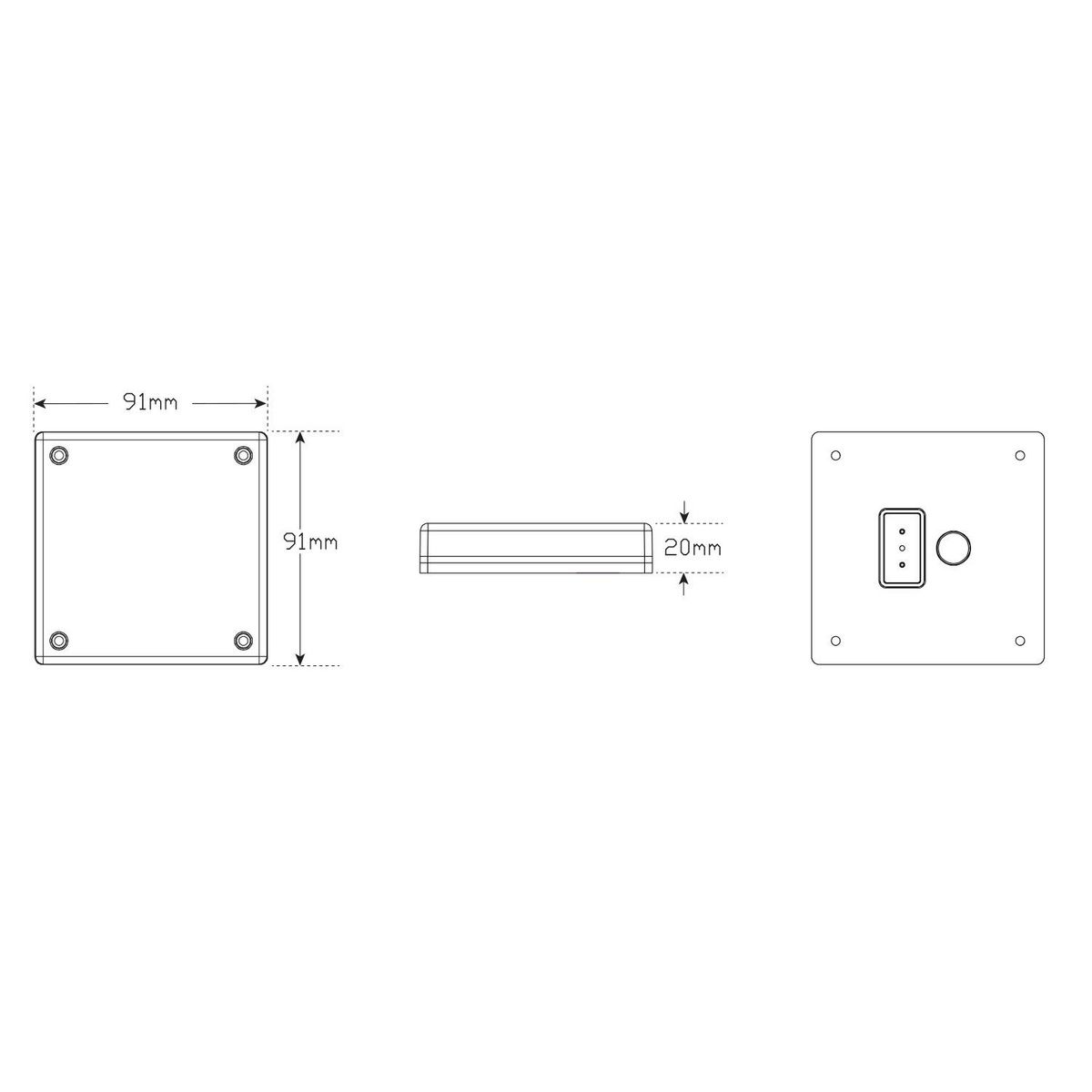

This stop tail LED insert measures 91mm × 91mm × 20mm and runs on 12-24V systems. It includes a 10cm cable, rubber gasket and fixing screws for surface mounting or insert replacement.

The stop function draws 0.18A at 13.8V and 0.11A at 28V. The tail function draws 0.02A at 13.8V and 0.03A at 28V.

Part number: 280RM.

Use the official datasheet for current draw, approvals and mounting data.

Compatibility and Fitment

Match the 91mm square body, 20mm depth, cable exit and gasket setup before ordering. This insert suits 280 and 420 Series lamp assemblies, so compare the existing lamp body and mounting holes before fitting.

For individual mounting, fix the lamp to a clean flat surface and seal the wiring route properly. Also check the final lamp position against the trailer lighting layout before road use.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the gasket, screws and mounting face before fitting. Then test both stop and tail functions after wiring, because poor earths or loose connections can cause rear lighting faults.

Trailer Applications

Workshops use this stop tail LED insert when repairing compact square rear lamp assemblies on trailers, truck bodies and service bodies. It also suits builds that use separate square lamp modules for stop/tail, indicator and reverse functions.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, fleet work and body builds, so match the lamp body and wiring before fitting this insert.
