Description

Overview

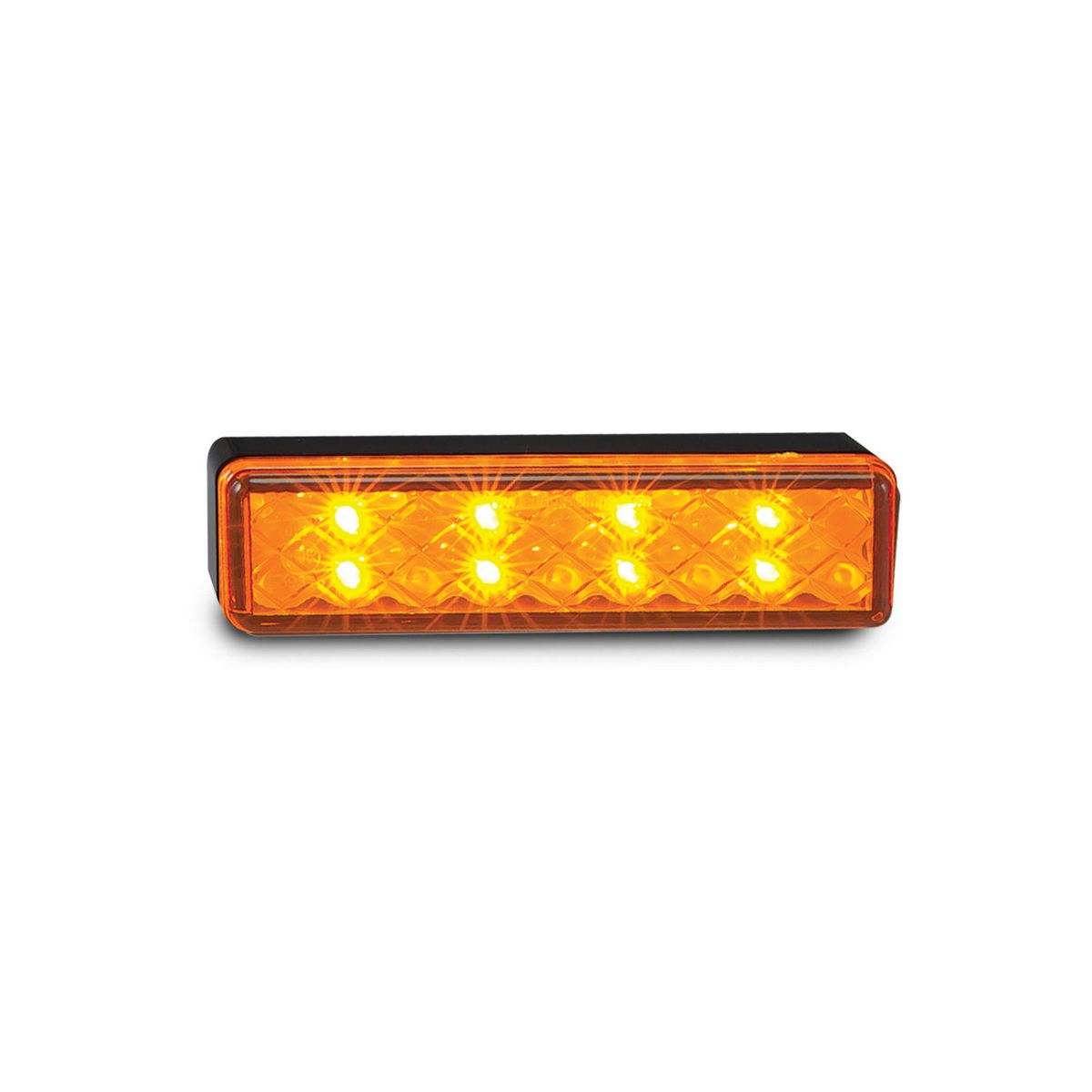

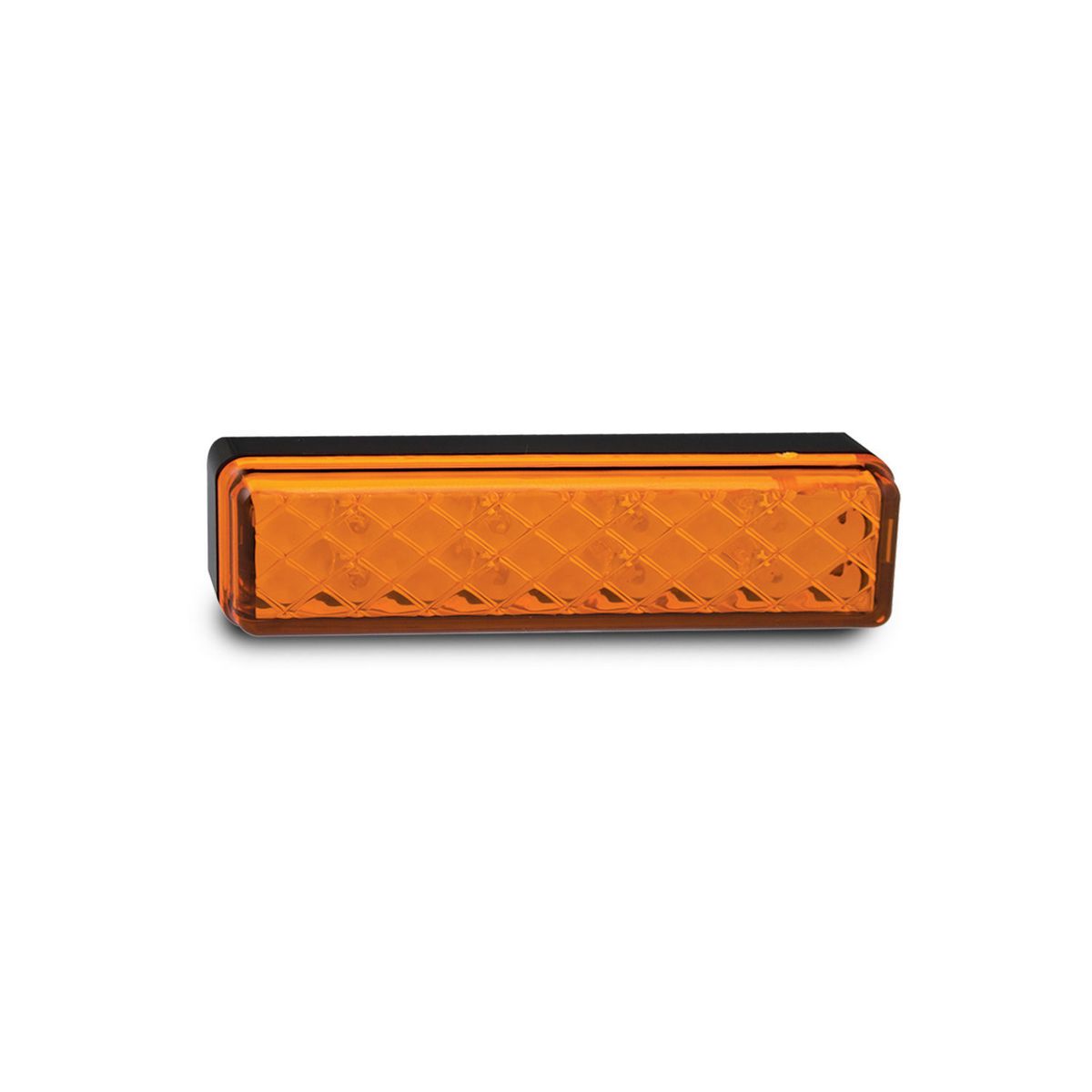

Rear indicator LED lamp provides amber rear signalling for trailers, truck bodies and service bodies using 12-24V electrical systems. The slim rectangular body suits compact rear lighting layouts, while the black base gives the lamp a tidy surface-mounted finish. It can also recess mount with the matching rubber grommet when the panel setup calls for a lower-profile fit.

Features

• 8 LEDs provide amber rear indicator output.
• Surface mounts with screws or plugs, or recess mounts with the matching grommet.
• IP67 rating helps protect the lamp from dust and water exposure.
• ADR and CTA approval data supports trailer rear indicator use.

Specifications and Materials

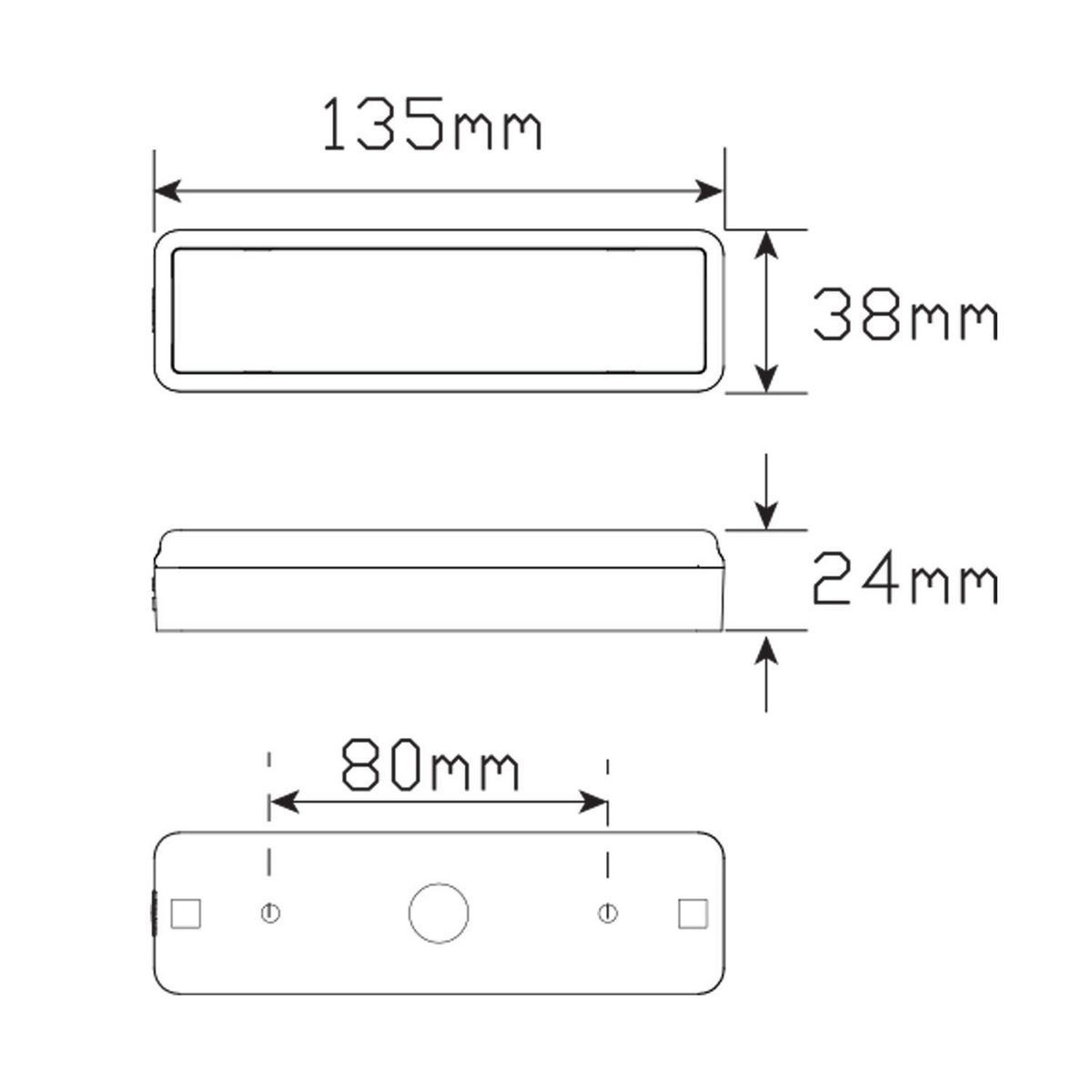

This rear indicator LED lamp measures 135mm × 38mm × 24mm and runs on 12-24V multivolt systems. The lamp includes a 40cm cable and uses yellow as the indicator wire colour.

The indicator function draws 0.16A at 13.8V and 0.06A at 28V. When recess mounting with the accessory grommet, use a 133mm × 36mm cut-out.

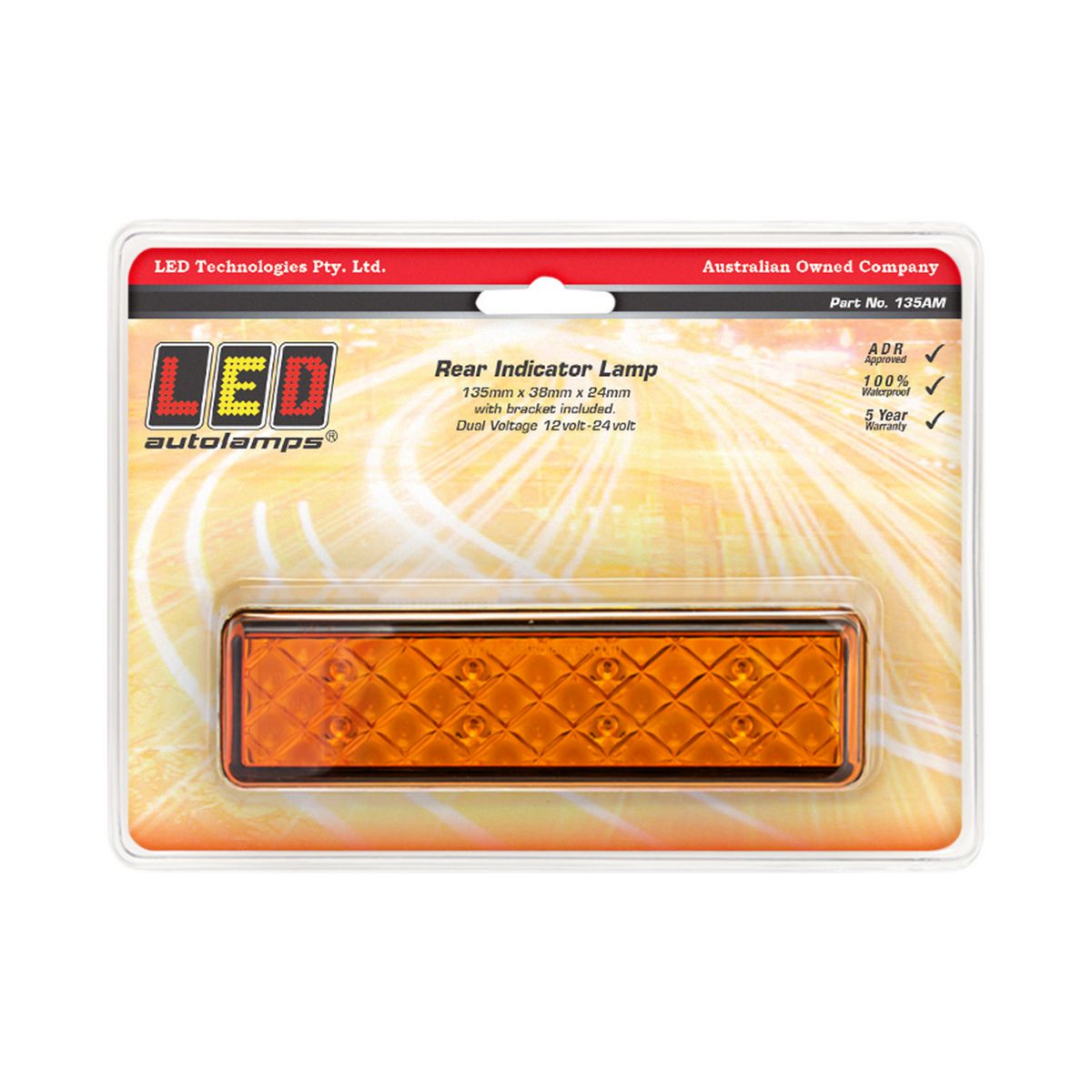

Part number: 135AM.

Use the official datasheet for current draw, approvals and mounting data

Compatibility and Fitment

Match the lamp length, height, depth, cable route and voltage range before ordering. For surface mounting, fix the bracket clip-in lamp horizontally with the screws or plugs provided, then run the cable through the back of the mounting surface.

For recessed mounting, add the matching rubber grommet and confirm the panel cut-out before clipping the lamp into place.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp in a position that keeps the indicator visible and protected from impact where possible. After wiring, test the indicator function and check for a clean earth, because poor connections can cause intermittent trailer lighting faults.

Trailer Applications

Workshops fit this rear indicator LED lamp to trailers, trays and truck bodies where a compact amber rear indicator needs to sit in a narrow space. It suits repairs on existing 135 Series layouts and new body builds that use separate stop/tail, indicator and reverse lamp modules.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, fleet work and body builds, so match the lamp body, wiring path and mounting style before fitting this indicator.
