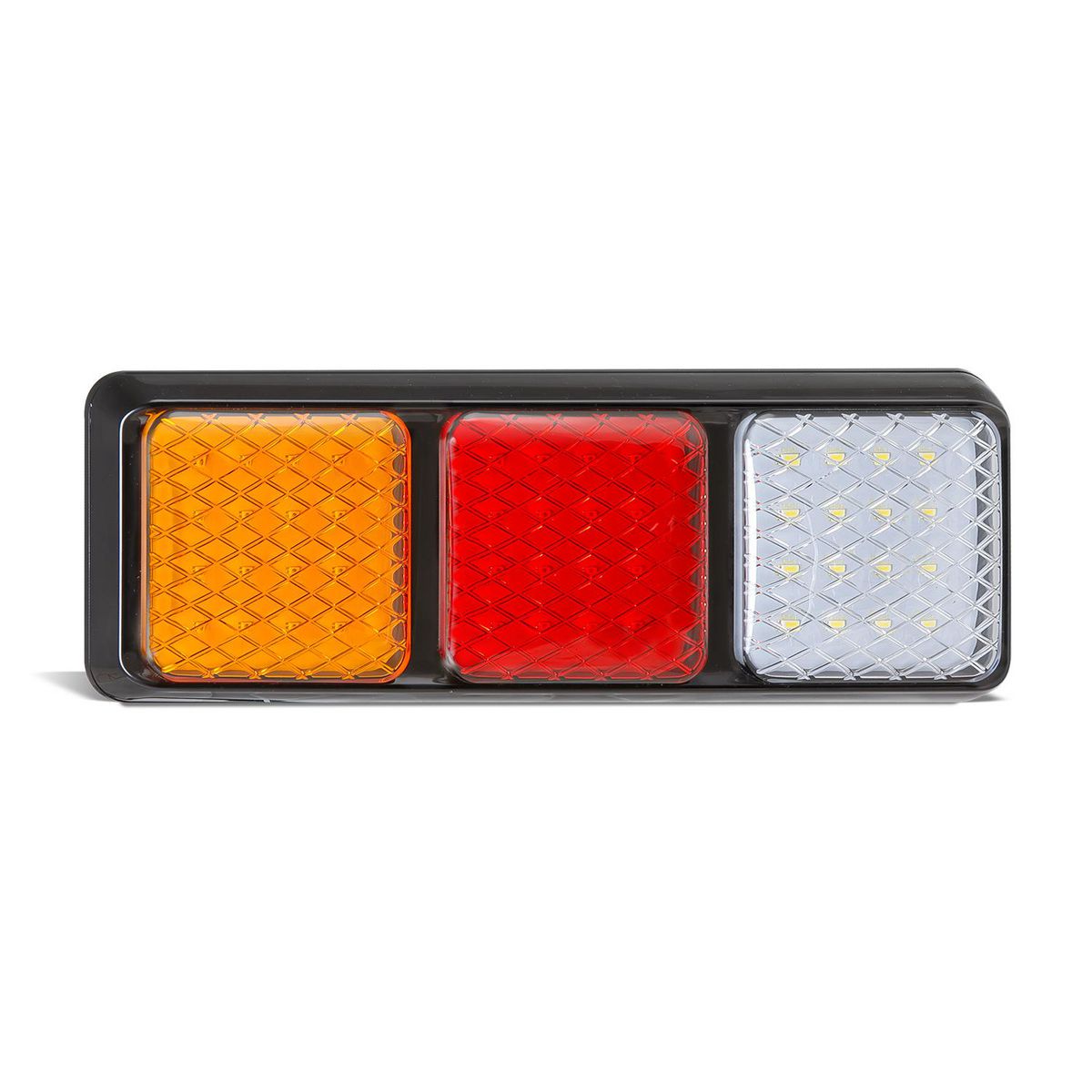

Combination LED tail lamp with reverse handles stop, tail, indicator and reverse functions in one low-profile rear lamp. The amber, red and white lens layout suits trailer and truck rear lighting where a compact rectangular lamp needs to cover the main rear signalling functions. Its 12-24V multivolt design also suits mixed trailer and commercial vehicle electrical setups.

Features

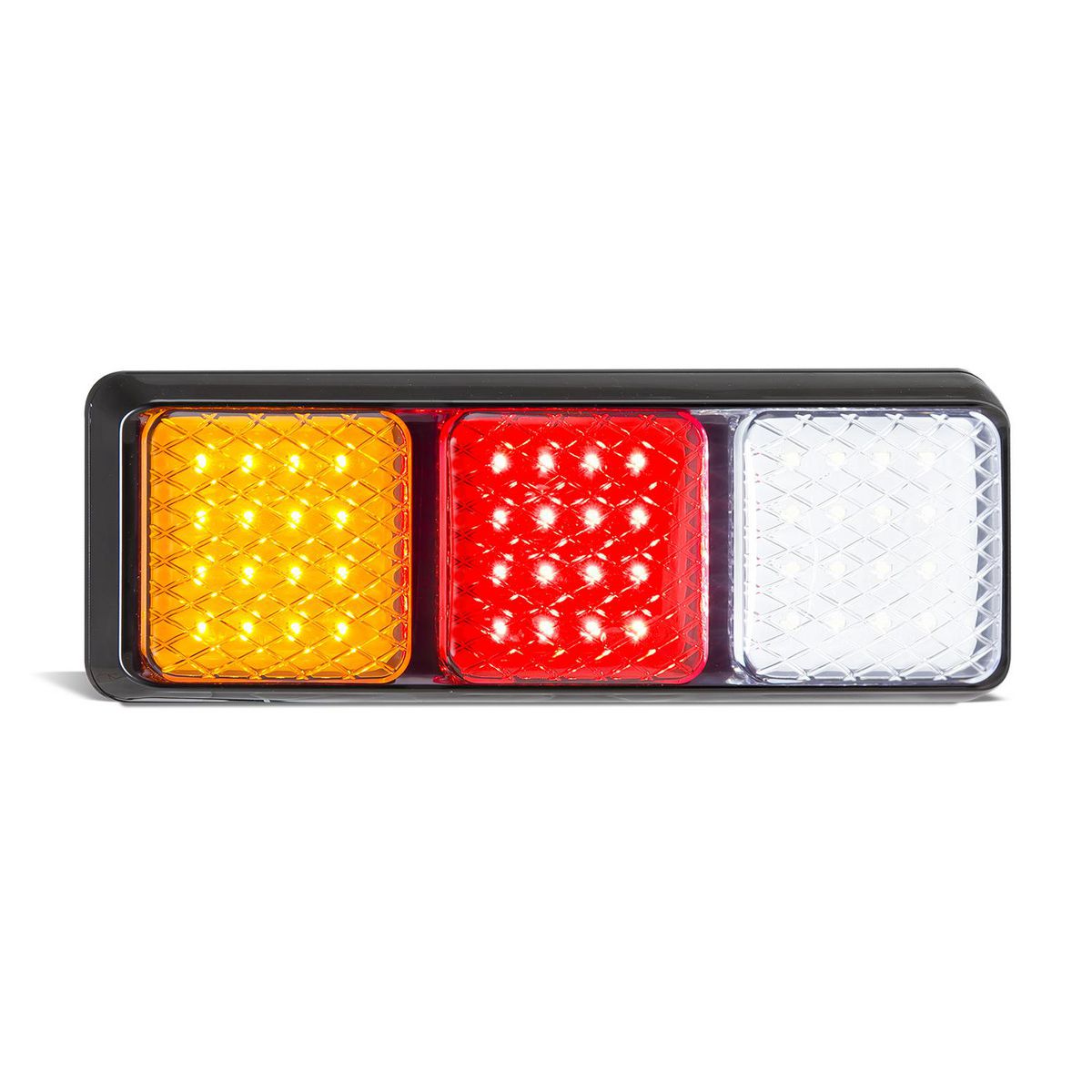

• 48 SMD LEDs cover stop, tail, indicator and reverse lighting.
• IP67 rating helps protect the lamp against dust and water exposure.

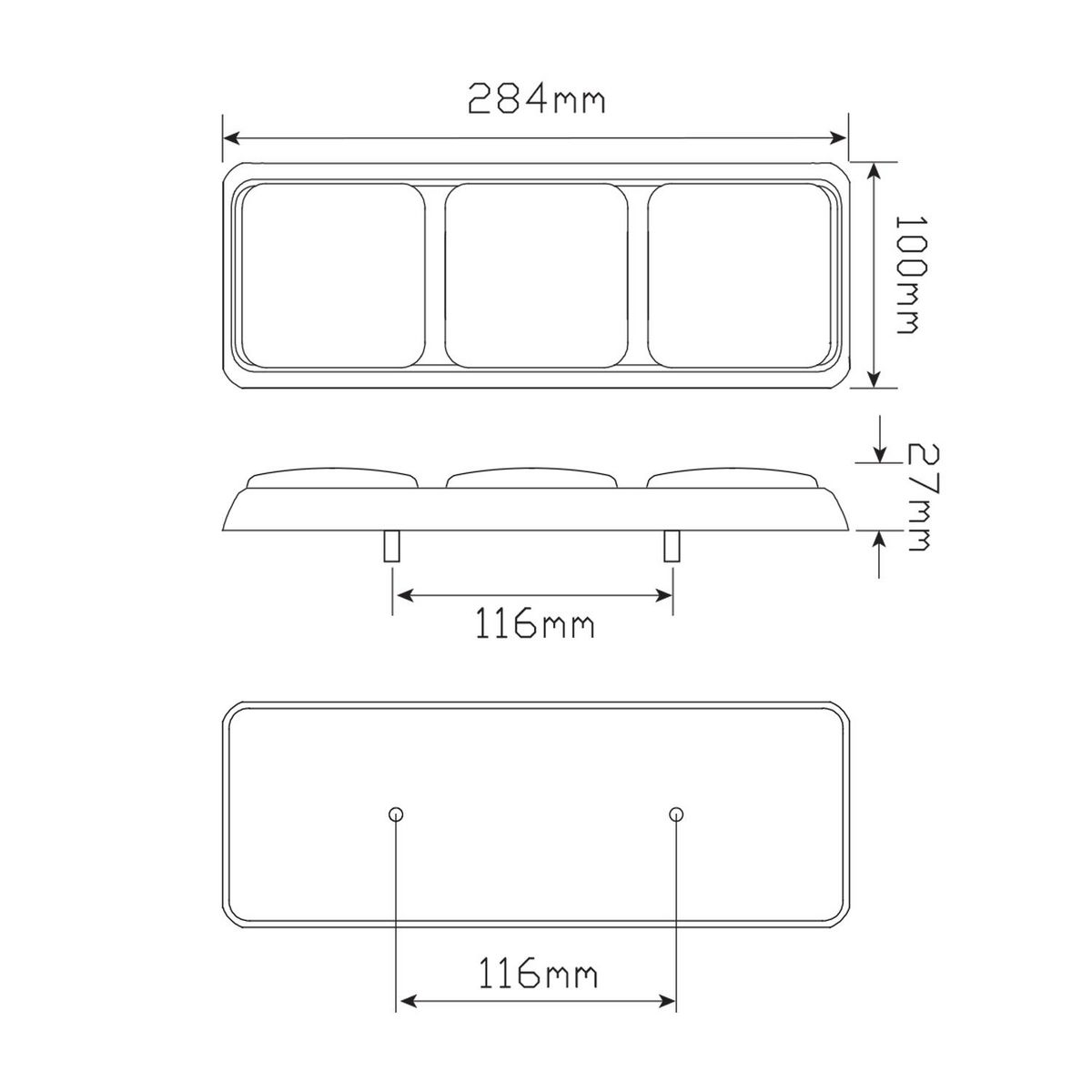

• 284mm × 100mm × 27mm body suits low-profile rear mounting.
• 20cm cable runs through a 10mm hole in the fixing surface.

Specifications and Materials

This combination LED tail lamp with reverse measures 284mm long, 100mm high and 27mm deep. It runs on 12-24V multivolt systems and carries 48 SMD LEDs across the lamp body.

The lamp draws 0.33A stop, 0.03A tail, 0.30A indicator and 0.24A reverse at 13.8V. At 28V, it draws 0.17A stop, 0.03A tail, 0.17A indicator and 0.13A reverse.

Part number: 282ARWM.

Use the official datasheet for electrical draw, approvals and fitting data.

Compatibility and Fitment

Check the lamp size, bolt position, cable route and voltage range before ordering. The lamp surface-mounts using bolts in the back, and the cable and plug pass through a 10mm hole in the fixing surface.

The manufacturer notes horizontal surface mounting for the series, with horizontal or vertical mounting for this reverse version. However, confirm the final position against the trailer lighting layout before road use.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

This lamp carries ADR and ECE approval data for stop, tail, indicator and reverse functions. Before fitting, inspect the mounting surface, keep wiring away from sharp edges and check that every function operates correctly after installation.

Trailer Applications

Trailer builders and workshops fit this style of rear combination lamp to small vehicle trailers, trays, service bodies and truck bodies. Because it combines four rear lighting functions, it helps keep the rear panel cleaner than separate stop, tail, indicator and reverse lamps.
