Description

Overview

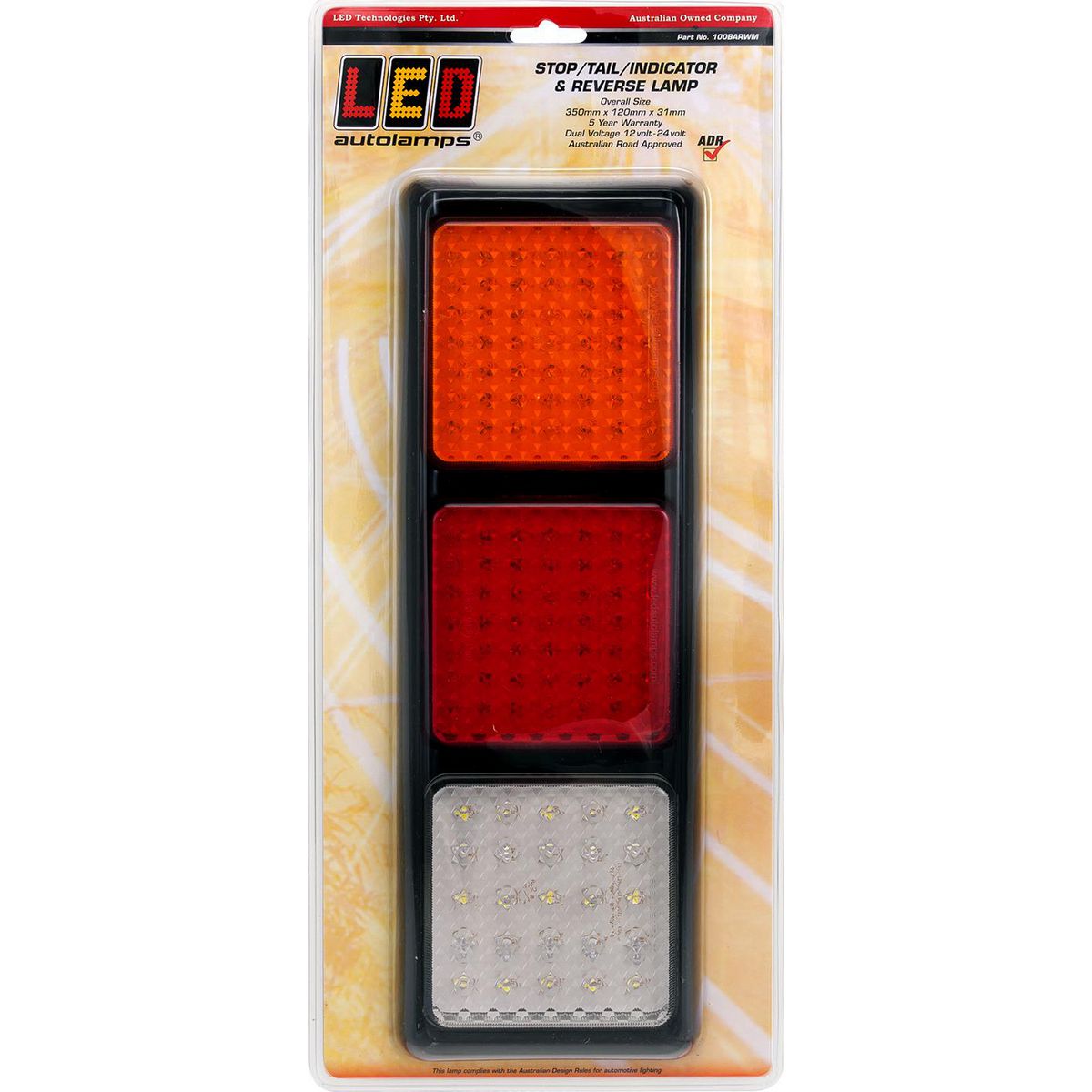

12/24V stop tail indicator reverse lamp handles the four main rear lighting functions in one surface-mount trailer assembly.

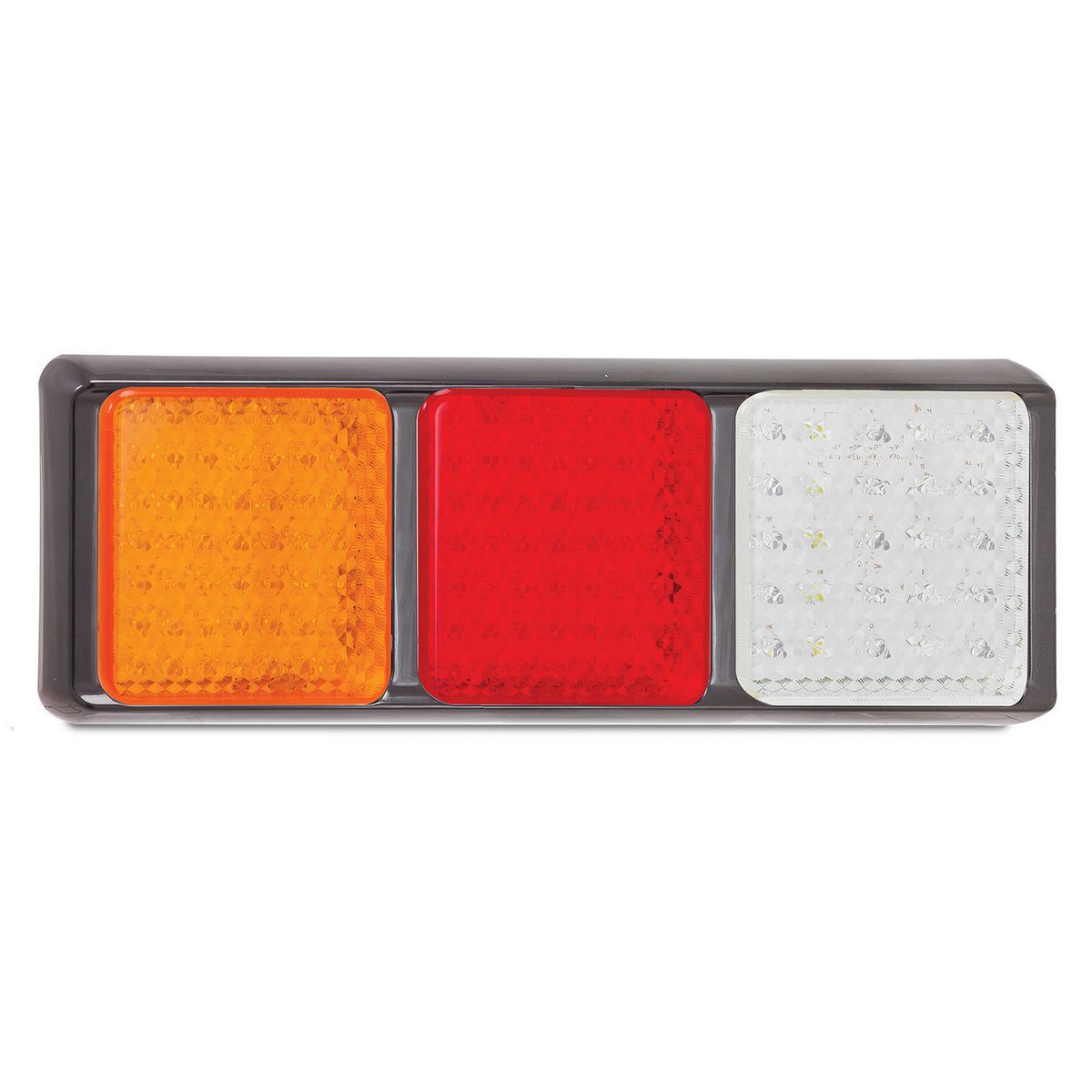

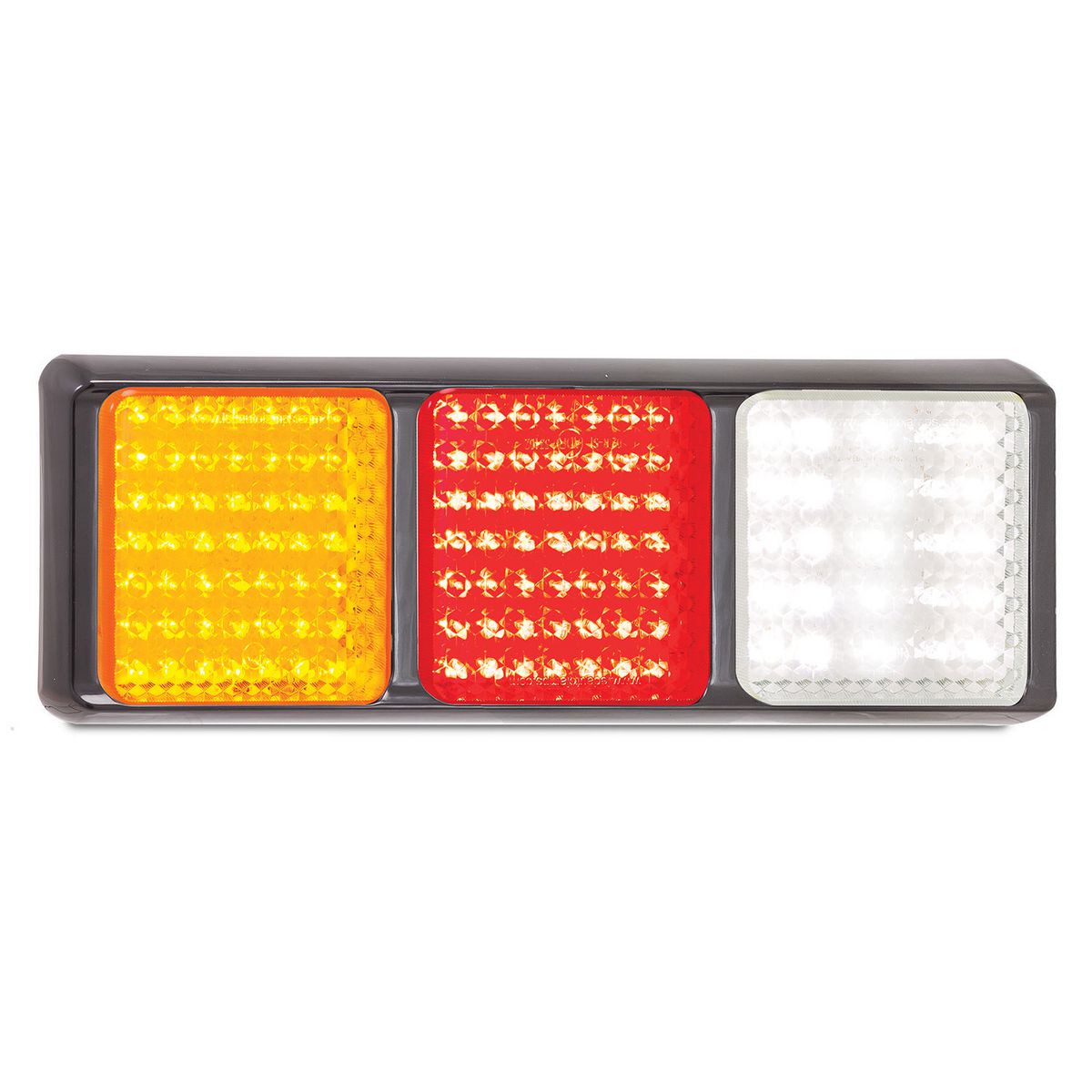

The 350mm black bracket carries separate amber, red and white lamp sections, so it suits trailer rear lighting repairs where the existing setup needs stop, tail, indicator and reverse functions together. Because it runs on 12-24V, it suits mixed trailer, truck and service body fleets.

Features

• Stop, tail, indicator and reverse functions in one rear lamp assembly
• 123 LED layout with 40cm cable
• IP67 rated housing for sealed exterior use
• Individual lens replacement design for service work

Specifications and Materials

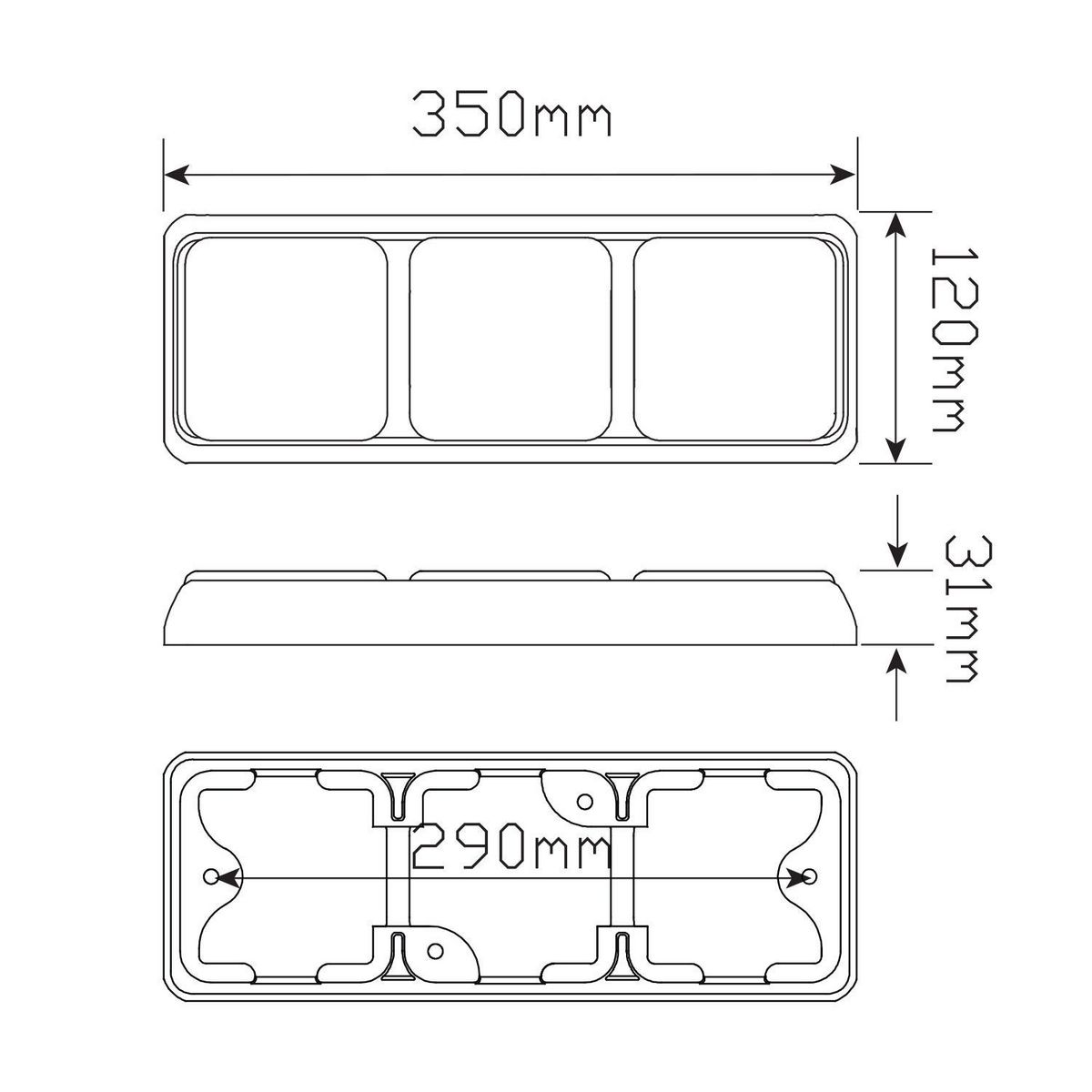

This 12/24V stop tail indicator reverse lamp measures 350mm x 120mm x 31mm and mounts horizontally to a flat rear surface. The assembly uses a PMMA lens, ABS bracket and screw-mounted black housing.

Part number: 100BARWM.

Use the manufacturer technical guide

Compatibility and Fitment

Check the overall lamp size, mounting centres, voltage range and rear lighting functions before ordering. Also confirm the trailer has space for a 350mm wide horizontal lamp and enough access to run the wiring through the rear panel.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp to suit ADR 13/00 mounting requirements for the trailer. Then test stop, tail, indicator and reverse circuits before road use, because incorrect wiring can leave the rear lighting pattern incomplete.

Trailer Applications

Workshops fit this 12/24V stop tail indicator reverse lamp to trailers, trucks, caravans and service bodies that need a combined rear lighting assembly. The IP67 sealed design also suits exposed rear positions where dust and water contact matter.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, fleet servicing and new builds, with practical part matching across rear lamps, brackets, lenses and electrical hardware.
