Description

Overview

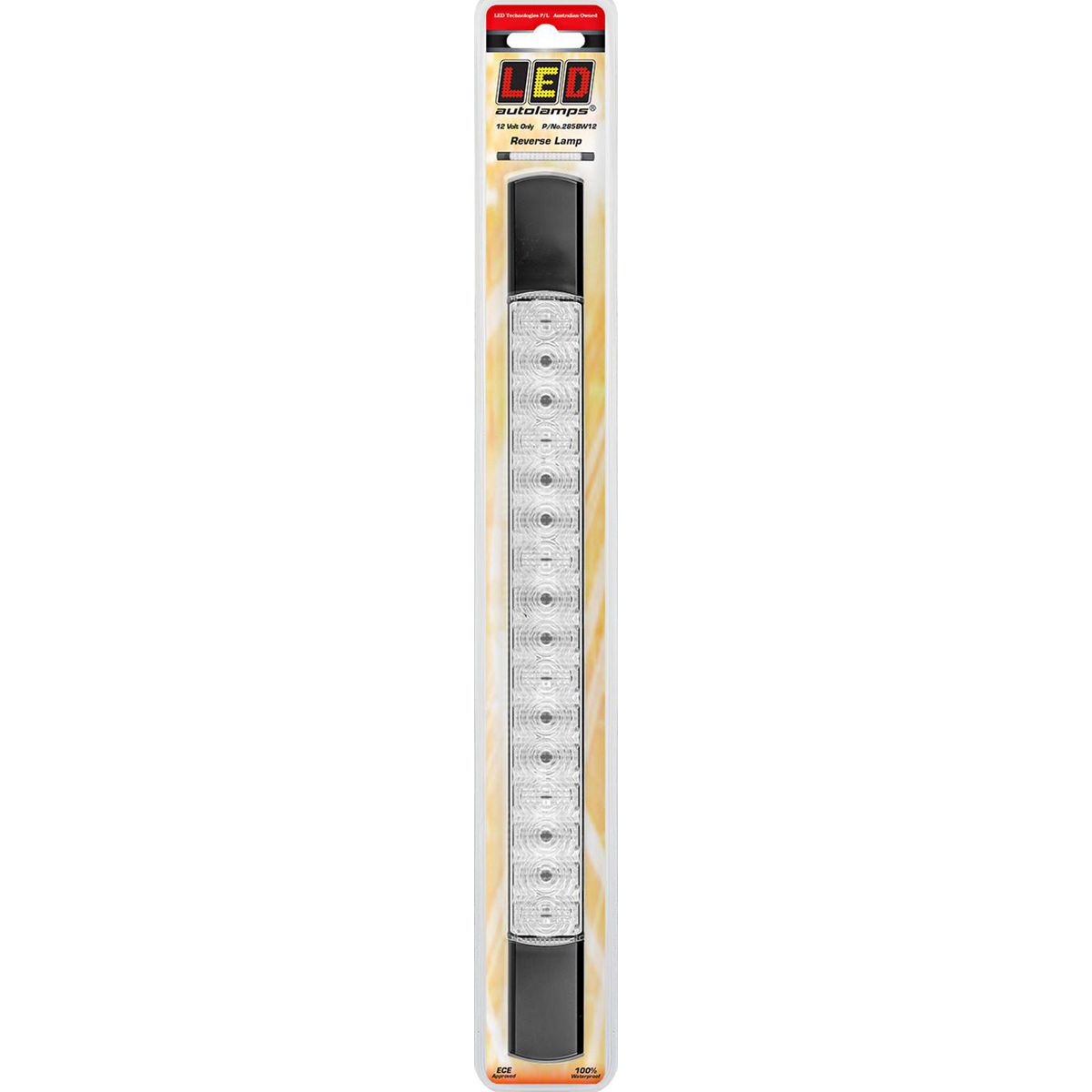

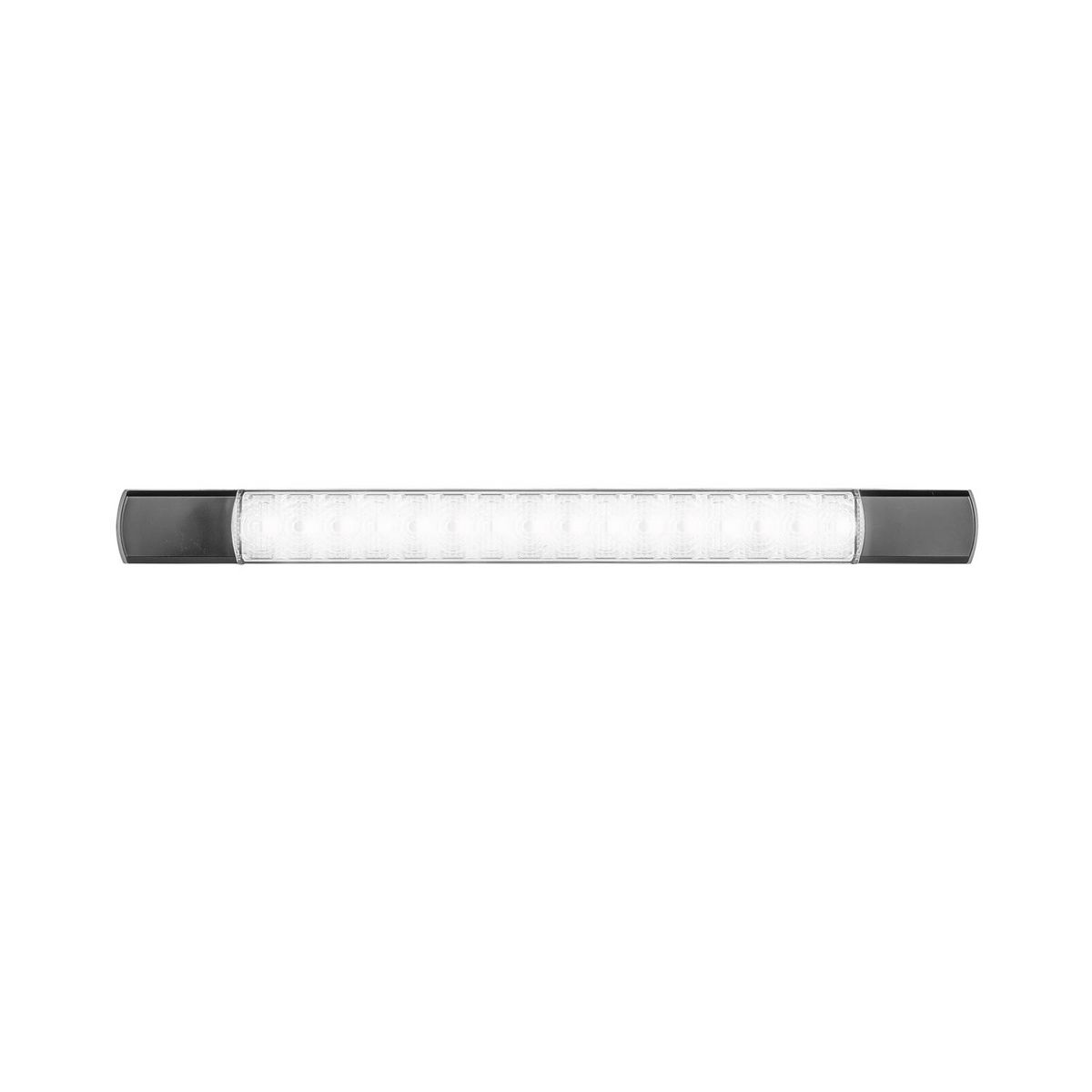

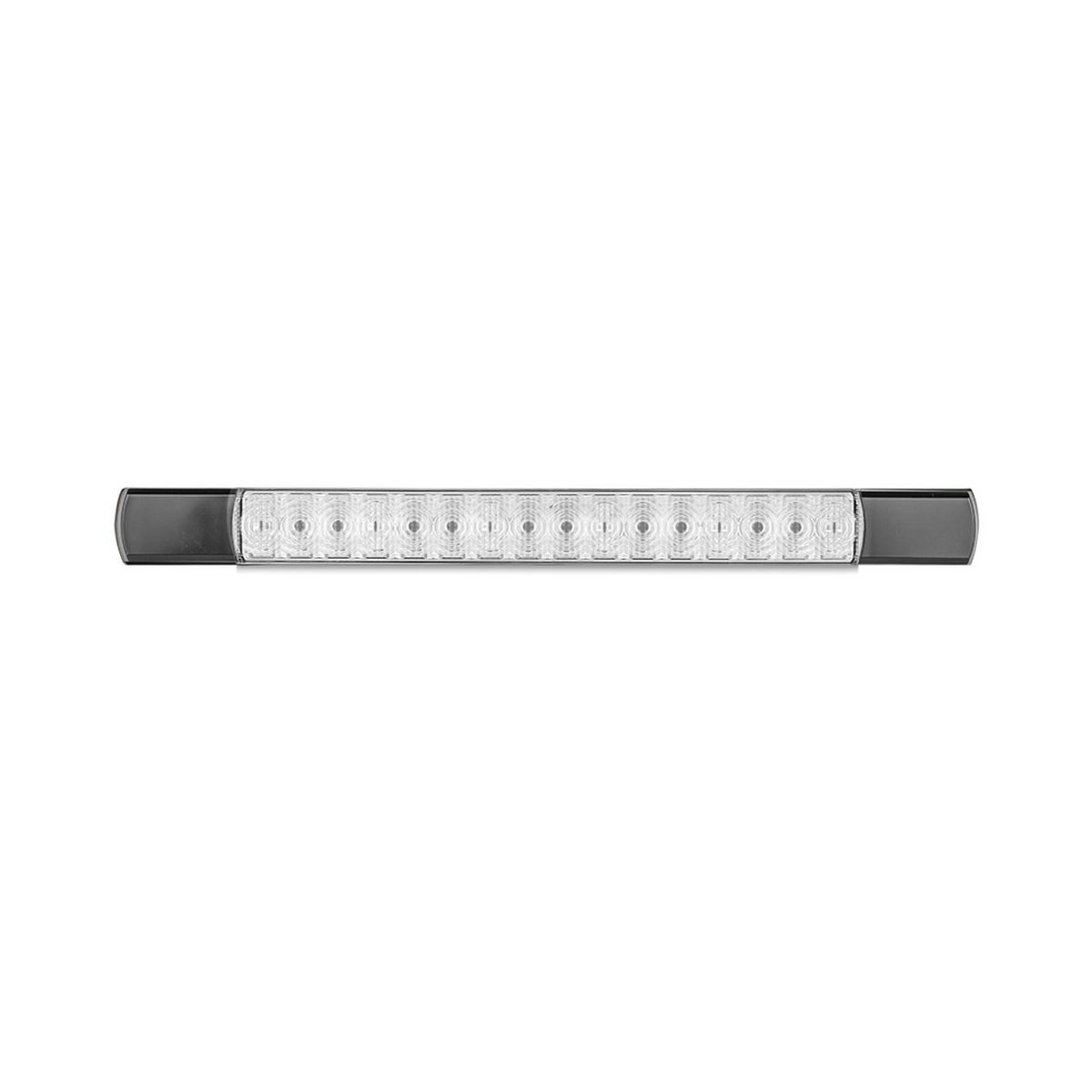

LED reverse strip lamp provides white reverse lighting in a slim 285mm surface mount body. The low-profile format suits trailer, caravan, tray and service body panels where depth is tight and the lamp needs to sit neatly across a flat rear surface.

Features

• Reverse lamp function with clear lens and white LEDs
• 285mm low-profile body with black end caps
• 12V operation for compatible trailer and vehicle wiring systems
• Horizontal surface mount fit-up for the reverse function

Specifications and Materials

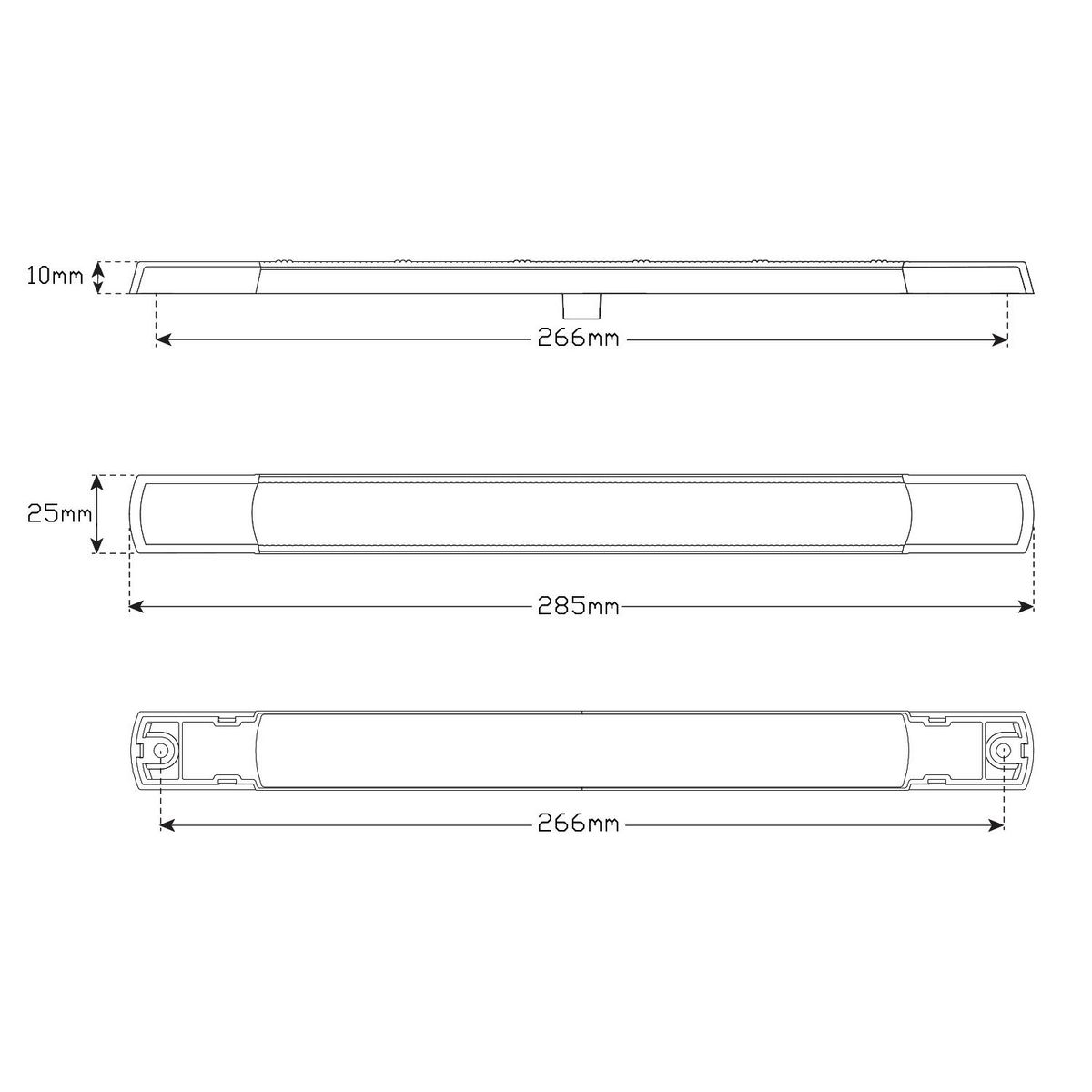

The LED reverse strip lamp measures 285mm x 25mm x 10mm and uses 24 white LEDs. It carries an 85mm cable, draws 0.18A at 13.8V and uses removable end caps to cover the surface mount screw points.

Part number: 285BW12.

View the LED Autolamps 285 Series technical guide

Compatibility and Fitment

Check the available mounting length, 12V supply, cable exit and reverse lamp position before ordering. Because the reverse version mounts horizontally only, confirm the rear panel layout before drilling the cable hole or fixing screws.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp to a clean flat surface, then refit the end caps after tightening the screws. Also test the reverse circuit from the towing vehicle and protect the cable where it passes through the panel.

Trailer Applications

Workshops fit this LED reverse strip lamp to trailers, caravans, canopies, trays and service bodies that need a narrow white reverse lamp. It can also suit interior lighting jobs where a slim 12V white lamp fits the space and wiring layout.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairers, fleets and trailer owners who need compact lighting options for clean panel fit-up. Browse more LED Lights
