Description

Overview

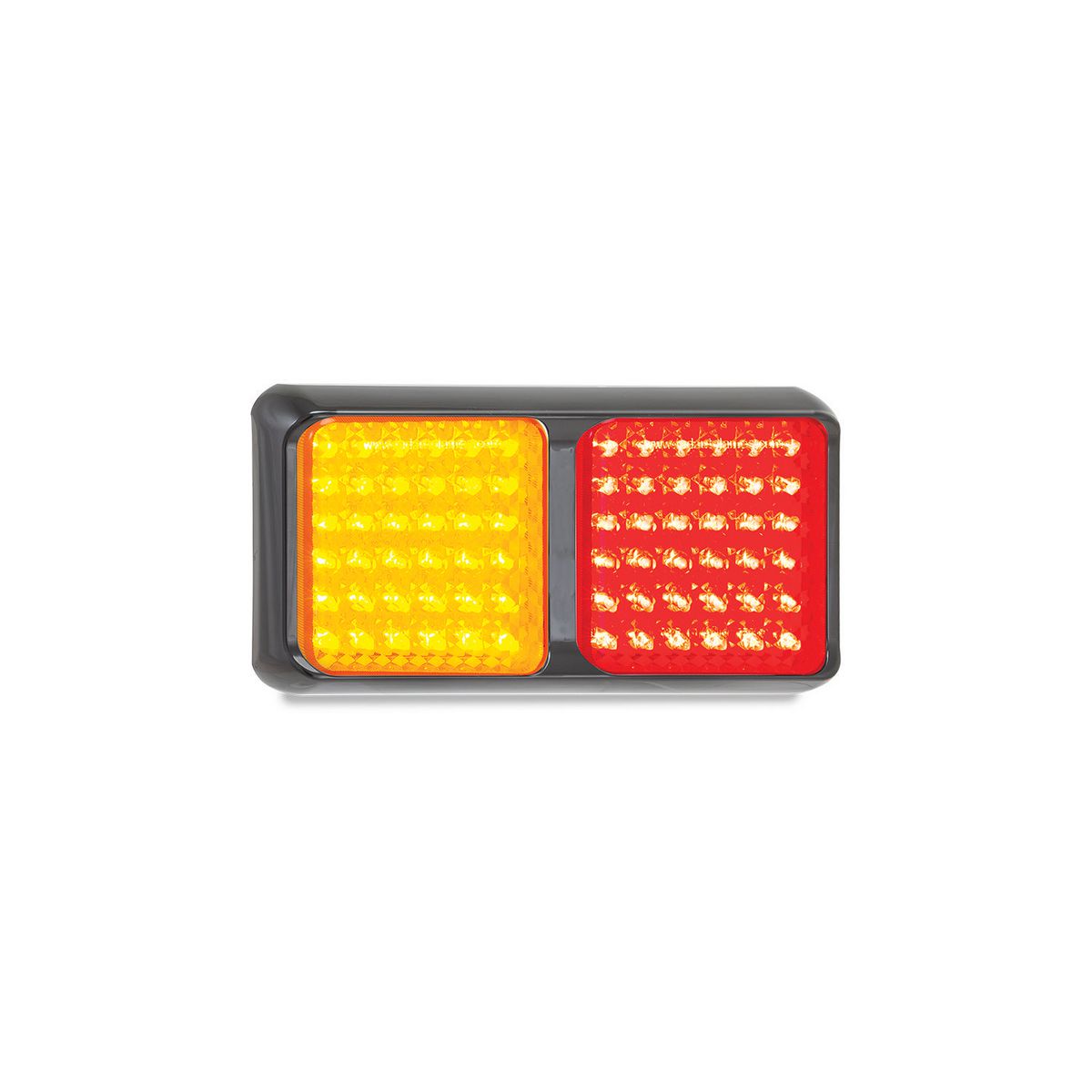

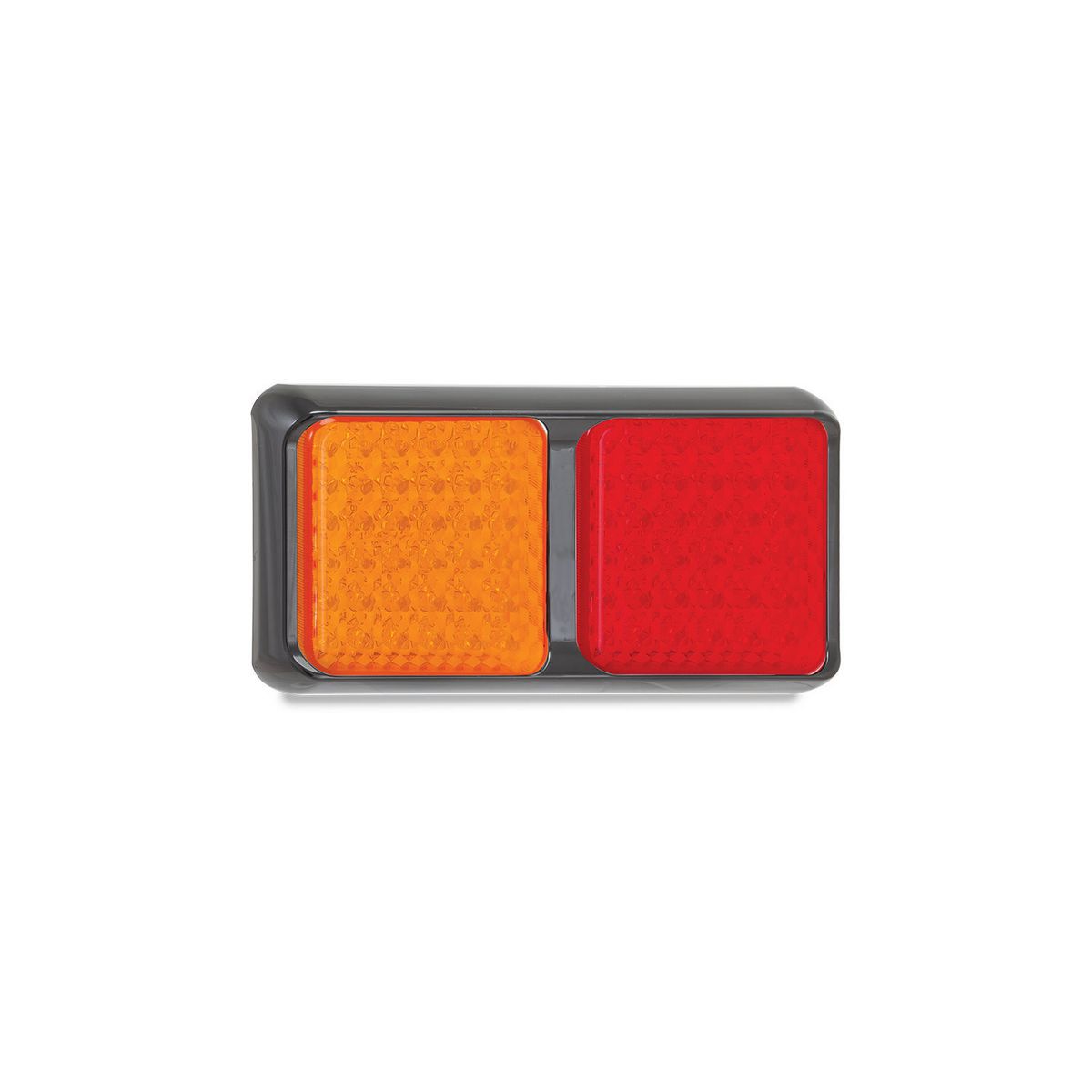

Stop tail indicator LED lamp handles rear lighting on trailers that need stop, tail and indicator functions in one compact surface mount assembly. The black bracket carries the amber and red lens modules in a low profile rectangular body, so it suits trailer builds where depth and service access matter.

Features

• 72 LEDs across the stop, tail and indicator functions.
• Individual replaceable lenses help with service after lens damage.
• IP67 protection suits exposed trailer and vehicle rear mounting.
• 12-24V operation covers common trailer, truck and service vehicle systems.

Specifications and Materials

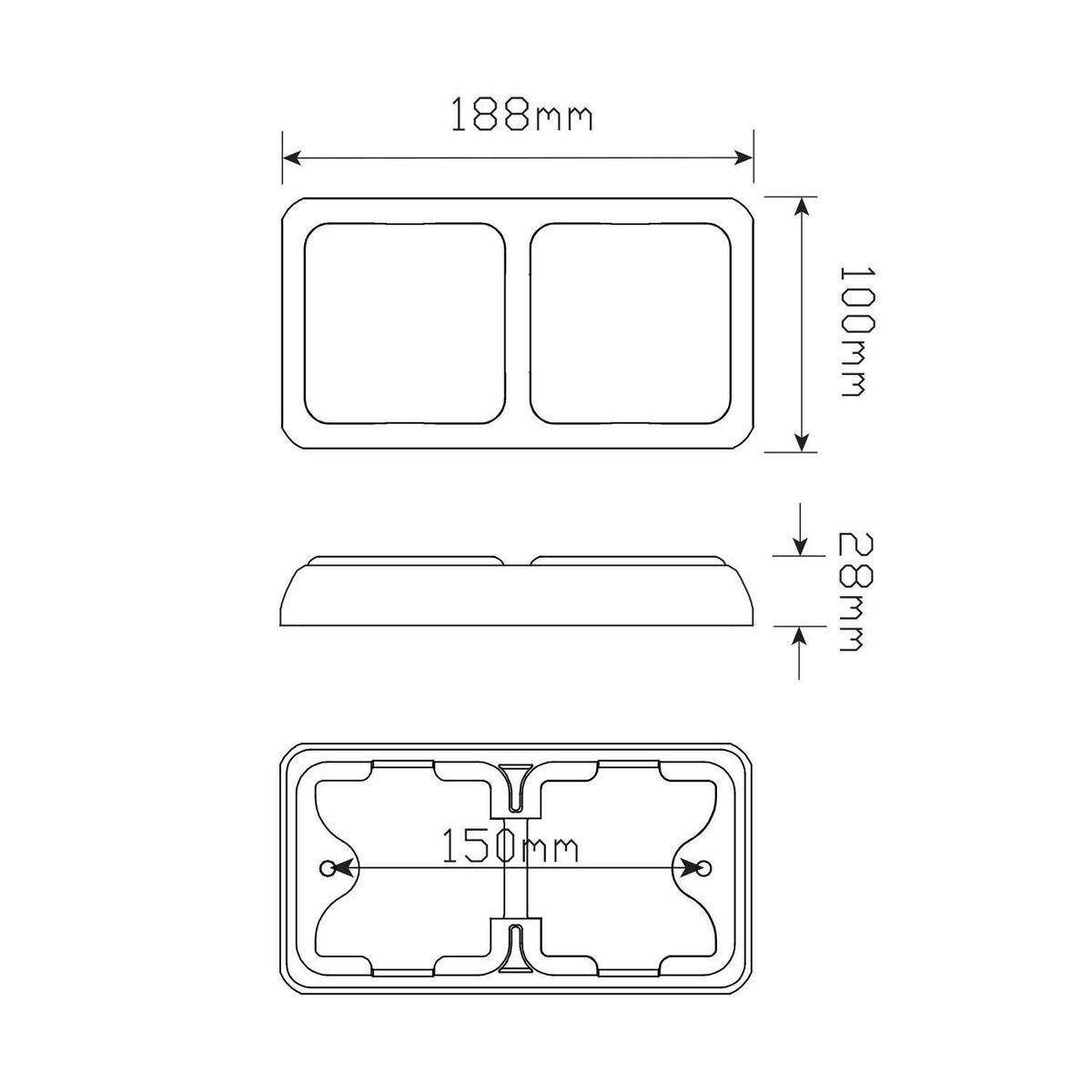

This lamp measures 188mm x 100mm x 28mm and uses a 150mm mounting hole spacing. It has a 40cm cable, PMMA lenses and an ABS black bracket.

Part number: 80BARM.

Use the manufacturer product page when matching the 80 Double Series body, voltage and mounting style.

Compatibility and Fitment

Check the body size, mounting centres, cable route and rear lighting function before ordering. This stop tail indicator LED lamp mounts horizontally on a flat surface, with the wiring running through the back and the lens clipped into place after fitting.

Match the vehicle wiring colours before connection. Red runs stop, brown runs tail, white runs earth and the indicator feed runs to the amber function.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp in a position that keeps the rear stop, tail and indicator signals visible. Also check ADR 13/00 mounting guidance for the trailer layout, because lamp position and orientation matter as much as the lamp specification.

Trailer Applications

Workshops fit this style of lamp to box trailers, plant trailers, service trailers and light commercial bodies that need a compact rear combination lamp. The stop tail indicator LED lamp also suits replacement work where the old lamp shares the same general footprint and mounting style.
