Amber LED Emergency Lamp 12-24V
Amber LED Emergency Lamp 12-24V
$80.00
Amber LED emergency lamp for 12-24V trailer, service vehicle and roadside warning setups, with six 3 Watt LEDs, 14 flash patterns, sync wire, 3M tape and screw mounting, low profile 131mm body and clear lens when inactive.
Part number 120035AM.
Description
Overview

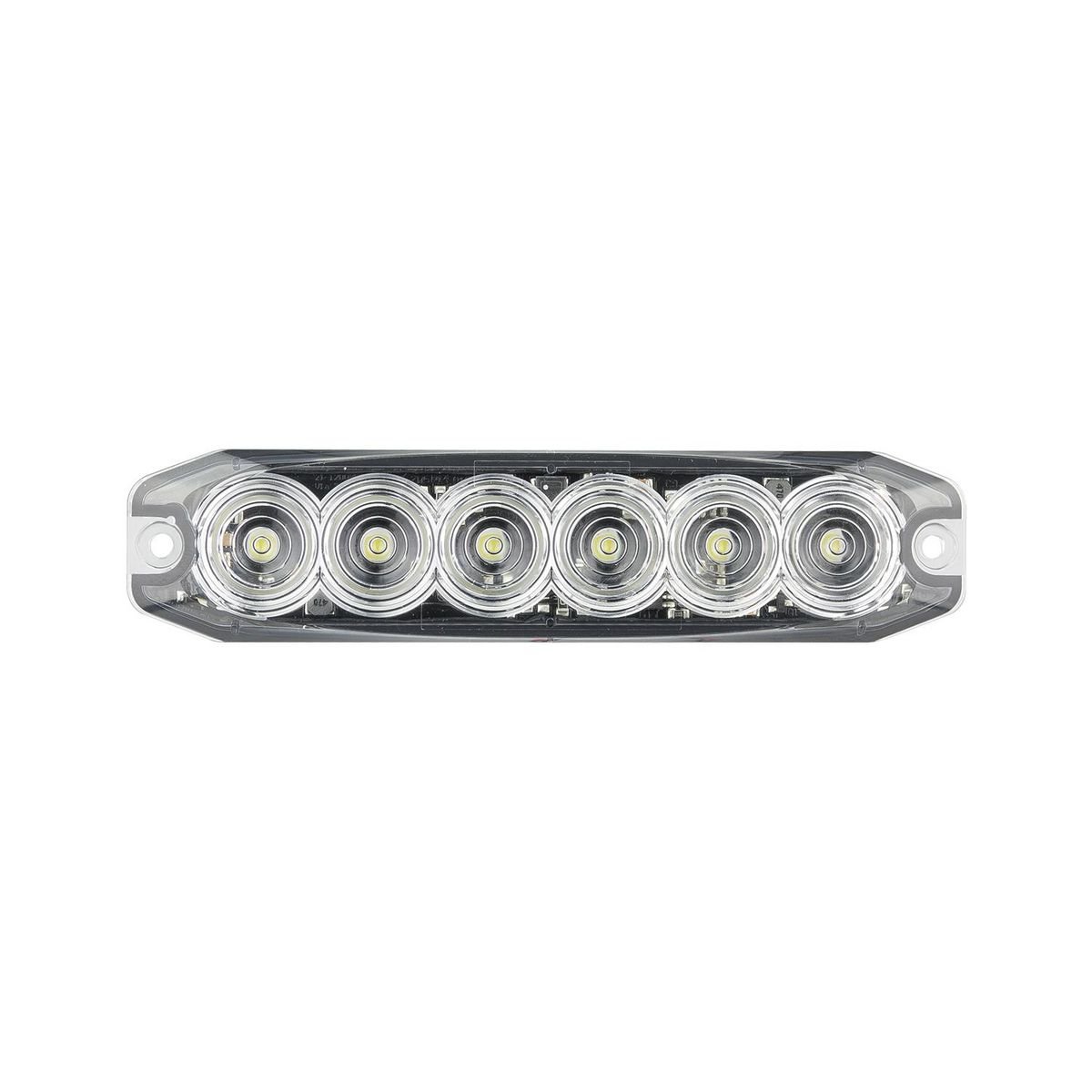

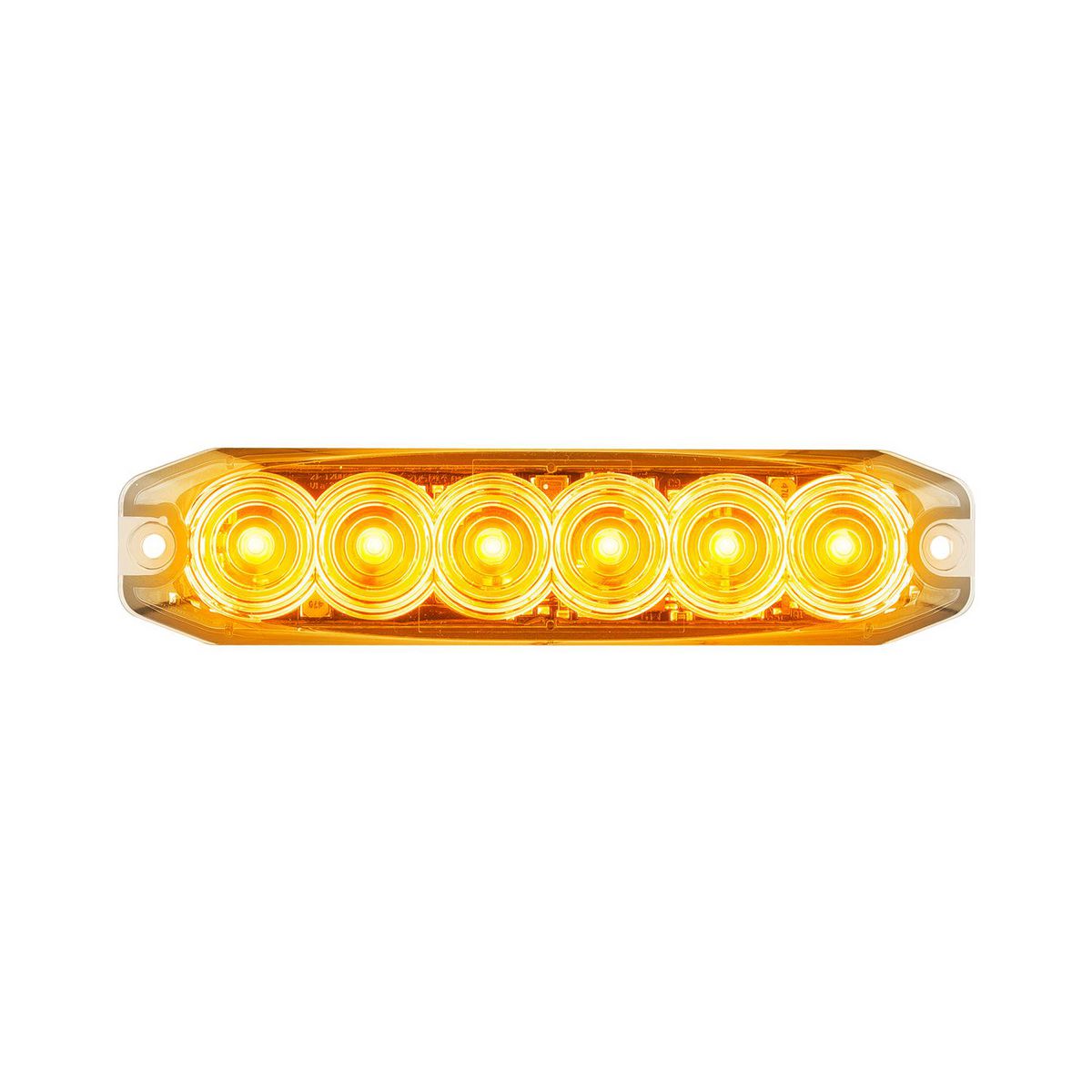

Amber LED emergency lamp gives trailers, service vehicles and roadside equipment a slim 12-24V warning light with amber output. The clear lens stays discreet when inactive, then the six high powered 3 Watt LEDs provide selectable emergency flash patterns when the circuit powers up.
Features
- 14 flash patterns, with SAE J595 Class 1 coverage on patterns 8-12 only.
- 3M tape and screw fitting for low profile surface mounting.
- Synchronising wire supports grouped simultaneous or alternating flashes.
- IP67 protection with ECE R10 compliance for vehicle electrical use.
Specifications and Materials

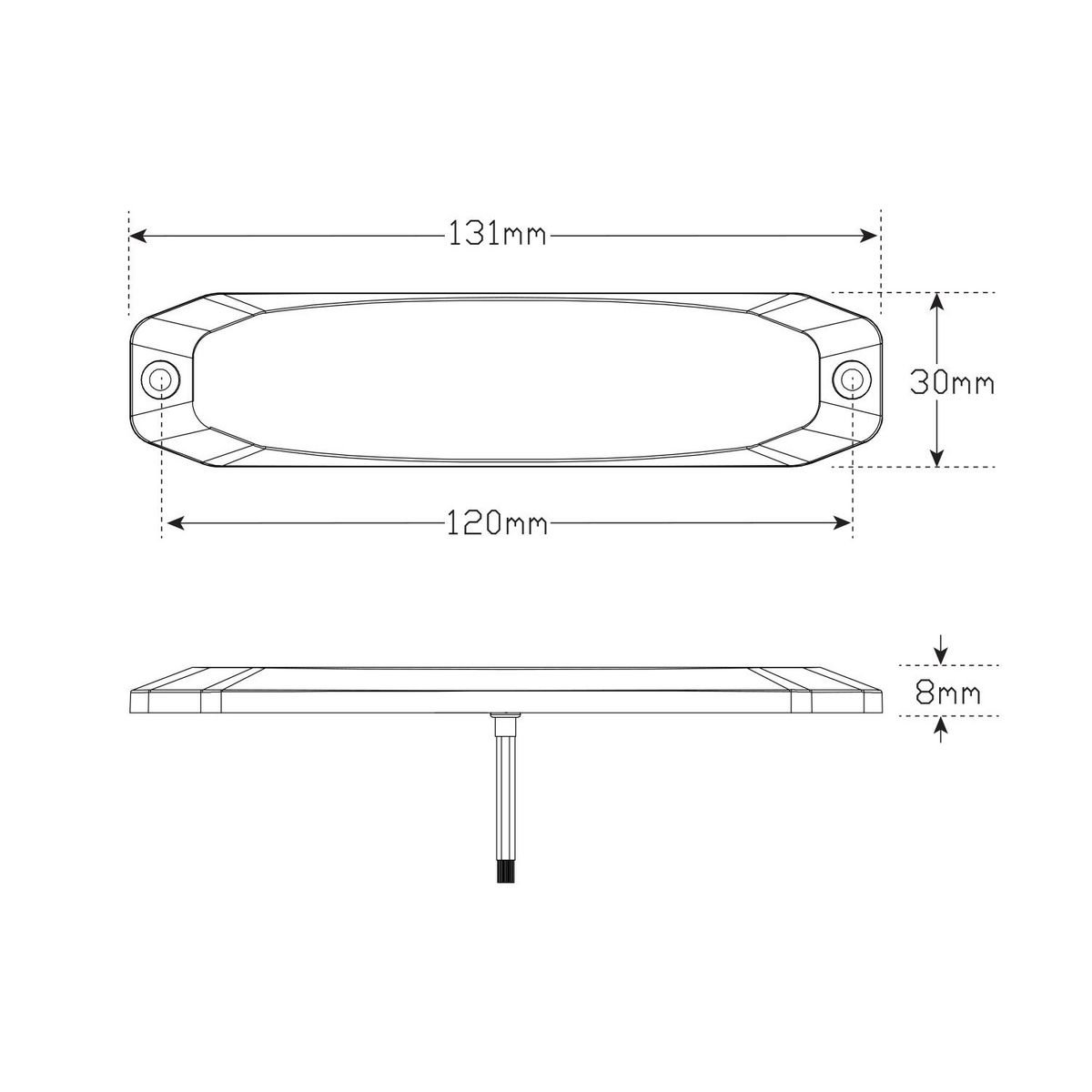

This Amber LED emergency lamp measures 131mm x 30mm x 8mm with 120mm mounting hole spacing and a 25cm cable. It runs on multivolt 12-24V systems and draws 0.29A constant at 13.8V, or 0.153A constant at 28V.
Part number: 120035AM.
Use the manufacturer product page when matching the lamp family and mounting style.
Compatibility and Fitment
Check voltage, colour, mounting surface and warning light requirements before ordering. The lamp mounts with 3M tape and can be secured further with screws, so the surface needs to be flat, clean and suitable for a low profile emergency lamp.
For multiple lamps, use the synchronising wire to group units for simultaneous or alternating flashing. Up to 20 lamps can be synchronised when wired as directed.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 120035RM | Red emergency lamp |
| Related version | 120035BM | Blue emergency lamp |
| Related version | 120035WM | White emergency lamp |
Compliance and Safety
Install warning lamps so they suit the vehicle role, road use and site rules. Also refer to ADR 13/00 mounting guidance where the fitment calls for road vehicle positioning, and use only SAE patterns 8-12 where SAE J595 Class 1 performance matters.
Trailer Applications
Fleets fit this Amber LED emergency lamp to service bodies, utility trailers, roadside assistance vehicles and plant support equipment where an amber low profile warning light makes the vehicle easier to see. It suits trailer electrical builds that need a compact surface mount lamp rather than a rotating beacon or full light bar.
Why Choose ICS Trailers
ICS Trailers supplies LED lighting, electrical parts and workshop support gear for trailers, fleets and service vehicles.
