Description

Overview

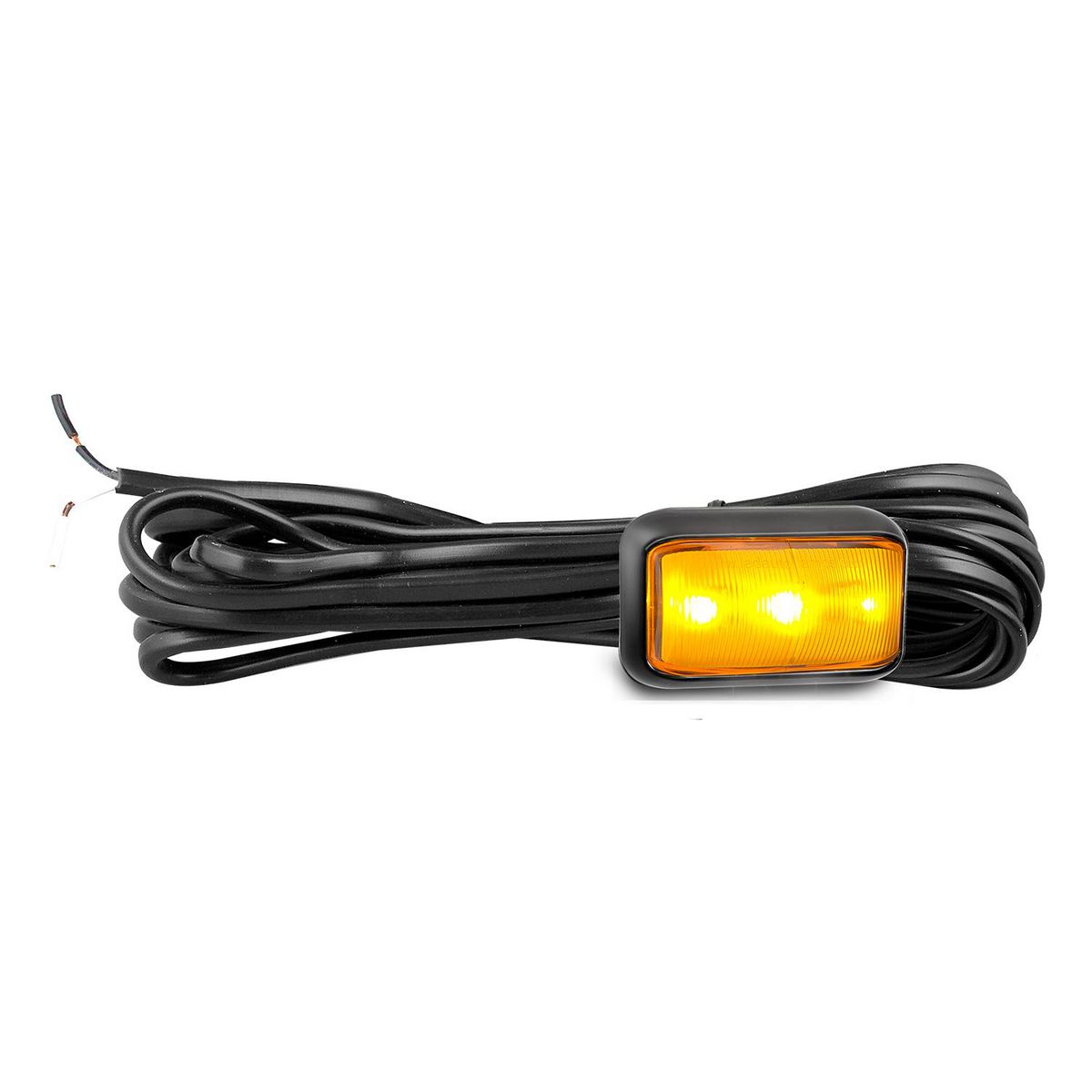

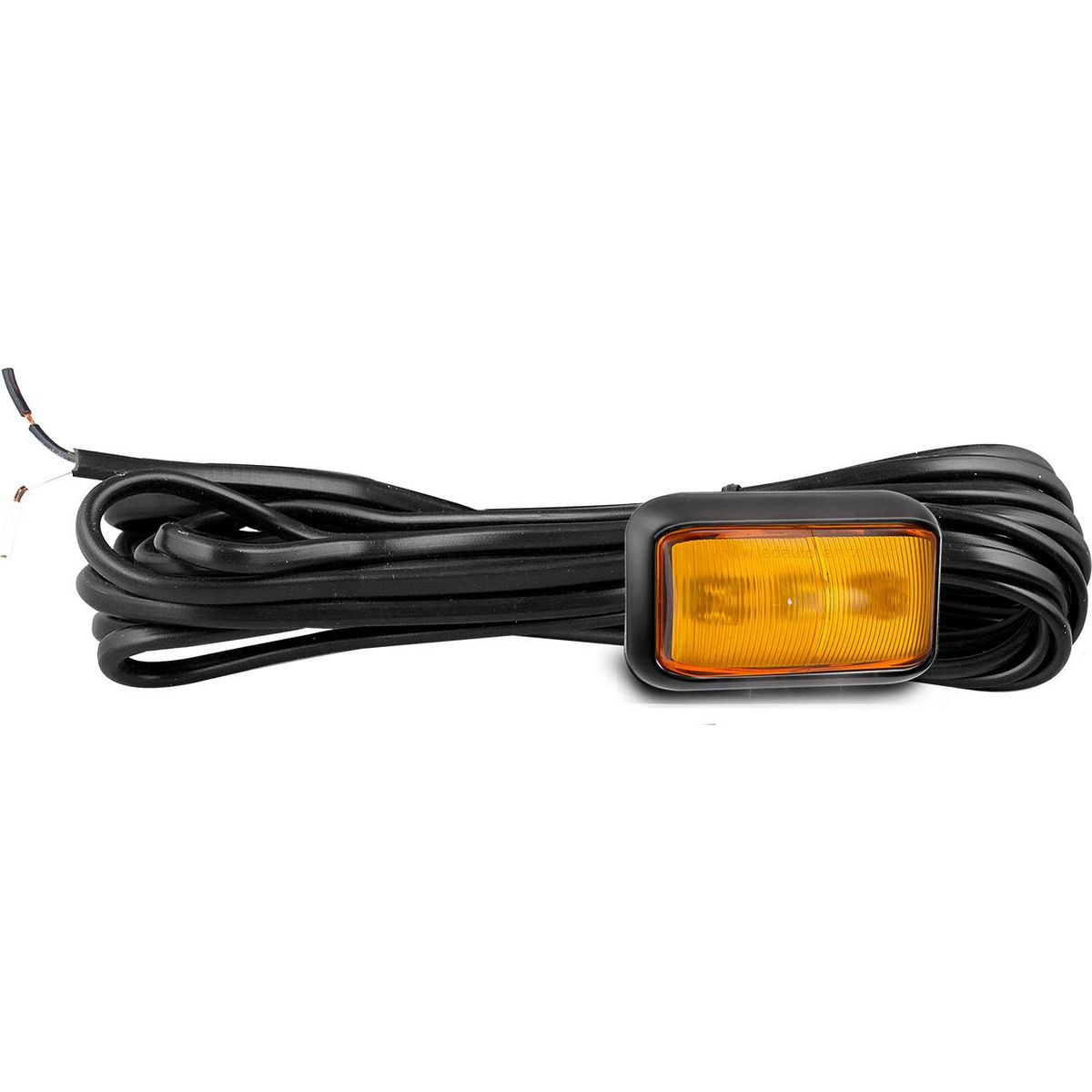

Side direction LED indicator lamp provides amber side indicator signalling for trailers, truck bodies and service vehicles using 12-24V electrical systems. The low-profile 58 Series body suits tight side mounting positions, while the clip-in lens makes the lamp easier to service than sealed one-piece marker bodies. Its 3m bare-wire cable also helps on longer body runs where a short pigtail will not reach the loom cleanly.

Features

• 3 LEDs provide amber side direction indicator output.
• 3m bare-wire cable suits longer trailer and body wiring runs.
• Clip-in replaceable lens supports easier lamp servicing.
• IP67 rating helps protect the lamp from dust and water exposure.

Specifications and Materials

This side direction LED indicator lamp measures 58mm × 35mm × 21mm and runs on 12-24V systems. It uses a hardened acrylic lens, ABS base and 3m cable.

The side direction indicator function draws 0.10A at 13.8V and 0.04A at 28V. Wire colours are brown for power, yellow for indicator and white for earth.

Part number: 58AM3.

Use the official datasheet for current draw, approvals and mounting data

Compatibility and Fitment

Match the 58mm body length, 35mm height, 21mm depth, cable length and mounting style before ordering. Horizontally mount the bracket to a flat surface with the screws provided, run the cable through the back and clip the lens into place.

This side direction LED indicator lamp suits 58 Series black-bracket side direction layouts where a compact amber lamp with a longer cable is required.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp where the side indicator remains visible and protected from body damage where possible. After wiring, test the indicator function and check the earth connection, because poor earths can cause weak or intermittent trailer lighting faults.

Trailer Applications

Workshops fit this side direction LED indicator lamp to trailers, rigid bodies, truck bodies and service bodies that need a compact amber side indicator. The 3m cable helps when wiring along longer side panels or routing back to a central loom point.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, fleet work and body builds, so match the lamp body, bracket style and cable route before fitting this indicator.
